Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08

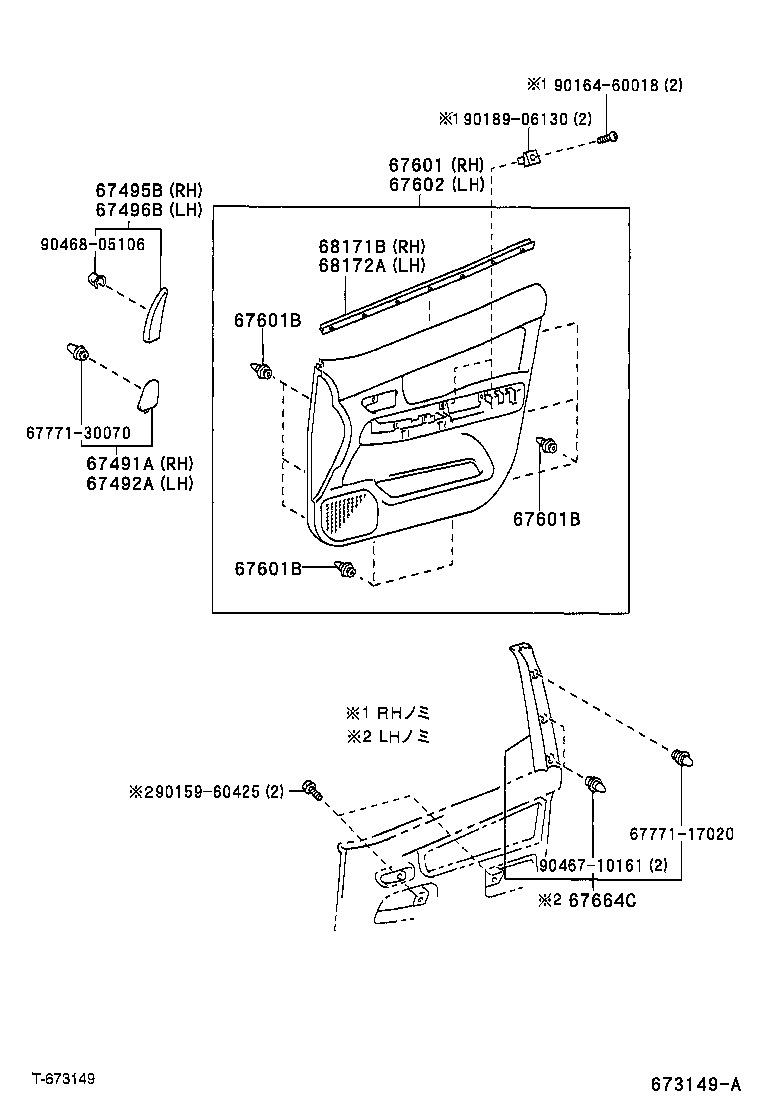

Front Door Panel & Glass

38 part groups · 3 illustrations

PNC	Description
61256C	Plate, Roof Side Rail, Outer LH
67001	Panel Sub-assy, Front Door, RH
67002	Panel Sub-assy, Front Door, LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67495B	Cover, Front Door Front Lower Frame, Upper RH
67496B	Cover, Front Door Front Lower Frame, Upper LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67664C	Garnish, Door Frame, LH
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67834	Cover, Front Door Service Hole, NO.2 LH
67861	Weatherstrip, Front Door, RH
67862	Weatherstrip, Front Door, LH
67864B	Weatherstrip, Front Door, NO.2 LH
67866A	Weatherstrip, Front Door, NO.3 LH
67867C	Retainer, Front Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67869E	Clip, Front Door Weatherstrip
67927B	Cushion, Separation Door Stiffener, NO.1
67928B	Cushion, Separation Door Stiffener, NO.2
67929	Cushion, Separation Door Stiffener, NO.3
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
68621A	Cover, Front Door Check, RH
68622	Cover, Front Door Check, LH
75921C	Tape, Black Out, NO.1 RH
75922M	Tape, Black Out, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
