Toyota Raum
2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan
Supported model
Data version 2011-08

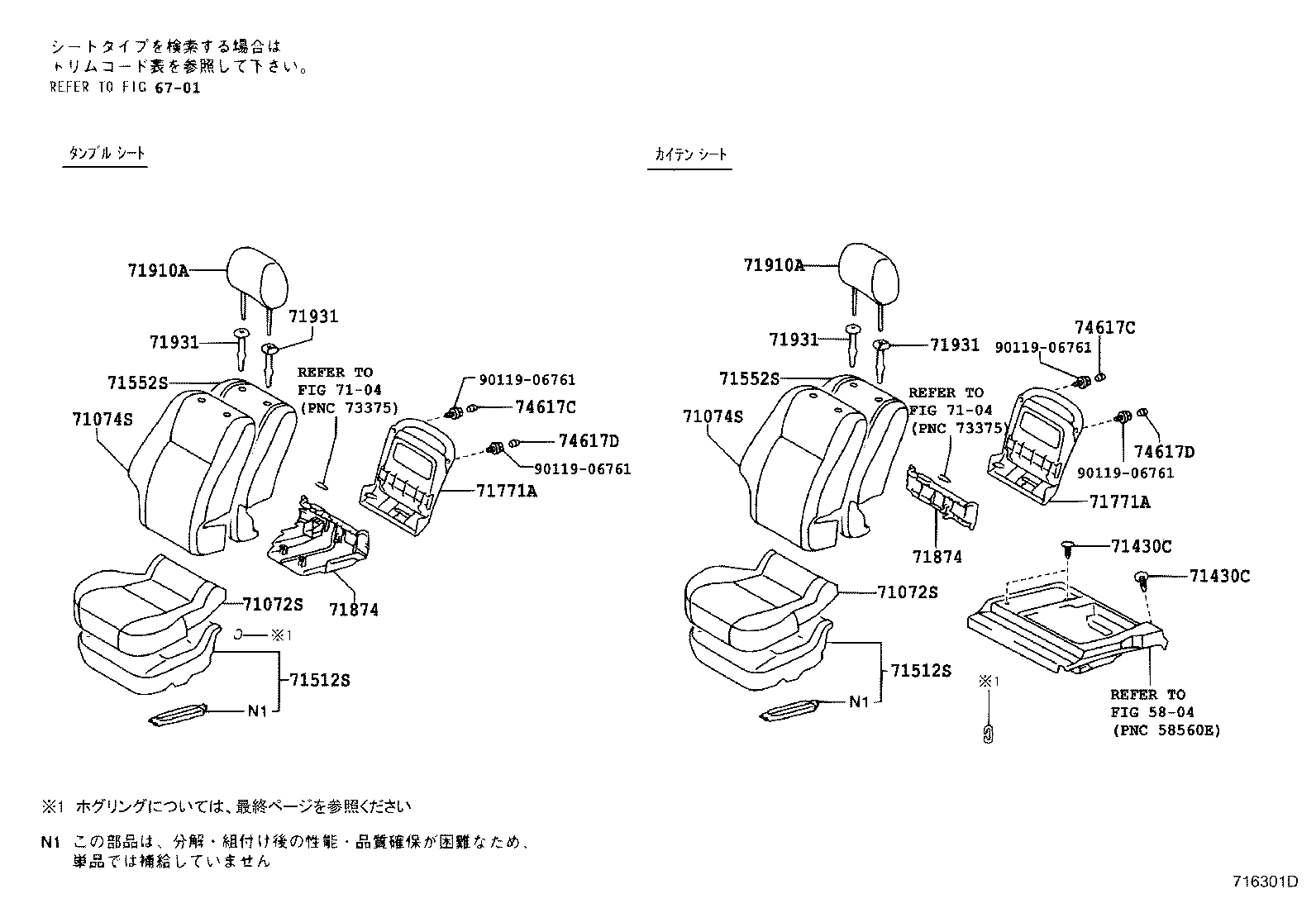

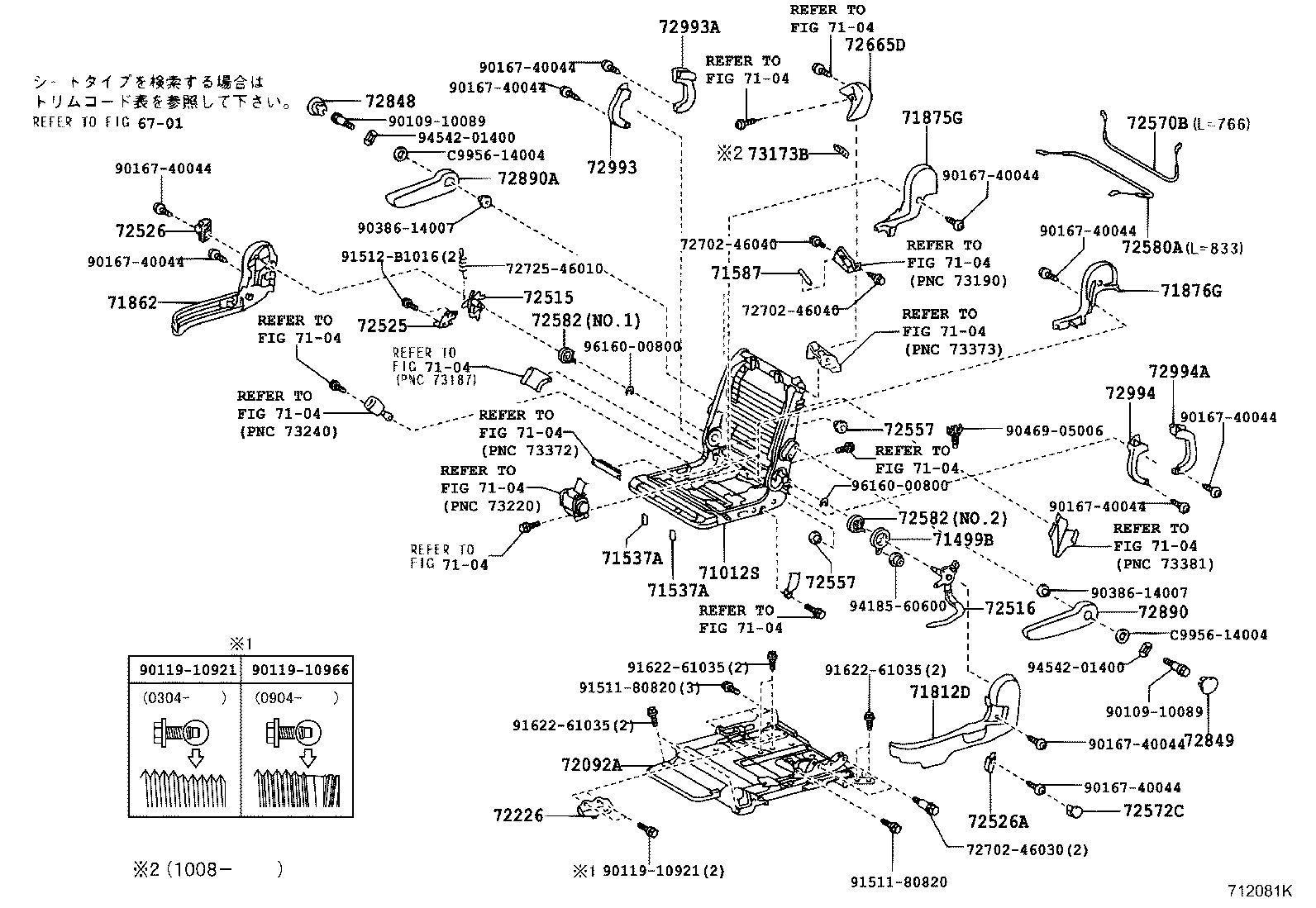

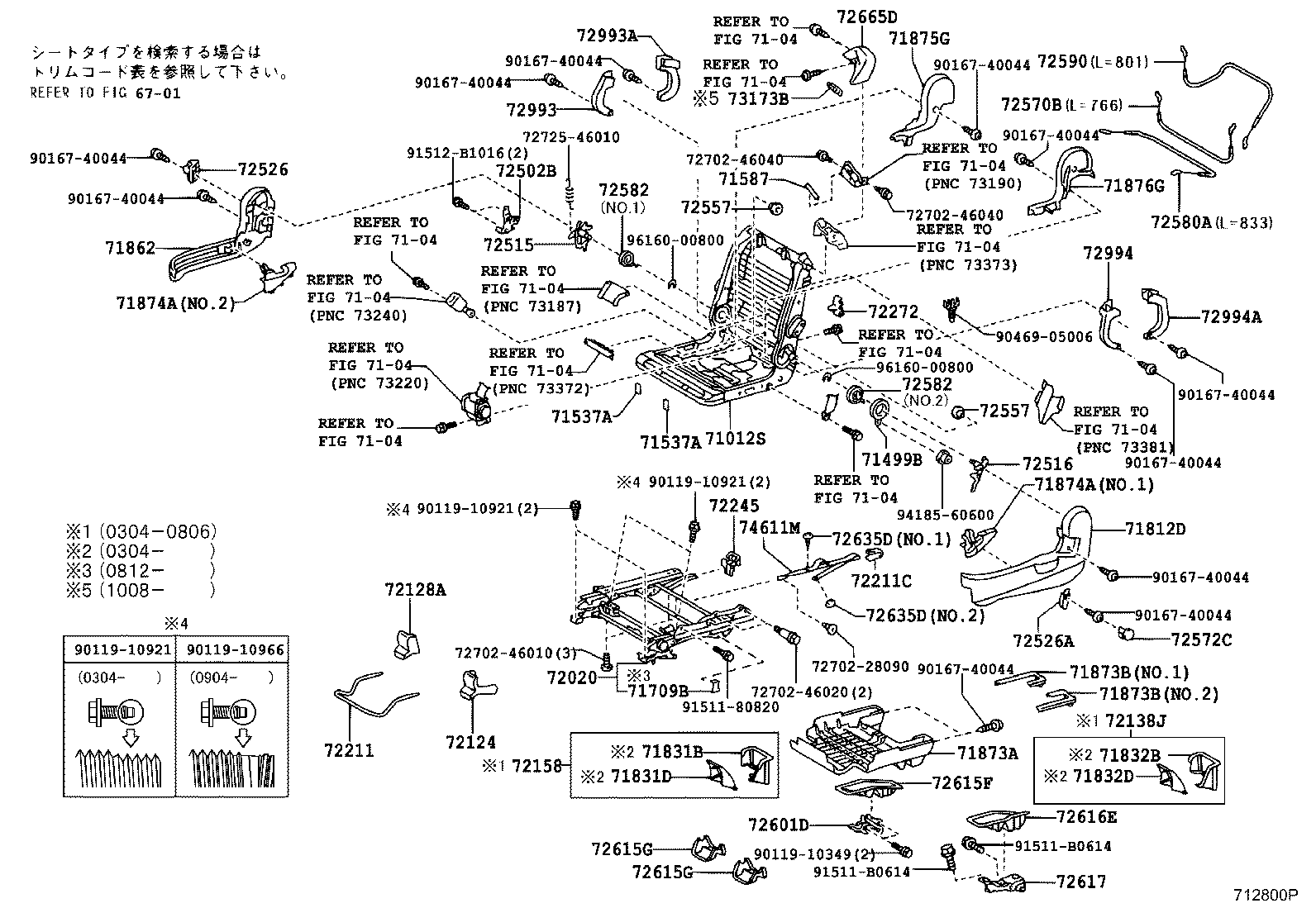

Front Seat & Seat Track
90 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55620D | Holder Assy, Front Seat Cup |
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71430C | Clip |
| 71499B | Damper, Seat Cushion Spring |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71709B | Cushion Sub-assy, Seat Support |
| 71759B | Hook, Front Seatback |
| 71771A | Board, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831B | Cover, Front Seat Hinge, RH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71873B | Shield, Front Seat Cushion, Lower RH, NO.1 |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72092A | Plate Sub-assy, Seat Turn, Upper |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157C | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72226 | Bracket, Seat Track, NO.1 |
| 72245 | Lever, Seat Track Lock Open, RH |
| 72272 | Clamp, Seat Track Control Cable |
| 72462 | Cover, Vertical Adjuster RH |
| 72477 | Spacer, Vertical Adjuster |
| 72494 | Handle, Vertical Adjusting, RH |
| 72502B | Arm Sub-assy, NO.2 Seat Reclining Adjuster, Upper NO.1 LH |
| 72515 | Arm,Reclining Adjuster Releas, NO.1 |
| 72516 | Arm, Reclining Adjuster Releas, NO.2 |
| 72525 | Screw, Front Seatback Hinge |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72557 | Spacer, Reclining Adjuster |
| 72570B | Cable Assy, Reclining Adjusting, RH |
| 72572C | Cap, Reclining Adjuster Knob, LH |
| 72580A | Cable Assy, Reclining Adjusting, LH |
| 72582 | Bar, Reclining Torsion |
| 72585 | Bracket, Seat Belt Hanger, RH |
| 72590 | Cable Assy, Seatback Control |
| 72601D | Striker, Front Seatback Lock |
| 72615F | Cover, Front Seatback Lock Striker |
| 72615G | Cover, Front Seatback Lock Striker,NO.2 |
| 72616E | Cover, Front Seatback Lock Striker |
| 72617 | Retainer, Seatback Lock Striker Cover |
| 72635D | Hook, Seatback Lock |
| 72665D | Cover, Front Seatback Lock |
| 72848 | Cap, NO.3 Seat Armrest |
| 72849 | Cap, Seat Armrest, NO.2 |
| 72880 | Armrest Assy, Seat, C RH |
| 72890 | Armrest Assy, Seat, C LH |
| 72890A | Armrest Assy, Front Seat, Inner LH |
| 72993 | Cover, Front Seatback |
| 72993A | Cover, Front Seatback |
| 72994 | Cover, Front Seatback |
| 72994A | Cover, Front Seatback |
| 73173B | Cover, Front Seat Belt Hole |
| 74611M | Strap, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617D | Plug, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
