Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

29 part groups · 3 illustrations

Illustrations

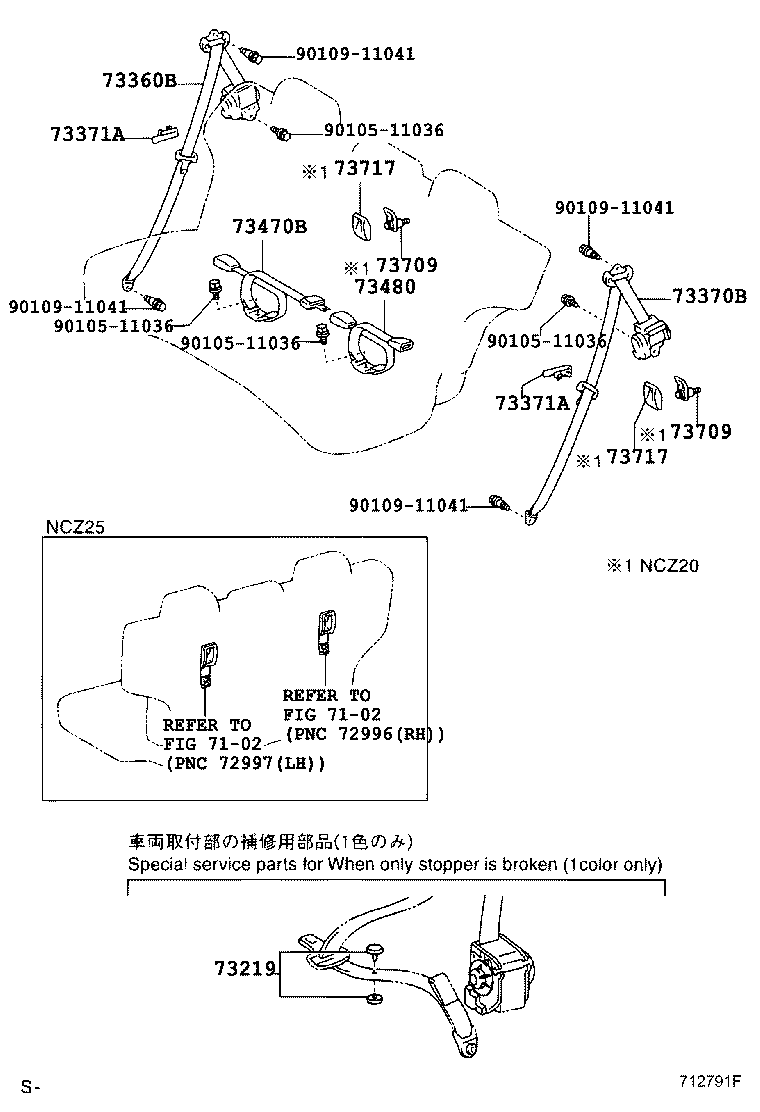

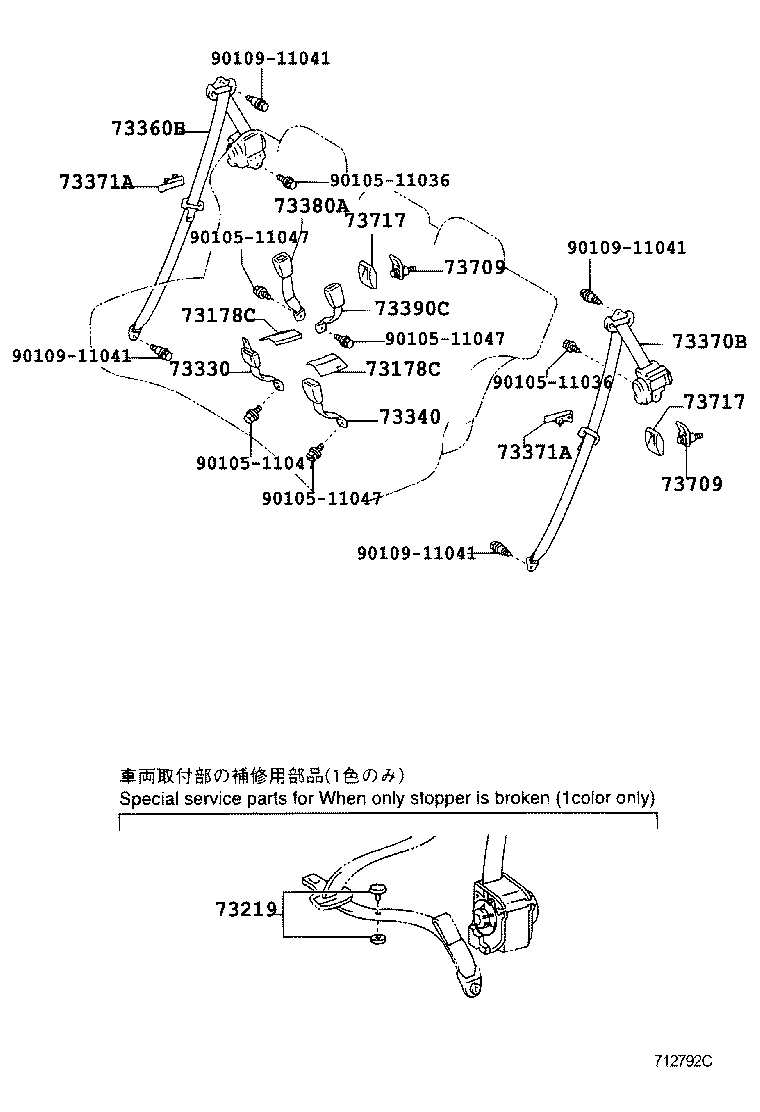

Figure 712790I 712790I 2003-04 → — Figure 712791F 712791F 2003-04 → — Figure 712792C 712792C 2003-04 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73187 Guide, Front Seat Shoulder Belt
73190 Bracket Assy, Seat Belt Inner Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73371A Hanger Rear Seat Shoulder Belt
73372 Hanger, Rear Seat Shoulder Belt, LH
73373 Cover, Rear Seat Shoulder Belt
73375 Cover, Rear Seat Shoulder Belt, LH
73380A Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
73381C Holder, Seat Belt
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73709 Bracket Sub-assy, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
