Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 3 illustrations

Illustrations

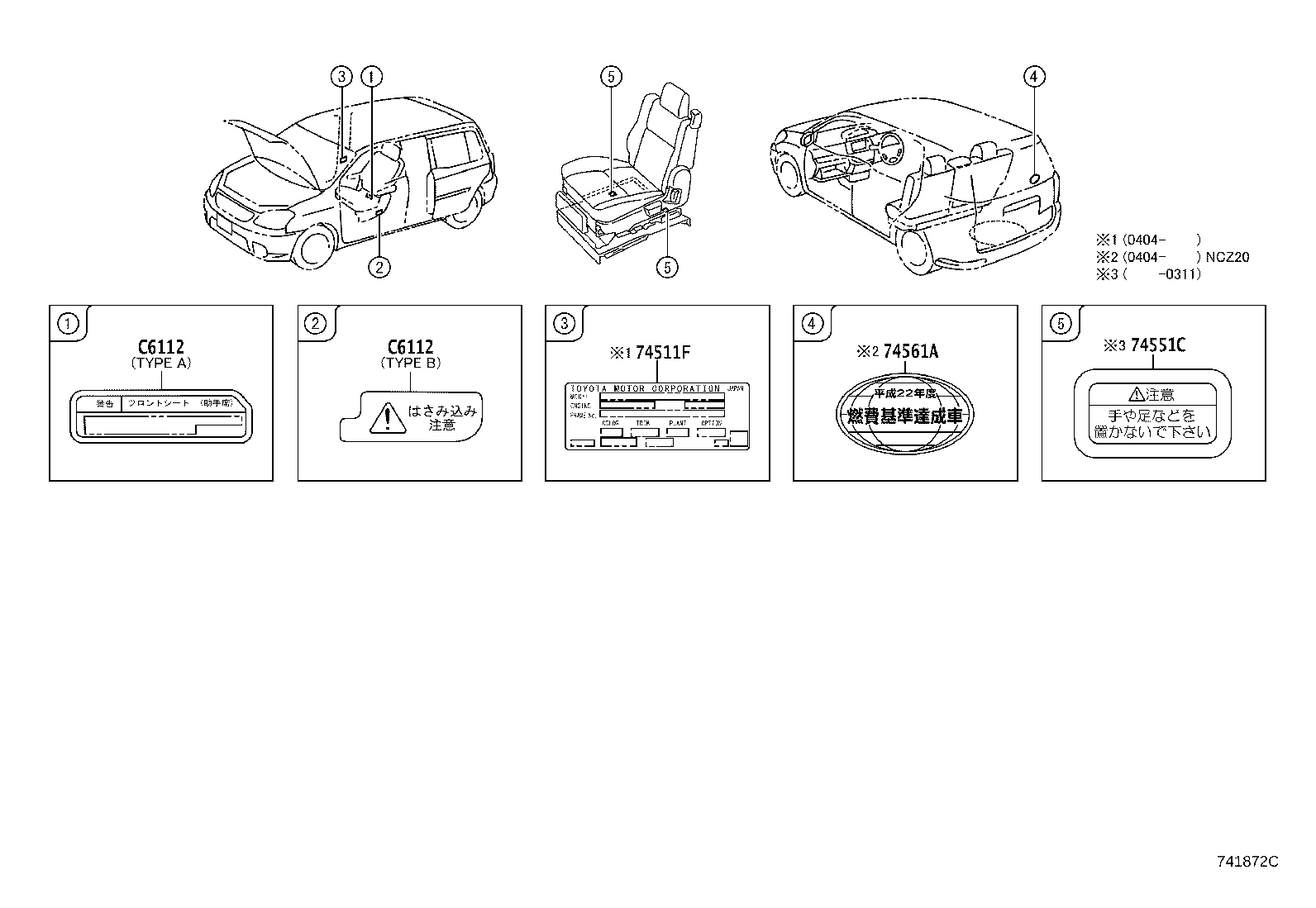

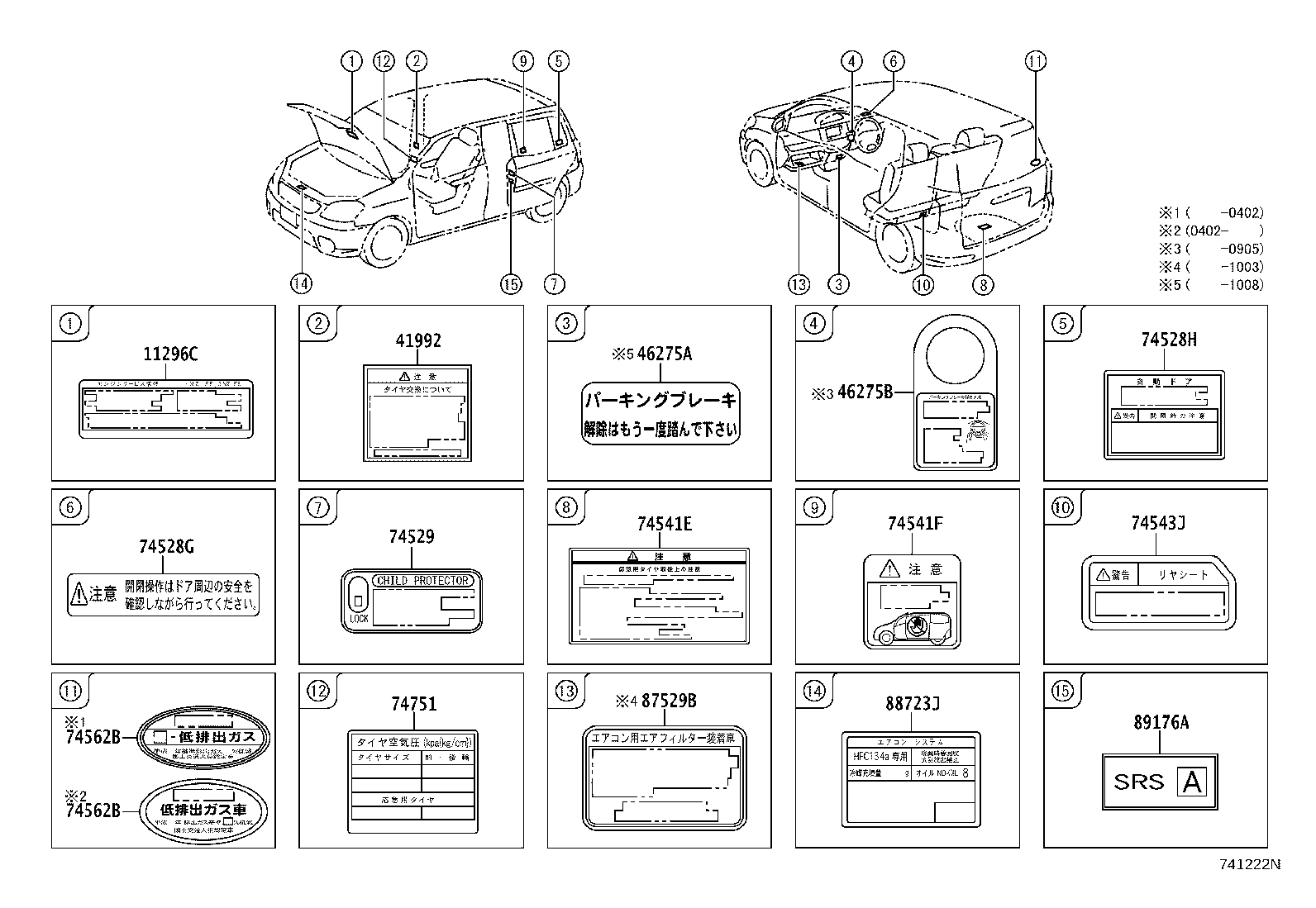

Figure 745444 745444 2003-04 → — Figure 741222N 741222N 2003-04 → — Figure 741872C 741872C 2003-04 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528G Label, Power Slide Door Caution
74528H Label, Power Slide Door Caution
74529 Plate, Child Proof OR Child Protector Lock Caution
74541E Plate, Compact Spare Tire Caution
74541F Label, Slide Door Glass Caution
74543J Label, Rear Seat Caution
74551C Plate, Rear Seat Protector Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723J Label, Cooler Service Caution, NO.2
89176A Label, Airbag Deployment Information
C6112 Label, Safety Information, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
