Toyota Raum
2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan
Supported model
Data version 2011-08

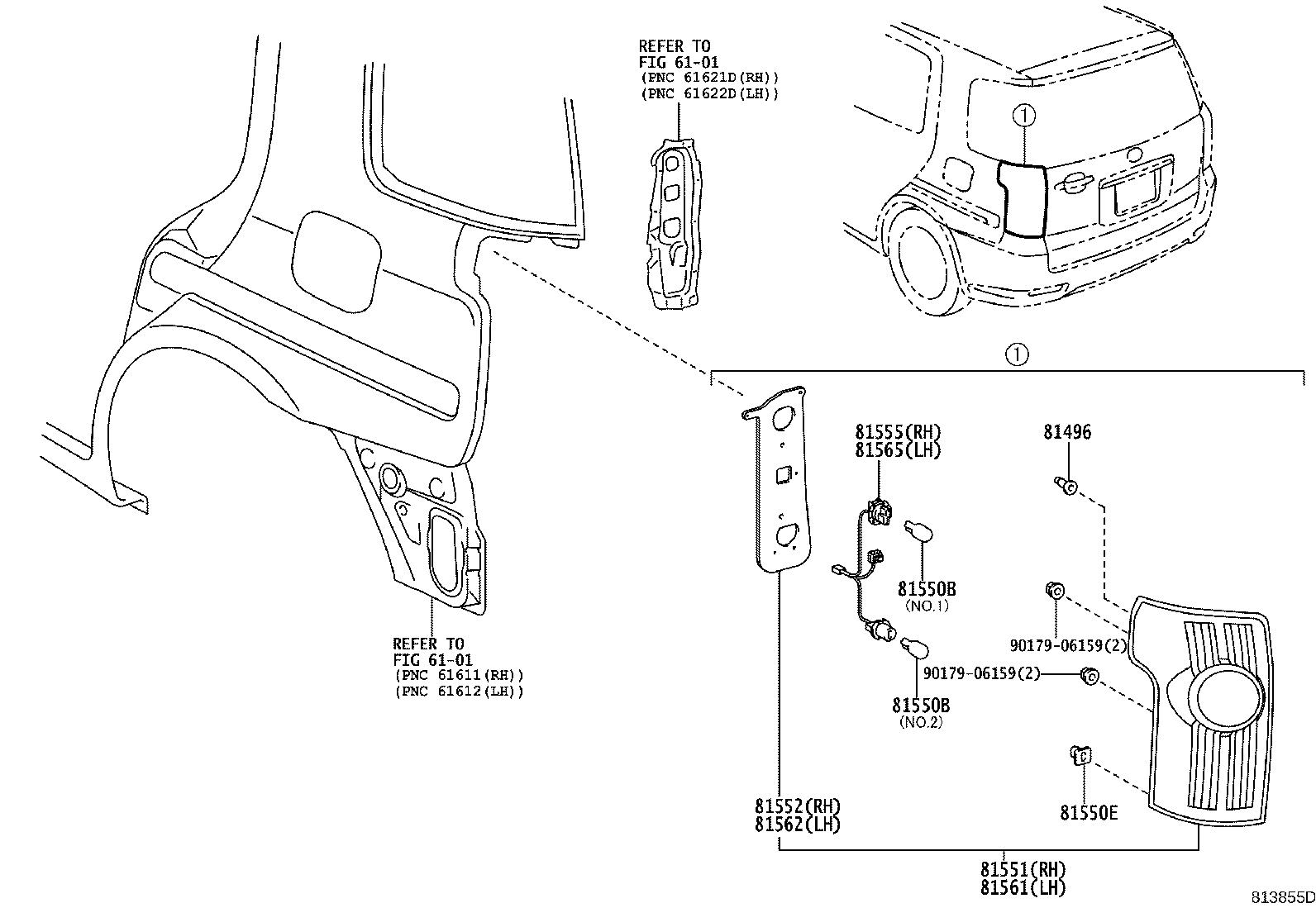

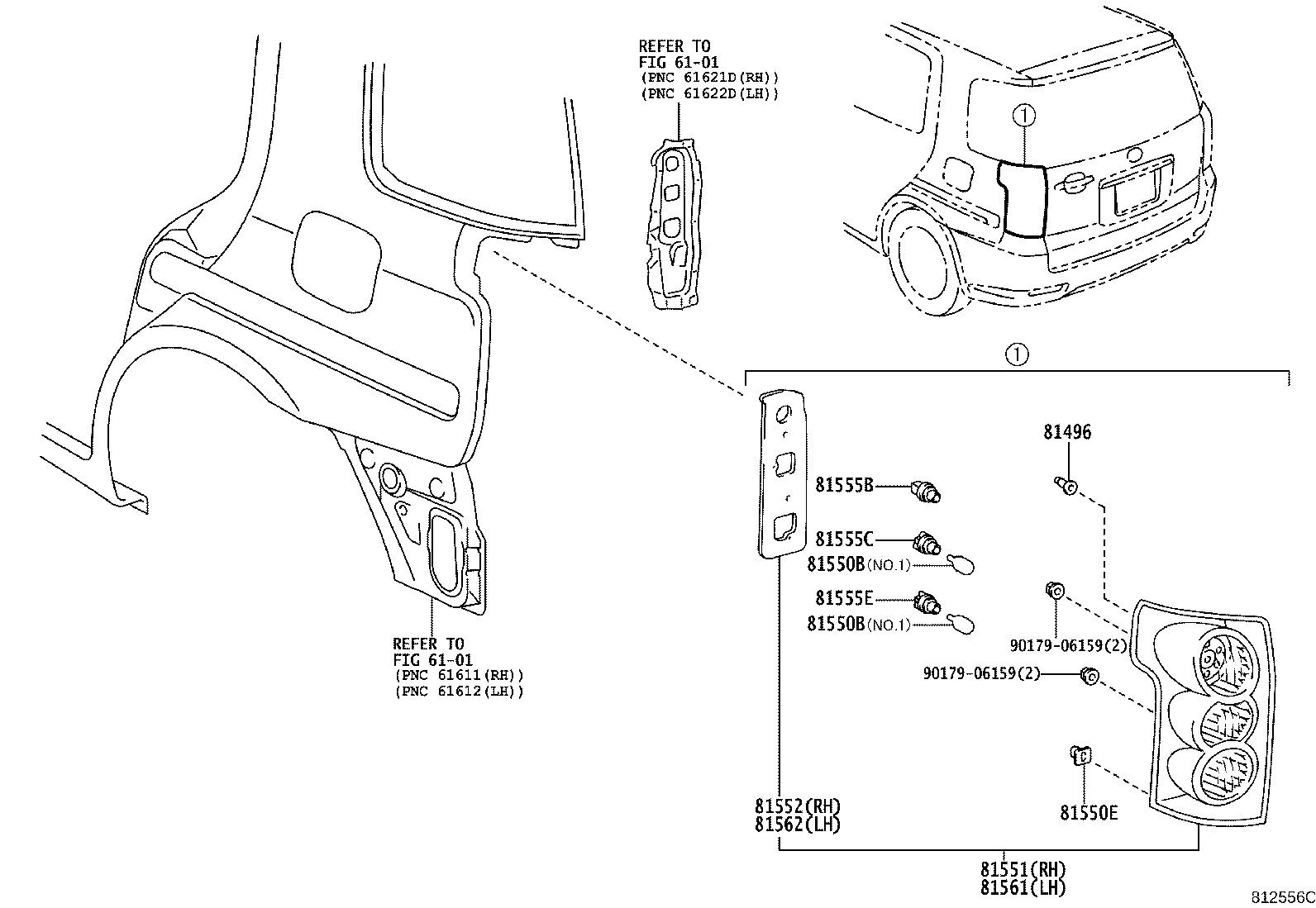

Rear Combination Lamp
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550E | Clip(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81555B | Socket Plug, NO.1 |
| 81555C | Socket Plug, NO.2 |
| 81555E | Socket Plug, NO.3 |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
