Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 8 illustrations

Illustrations

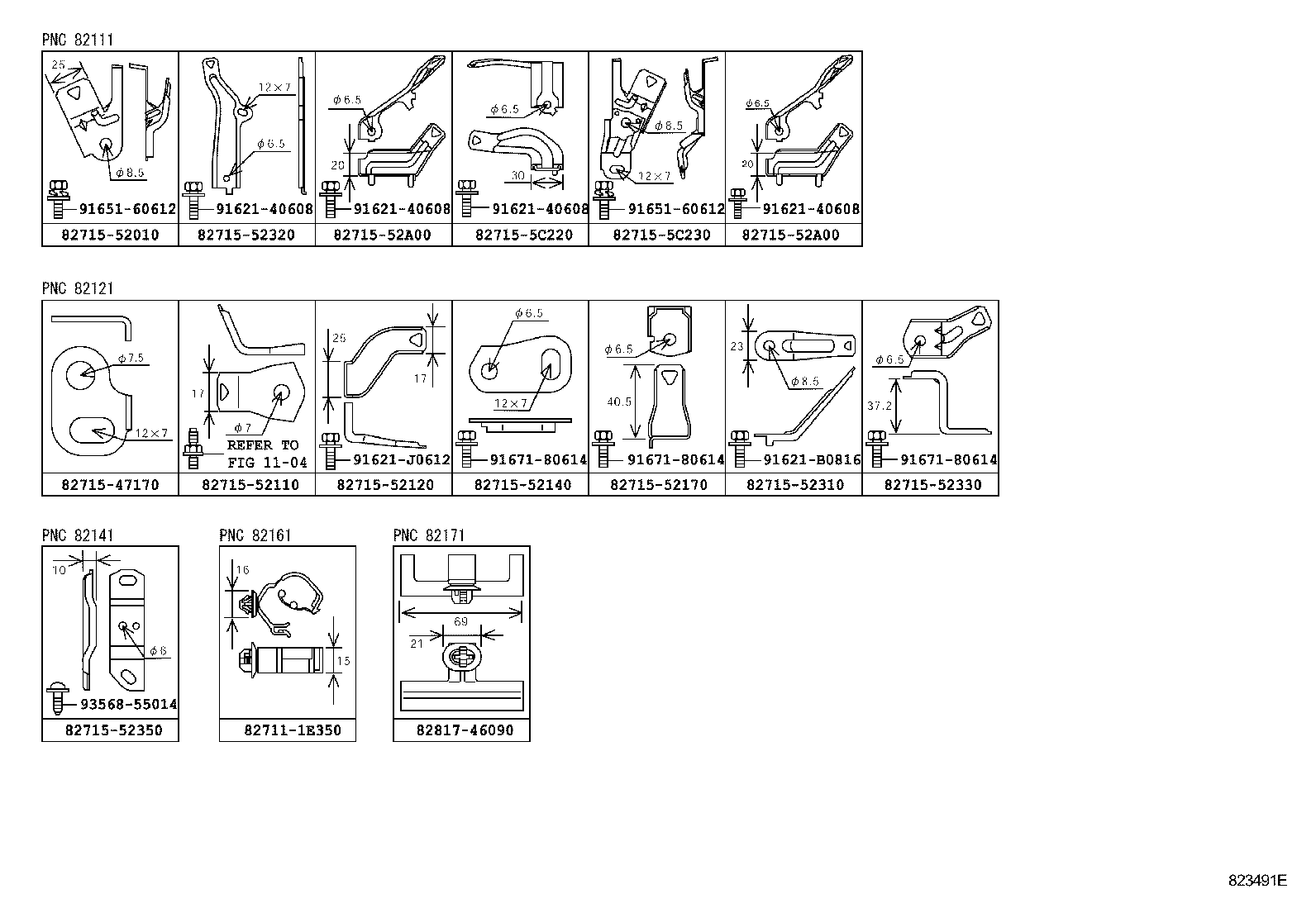

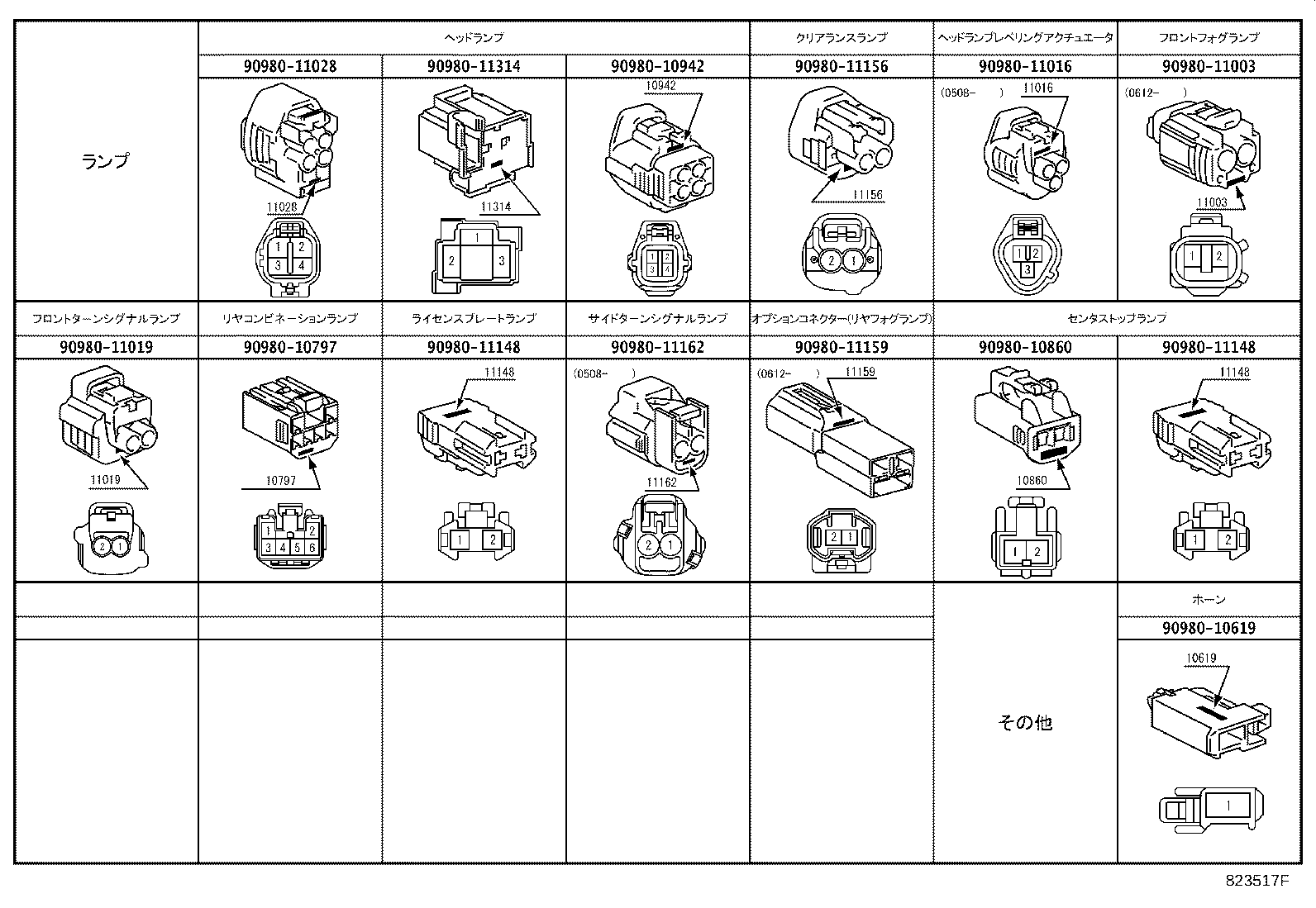

Figure 823485D 823485D 2003-04 → — Figure 823486B 823486B 2003-04 → — Figure 823487C 823487C 2003-04 → — Figure 823488B 823488B 2003-04 → — Figure 823489D 823489D 2003-04 → — Figure 823490A 823490A 2003-04 → — Figure 823491E 823491E 2003-04 → — Figure 823517F 823517F 2003-04 → —

Part groups

PNCDescription
46431 Bolt, Wire

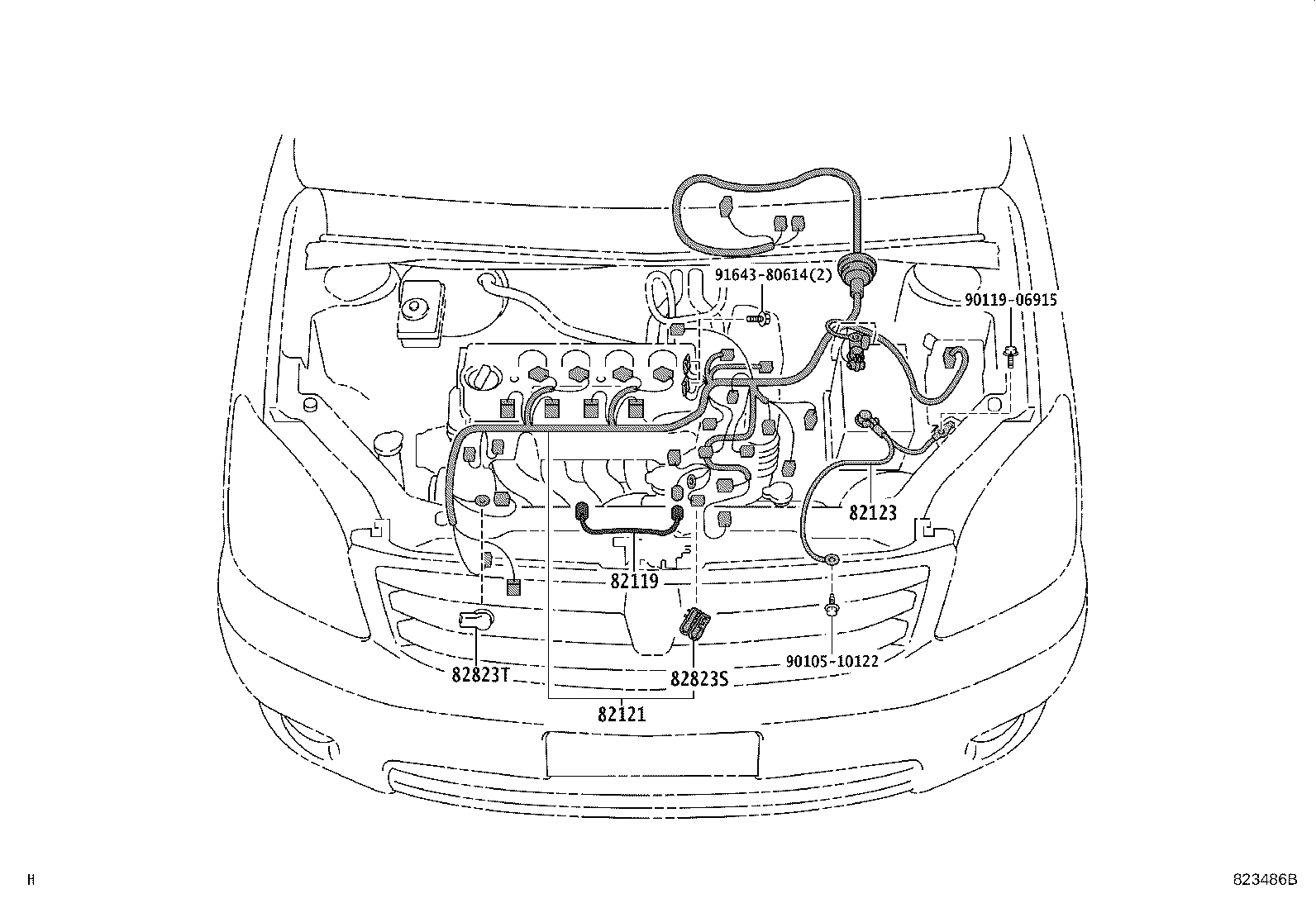

82111 Wire, Engine Room Main
82119 Wire, Sensor
82121 Wire, Engine
82123 Wire, Engine, NO.3

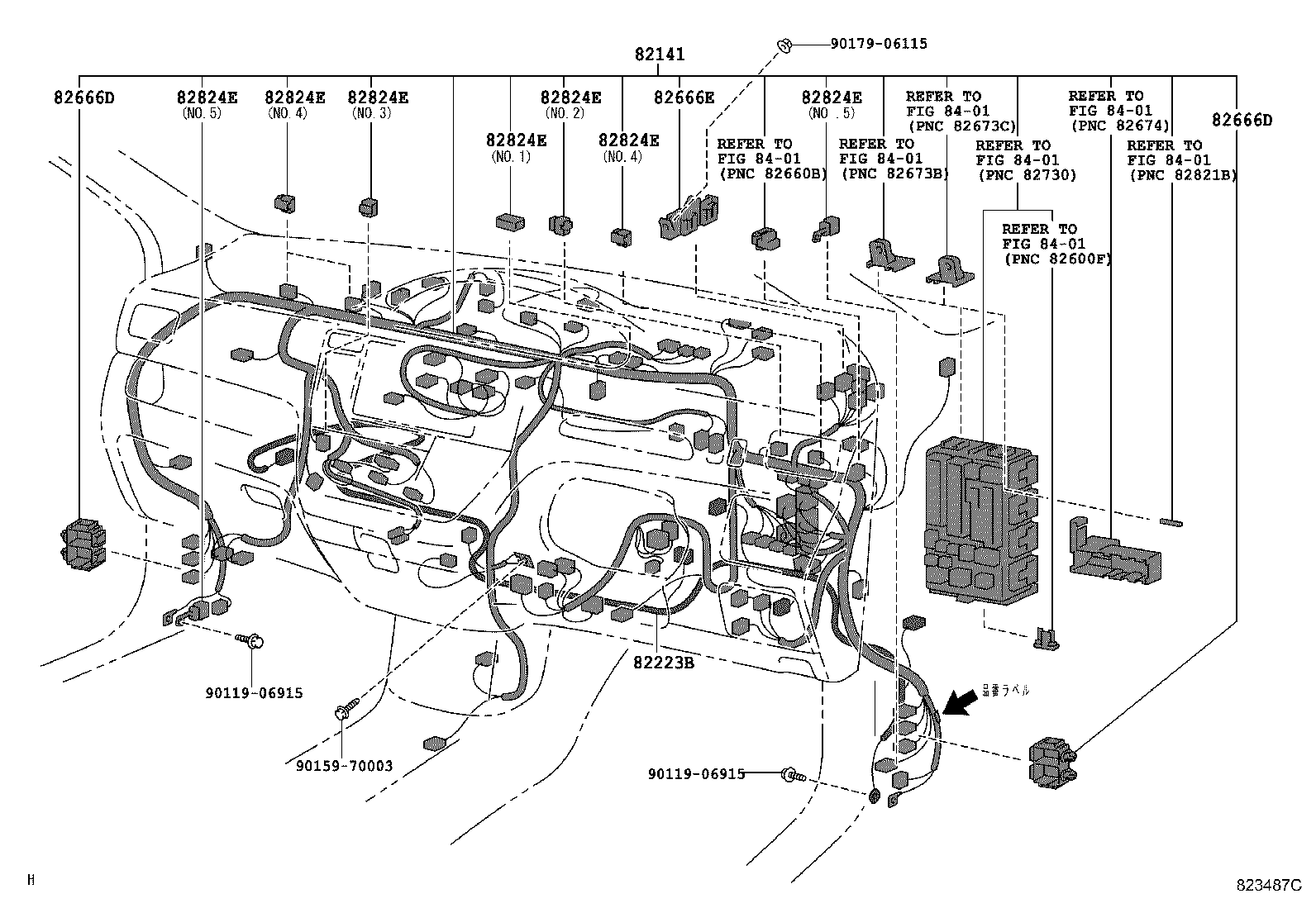

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

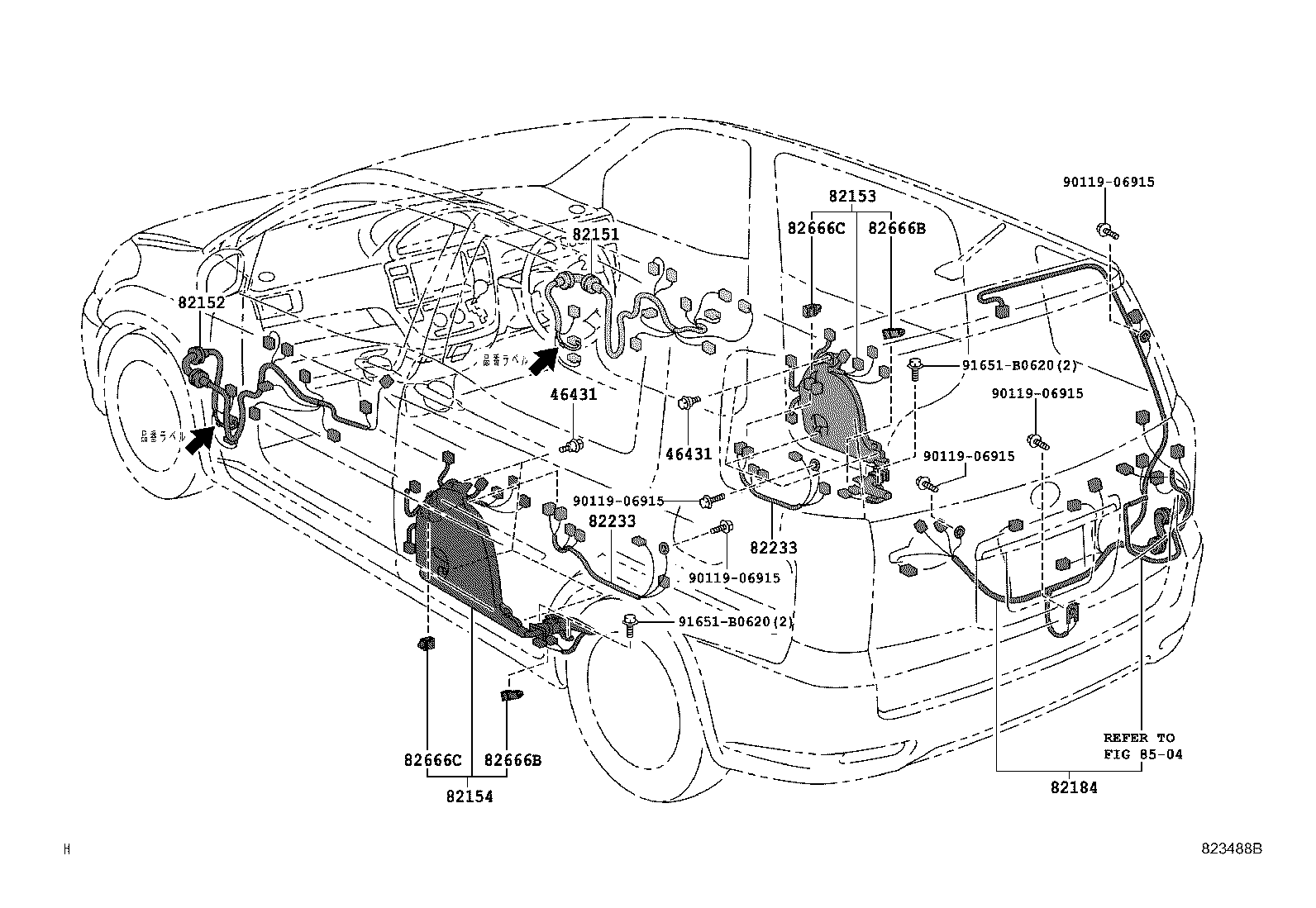

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

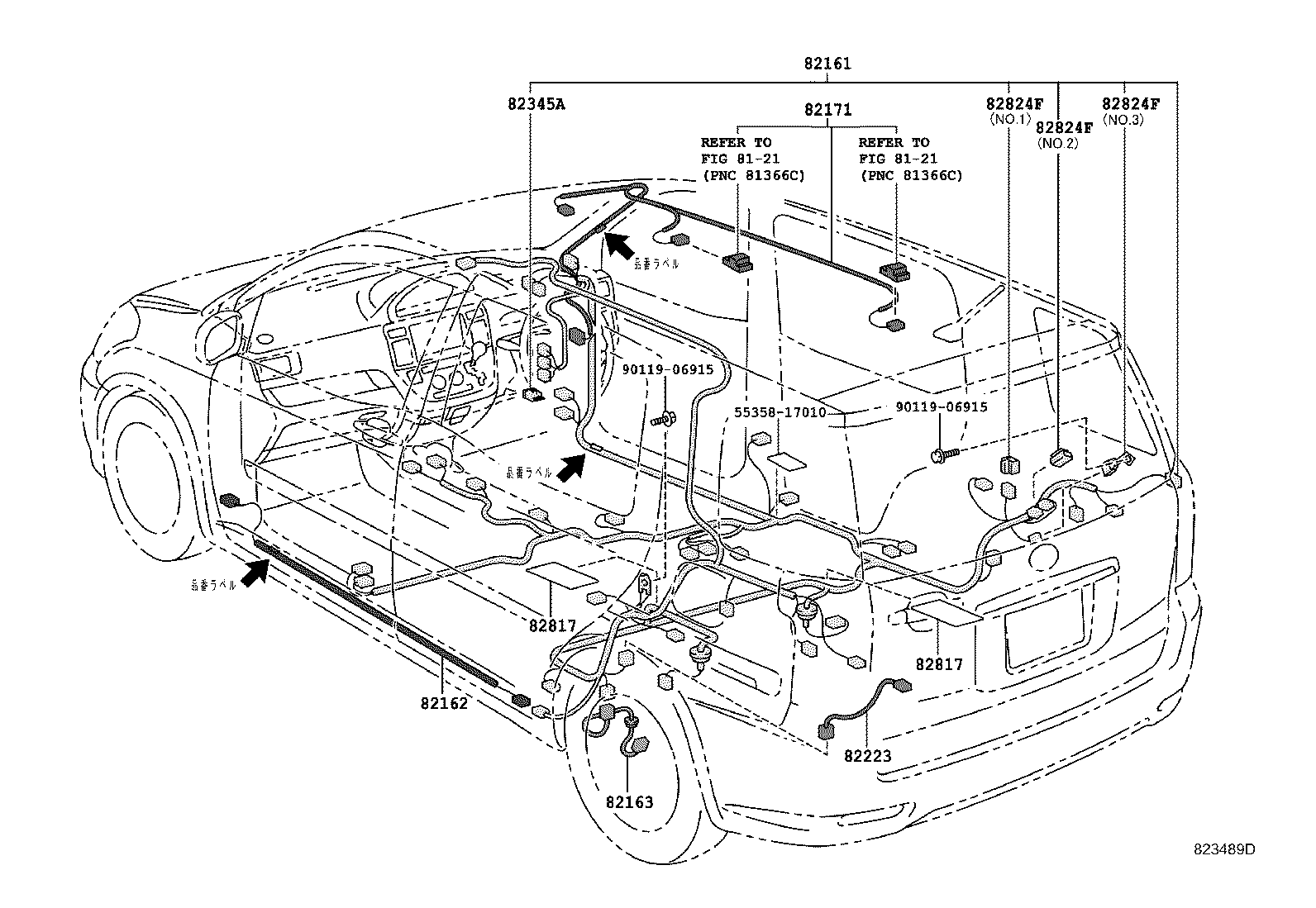

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1

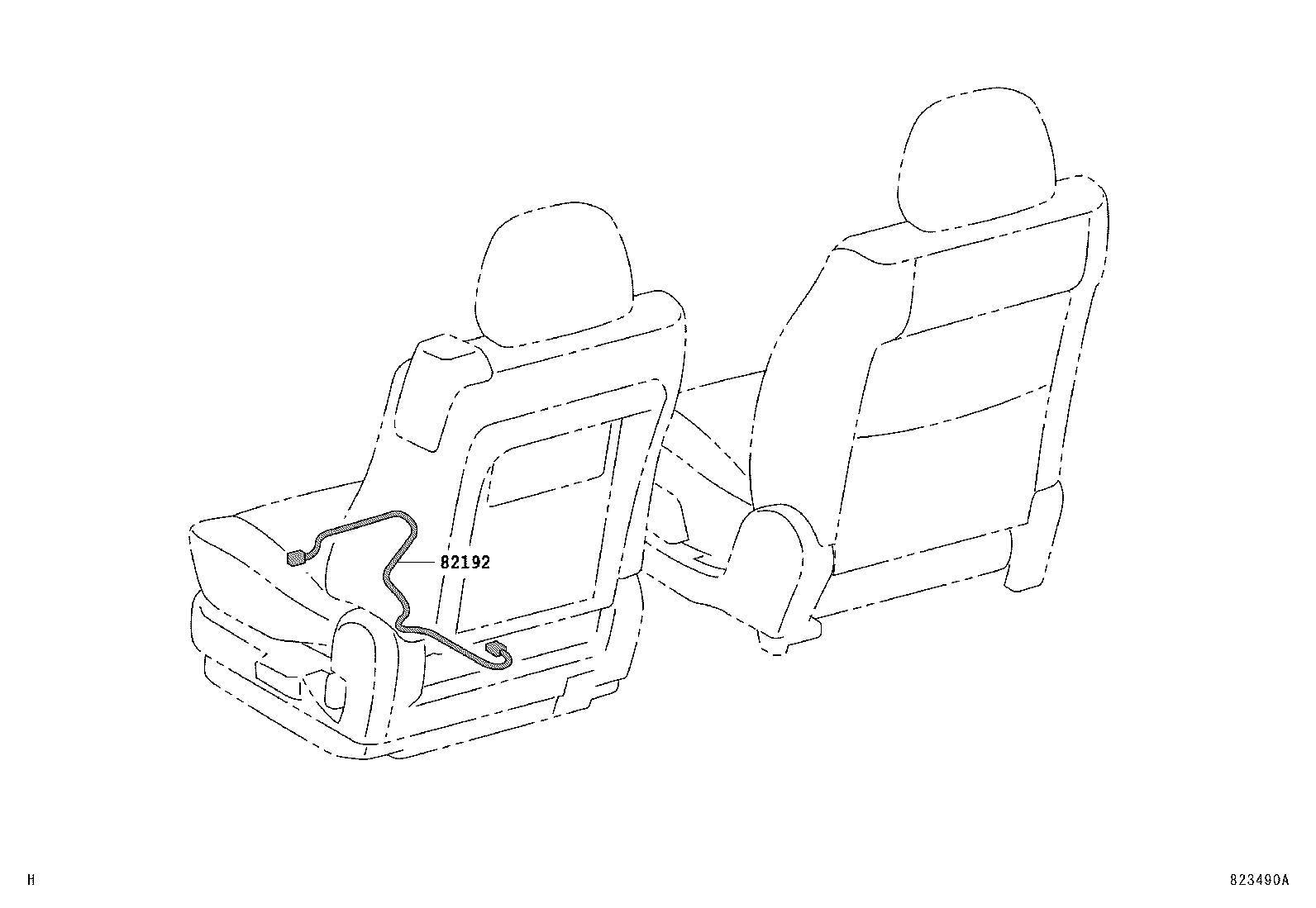

82192 Wire, Front Seat, LH
82214A Wire, Lamp
82223 Wire, Switch
82223B Wire, Switch, NO.2
82233 Wire, Computer
82345 Diode
82345A Diode
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
