Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

86 part groups · 8 illustrations

Illustrations

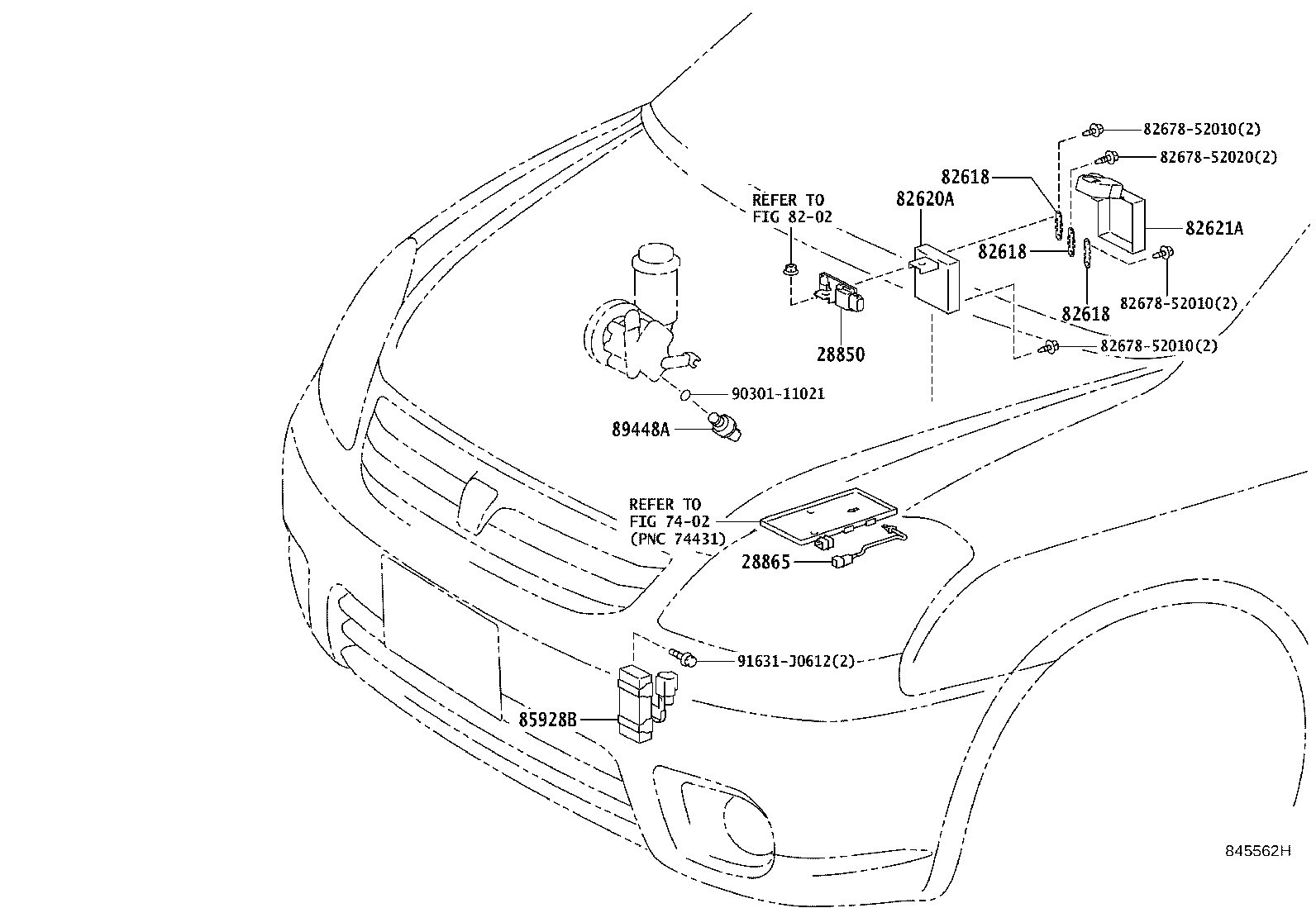

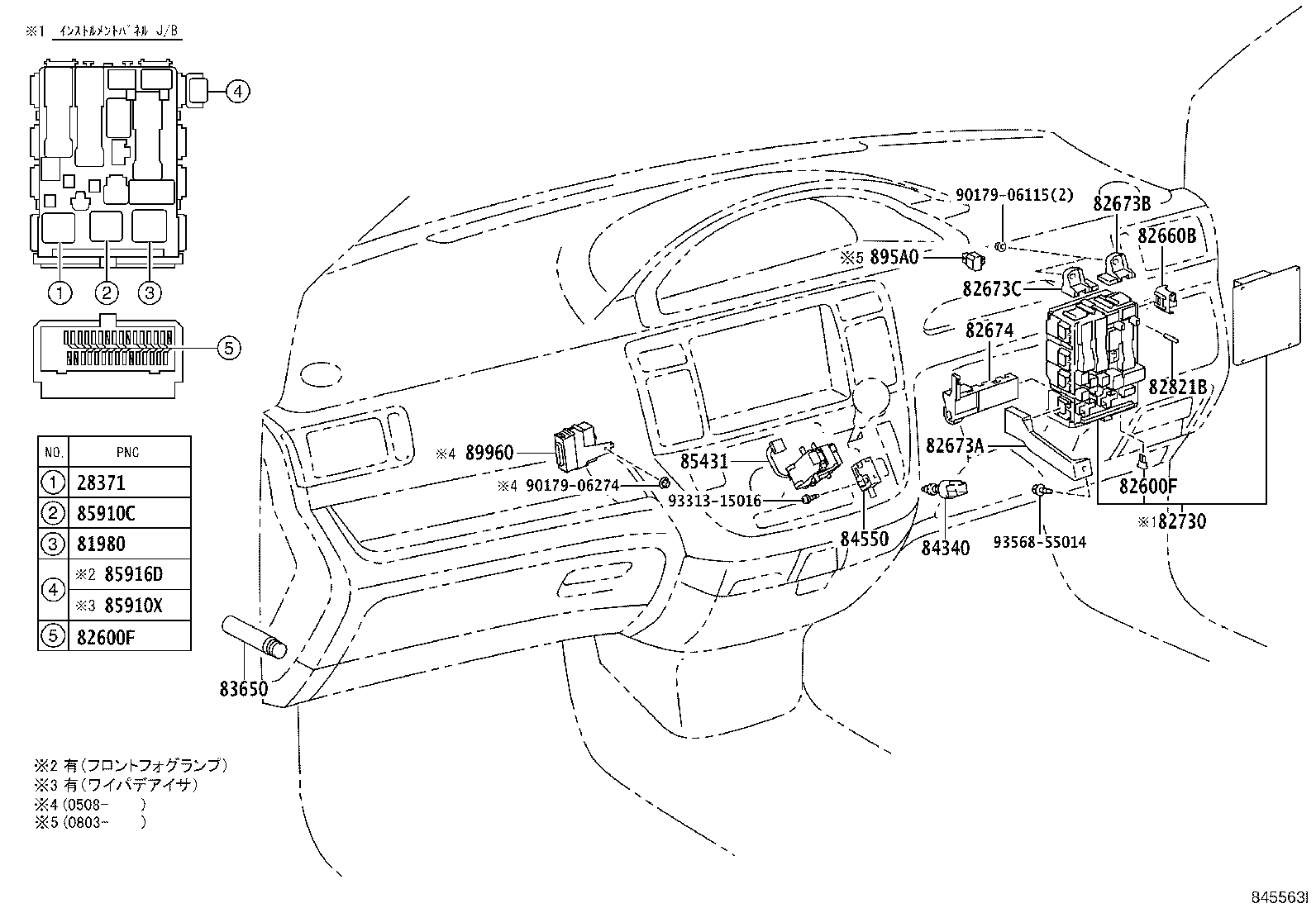

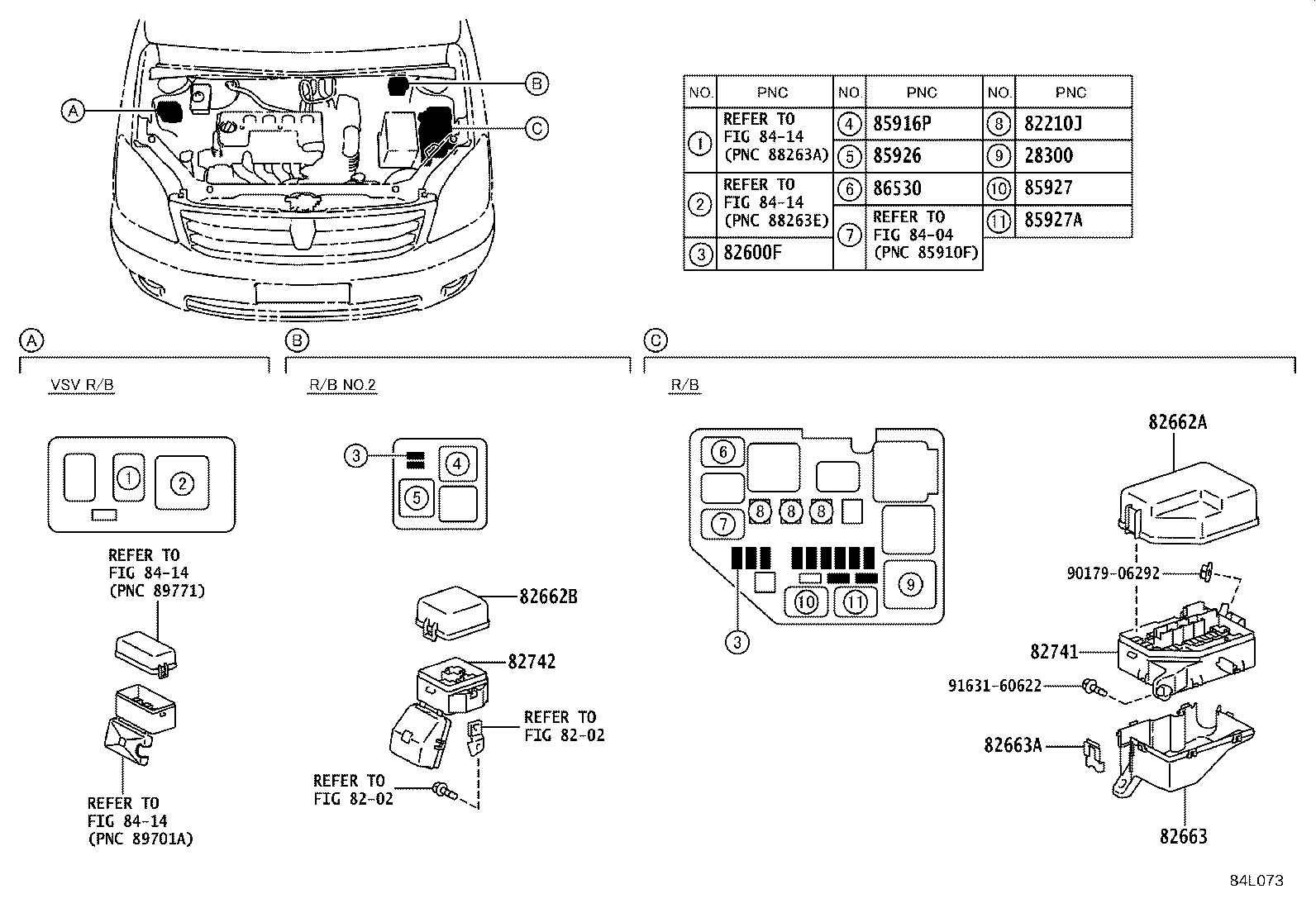

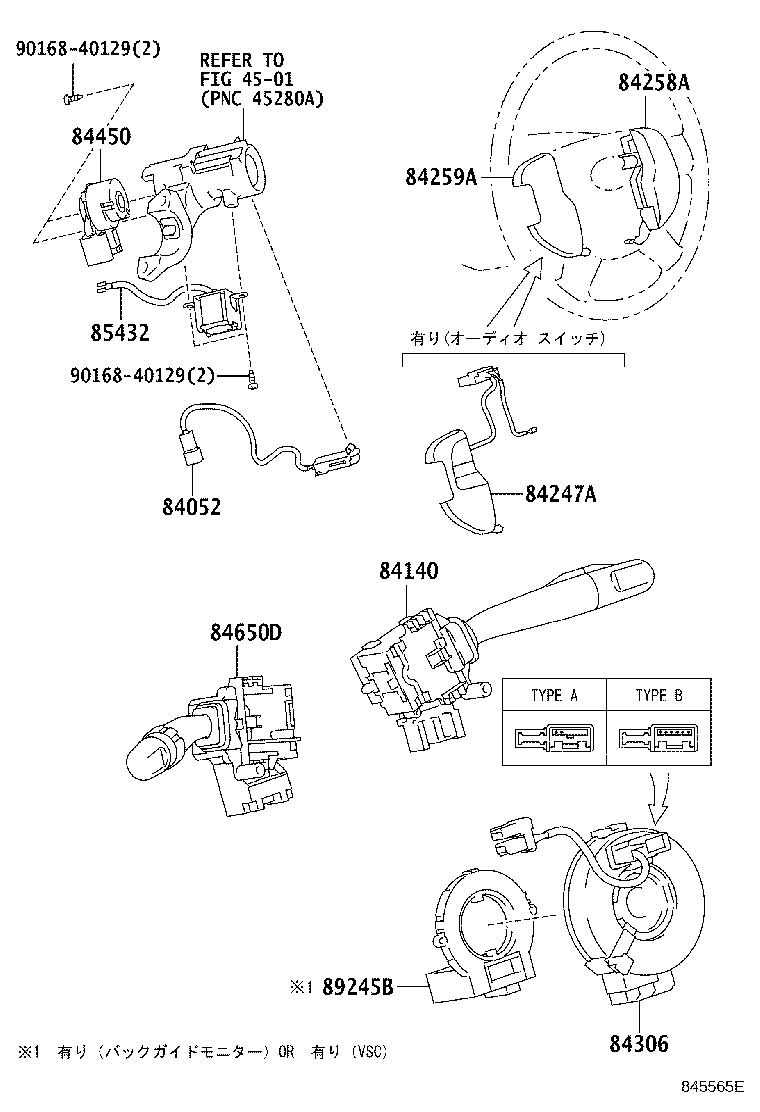

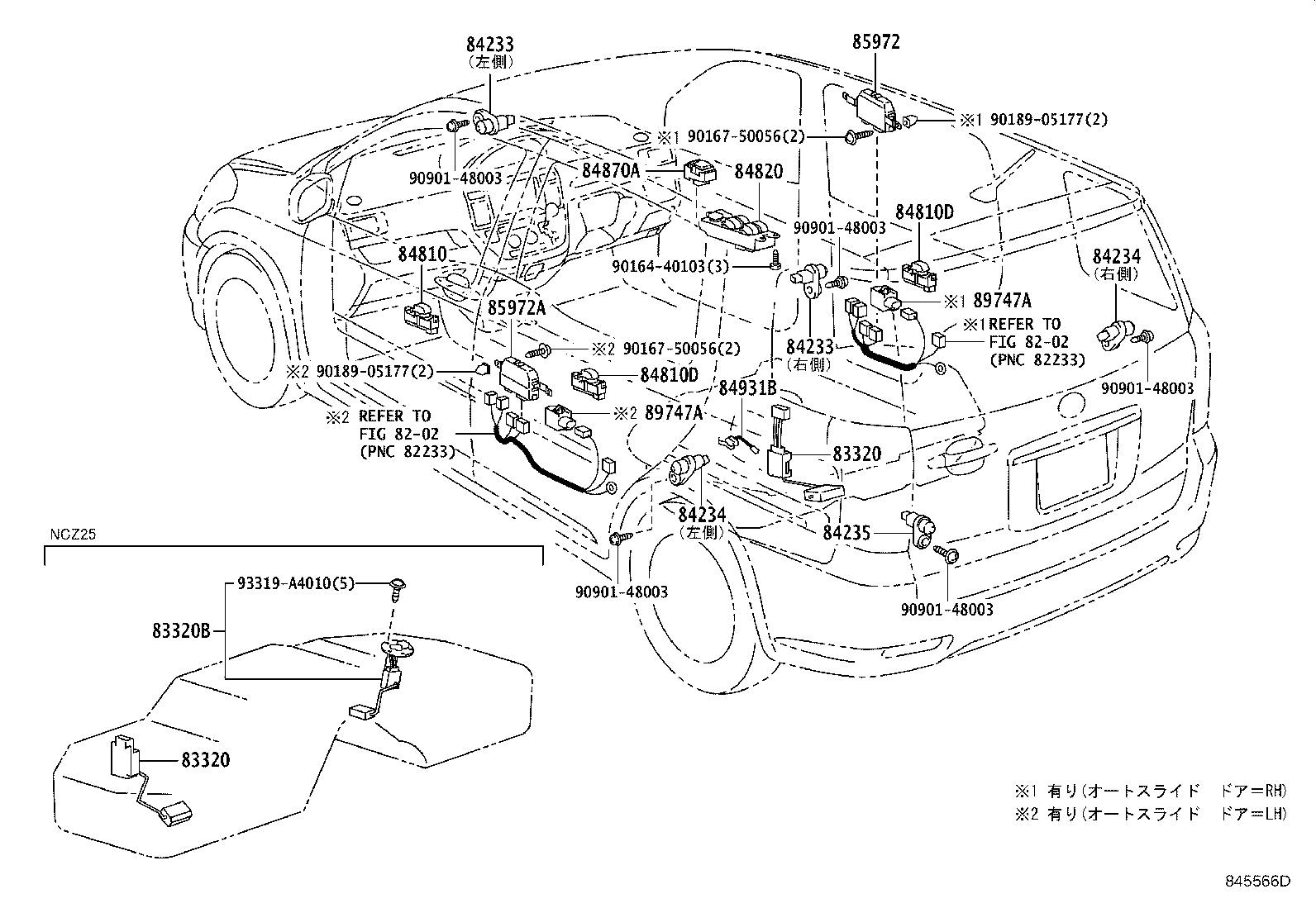

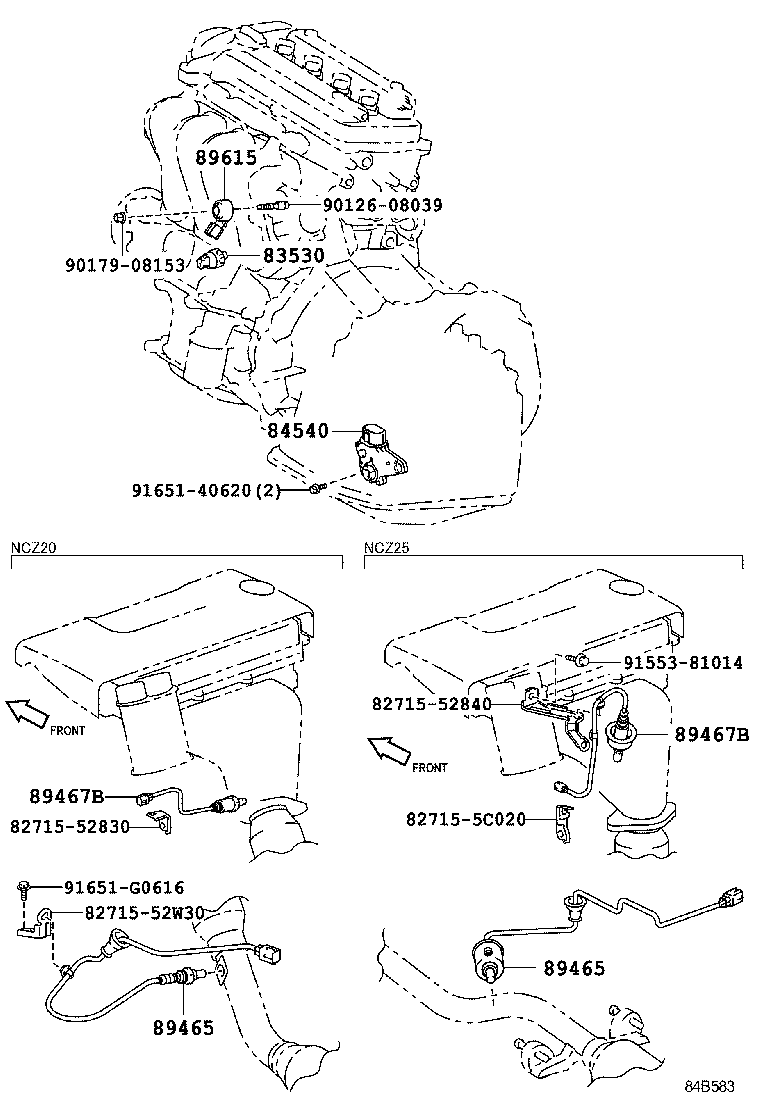

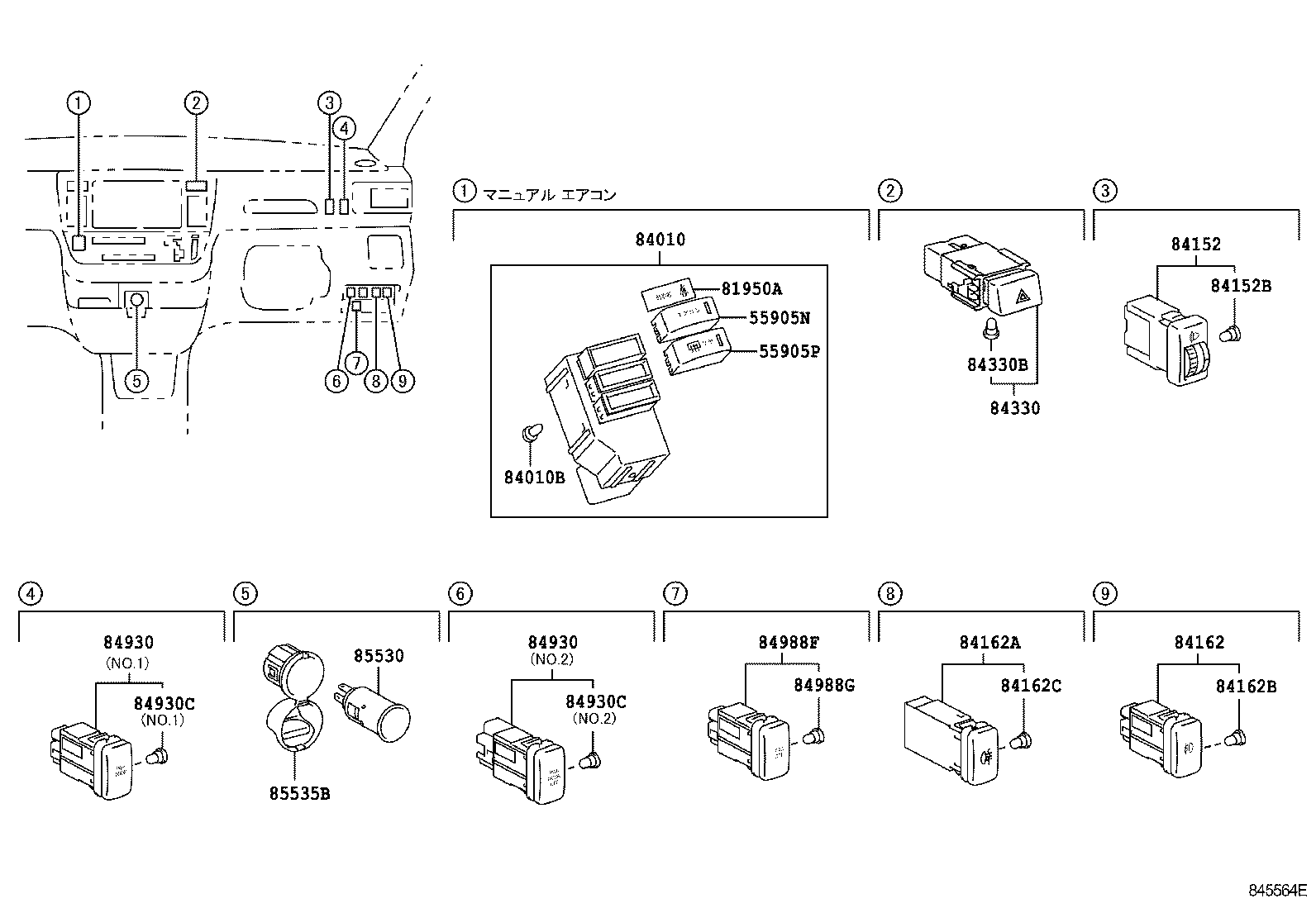

Figure 845561D 845561D 2003-04 → 2010-08 Figure 84B583 84B583 2010-08 → — Figure 845562H 845562H 2003-04 → — Figure 84L073 84L073 2003-04 → — Figure 845563I 845563I 2003-04 → — Figure 845564E 845564E 2003-04 → — Figure 845565E 845565E 2003-04 → — Figure 845566D 845566D 2003-04 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850 Sensor Assy, Battery Current
28865 Sensor, Battery Thermometer
55905N Knob Sub-assy, Control, NO.1
55905P Knob Sub-assy, Control, NO.2
81950A Lens, Center Cluster Module Indicator
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82618 Fuse, Fuse Block
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82660B Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82674 Cover, Junction Block Lower
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84010 Switch Assy, Center Cluster Integration
84010B Bulb, Integration Control & Panel
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162B Bulb, Fog Lamp Switch
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84247A Switch, Steering Pad, LH
84258A Cover, Steering Pad, RH
84259A Cover, Steering Pad, LH
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84930C Bulb(FOR DOOR CONTROL SWITCH)
84931B Switch, Door Control
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910X Relay, Heater Mirror
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85972 Computer, Slide Door Control, RH
85972A Computer, Slide Door Control
86530 Relay Assy, Horn
89245B Sensor, Steering
89448A Sensor, Power Steering Oil Pressure
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
895A0 Relay Assy, Stop Lamp Control
89615 Sensor, Knock Control
89747A Buzzer, Power Slide Door Warning, RH
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
