Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

14 part groups · 2 illustrations

Illustrations

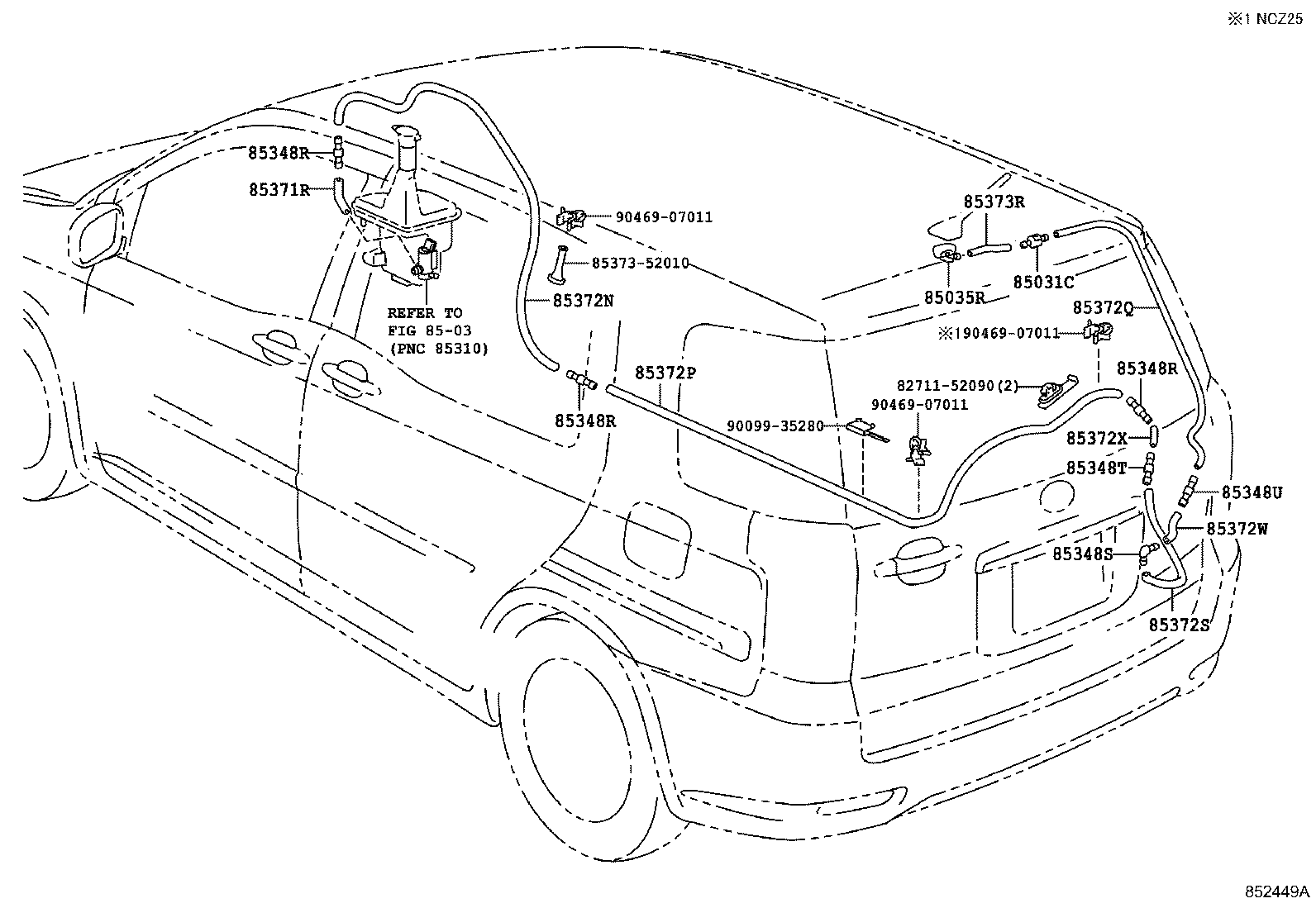

Figure 851235D 851235D 2003-04 → 2009-10 Figure 852449A 852449A 2009-10 → —

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85035R Nozzle Sub-assy, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372S Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
85372W Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
85372X Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
