Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 861924B

861924B 2003-04 → —

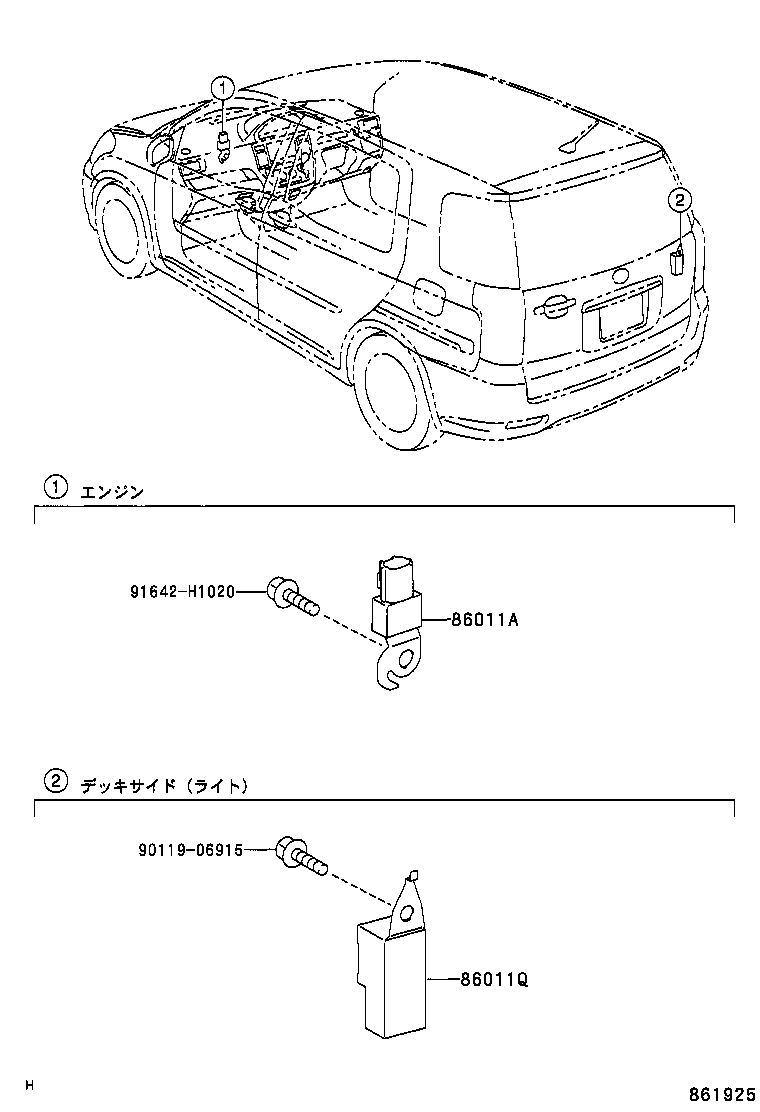

861925 2003-04 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011Q	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
