Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

30 part groups · 4 illustrations

Illustrations

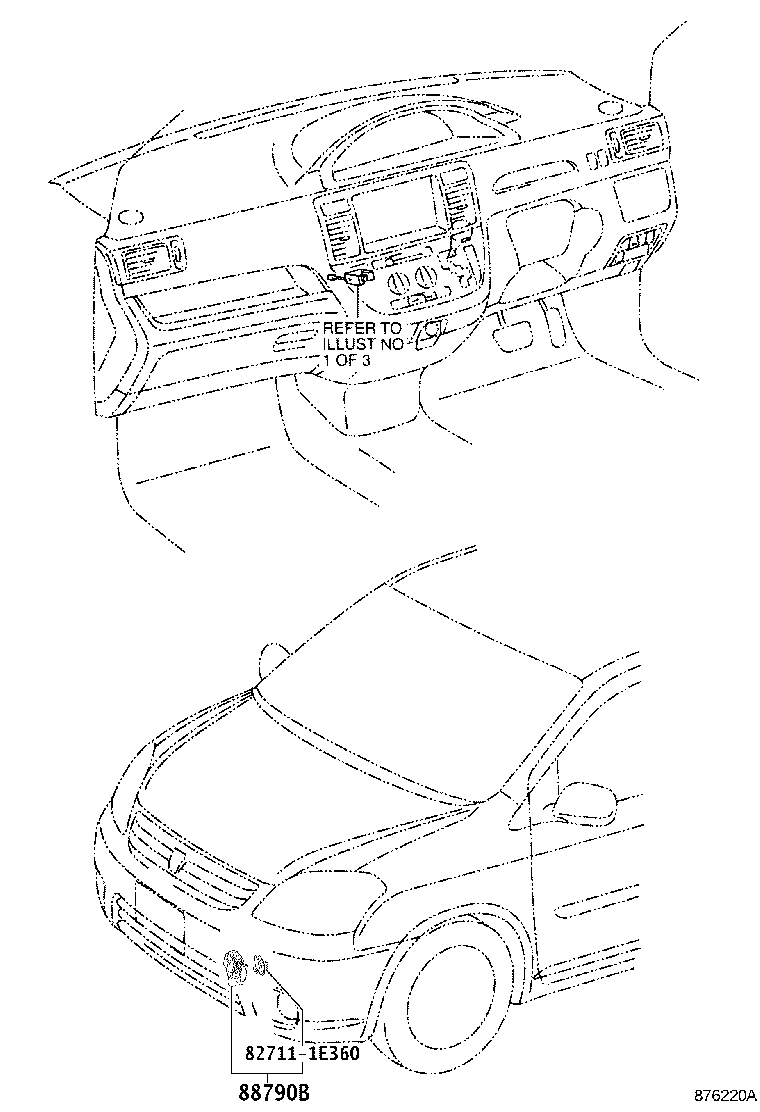

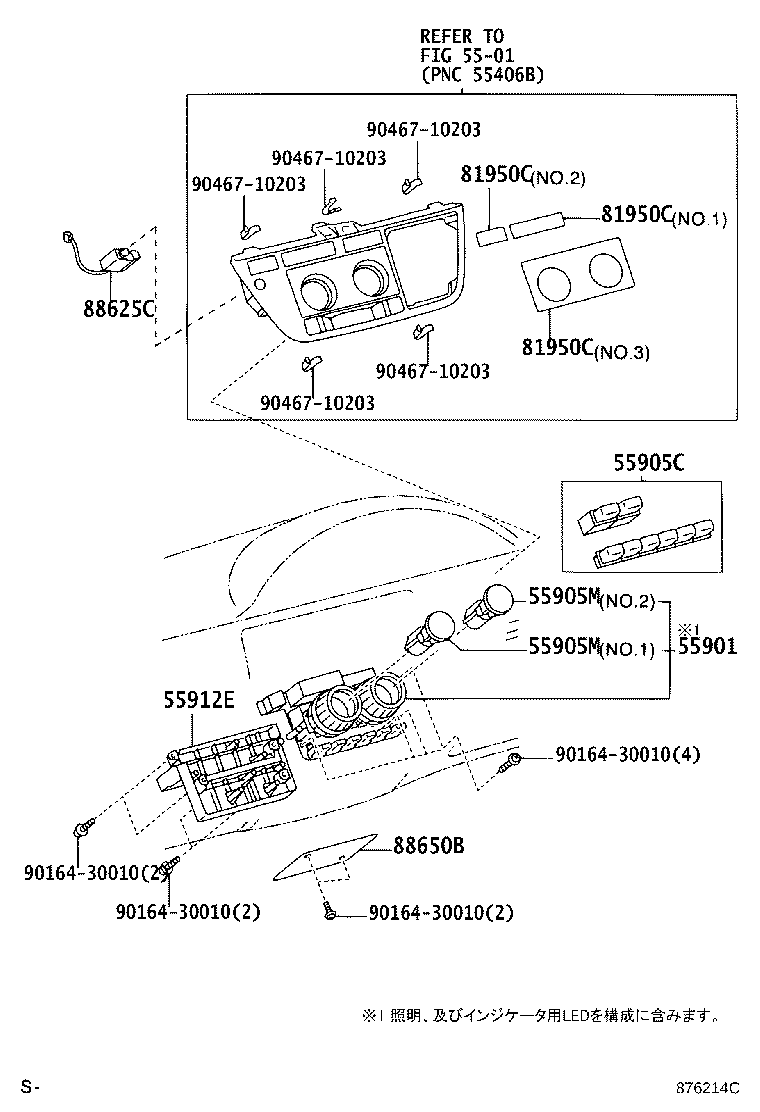

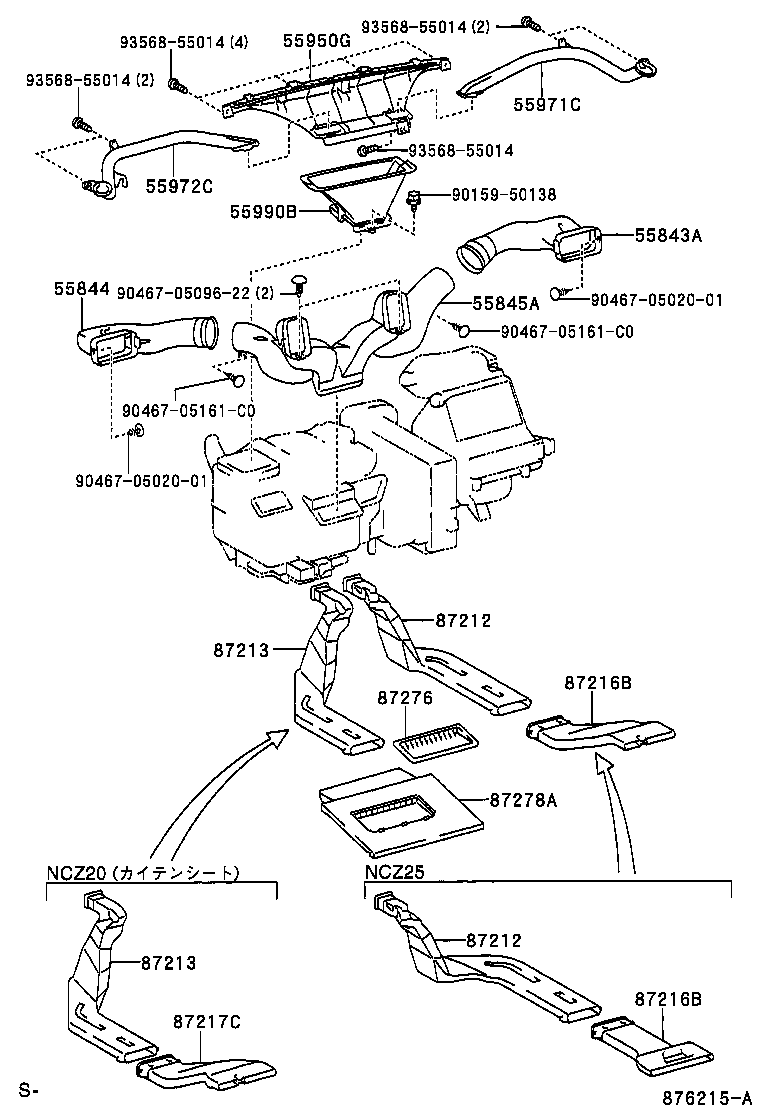

Figure 876213C 876213C 2003-04 → — Figure 876214C 876214C 2003-04 → — Figure 876215A 876215A 2003-04 → — Figure 876220A 876220A 2003-04 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55901 Base Sub-assy, Heater Control
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55905M Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55912E Base, Heater Control, Lower
55916B Control Assy, Heater
55918A Lever, Air Inlet Damper Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
81950C Lens Assy, Center Cluster Module Indicator
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87216B Duct, Air, Rear NO.4
87217C Duct, Air, Rear NO.5
87276 Duct, Floor Heater Air, NO.1 LH
87278A Duct, Floor Heater Air, NO.2 LH
87290E Switch Assy, Heater
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
