Toyota Raum

2003-04 → 2011-04 · chassis NCZ2# · catalogue 146120 · Japan

Supported model Data version 2011-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

8 part groups · 2 illustrations

Illustrations

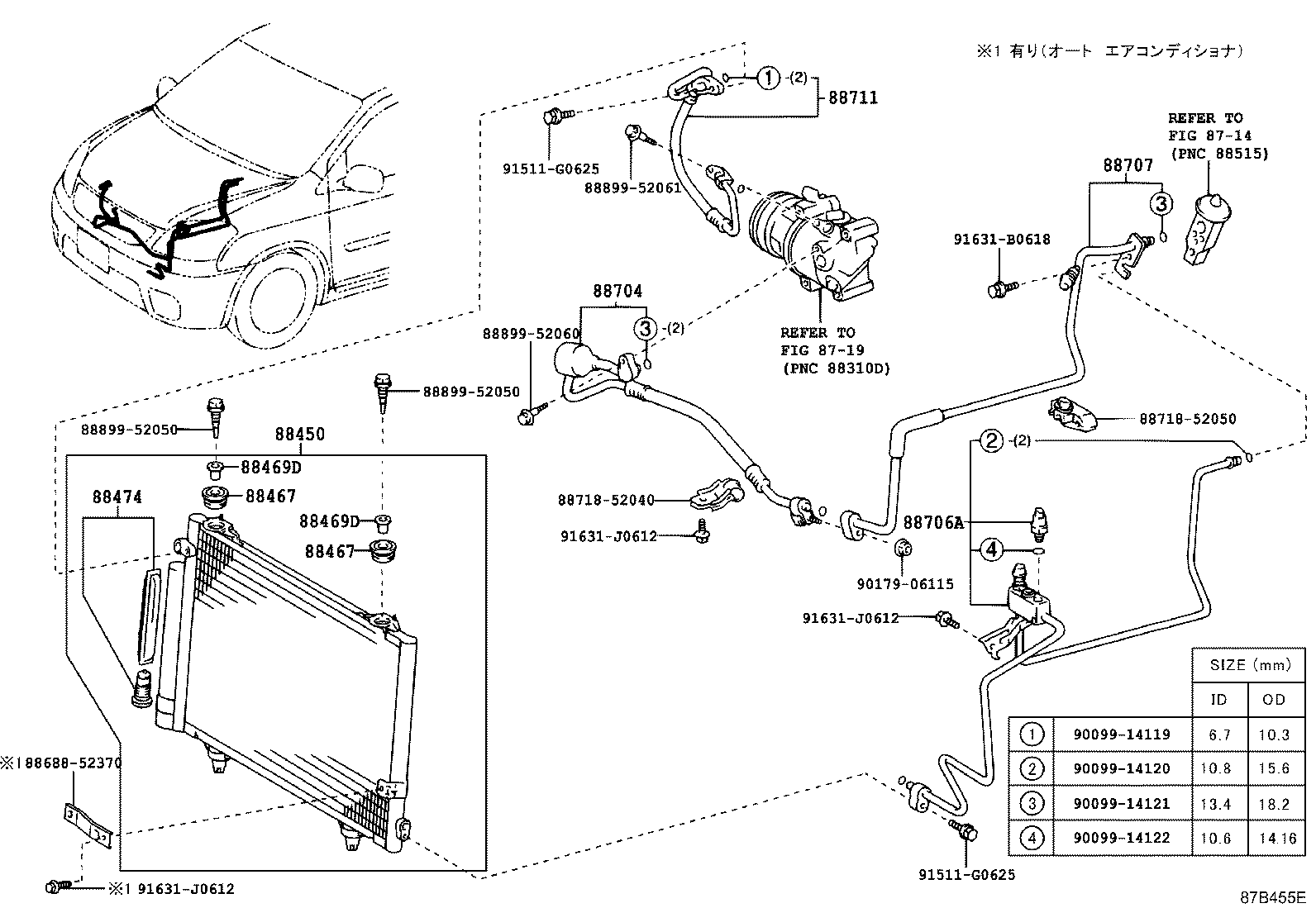

Figure 876196F 876196F 2003-04 → 2010-06 Figure 87B455E 87B455E 2010-06 → —

Part groups

PNCDescription
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
