Toyota Will VI

2000-01 → 2001-12 · chassis NCP19 · catalogue 147110 · Japan

Discontinued model Data version 2002-06

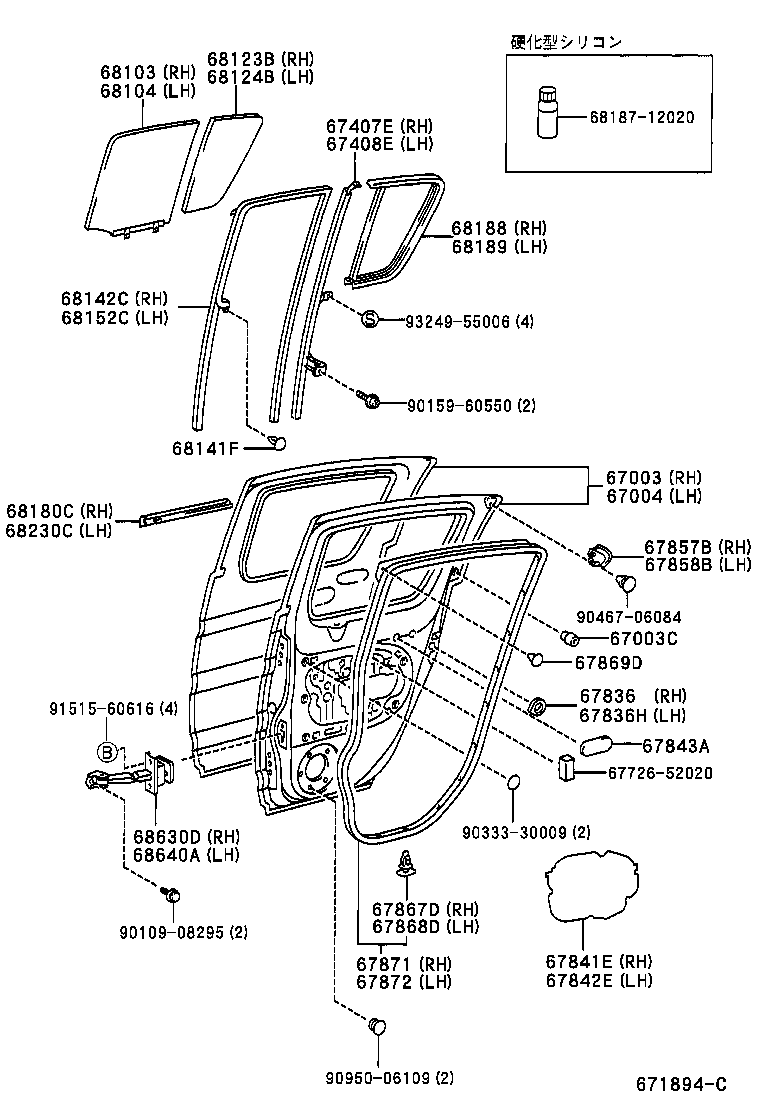

Rear Door Panel & Glass

37 part groups · 2 illustrations

PNC	Description
67003	Panel Sub-assy, Rear Door, RH
67003C	Cushion, Rear Door Panel
67004	Panel Sub-assy, Rear Door, LH
67407E	Bar Sub-assy, Rear Door Window Division, RH
67408E	Bar Sub-assy, Rear Door Window Division, LH
67603	Board Sub-assy, Rear Door Trim, RH
67603B	Clip(FOR REAR DOOR TRIM BOARD)
67604	Board Sub-assy, Rear Door Trim, LH
67836	Cover, Rear Door Lock Child Protection, RH
67836H	Cover, Rear Door Lock Child Protection, LH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67843A	Cover, Rear Door Service Hole, NO.2
67857B	Protector, Rear Door Panel, RH
67858B	Protector, Rear Door Panel, LH
67867D	Retainer, Rear Door Weatherstrip, RH
67868D	Retainer, Rear Door Weatherstrip, LH
67869D	Clip, Door Weatherstrip
67871	Weatherstrip, Rear Door, RH
67872	Weatherstrip, Rear Door, LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68123B	Glass, Rear Door Quarter Window, RH
68124B	Glass, Rear Door Quarter Window, LH
68141F	Clip, Rear Door Glass Run
68142C	Run, Rear Door Glass, RH
68152C	Run, Rear Door Glass, LH
68180C	Weatherstrip Assy, Rear Door Glass, Outer RH
68188	Weatherstrip, Rear Door Quarter Window, RH
68189	Weatherstrip, Rear Door Quarter Window, LH
68190	Weatherstrip Assy, Rear Door Glass, Inner
68230C	Weatherstrip Assy, Rear Door Glass, Outer LH
68240A	Weatherstrip Assy, Rear Door Glass, Inner LH
68630D	Check Assy, Rear Door, RH
68640A	Check Assy, Rear Door, LH
74801C	Handle Sub-assy, Door Pull
74812H	Cover, Door Pull Handle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
