Toyota Will VI

2000-01 → 2001-12 · chassis NCP19 · catalogue 147110 · Japan

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

17 part groups · 7 illustrations

Illustrations

Figure 822121B 822121B 2000-01 → — Figure 822122A 822122A 2000-01 → — Figure 822123D 822123D 2000-01 → — Figure 822124A 822124A 2000-01 → — Figure 822125A 822125A 2000-01 → — Figure 822126A 822126A 2000-01 → — Figure 822404A 822404A 2000-01 → —

Part groups

PNCDescription

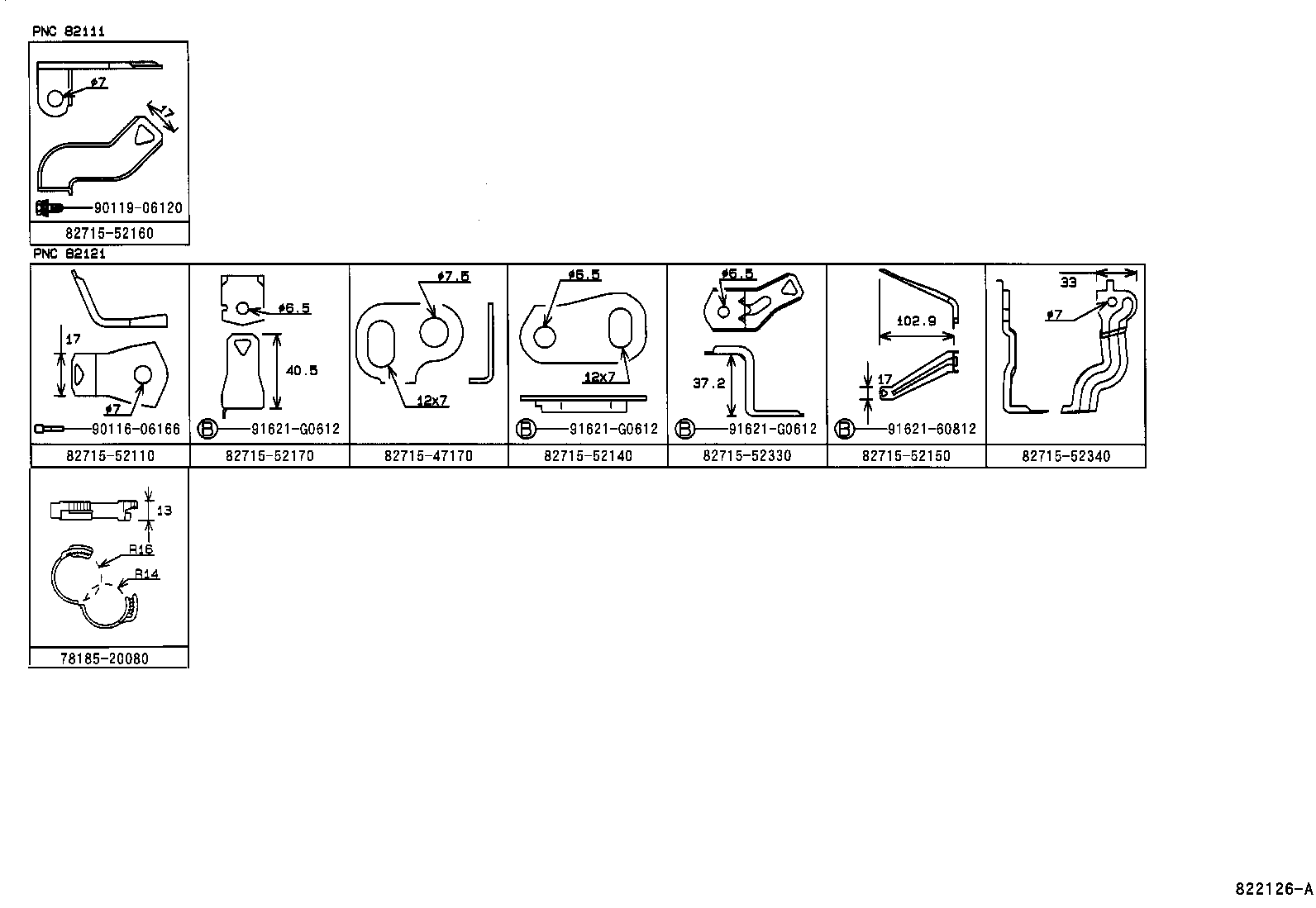

82111 Wire, Engine Room Main

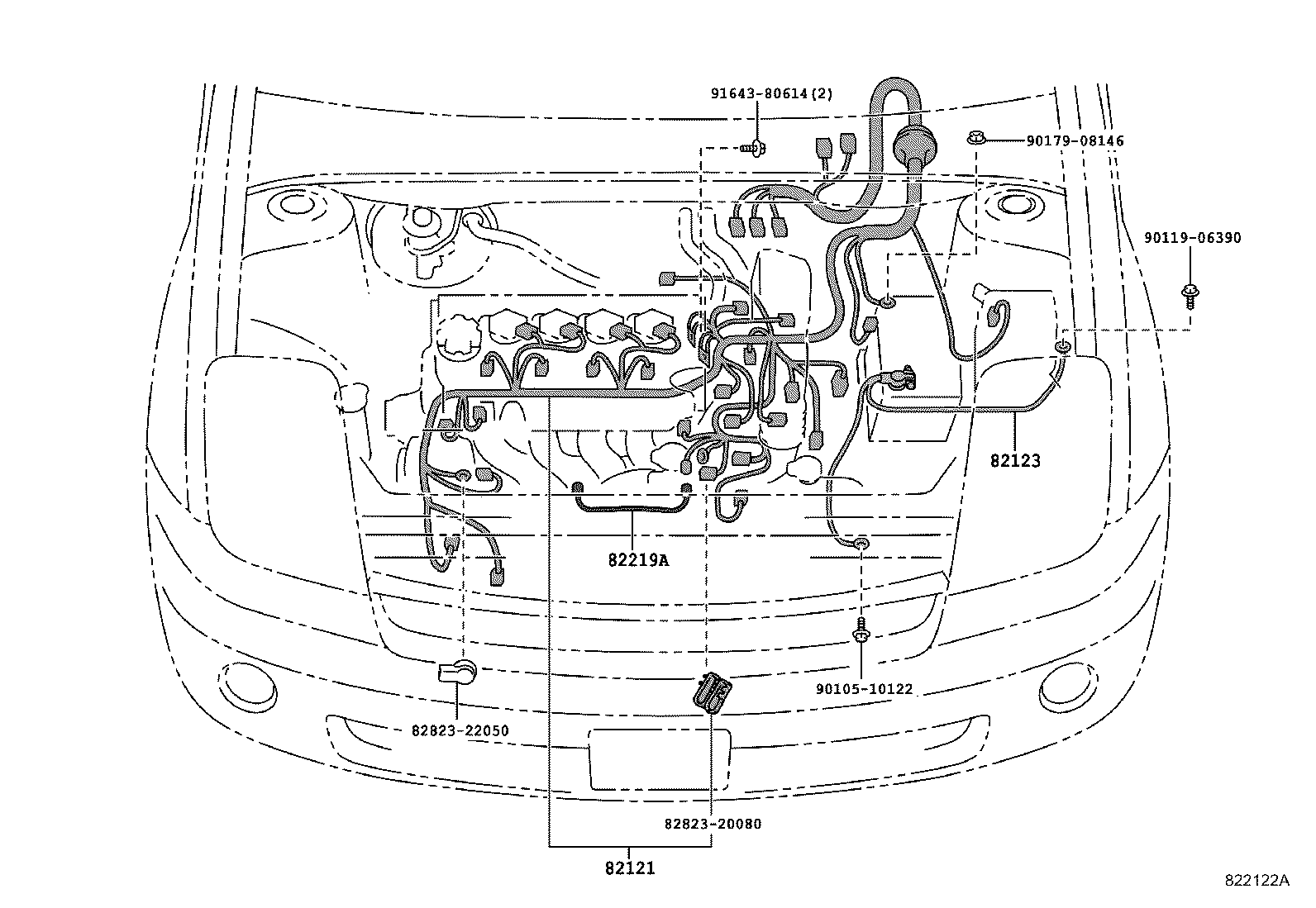

82121 Wire, Engine
82123 Wire, Engine, NO.3

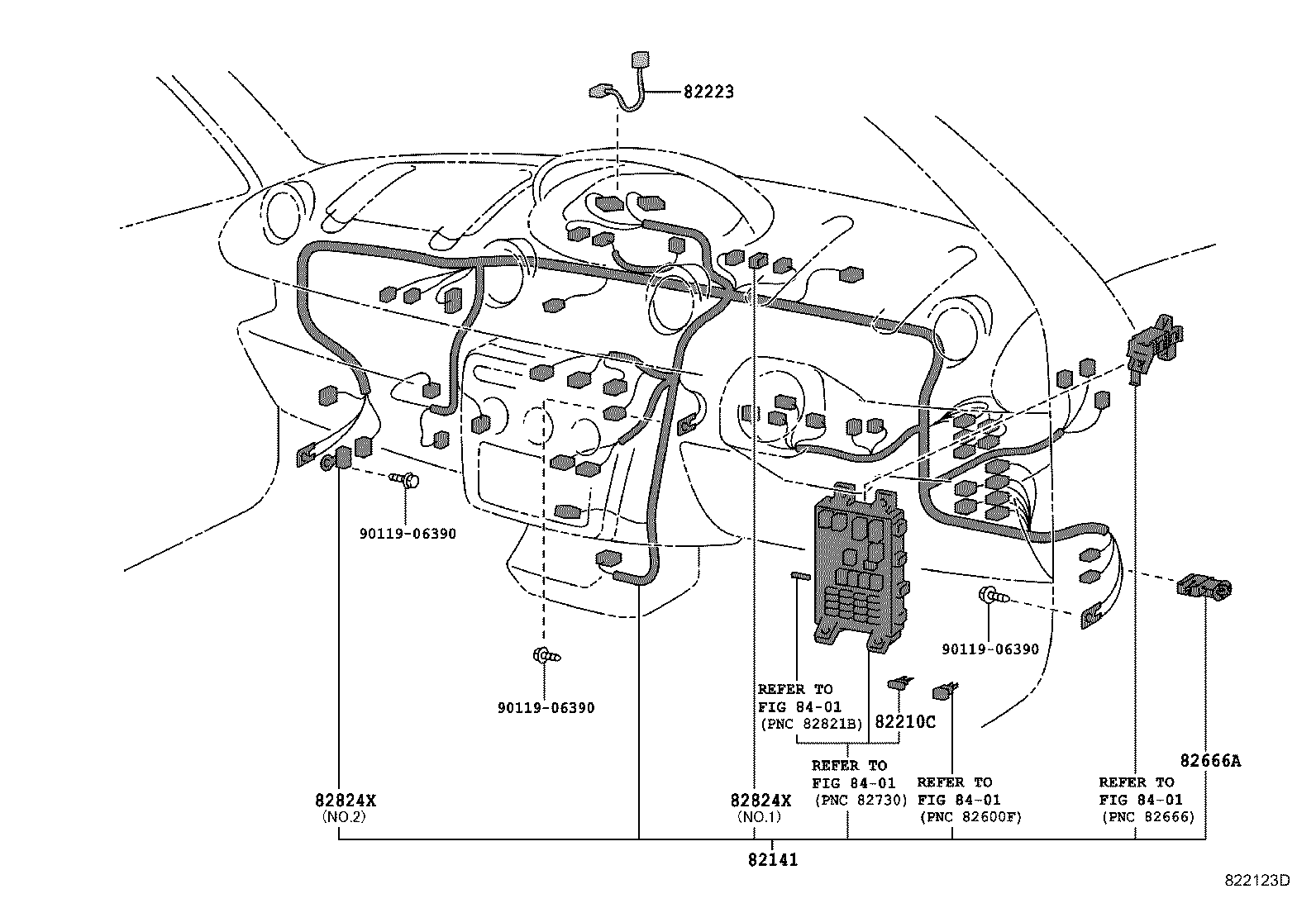

82141 Wire, Instrument Panel

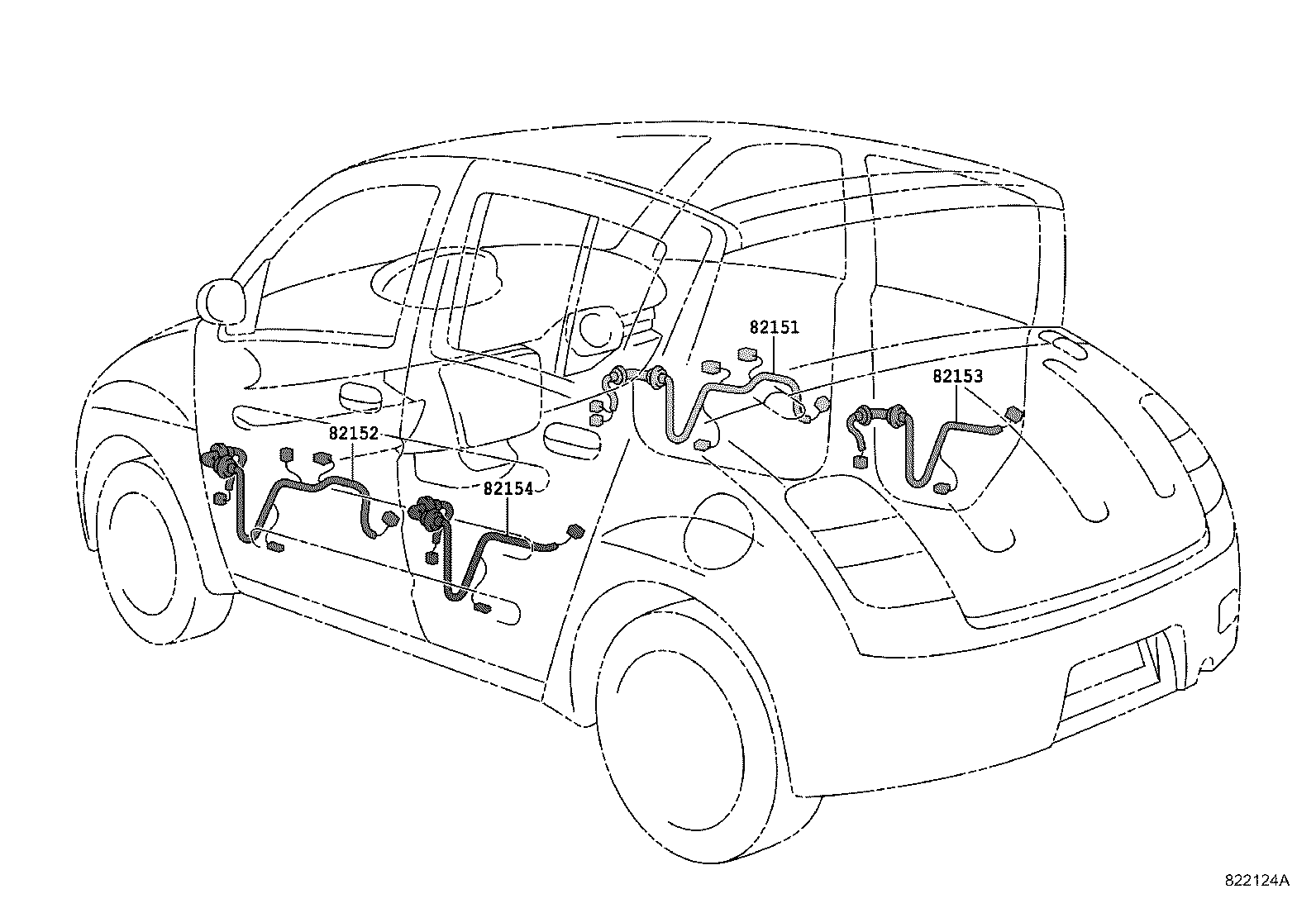

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

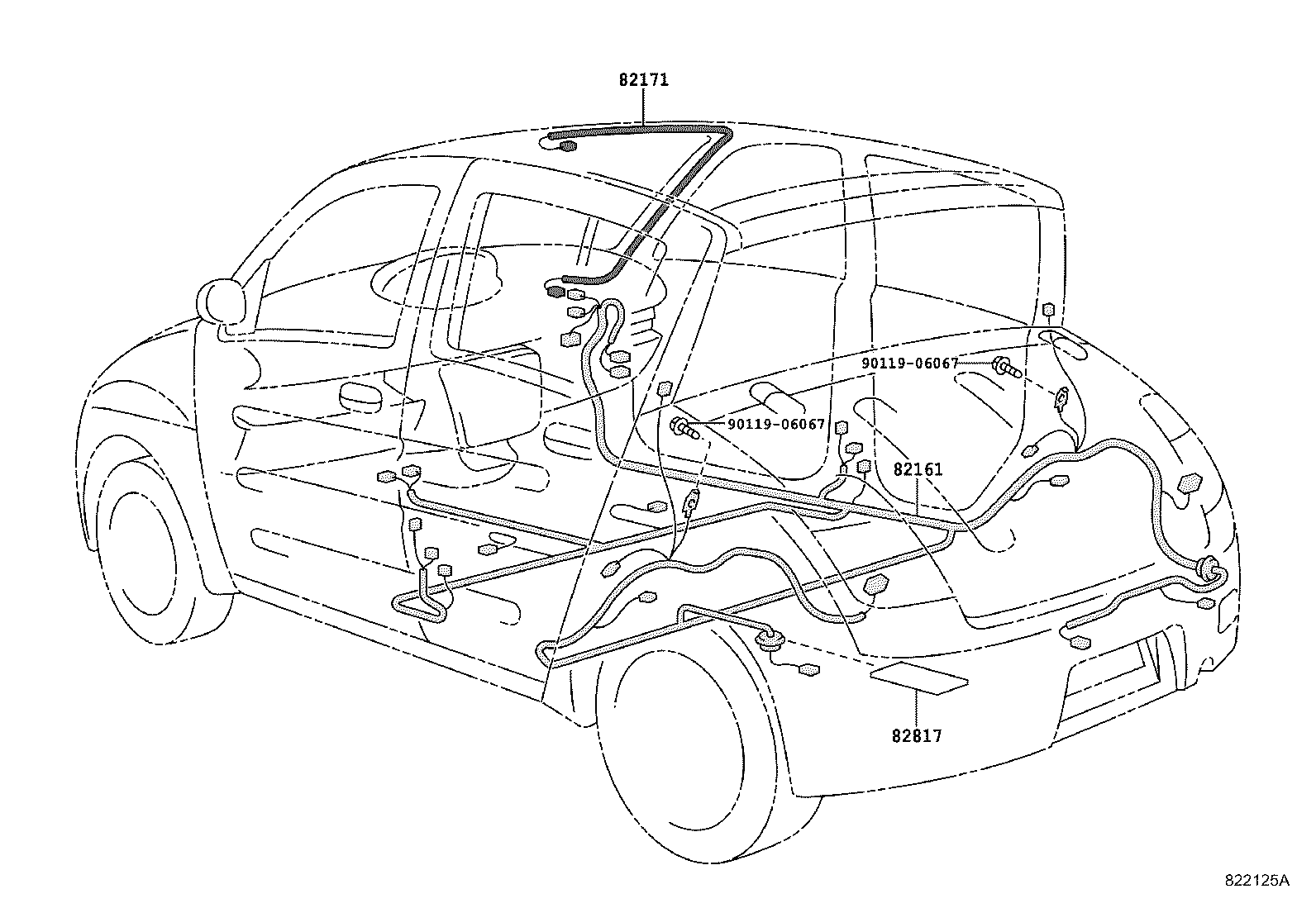

82161 Wire, Floor
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82219C Wire, Sensor
82223 Wire, Switch
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1

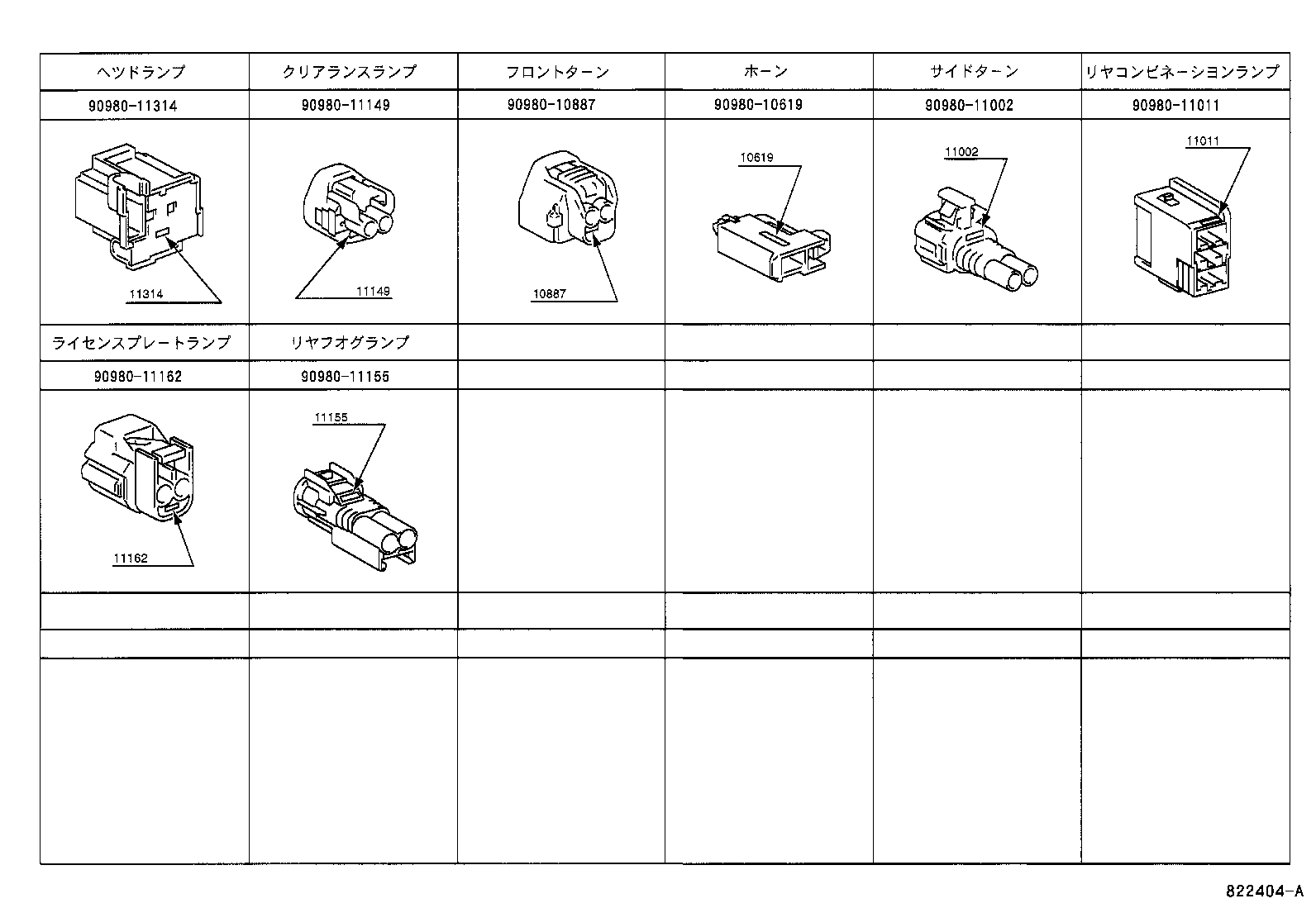

82824X Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
