Toyota Will VI
2000-01 → 2001-12 · chassis NCP19 · catalogue 147110 · Japan
Discontinued model
Data version 2002-06
Switch & Relay & Computer
44 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82618 | Fuse, Fuse Block |
| 82620A | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82666 | Holder, Connector |
| 82683 | Plate, Fuse Block Caution |

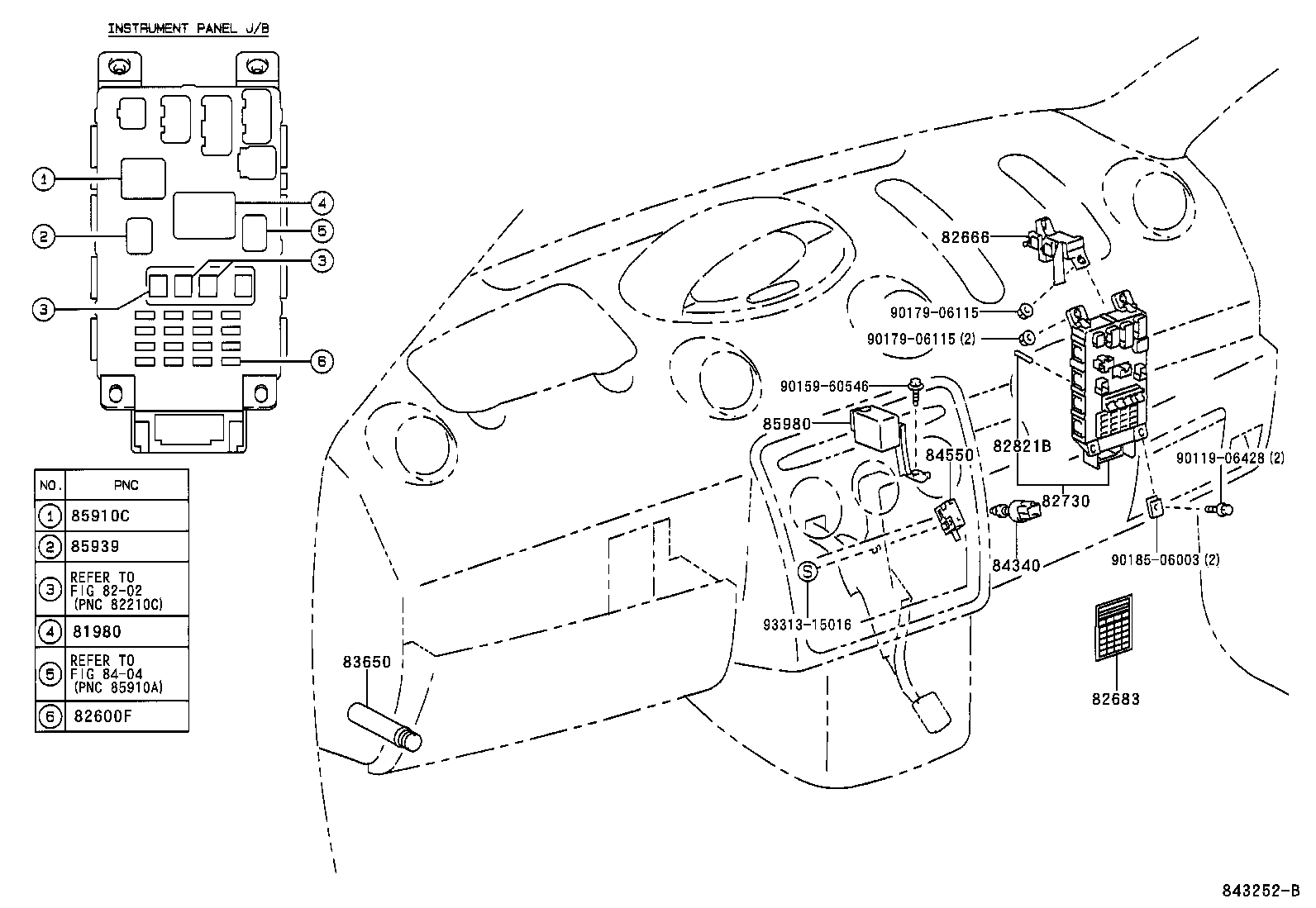

| 82730 | Block Assy, Instrument Panel Junction |

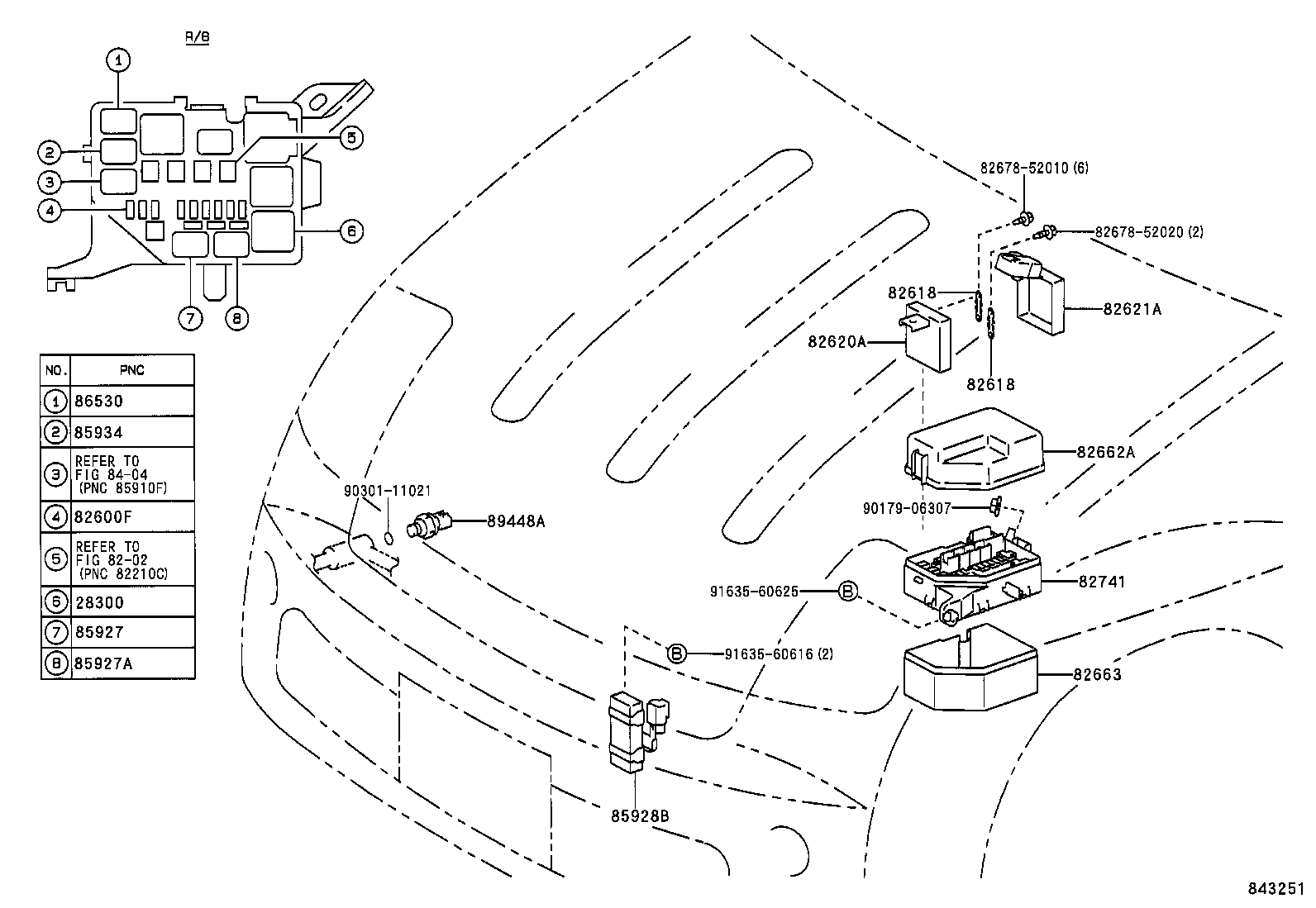

| 82741 | Block, Engine Room Relay |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |

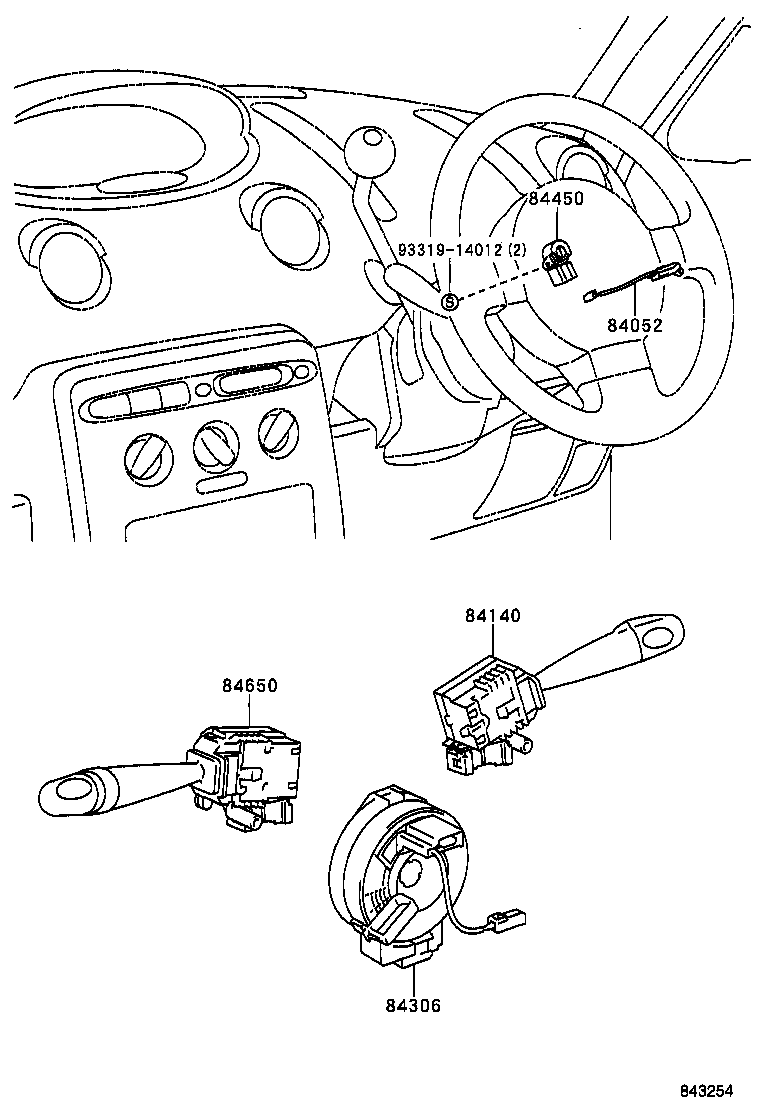

| 84140 | Switch Assy, Headlamp Dimmer |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |

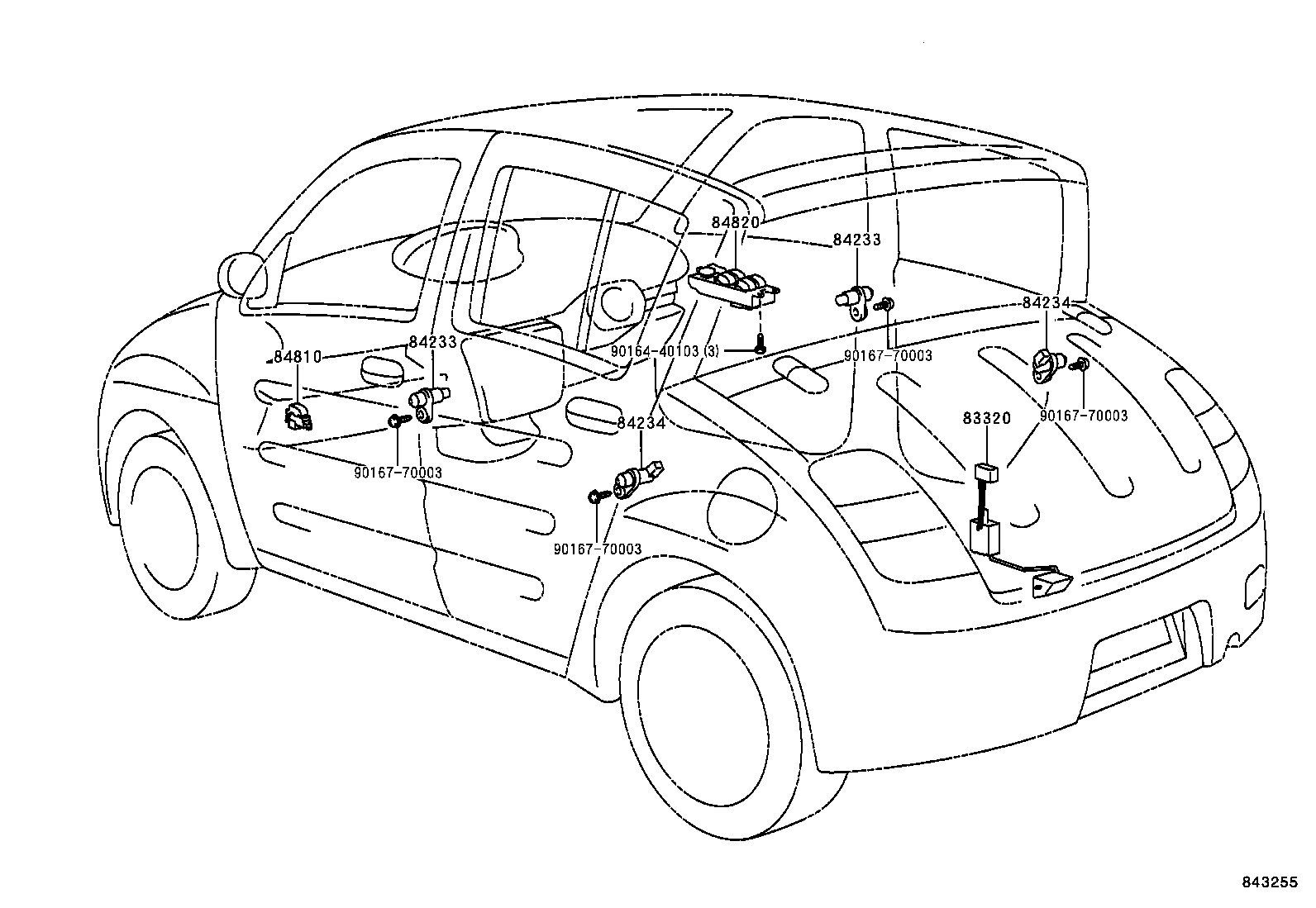

| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84306 | Cable Sub-assy, Spiral |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |
| 85934 | Relay, Magnet-clutch |
| 85939 | Relay, Power Window |
| 85980 | Relay Assy, Door Control |
| 86530 | Relay Assy, Horn |
| 89448A | Sensor, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
