Toyota Will VI

2000-01 → 2001-12 · chassis NCP19 · catalogue 147110 · Japan

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 2 illustrations

Illustrations

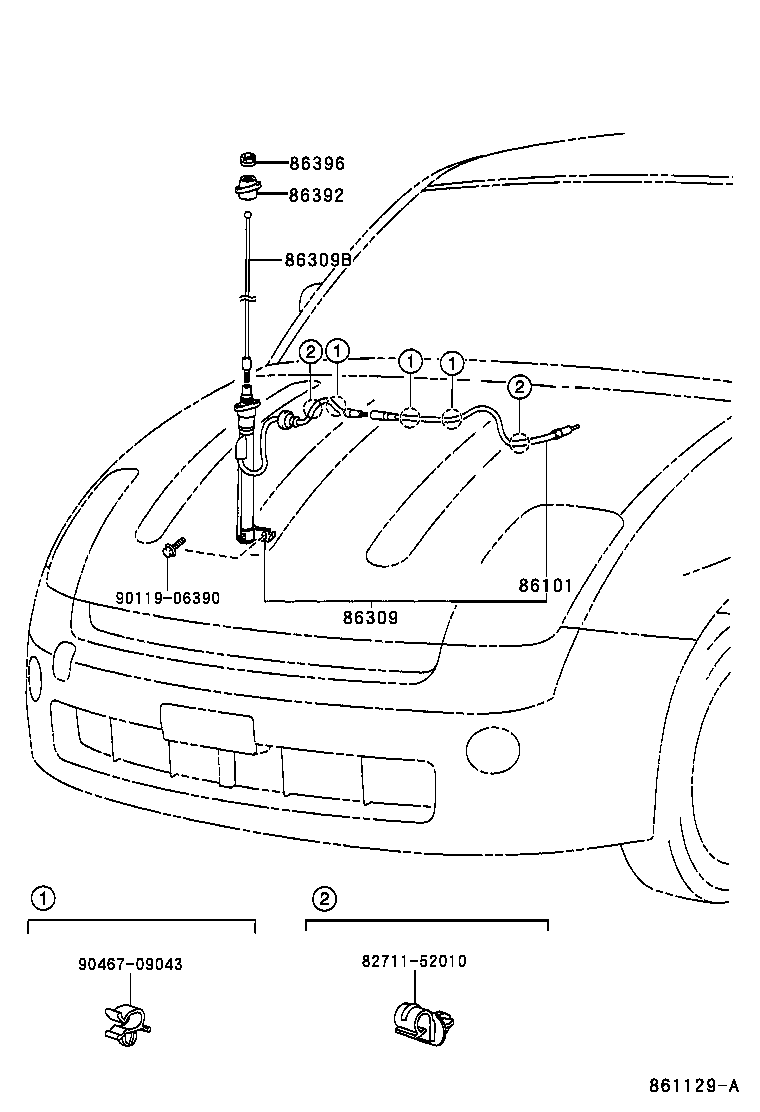

Figure 861091 861091 2000-01 → — Figure 861129A 861129A 2000-01 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86309 Pole Sub-assy, Pillar Antenna
86309B Pole Sub-assy, Pull Top Antenna
86392 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
