Toyota Will VI
2000-01 → 2001-12 · chassis NCP19 · catalogue 147110 · Japan
Discontinued model
Data version 2002-06

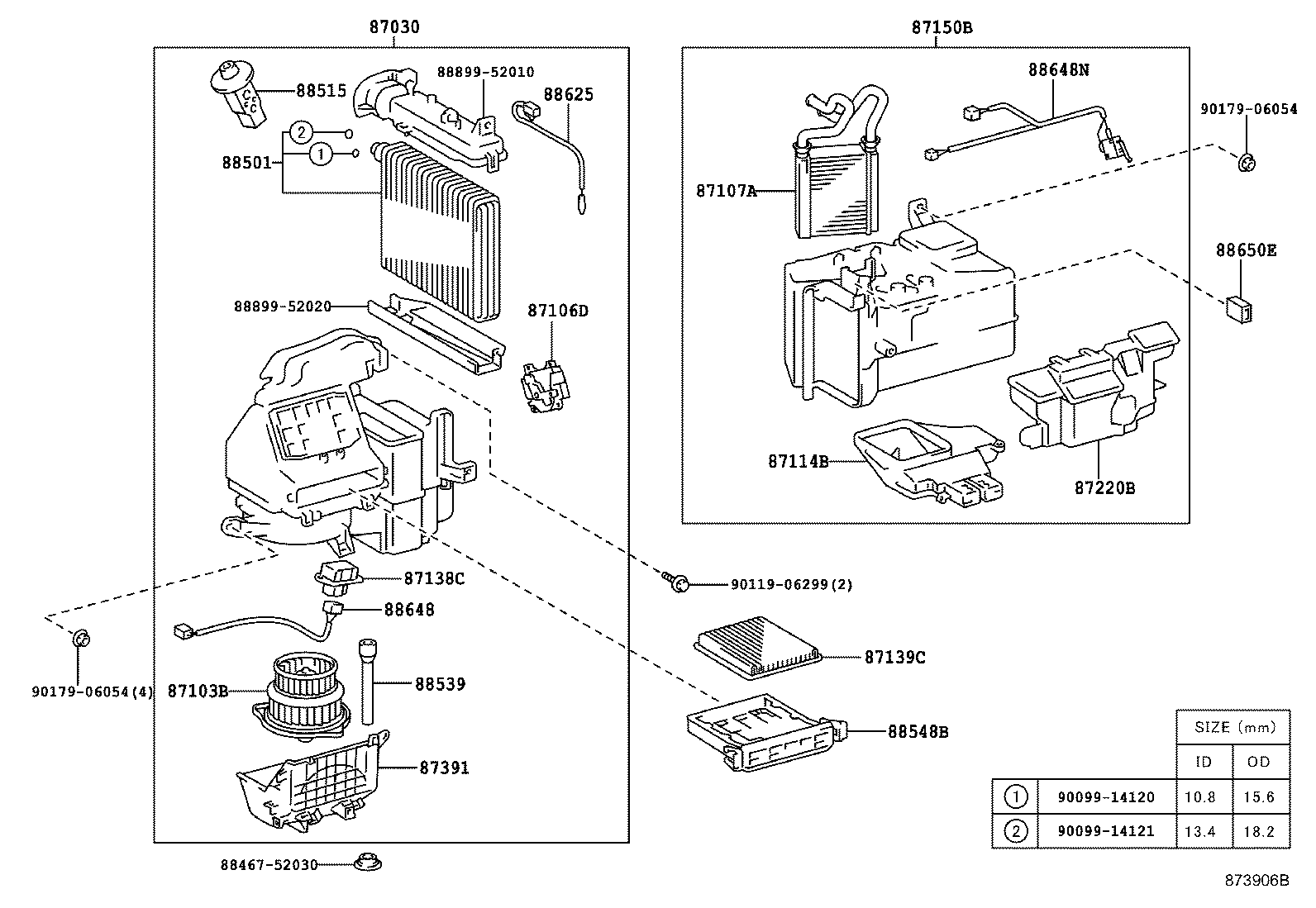

Heating & Air Conditioning - Cooler Unit
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87030 | Blower Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87114B | Cover, Heater |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87150B | Radiator Assy, Heater |
| 87220B | Duct Assy, Air |
| 87391 | Cover, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88648 | Wiring, Cooler, NO.1 |
| 88648N | Wiring, Cooler, NO.2 |
| 88650E | Amplifier Assy, Air Conditioner, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
