Toyota Will VI

2000-01 → 2001-12 · chassis NCP19 · catalogue 147110 · Japan

Discontinued model Data version 2002-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 2 illustrations

Illustrations

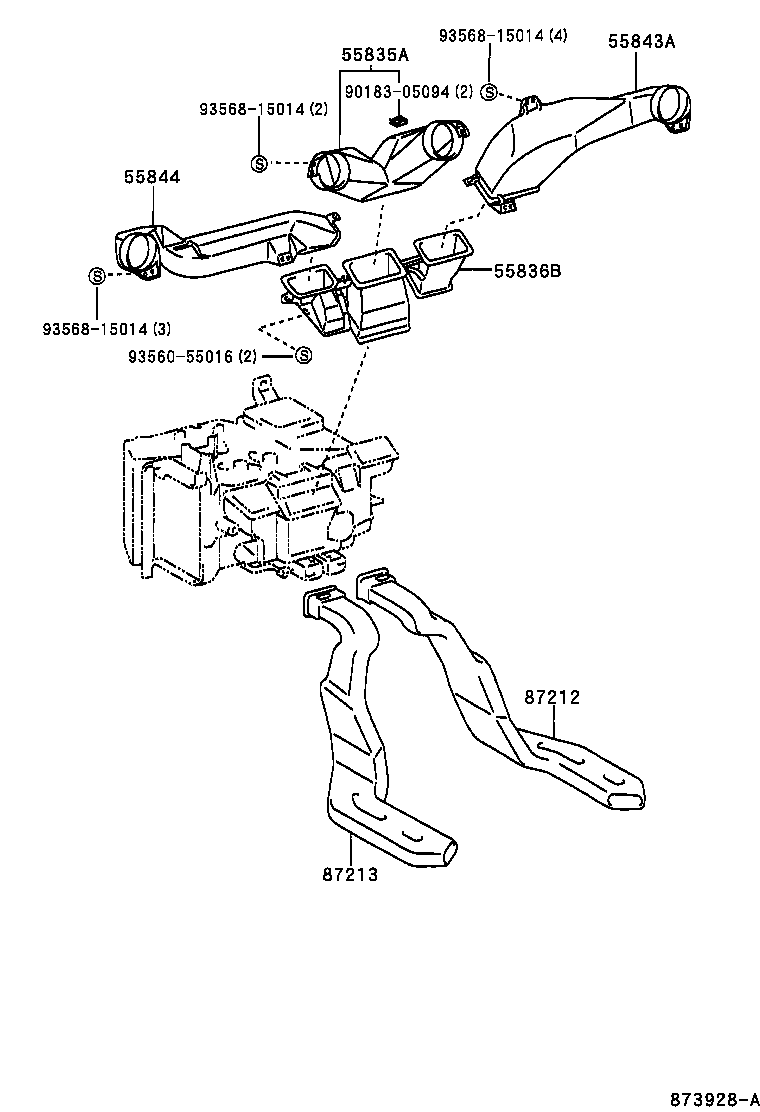

Figure 873927B 873927B 2000-01 → — Figure 873928A 873928A 2000-01 → —

Part groups

PNCDescription
55835A Duct, Heater TO Register, Center
55836B Duct, Heater TO Resister, Center, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55918A Lever, Air Inlet Damper Control
55936B Switch, Center Cluster Module
55936D Blub, Center Cluster Module Switch
55937H Knob, Center Cluster Module, NO.5
55937J Knob, Center Cluster Module, NO.6
55937K Knob, Center Cluster Module, NO.7
81940D Lens Assy, Heater Control
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
81950C Lens Assy, Center Cluster Module Indicator
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87290E Switch Assy, Heater
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
