Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

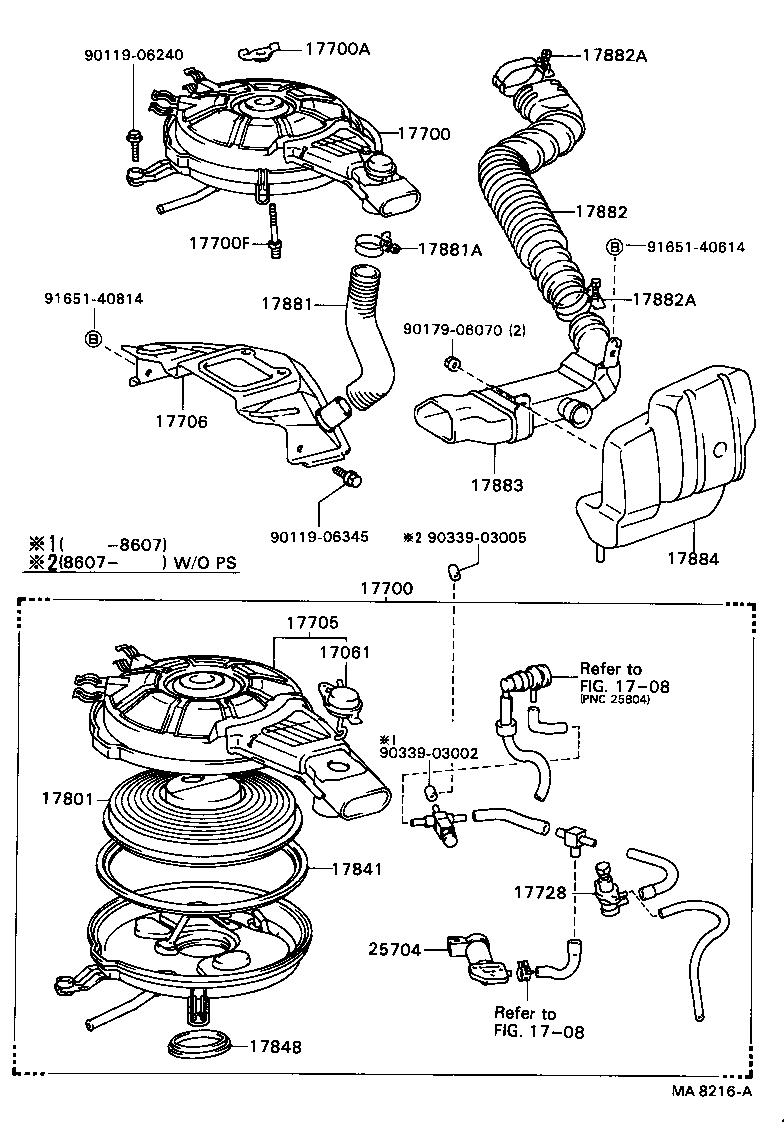

Exploded illustration MA8216A 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 9011906240 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (3 parts) 17700 — CLEANER ASSY, AIR (10 parts) 17882 — HOSE, AIR CLEANER, NO.2 (5 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (2 parts) 9165140614 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (6 parts) 9165140814 — not listed in this catalogue 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (3 parts) 17881 — HOSE, AIR CLEANER, NO.1 (7 parts) 9017906070 — not listed in this catalogue 17706 — INLET SUB-ASSY, AIR CLEANER, NO.2 (1 parts) 17883 — HOSE, AIR CLEANER, NO.3 (4 parts) 9011906345 — not listed in this catalogue 9033903005 — not listed in this catalogue 17884 — HOSE, AIR CLEANER, NO.4 (4 parts) 17700 — CLEANER ASSY, AIR (10 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (7 parts) 17061 — DIAPHRAGM SUB-ASSY (3 parts) 1708 — not listed in this catalogue 9033903002 — not listed in this catalogue 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (7 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17728 — VALVE, THERMOSTATIC (4 parts) 25704 — VALVE SUB-ASSY, ELECTRIC AIR CONTROL (2 parts) 1708 — not listed in this catalogue 17848 — GASKET, AIR CLEANER TO CARBURETOR (2 parts)
MA8216A · 19 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
17061 — Diaphragm Sub-assy
17061-11010 Diaphragm Sub-assy
1985-05 → 1987-04 ended
2ELU EE80 ¥3,520
17061-15030 Diaphragm Sub-assy
1983-05 → 1985-05 ended
2ALU,3ALU AE80,81 ¥4,000
17061-15040 Diaphragm Sub-assy
1985-05 → 1987-04 ended
3ALU AE81 ¥3,790
17700 — Cleaner Assy, Air
17700-11231 Cleaner Assy, Air
1985-05 → 1987-04 ended
2ELU EE80 ¥36,500
17700-15160 Cleaner Assy, Air
1983-05 → 1984-11 ended
2ALU AE80;3ALU AE81 4F +3 —
17700-15161 Cleaner Assy, Air
1984-11 → 1985-05 ended
2ALU,3ALU AE80,81 ¥58,900
17700-15210 Cleaner Assy, Air
1985-05 → 1987-04 ended
3ALU AE81 ¥67,200
17700-16080 Cleaner Assy, Air
1983-05 → 1987-04 ended
4AELU AE82 ¥31,800
17700-16280 Cleaner Assy, Air
1984-10 → 1987-04 ended
4AGELU AE82 ¥34,400
17700-64040 Cleaner Assy, Air
1983-05 → 1984-09 ended
1CL CE80 ¥31,500
17700-64040 Cleaner Assy, Air
1984-11 → 1986-04 ended
1CL CE80 ¥31,500
17700-64041 Cleaner Assy, Air
1986-04 → 1987-04 ended
1CL CE80 ¥31,100
17700-64080 Cleaner Assy, Air
1984-09 → 1984-11 ended
1CL CE80 ¥31,100
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06009 Nut, Wing(FOR AIR CLEANER)
1983-05 → 1987-04 ended
2ALU,3ALU AE80,81 —
90175-06009 Nut, Wing(FOR AIR CLEANER)
1983-05 → 1987-04 ended
2ELU EE80 —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06039 Bolt, Stud(FOR AIR CLEANER SETTING)
1983-05 → 1985-05 ended
2ALU,3ALU AE80,81 ¥250
90116-06142 Bolt, Stud(FOR AIR CLEANER SETTING)
1985-05 → 1987-04 ended
3ALU AE81 ¥200
17705 — Cap Sub-assy, Air Cleaner
17705-11170 Cap Sub-assy, Air Cleaner
1985-05 → 1987-04 ended
2ELU EE80 ¥19,400
17705-15070 Cap Sub-assy, Air Cleaner
1983-05 → 1985-05 ended
2ALU,3ALU AE80,81 —
17705-15100 Cap Sub-assy, Air Cleaner
1985-05 → 1987-04 ended
3ALU AE81 —
17705-16010 Cap Sub-assy, Air Cleaner
1983-05 → 1987-04 ended
4AELU AE82 —
17705-16100 Cap Sub-assy, Air Cleaner
1984-10 → 1987-04 ended
4AGELU AE82 —
17705-64030 Cap Sub-assy, Air Cleaner
1983-05 → 1986-04 ended
1CL CE80 —
17705-64080 Cap Sub-assy, Air Cleaner
1986-04 → 1987-04 ended
1CL CE80 —
17706 — Inlet Sub-assy, Air Cleaner, NO.2
17902-15080 Inlet Sub-assy, Air Cleaner, NO.2
1983-05 → 1987-04 ended
2ALU,3ALU AE80,81 ¥11,800
17728 — Valve, Thermostatic
17728-11020 Valve, Thermostatic
1985-05 → 1987-04 ended
2ELU EE80 ¥6,600
17728-15040 Valve, Thermostatic
1983-05 → 1983-07 ended
2ALU AE80;3ALU AE81 4F +3 ¥6,700
17728-15040 Valve, Thermostatic
1984-10 → 1987-04 ended
2ALU,3ALU AE80,81 ¥6,700
17728-15060 Valve, Thermostatic
1983-07 → 1984-10 ended
2ALU AE80;3ALU AE81 4F +3 ¥6,700
17801 — Element Sub-assy, Air Cleaner Filter
17801-10030 Element Sub-assy, Air Cleaner Filter
1985-05 → 1987-04 ended
3ALU AE81 ¥1,890
17801-10030 Element Sub-assy, Air Cleaner Filter
1985-05 → 1987-04 ended
2ELU EE80 ¥1,890
17801-15010 Element Sub-assy, Air Cleaner Filter
1983-05 → 1985-05 ended
2ALU,3ALU AE80,81 ¥1,470
17801-64010 Element Sub-assy, Air Cleaner Filter
1984-11 → 1987-04 ended
1CL CE80 ¥3,150
17801-64010 Element Sub-assy, Air Cleaner Filter
1983-05 → 1984-09 ended
1CL CE80 ¥3,150
17801-64020 Element Sub-assy, Air Cleaner Filter
1984-09 → 1984-11 ended
1CL CE80 ¥3,150
17801-74010 Element Sub-assy, Air Cleaner Filter
1983-05 → 1987-04 ended
4A# AE82 ¥2,840
17841 — Gasket, Filter Element
17841-15010 Gasket, Filter Element
1983-05 → 1985-05 ended
2ALU,3ALU AE80,81 —
17845-10020 Gasket, Filter Element
1985-05 → 1987-04 ended
3ALU AE81 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-10020 Gasket, Air Cleaner TO Carburetor
1985-05 → 1987-04 ended
3ALU AE81 —
17848-15010 Gasket, Air Cleaner TO Carburetor
1985-05 → 1987-04 ended
2ELU EE80 ¥0
17881 — Hose, Air Cleaner, NO.1
17880-64030 Hose, Air Cleaner, NO.1
1983-05 → 1987-04 ended
1CL CE80 ¥5,400
17881-10030 Hose, Air Cleaner, NO.1
1985-05 → 1987-04 ended
2ELU EE80 —
17881-16010 Hose, Air Cleaner, NO.1
1983-05 → 1987-04 ended
4AELU AE82 ¥5,400
17881-16090 Hose, Air Cleaner, NO.1
1984-10 → 1987-04 ended
4AGELU AE82 ¥5,700
17881-16110 Hose, Air Cleaner, NO.1
1985-05 → 1987-04 ended
3ALU AE81 —
17881-63010 Hose, Air Cleaner, NO.1
1983-05 → 1985-02 ended
2ALU AE80;3ALU AE81 4F +3 —
17881-74040 Hose, Air Cleaner, NO.1
1985-02 → 1985-05 ended
2ALU,3ALU AE80,81 —
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
90929-01073 Clamp(FOR AIR CLEANER HOSE, NO.1)
1983-05 → 1984-11 ended
2ALU AE80;3ALU AE81 4F +3 ¥510
90929-01117 Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-11 → 1985-08 ended
2ALU,3ALU AE80,81 ¥530
90929-01145 Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-08 → 1987-04 ended
3ALU AE81 ¥530
96111-10650 Clamp(FOR AIR CLEANER HOSE, NO.1)
1983-05 → 1987-04 ended
1CL CE80 ¥240
96111-10710 Clamp(FOR AIR CLEANER HOSE, NO.1)
1983-05 → 1987-04 ended
4AELU AE82 ¥160
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-10 → 1987-04 ended
4AGELU AE82 ¥190
17882 — Hose, Air Cleaner, NO.2
17880-12040 Hose, Air Cleaner, NO.2
1985-05 → 1987-04 ended
2ELU EE80 ¥4,360
17880-12050 Hose, Air Cleaner, NO.2
1984-10 → 1987-04 ended
4AGELU AE82 ¥8,700
17881-12050 Hose, Air Cleaner, NO.2
1983-05 → 1987-04 ended
1CL CE80 ¥2,920
17881-12050 Hose, Air Cleaner, NO.2
1983-05 → 1987-04 ended
4AELU AE82 ¥2,920
17881-12060 Hose, Air Cleaner, NO.2
1983-05 → 1987-04 ended
2ALU,3ALU AE80,81 ¥2,910
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-01005 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-05 → 1987-04 ended
2ALU,3ALU AE80,81 ¥550
90460-01034 Clamp(FOR AIR CLEANER HOSE, NO.2)
1985-05 → 1987-04 ended
2ELU EE80 ¥130
96111-10650 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1983-05 → 1987-04 ended
2ALU,3ALU AE80,81 ¥240
17883 — Hose, Air Cleaner, NO.3
17880-12030 Hose, Air Cleaner, NO.3
1983-05 → 1987-04 ended
1CL CE80 ¥10,800
17880-12030 Hose, Air Cleaner, NO.3
1983-05 → 1987-04 ended
4AELU AE82 ¥10,800
17882-12020 Hose, Air Cleaner, NO.3
1983-05 → 1987-04 ended
2ALU,3ALU AE80,81 ¥5,100
17884-12020 Hose, Air Cleaner, NO.3
1984-10 → 1987-04 ended
4AGELU AE82 ¥2,090
17884 — Hose, Air Cleaner, NO.4
17881-12080 Hose, Air Cleaner, NO.4
1984-10 → 1987-04 ended
4AGELU AE82 ¥2,920
17883-12020 Hose, Air Cleaner, NO.4
1983-05 → 1987-04 ended
2ALU,3ALU AE80,81 ¥9,200
17884-12010 Hose, Air Cleaner, NO.4
1983-05 → 1987-04 ended
4AELU AE82 ¥2,090
17884-12010 Hose, Air Cleaner, NO.4
1983-05 → 1987-04 ended
1CL CE80 ¥2,090
25704 — Valve Sub-assy, Electric Air Control
25704-15030 Valve Sub-assy, Electric Air Control
1983-05 → 1985-05 ended
2ALU,3ALU AE80,81 ¥33,400
25704-15060 Valve Sub-assy, Electric Air Control
1985-05 → 1987-04 ended
3ALU AE81 ¥22,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
