Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

9 part groups · 2 illustrations

Illustrations

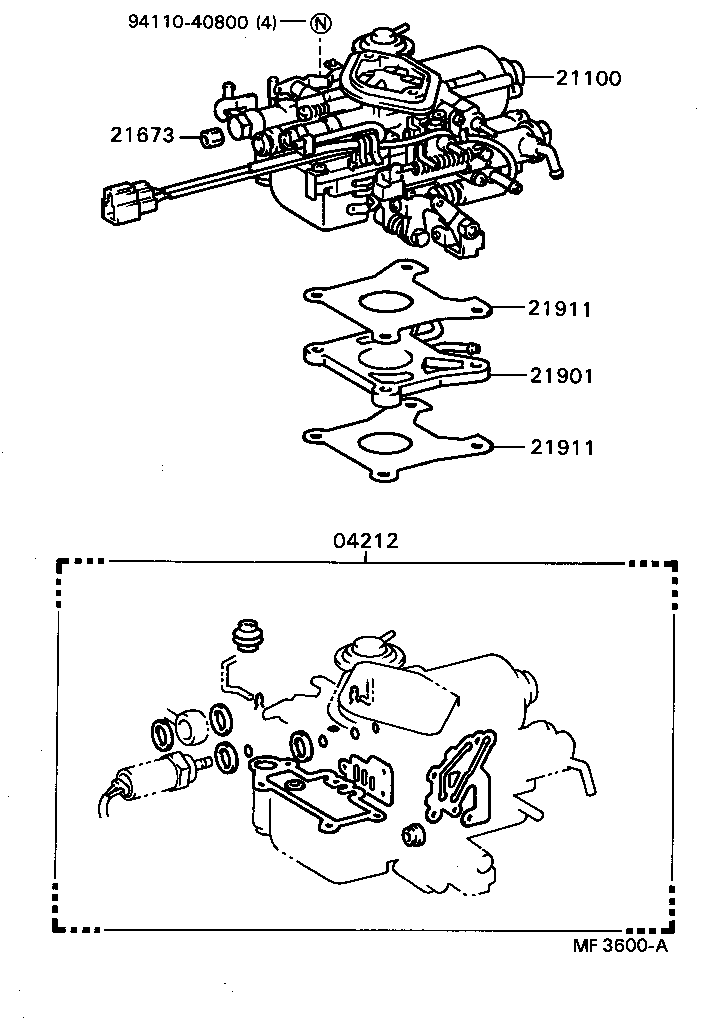

Figure MF3091C MF3091C 1983-05 → — Figure MF3600A MF3600A 1985-05 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21909 Insulator Sub-assy, Carburetor Heat, NO.3
21911 Gasket, Carburetor
21913 Insulator, Carburetor Heat, NO.2
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
