Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

10 part groups · 3 illustrations

Illustrations

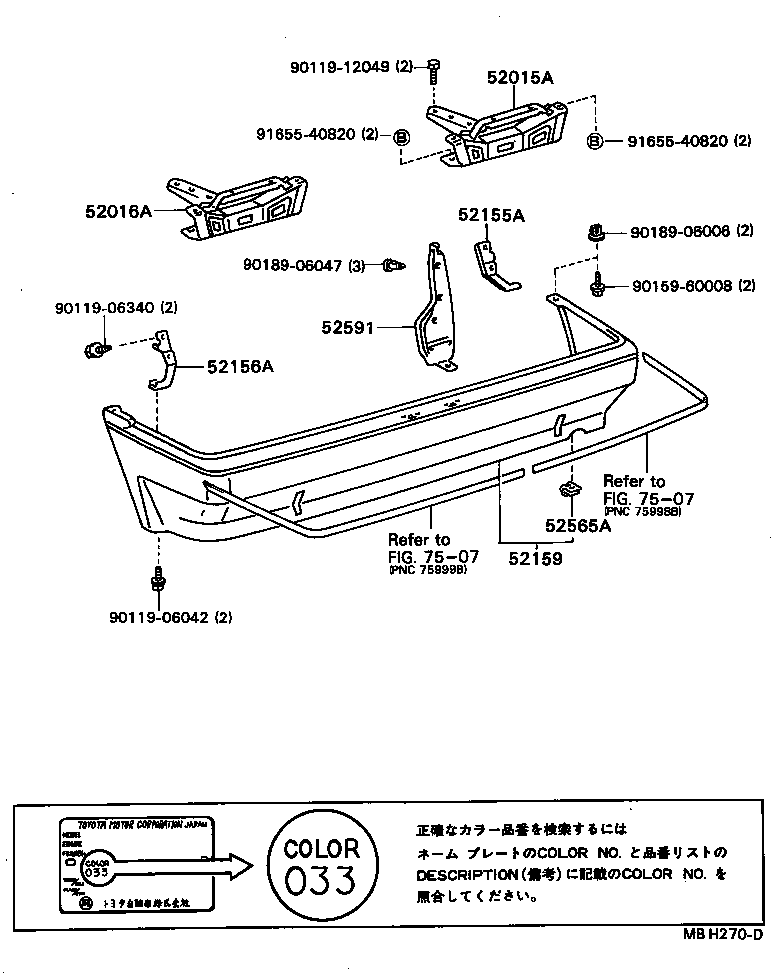

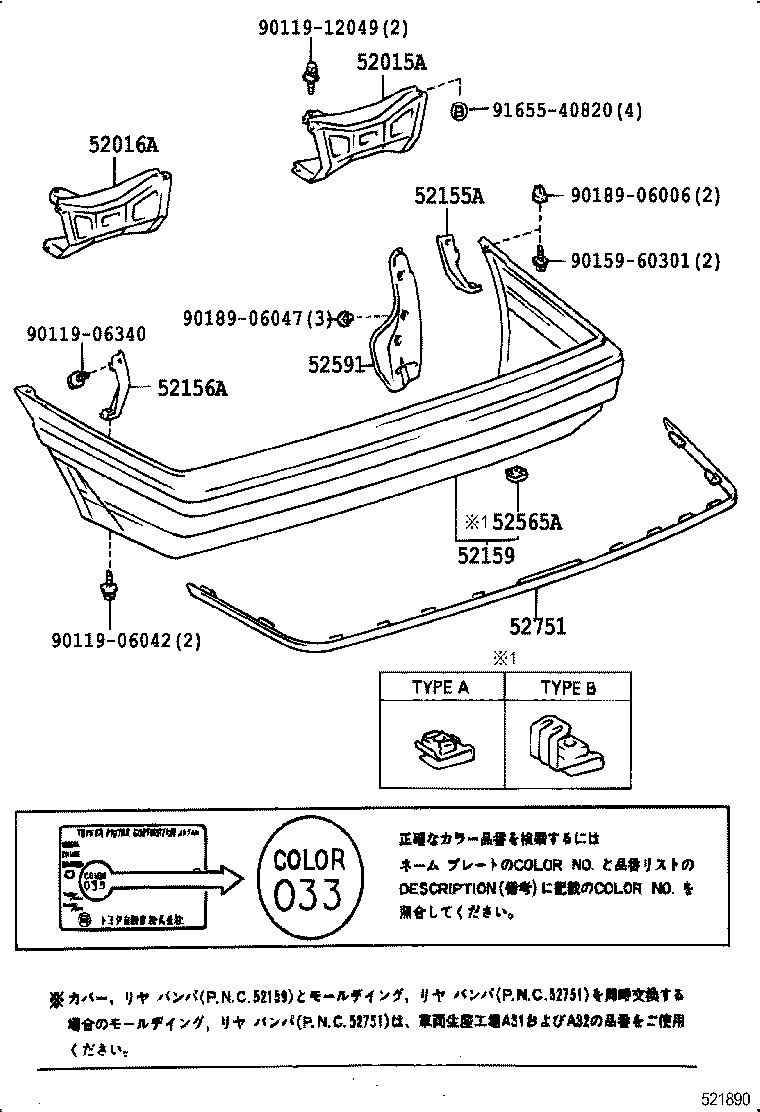

Figure MBF191E MBF191E 1983-05 → 1985-05 Figure 521890 521890 1985-05 → — Figure MBH270D MBH270D 1984-10 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52565A Retainer, Rear Bumper, Lower
52591 Seal, Rear Bumper Side, RH
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
