Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 3 illustrations

Illustrations

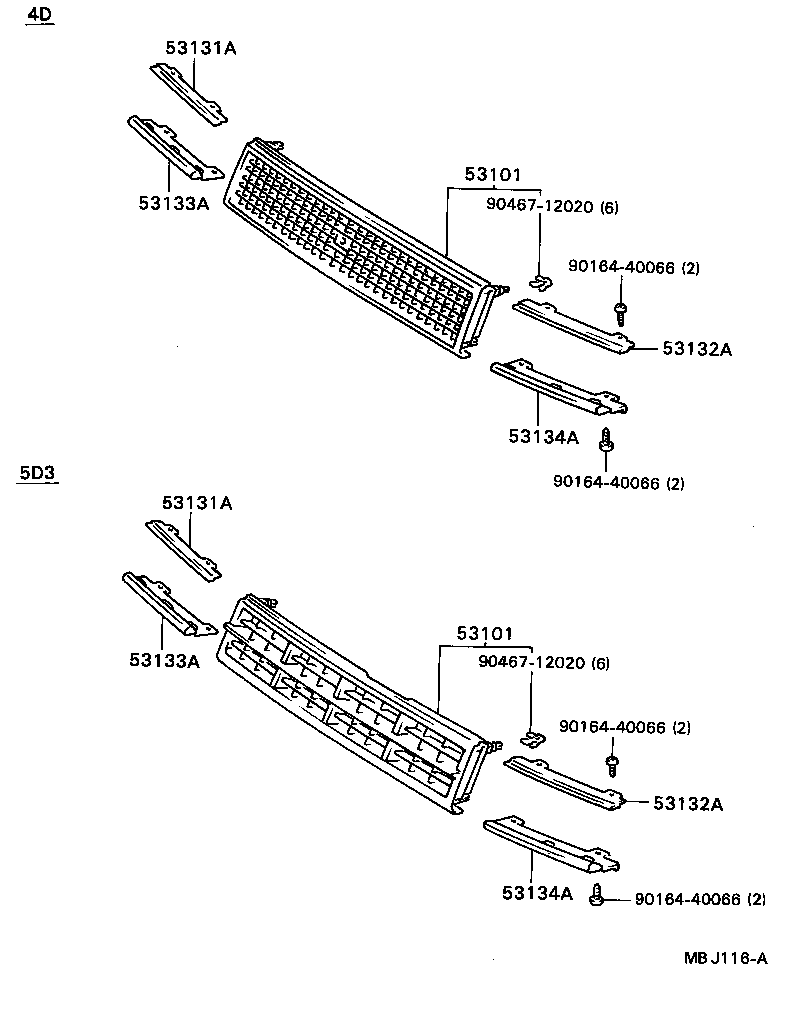

Figure MBF193E MBF193E 1983-05 → 1985-05 Figure MBJ116A MBJ116A 1985-05 → — Figure MBJ115 MBJ115 1984-10 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53111C Moulding, Radiator Grille, Upper
53111G Moulding, Radiator Grille, Lower
53131A Door, Headlamp, RH
53132A Door, Headlamp, LH
53133A Door, Headlamp, Lower RH
53134A Door, Headlamp, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
