Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11

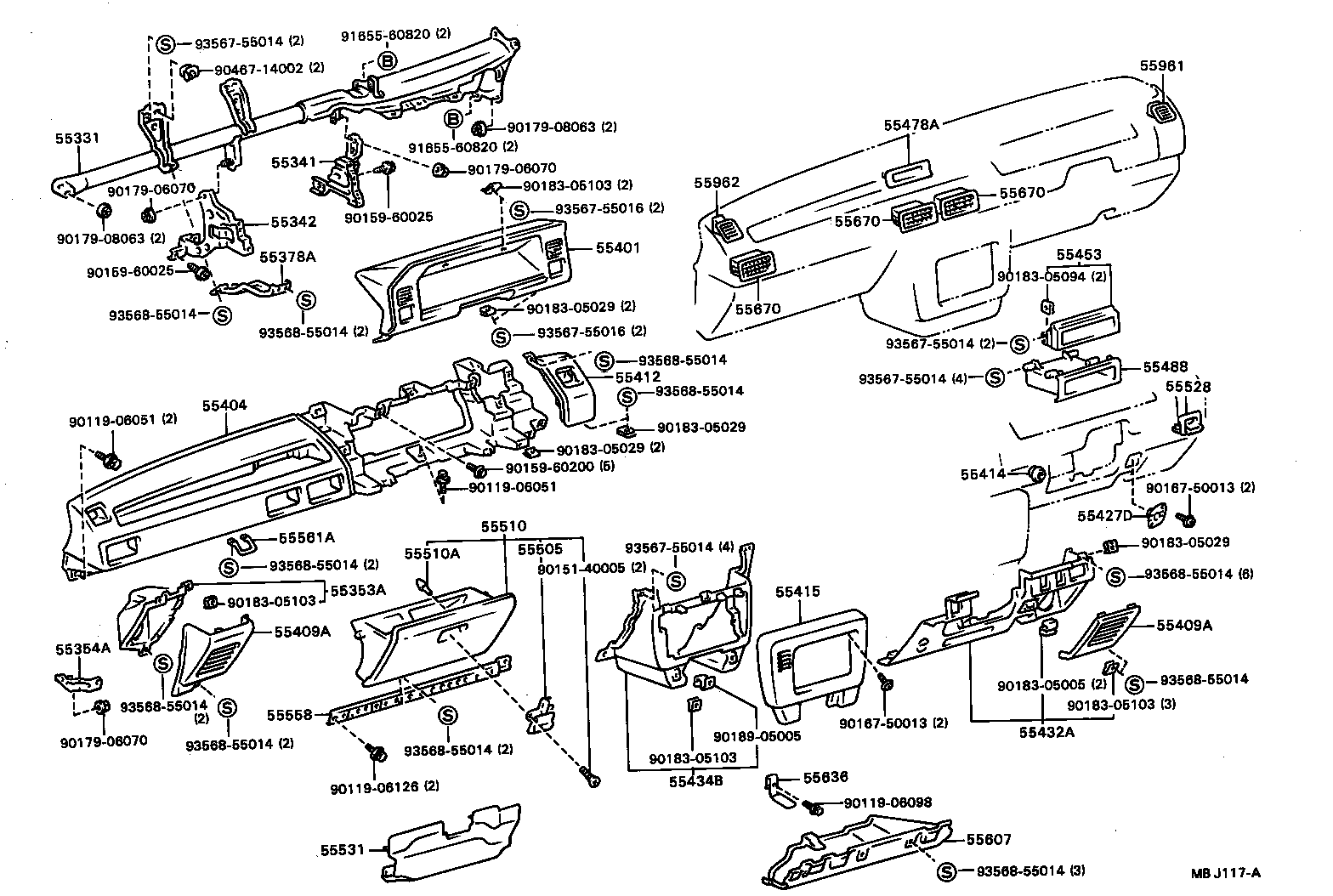

Instrument Panel & Glove Compartment

35 part groups · 2 illustrations

PNC	Description
55331	Reinforcement, Instrument Panel
55341	Brace, Instrument Panel, NO.1
55342	Brace, Instrument Panel, NO.2
55353A	Bracket, Speaker Mounting, NO.1
55354A	Bracket, Speaker Mounting, NO.2
55378A	Bracket, Glove Compartment Door Lock Mounting
55401	Panel Sub-assy, Instrument Cluster Finish
55401B	Cushion, Instrument Cluster Finish Panel
55404	Safety Pad Sub-assy, Instrument Panel, Upper
55409A	Panel Sub-assy, Instrument Panel Speaker
55412	Panel, Instrument Cluster Finish, End
55414	Bezel, Cigar Lighter Hole
55415	Panel, Instrument Cluster Finish, Center
55427D	Retainer, Instrument Finish Panel, Lower, NO.1
55432A	Panel, Instrument Panel Finish, Lower RH
55434B	Panel, Instrument Panel Finish, Lower Center
55453	Cover, Radio Tuner Opening
55478A	Bezel, Auto Clock Hole
55488	Cover, Stereo Opening
55505	Lock Sub-assy, Glove Compartment Door
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55528	Cover, Auto Drive Opening
55531	Panel, Glove Compartment
55557A	Cushion, Glove Compartment Door Check
55558	Reinforcement, Glove Compartment Door
55561A	Striker, Glove Compartment Door Lock
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55636	Bracket, Instrument Panel Under Cover, NO.1
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
