Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

9 part groups · 3 illustrations

Illustrations

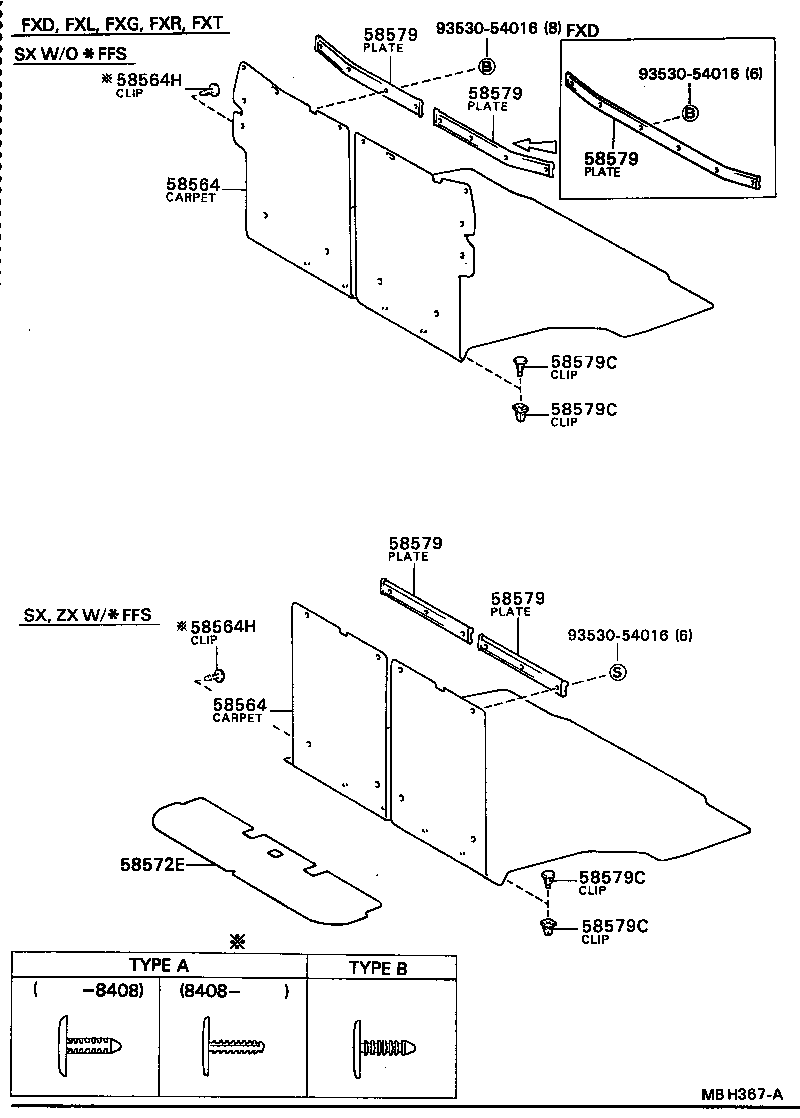

Figure MBF251A MBF251A 1983-05 → 1985-05 Figure MBF252 MBF252 1983-05 → — Figure MBH367A MBH367A 1983-05 → —

Part groups

PNCDescription
58511 Mat, Floor, Front
58520 Carpet Assy, Front Floor
58551 Mat, Floor, Rear
58560 Carpet Assy, Floor, Rear
58564 Carpet, Rear Floor
58564H Clip(FOR REAR FLOOR CARPET)
58572E Mat, Rear Floor, Front
58579 Set Plate, Rear Floor Carpet, NO.1
58579C Clip, Rear Floor Carpet Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
