Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

9 part groups · 2 illustrations

Illustrations

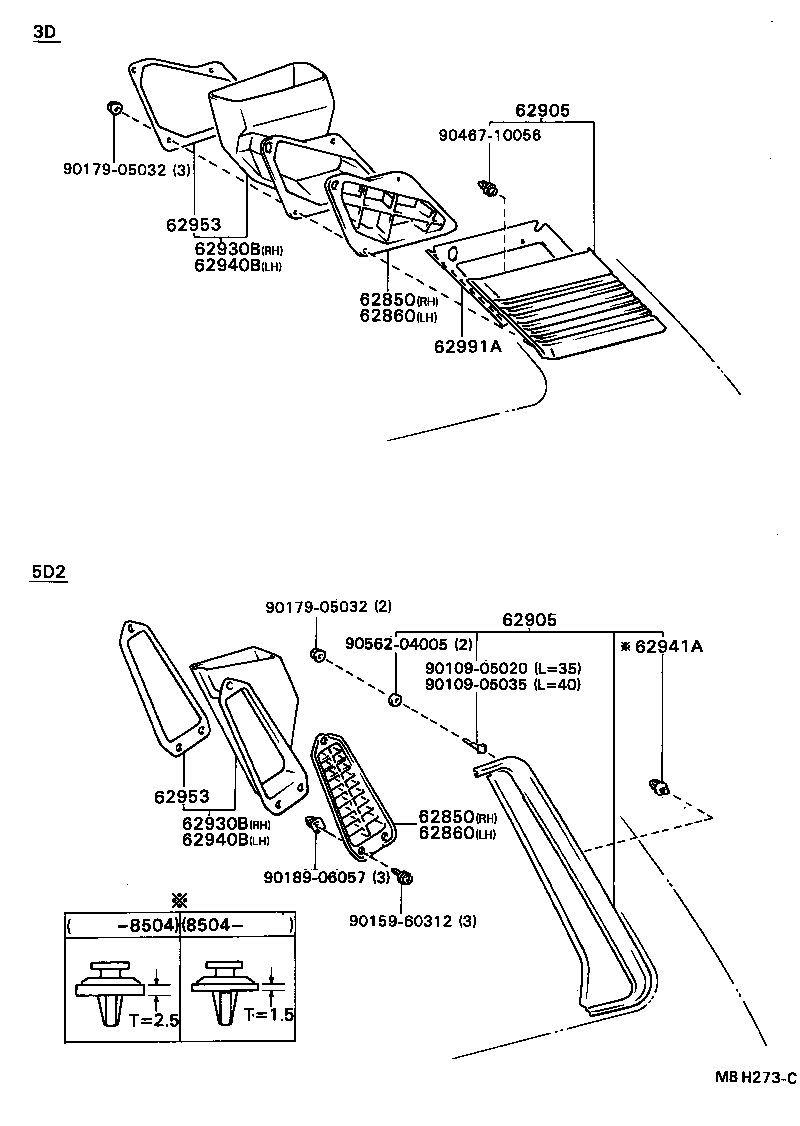

Figure MBF183C MBF183C 1983-05 → — Figure MBH273C MBH273C 1984-10 → —

Part groups

PNCDescription
62850 Valve Assy, Room Pressure Relief, RH
62860 Valve Assy, Room Pressure Relief, LH
62905 Louver, Quarter Ventilation
62930B Duct Assy, Quarter Vent, RH
62940B Duct Assy, Quarter Vent, LH
62941A Retainer, Quarter Vent Duct
62953 Seal, Quarter Vent Duct, NO.1
62954 Seal, Quarter Vent Duct, NO.2
62991A Pad, Quarter Vent Louver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
