Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

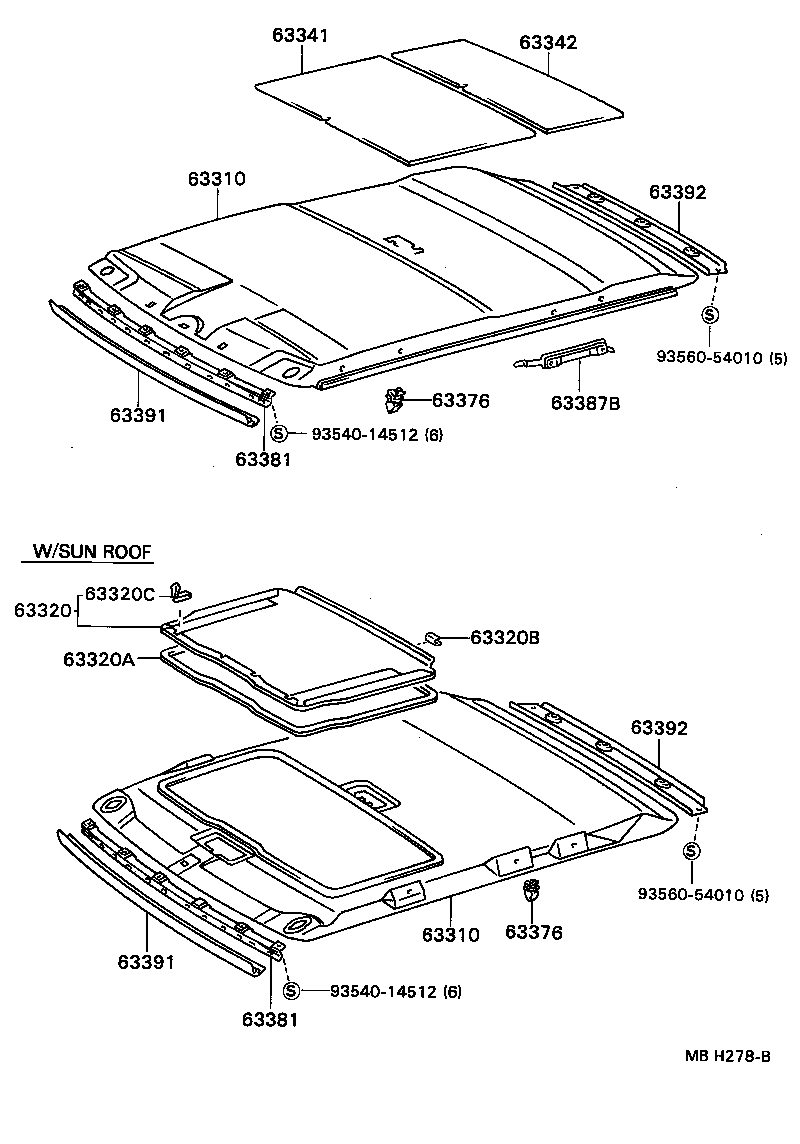

Figure MBF202A MBF202A 1983-05 → — Figure MBH278B MBH278B 1984-10 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320B Joint, Sun Roof Opening Trim
63320C Retainer, Trim Board(FOR SUN ROOF)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63376 Clip, Headlining
63381 Retainer, Headlining, Front
63387B Bracket, Roof Headlining Retainer
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
