Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

51 part groups · 9 illustrations

Illustrations

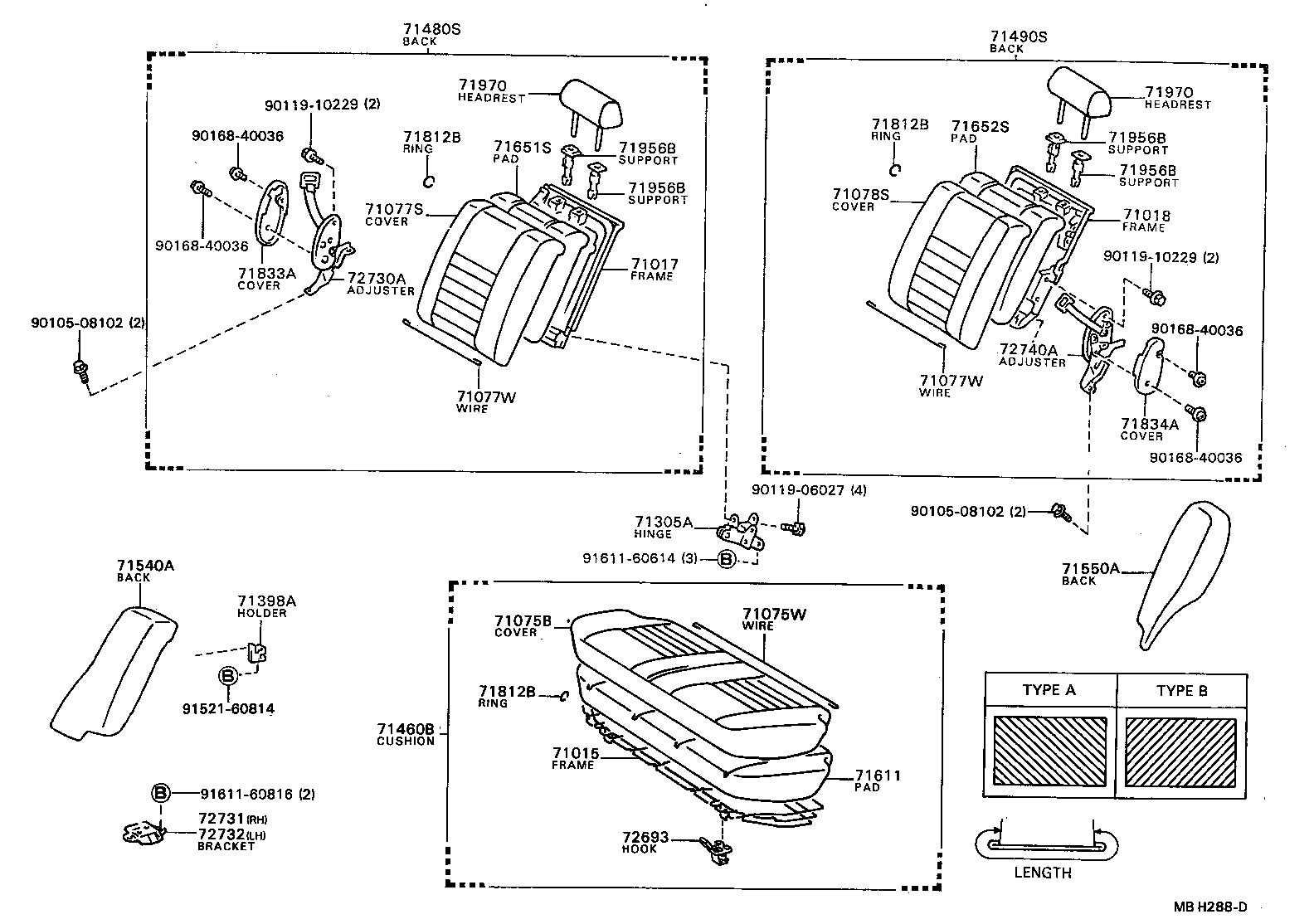

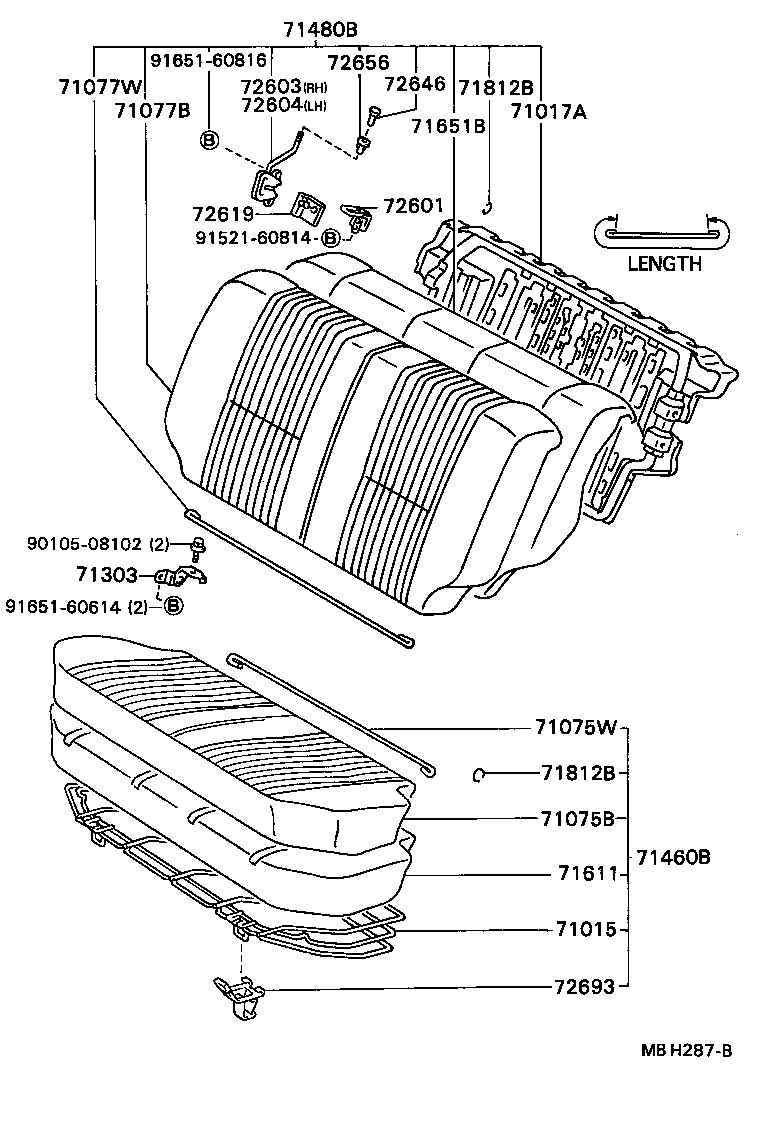

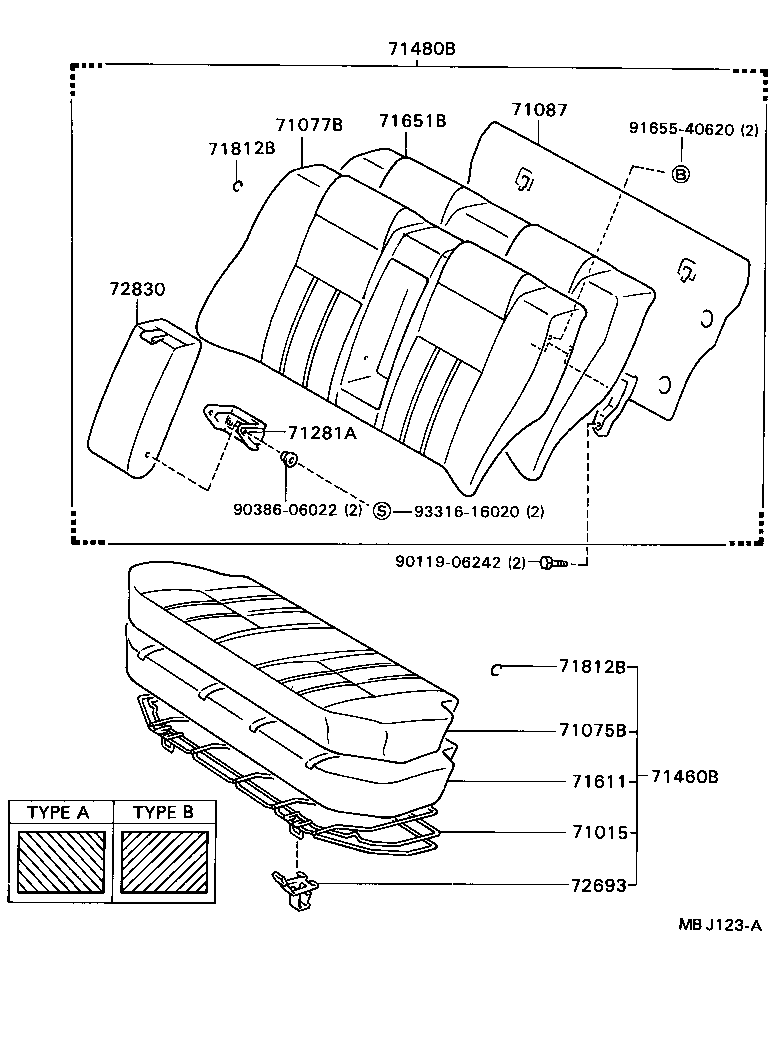

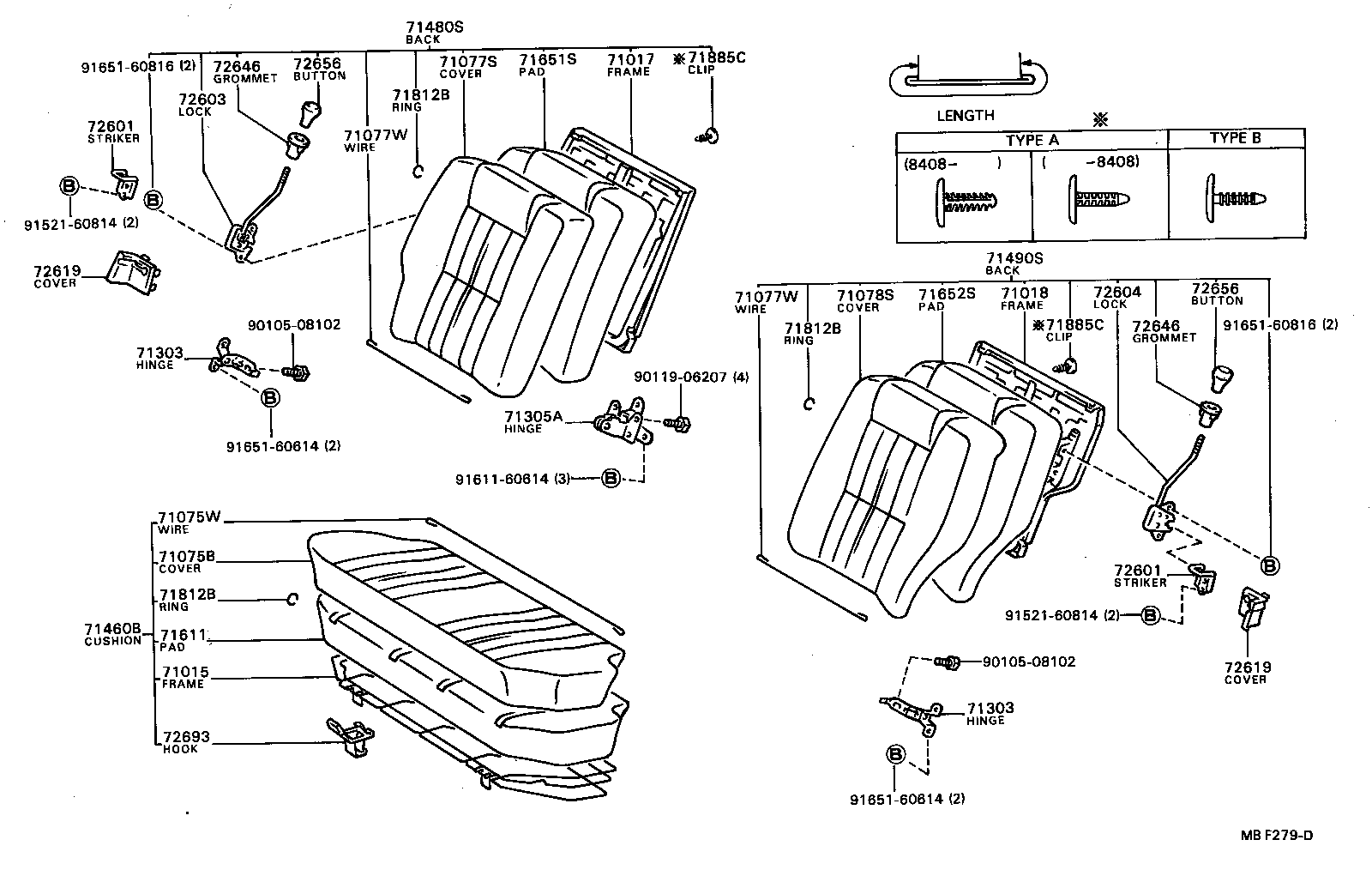

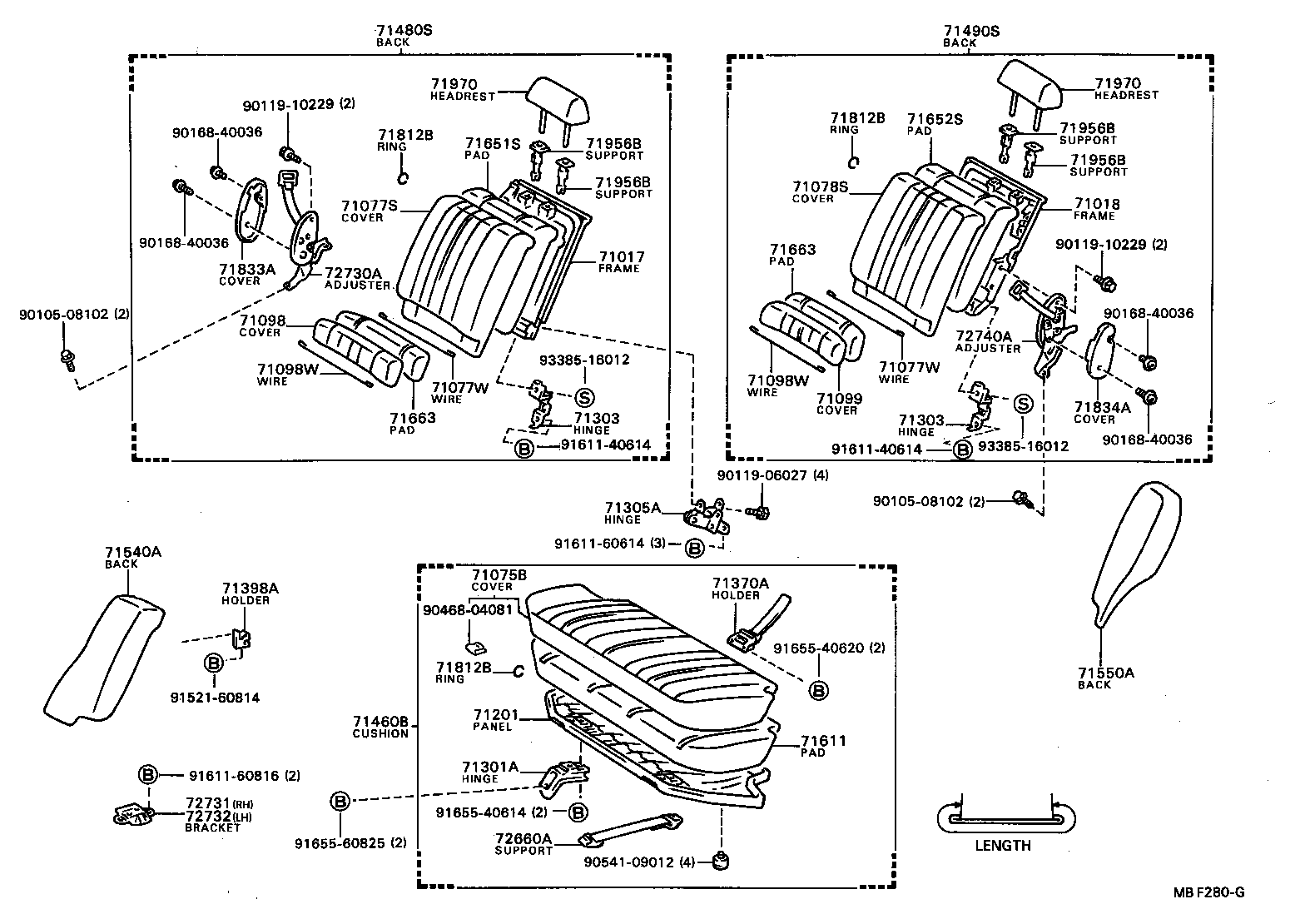

Figure MBF278B MBF278B 1983-05 → — Figure MBH287B MBH287B 1984-10 → — Figure MBJ123A MBJ123A 1985-05 → — Figure MBF279D MBF279D 1983-05 → 1985-05 Figure MBF279D MBF279D 1985-05 → — Figure MBF280G MBF280G 1983-05 → 1984-01 Figure MBF280G MBF280G 1984-01 → 1985-05 Figure MBF280G MBF280G 1985-05 → — Figure MBH288D MBH288D 1984-10 → —

Part groups

PNCDescription
71015 Frame Sub-assy, Rear Seat Cushion
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075W Wire, Rear Seat Cushion Cover
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077W Wire, Rear Seatback Cover
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087 Board Sub-assy, Rear Seatback
71098 Cover Sub-assy, Rear Seatback, Lower RH
71098W Wire, Rear Seatback Lower Cover
71099 Cover Sub-assy, Rear Seatback, Lower LH
71201 Panel Sub-assy, Rear Seat Cushion
71281A Hinge, Rear Seat Center Armrest
71301A Hinge Sub-assy, Rear Seat Cushion
71303 Hinge Sub-assy, Rear Seatback
71305A Hinge Sub-assy, Rear Seatback, Center
71370A Holder Assy, Rear Seat Cushion
71398A Holder, Rear Seatback
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A Back Assy, Rear Side Seat, RH
71550A Back Assy, Rear Side Seat, LH
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71663 Pad, Rear Seatback, Lower
71812B Clip(FOR REAR SEAT CUSHION COVER)
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71885C Clip(FOR REAR SEATBACK CARPET)
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72619 Cover, Rear Seatback Lock Striker
72646 Grommet, Rear Seatback Stop Button
72656 Button, Rear Seatback Stop Release
72660A Support Assy, Rear Seat Cushion
72693 Hook, Rear Seat Cushion Lock
72730A Adjuster Assy, Rear Seat Reclining, RH
72731 Bracket, Rear Seat Reclining, RH
72732 Bracket, Rear Seat Reclining, LH
72740A Adjuster Assy, Rear Seat Reclining, LH
72830 Armrest Assy, Rear Seat, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
