Toyota Corolla
1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan
Discontinued model
Data version 1987-11
Armrest & Visor

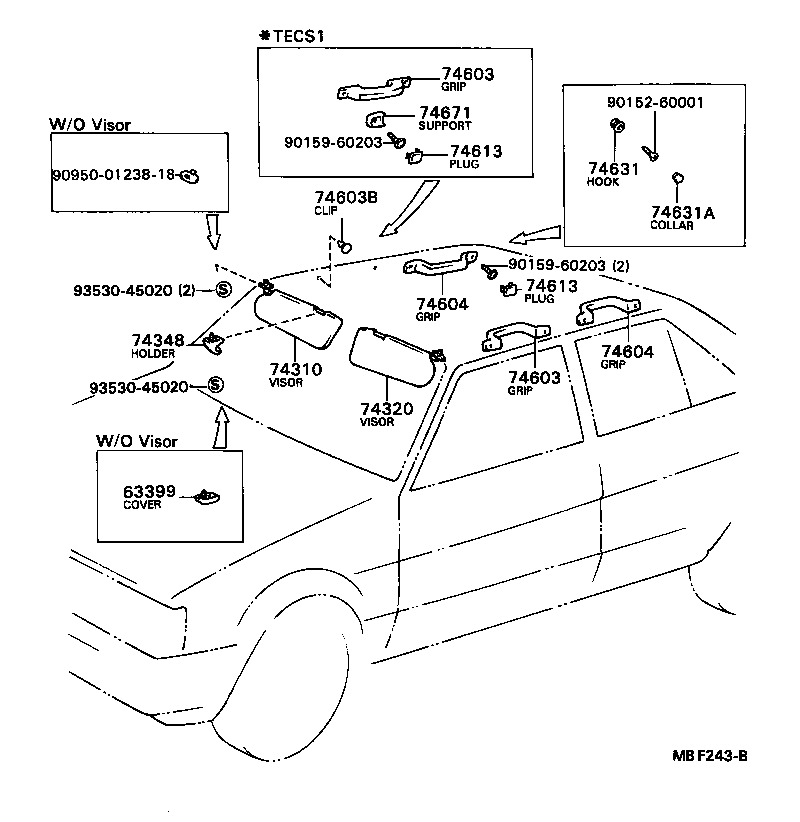

19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63399 | Cover, Visor Holder Hole |
| 74210 | Armrest Assy, Front, RH |
| 74220 | Armrest Assy, Front, LH |
| 74223 | Cap, Door Armrest, RH |
| 74224 | Cap, Door Armrest, LH |
| 74225 | Cap, Door Armrest, Rear RH |
| 74226 | Cap, Door Armrest, Rear LH |
| 74230 | Armrest Assy, Rear, RH |
| 74240 | Armrest Assy, Rear, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74603B | Clip (FOR ASSIST GRIP) |
| 74604 | Grip Sub-assy, Assist, Rear |
| 74613 | Plug, Assist Grip |
| 74631 | Hook, Coat, A |
| 74631A | Collar, Coat Hook |
| 74671 | Support, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
