Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

12 part groups · 2 illustrations

Illustrations

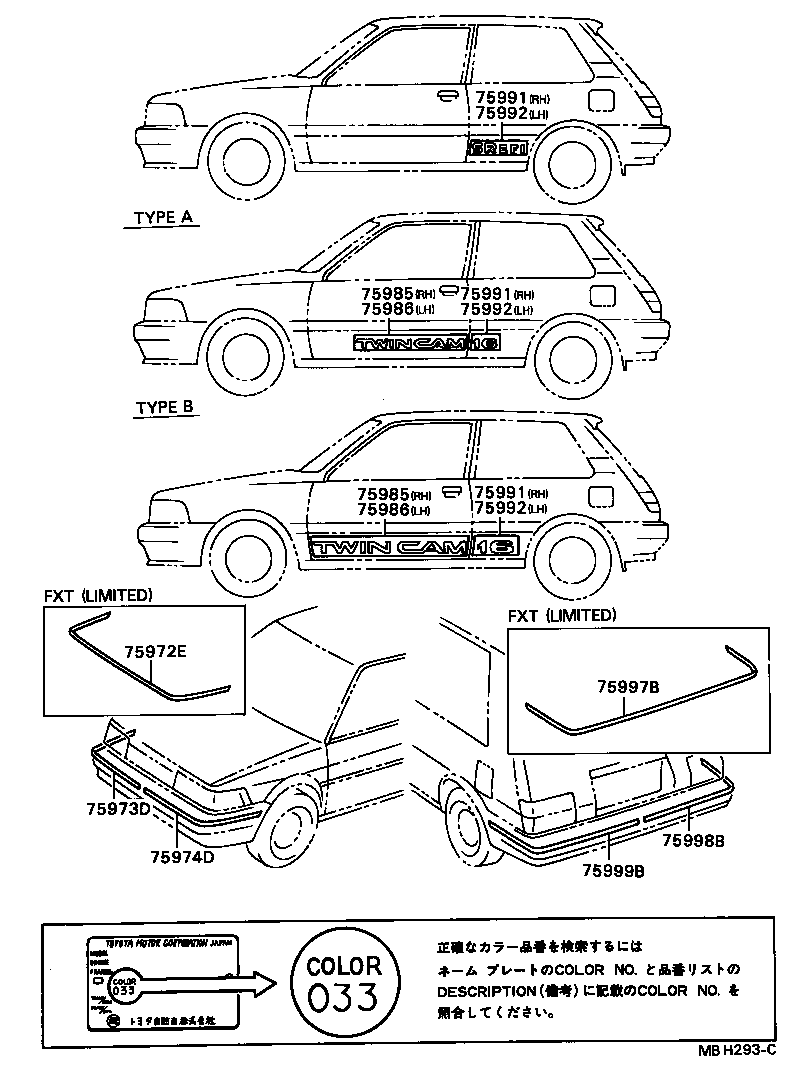

Figure MBF179B MBF179B 1983-05 → — Figure MBH293C MBH293C 1984-10 → —

Part groups

PNCDescription
75946 Stripe, Back Door, RH
75947 Stripe, Back Door, LH
75972E Stripe, Front Bumper
75973D Stripe, Front Bumper Side, RH
75974D Stripe, Front Bumper Side, LH
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75991 Stripe, Quarter, RH NO.1
75992 Stripe, Quarter, LH NO.1
75997B Stripe, Rear Bumper
75998B Stripe, Rear Bumper Side, RH
75999B Stripe, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
