Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

13 part groups · 2 illustrations

Illustrations

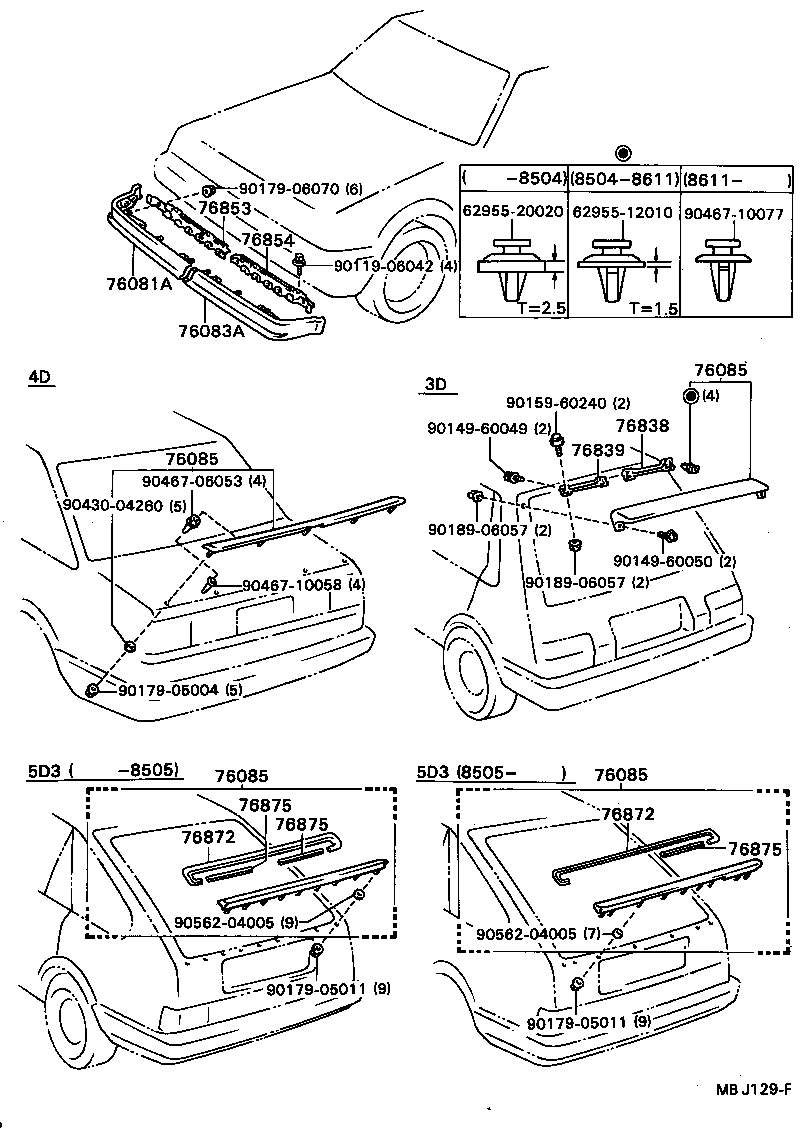

Figure MBH951A MBH951A 1983-05 → — Figure MBJ129F MBJ129F 1984-10 → —

Part groups

PNCDescription
76081A Spoiler Sub-assy, Front RH
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76838 Retainer, Back Door Finish Panel, RH
76839 Retainer, Back Door Finish Panel, LH
76853 Retainer, Front Spoiler, Upper RH
76854 Retainer, Front Spoiler, Upper LH
76872 Protector, Rear Spoiler, NO.1
76875 Protector, Rear Spoiler, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
