Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

8 part groups · 2 illustrations

Illustrations

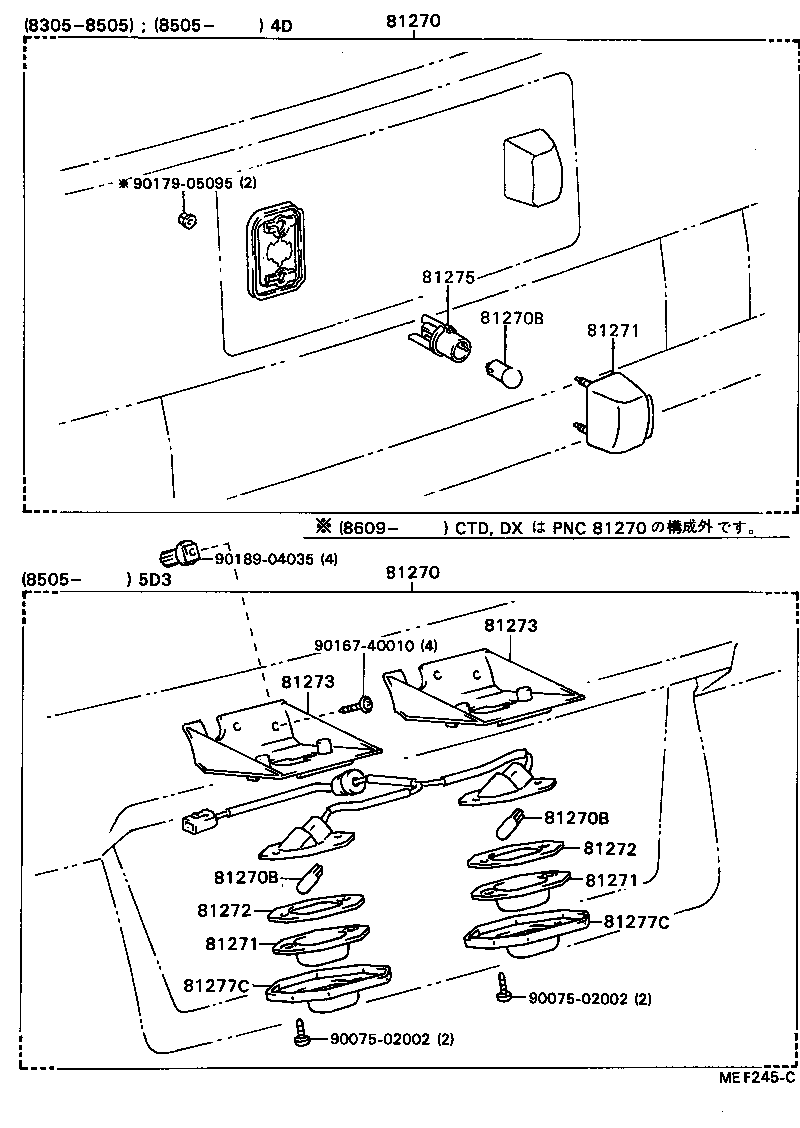

Figure MEF780C MEF780C 1984-10 → — Figure MEF245C MEF245C 1983-05 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81273 Bracket, License Plate Lamp
81275 Socket And Wire, License Plate Lamp
81277 Spacer, License Plate Lamp Rim And Lens
81277C Shade, License Plate Lamp, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
