Toyota Corolla
1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan
Discontinued model
Data version 1987-11
Switch & Relay & Computer
90 part groups · 7 illustrations
Part groups

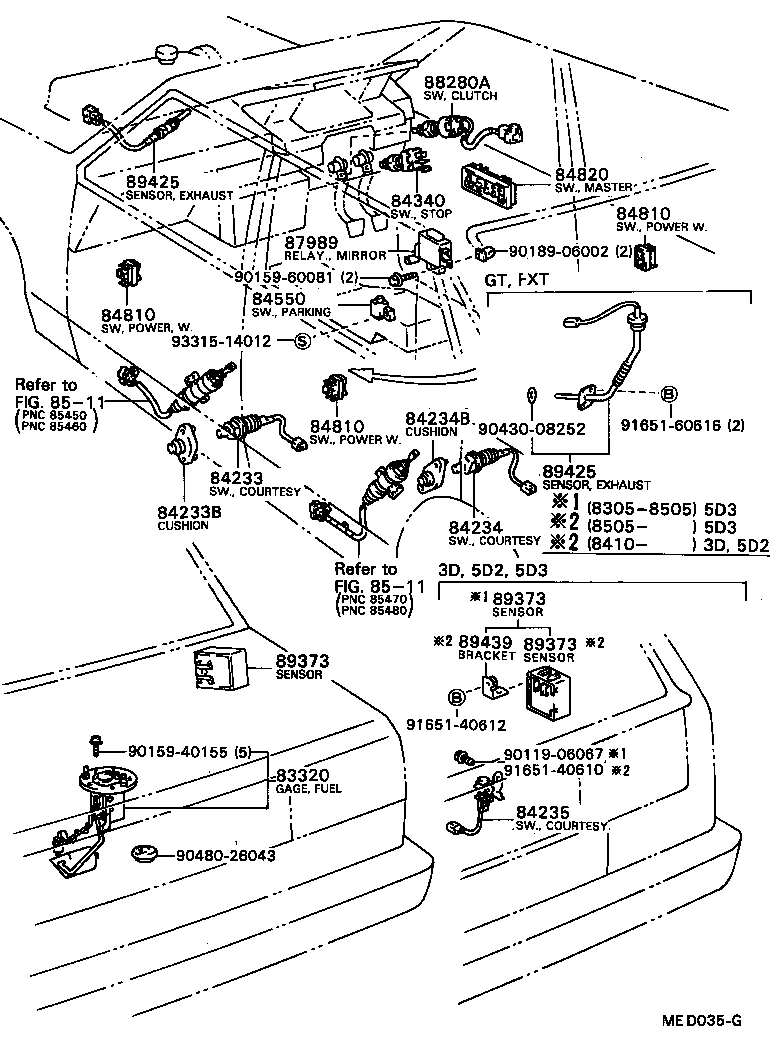

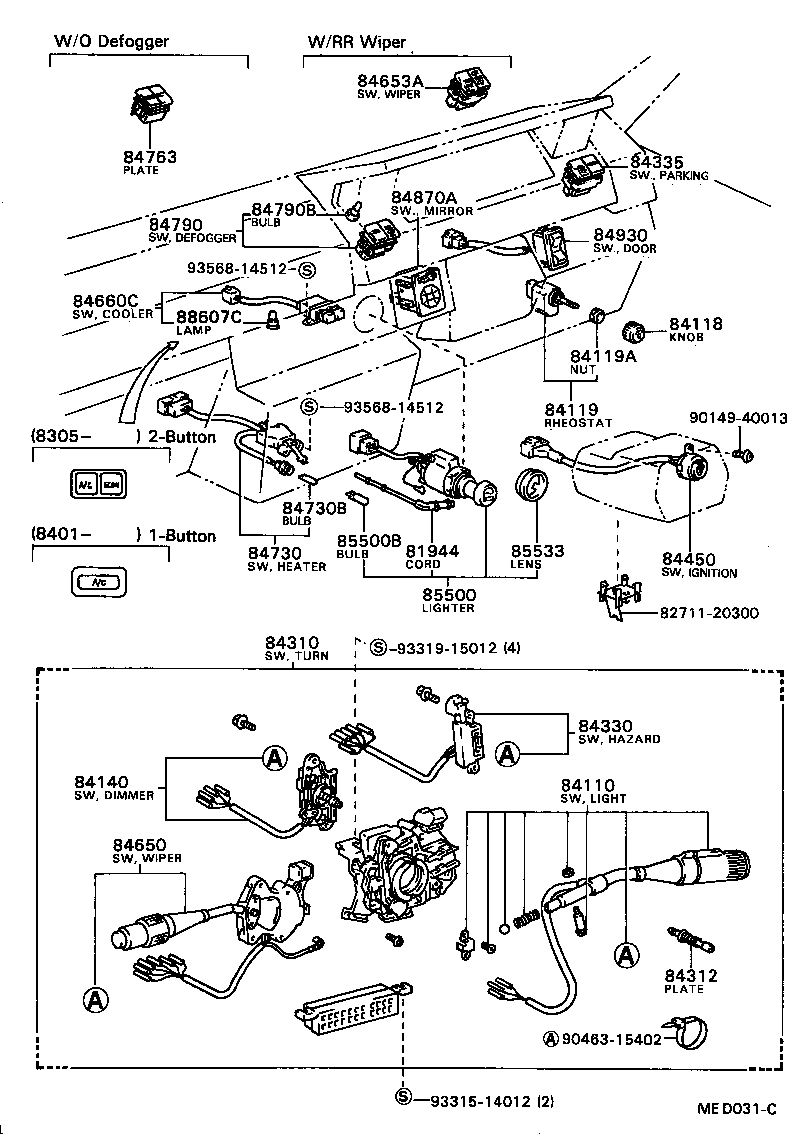

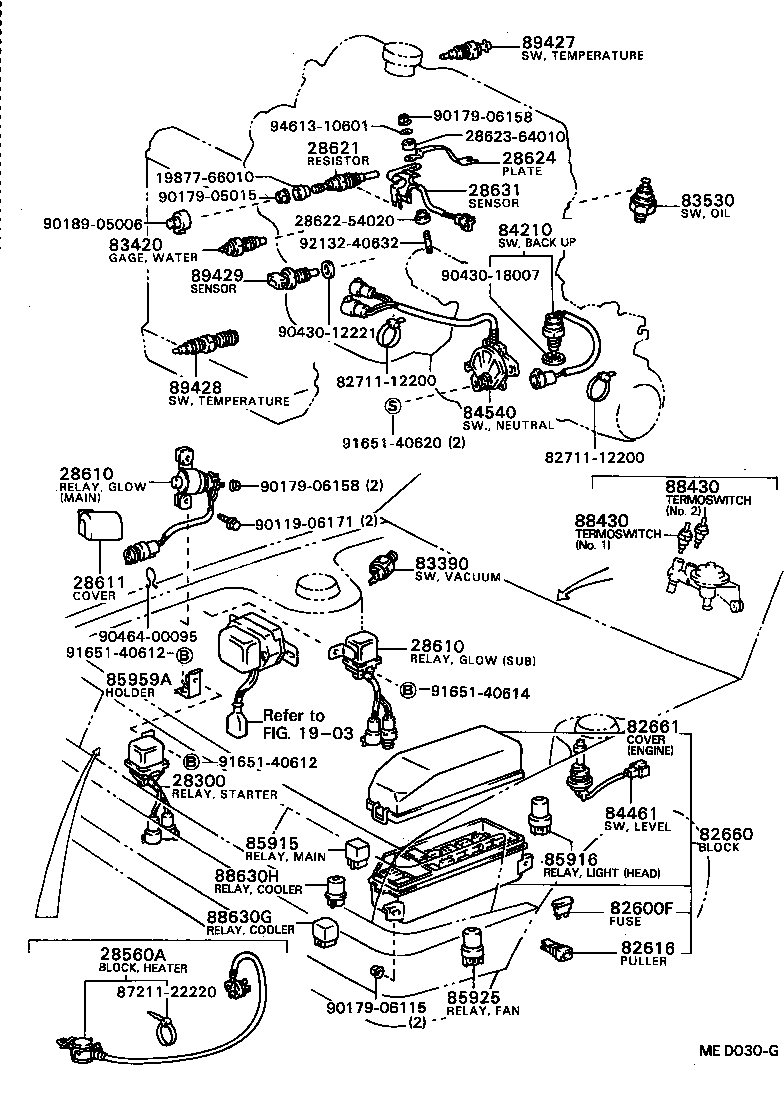

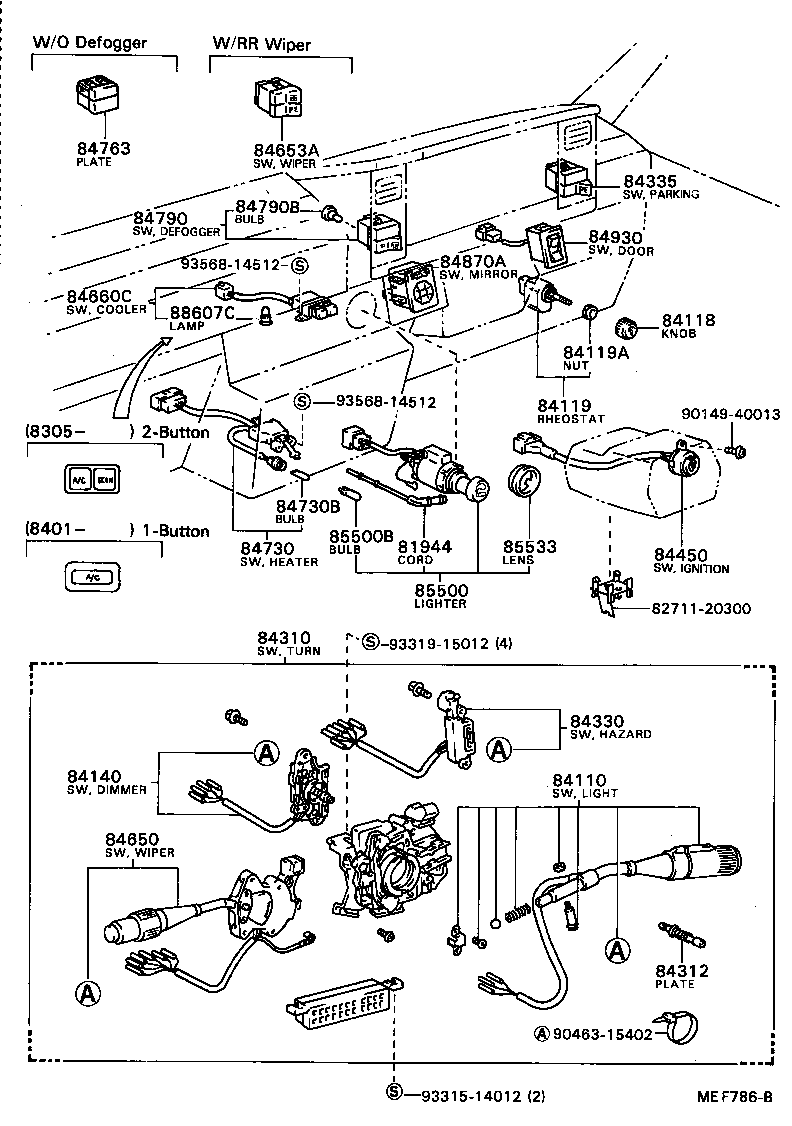

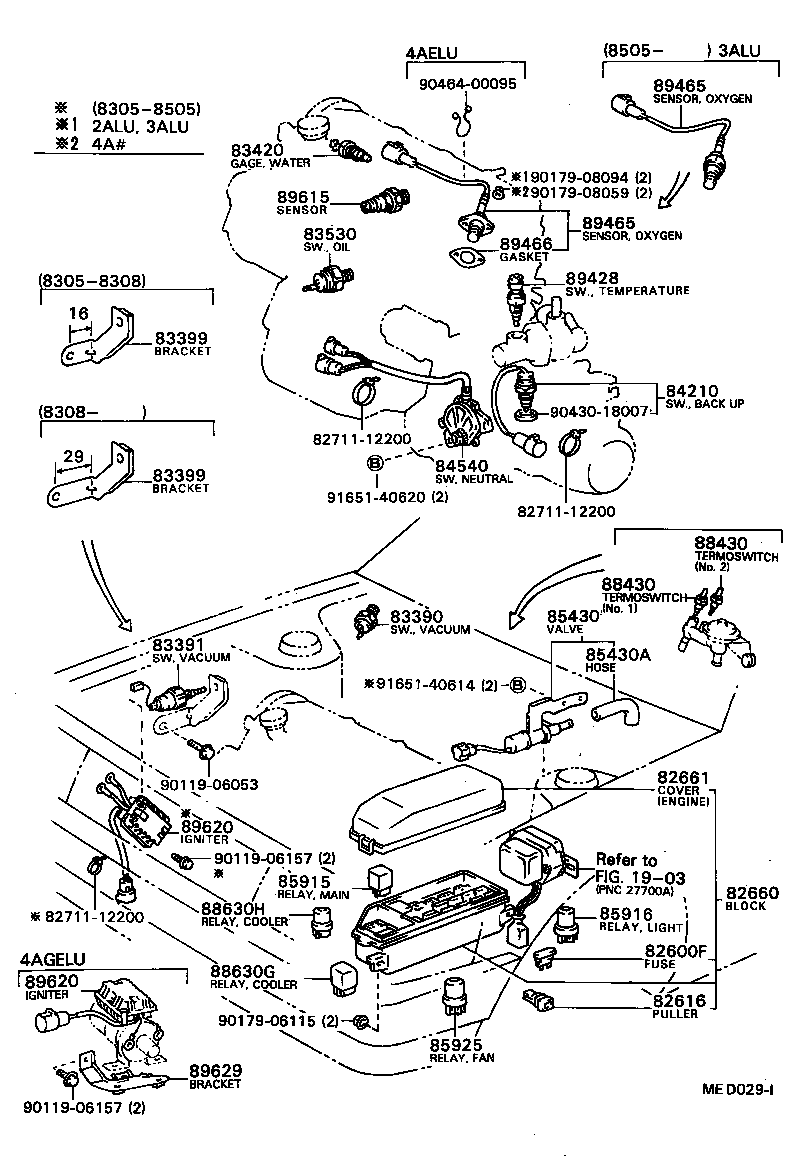

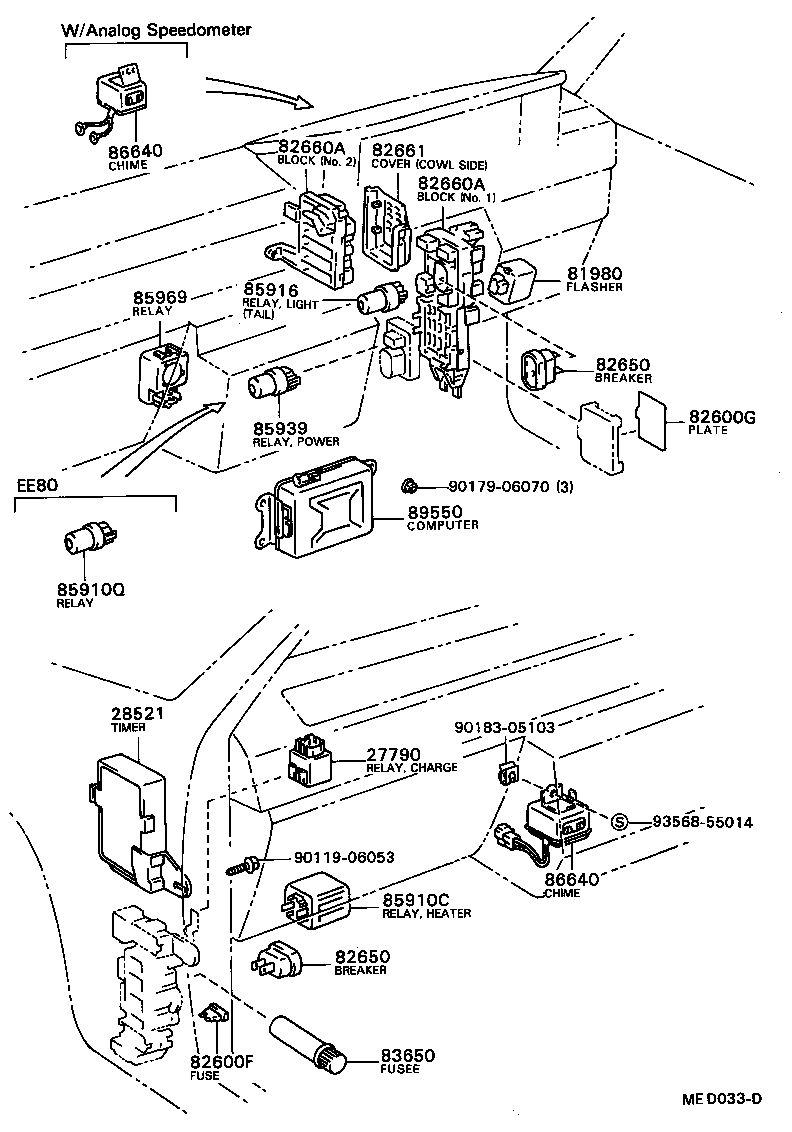

| PNC | Description |
|---|---|
| 27790 | Relay Assy, Charge Lamp |
| 28300 | Relay Assy, Starter |
| 28521 | Timer, Preheating |
| 28560A | Block, Heater |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 28631 | Sensor, Glow Plug Current |
| 81944 | Cord, Optical Fiber |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82660 | Block Assy, Relay, Engine Room |
| 82660A | Block Assy, Relay, Cowl Side |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84234B | Cushion, Courtesy Switch (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84335 | Switch Assy, Parking Lamp |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84660C | Switch, Cooler |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84763 | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 85430 | Valve, Outer Vent Control |
| 85430A | Hose |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910Q | Relay (FOR IDLE UP) |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85925 | Relay, Radiator Fan |
| 85939 | Relay, Power Window |
| 85959A | Holder, Relay |
| 85969 | Relay, Light Reminder |
| 86640 | Chime Assy |
| 87989 | Relay, Mirror Control |
| 88280A | Switch Assy, Clutch |
| 88430 | Thermoswitch Assy, Air Conditioner |
| 88607C | Lamp Sub-assy, Indicator |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89373 | Sensor, Lamp Failure Indicator |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89439 | Bracket, Sensor |
| 89453 | Switch, Throttle Position (FOR T.C.S.) |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89550 | Computer Assy, Emission Control |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
