Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 2 illustrations

Illustrations

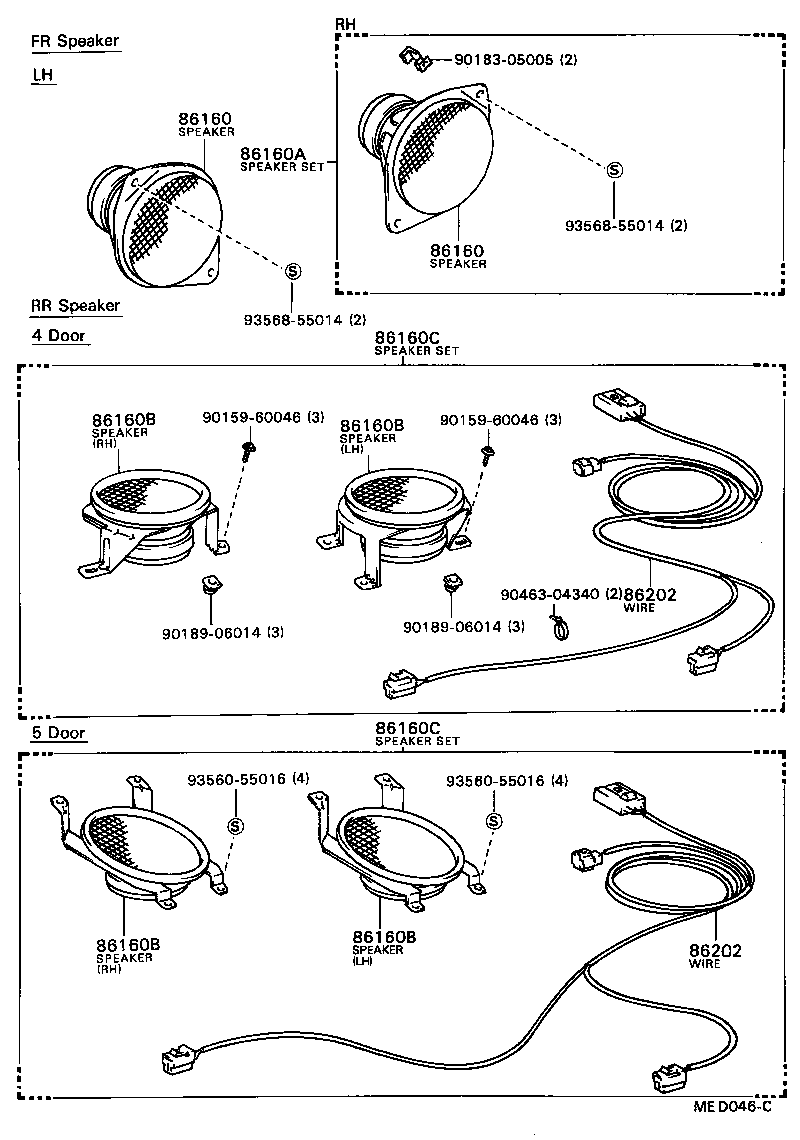

Figure MEF663A MEF663A 1984-10 → — Figure MED046C MED046C 1983-05 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160A Speaker Set, Front
86160B Speaker Assy, Rear
86160C Speaker Set, Rear
86202 Wire, Speaker, NO.1
86219D Bracket, Speaker, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
