Heating & Air Conditioning - Control & Air Duct

19 part groups · 3 illustrations

Illustrations

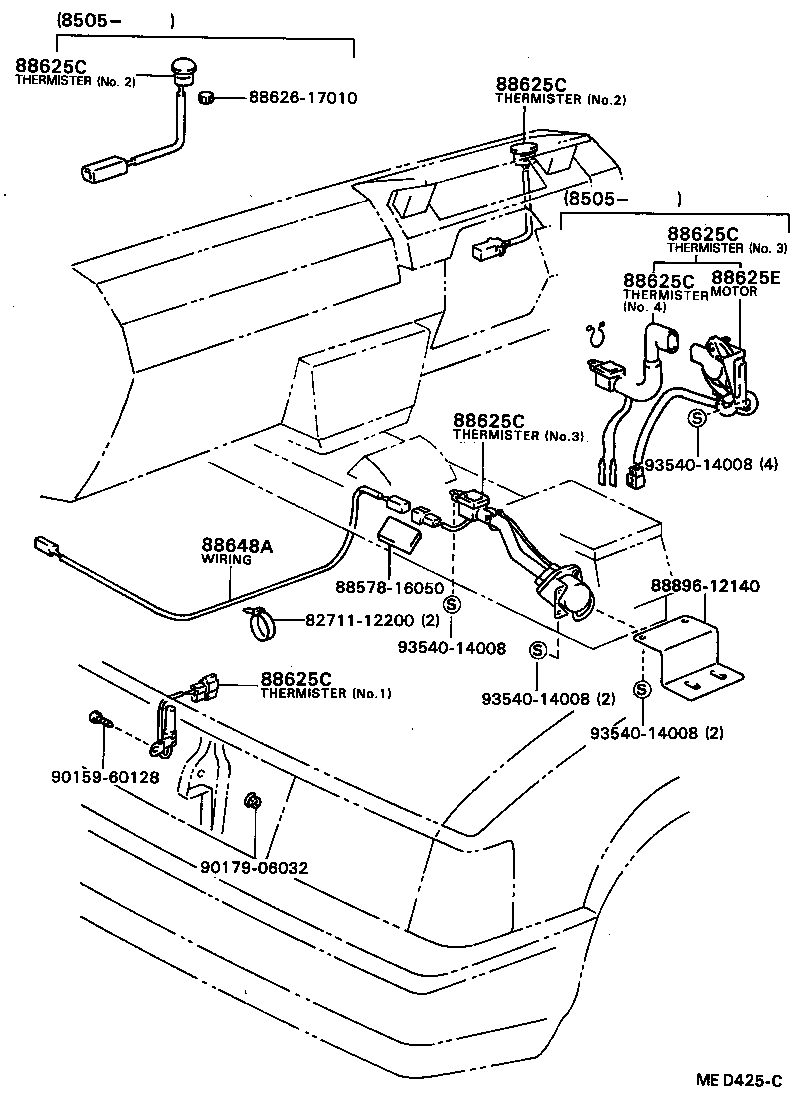

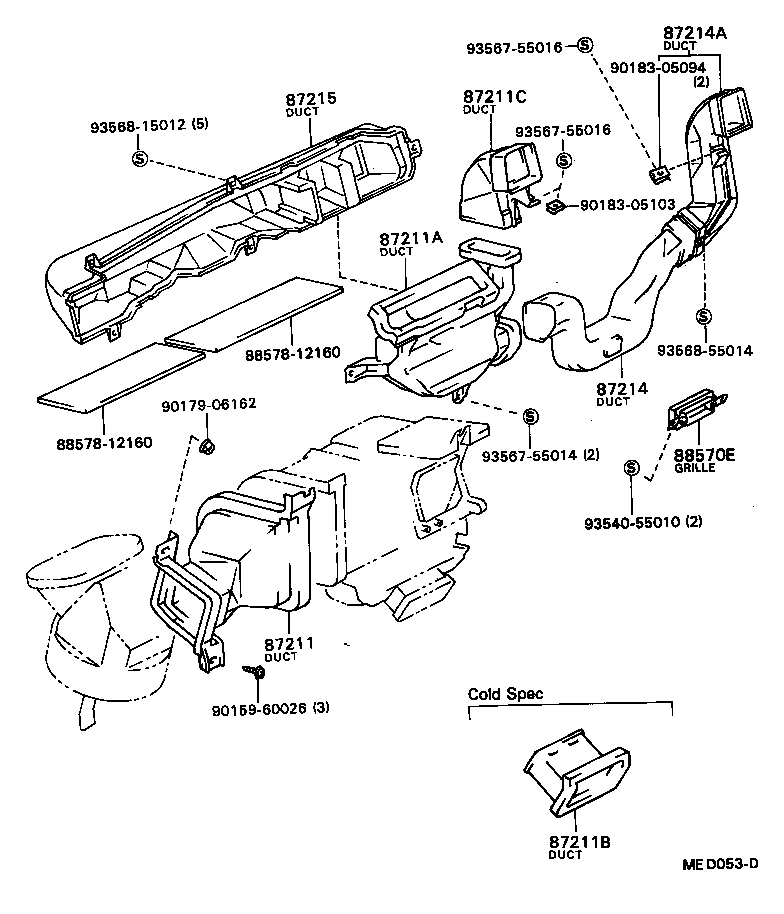

Figure MED052C MED052C 1983-05 → — Figure MED053D MED053D 1983-05 → — Figure MED425C MED425C 1983-05 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55923 Retainer, Heater Control, Upper
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87284 Resistor Sub-assy, Variable
88570E Grille Assy, Air Outlet
88625C Thermistor, Cooler
88625E Motor Assy (FOR THERMISTOR)
88648A Wiring, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
