Toyota Corolla

1983-05 → 1987-04 · chassis AE8#,CE80,EE80 · catalogue 151110 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

11 part groups · 6 illustrations

Illustrations

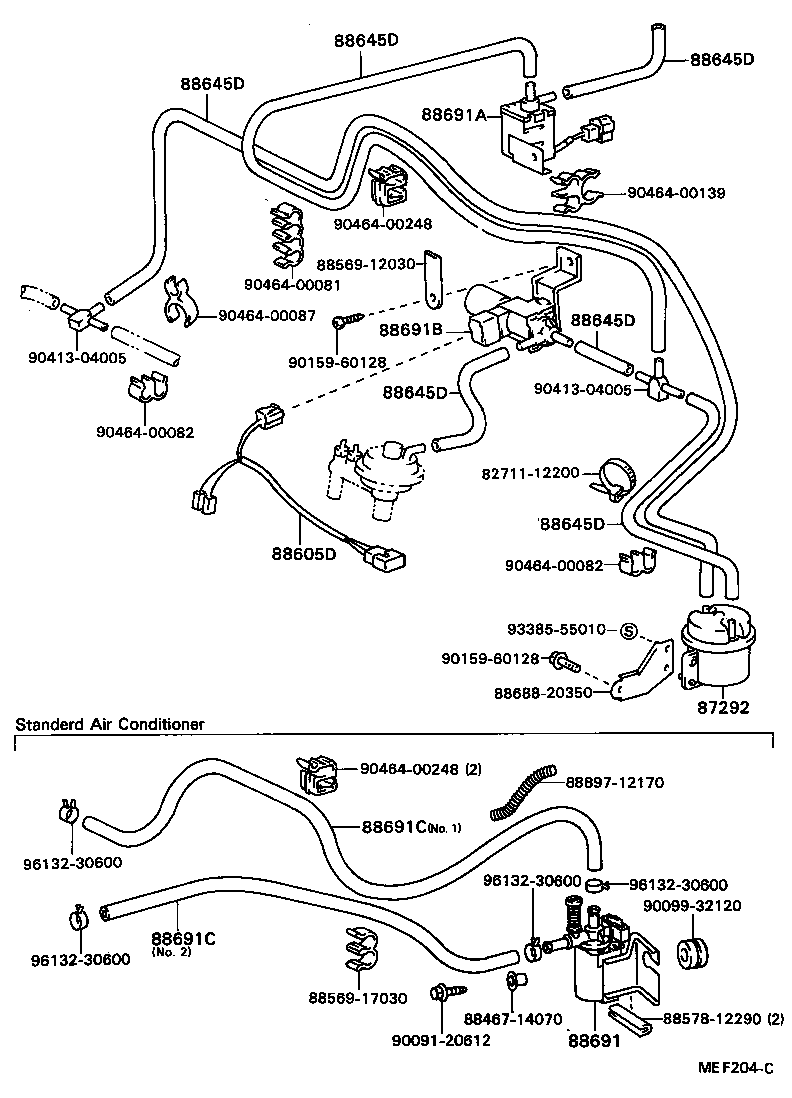

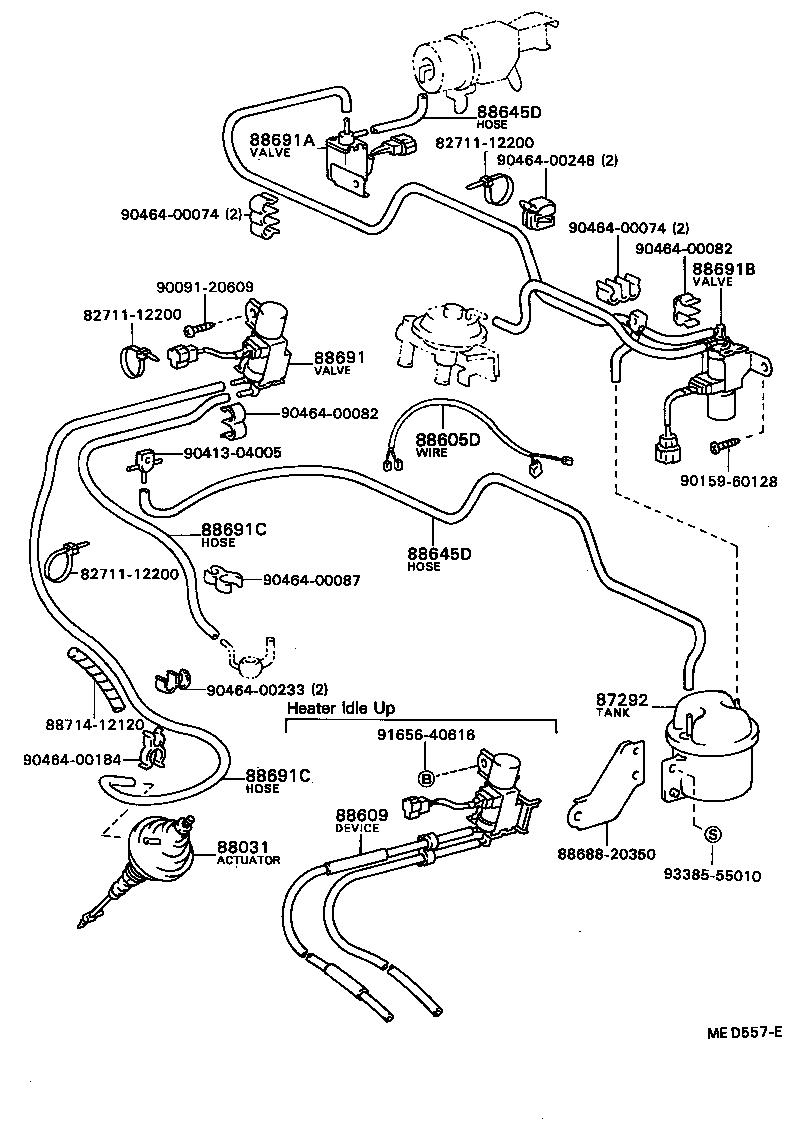

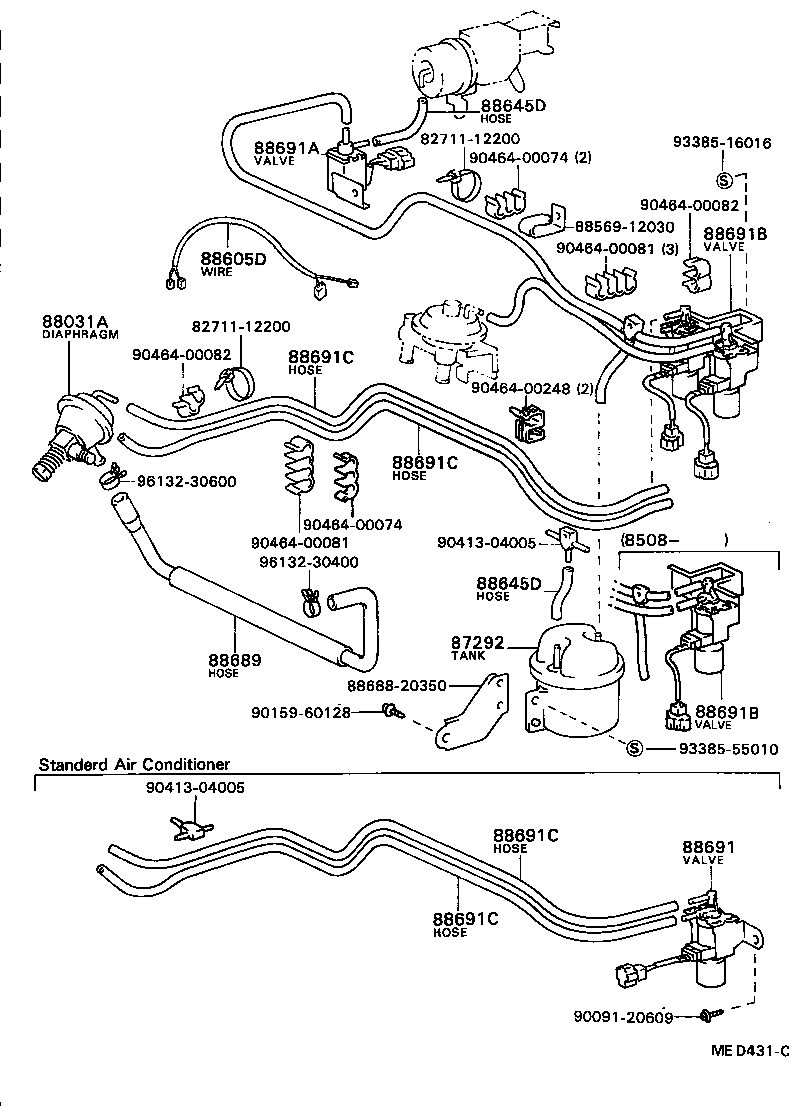

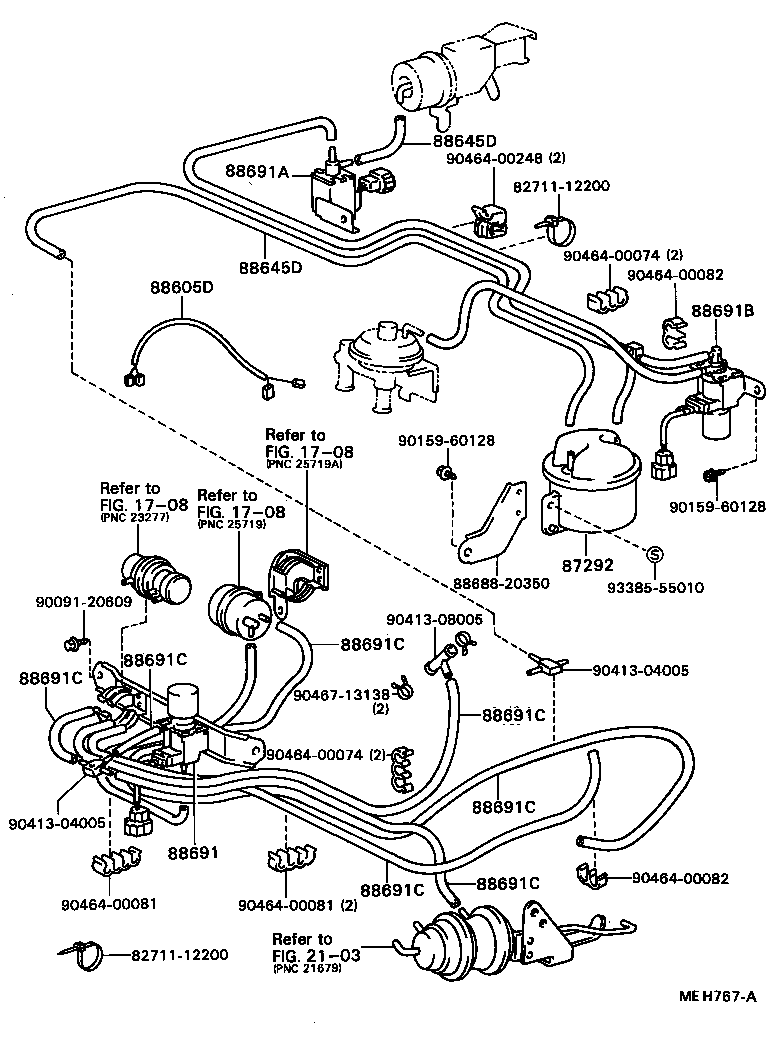

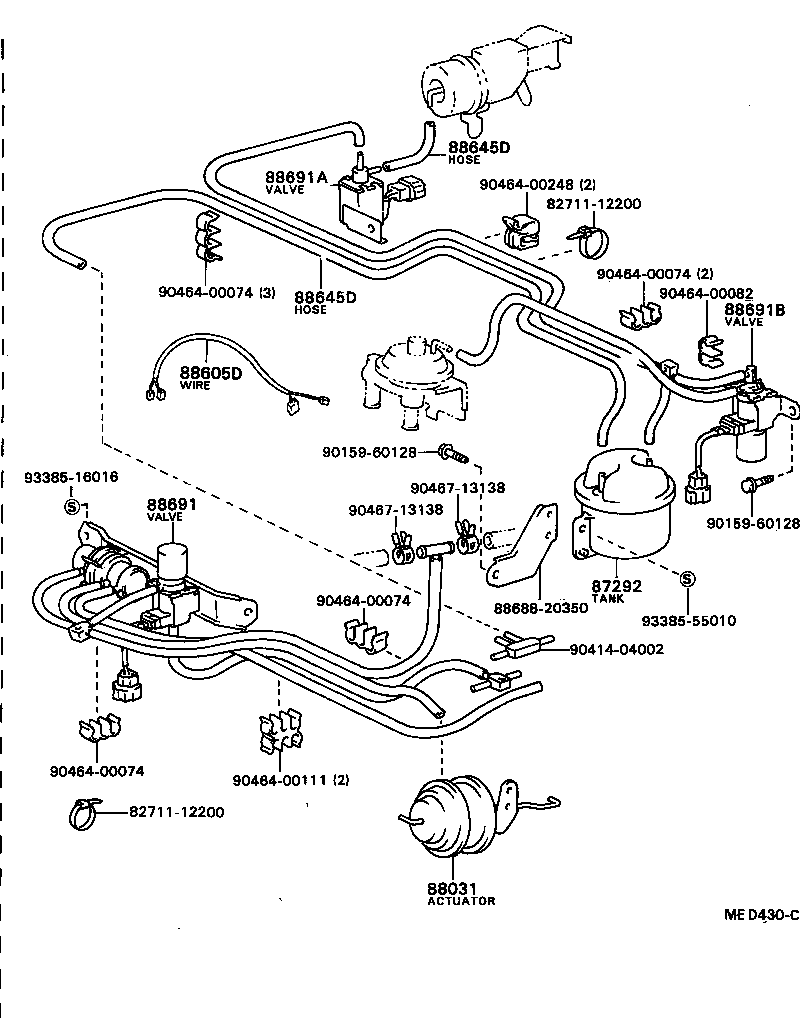

Figure MEF846B MEF846B 1985-05 → — Figure MED430C MED430C 1983-05 → 1985-05 Figure MEH767A MEH767A 1985-05 → — Figure MED431C MED431C 1983-05 → — Figure MEF204C MEF204C 1984-10 → — Figure MED557E MED557E 1983-05 → —

Part groups

PNCDescription
87292 Tank, Vacuum
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88605D Wire, Air Conditioner
88609 Device Sub-assy, Idle UP
88645D Hose (FOR IDLE UP DEVICE)
88689 Hose, Damper Control Diaphragm Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691A Valve, Magnet (FOR BLOWER CHANGING-OVER DEVICE)
88691B Valve, Magnet (FOR WATER VALVE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
