Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

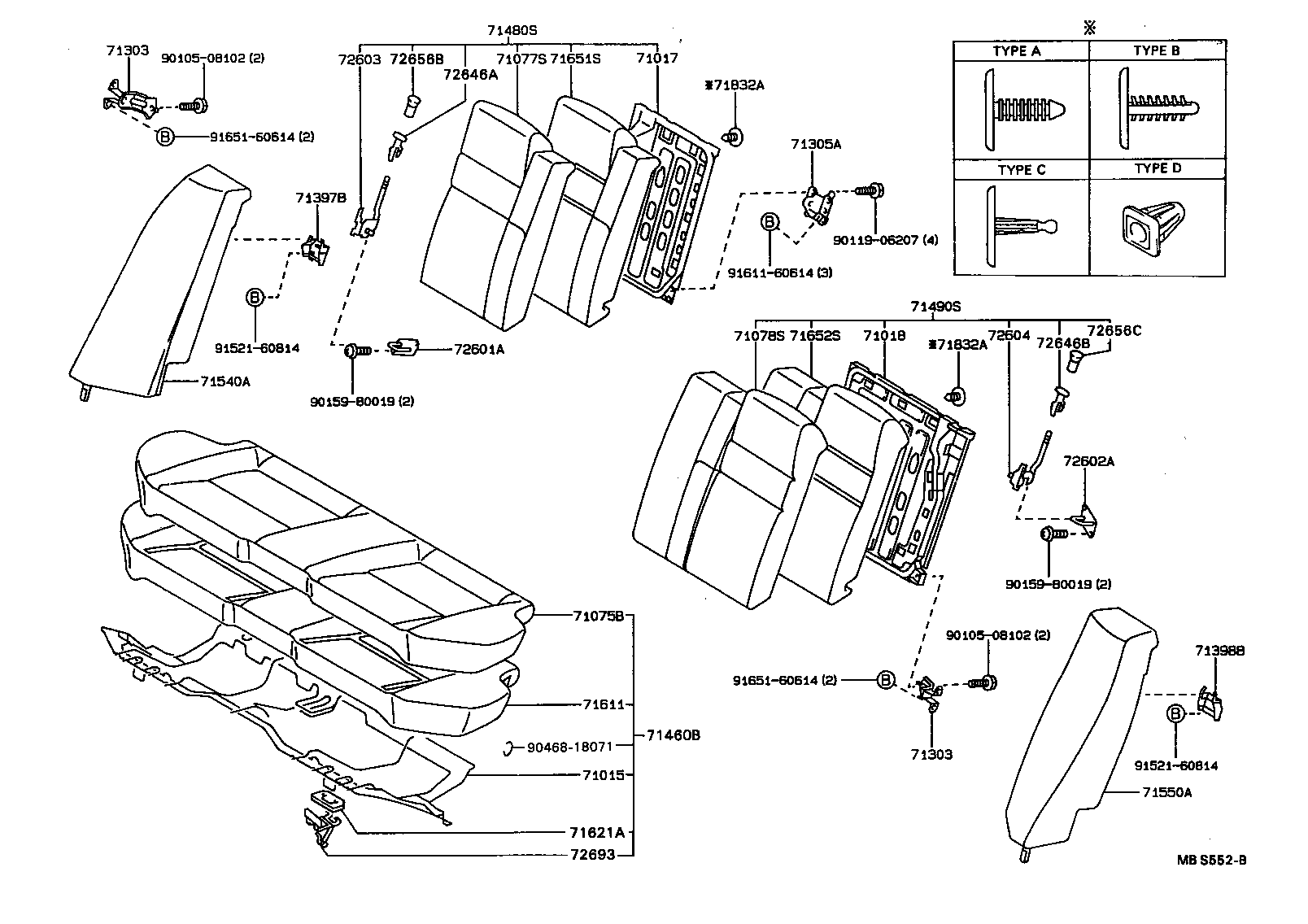

Exploded illustration MBS552B 71480S — BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) (21 parts) 71303 — HINGE SUB-ASSY, REAR SEATBACK (7 parts) 72656B — BUTTON, REAR SEATBACK STOP RELEASE (5 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (6 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (21 parts) 72603 — LOCK SUB-ASSY, REAR SEATBACK, RH (7 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (3 parts) 9010508102 — not listed in this catalogue 72646A — GROMMET, REAR SEATBACK STOP BUTTON (1 parts) 71832A — CLIP, REAR SEATBACK CARPET OR MAT (14 parts) 9165160614 — not listed in this catalogue 71305A — HINGE SUB-ASSY, REAR SEATBACK, CENTER (8 parts) 71397B — HOLDER, REAR SEATBACK, RH (6 parts) 9011906207 — not listed in this catalogue 9161160614 — not listed in this catalogue 71490S — BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) (21 parts) 72656C — BUTTON, REAR SEATBACK STOP RELEASE (5 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (6 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (21 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (3 parts) 72604 — LOCK SUB-ASSY, REAR SEATBACK, LH (7 parts) 71832A — CLIP, REAR SEATBACK CARPET OR MAT (14 parts) 72646B — GROMMET, REAR SEATBACK STOP BUTTON (1 parts) 9152160814 — not listed in this catalogue 72601A — STRIKER SUB-ASSY, REAR SEATBACK LOOK, RH (6 parts) 71540A — BACK ASSY, REAR SIDE SEAT, RH (13 parts) 9015980019 — not listed in this catalogue 72602A — STRIKER SUB-ASSY, REAR SEATBACK LOCK, LH (5 parts) 9015980019 — not listed in this catalogue 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (87 parts) 9010508102 — not listed in this catalogue 71398B — HOLDER, REAR SEATBACK, LH (6 parts) 9165160614 — not listed in this catalogue 71611 — PAD, REAR SEAT CUSHION (9 parts) 71460B — CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) (92 parts) 9046818071 — not listed in this catalogue 71303 — HINGE SUB-ASSY, REAR SEATBACK (7 parts) 9152160814 — not listed in this catalogue 71015 — FRAME SUB-ASSY, REAR SEAT CUSHION (4 parts) 71550A — BACK ASSY, REAR SIDE SEAT, LH (12 parts) 71621A — PAD, REAR SEAT CUSHION SILENCER, A (2 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (5 parts)
MBS552B · 31 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
404 parts on this figure
Part number Description Fitment Price
71015 — Frame Sub-assy, Rear Seat Cushion
71015-12260 Frame Sub-assy, Rear Seat Cushion
1987-05 → 1991-06 ended
AE91,92,CE90,EE90 4D ¥7,800
71015-12270 Frame Sub-assy, Rear Seat Cushion
1987-08 → 1991-09 ended
AE91 WG ¥11,200
71015-12290 Frame Sub-assy, Rear Seat Cushion
1987-10 → 1991-06 ended
AE95,CE95 ¥9,100
71015-12300 Frame Sub-assy, Rear Seat Cushion
1987-05 → 1992-05 ended
AE91,92,EE90 3D,5D ¥7,800
71017 — Frame Sub-assy, Rear Seatback, RH
71017-12260 Frame Sub-assy, Rear Seatback, RH
1987-05 → 1991-06 ended
AE92 GT ¥12,800
71017-12270 Frame Sub-assy, Rear Seatback, RH
1987-05 → 1992-05 ended
AE91,92,EE90 FXD,FXGTV,FXL,FXV,FXVS,G,LT ¥12,800
71017-12280 Frame Sub-assy, Rear Seatback, RH
1987-05 → 1992-05 ended
AE91,92 FXG,FXGT,FXZI,FXZS ¥12,900
71018 — Frame Sub-assy, Rear Seatback, LH
71018-12050 Frame Sub-assy, Rear Seatback, LH
1987-05 → 1991-06 ended
AE92 GT ¥12,800
71018-12060 Frame Sub-assy, Rear Seatback, LH
1987-05 → 1992-05 ended
AE91,92,EE90 FXD,FXGTV,FXL,FXV,FXVS,G,LT ¥12,800
71018-12070 Frame Sub-assy, Rear Seatback, LH
1987-05 → 1992-05 ended
AE91,92 FXG,FXGT,FXZI,FXZS ¥12,900
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71065-1A850-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 TX —
71065-1A850-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 TX —
71065-1A851-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 TX ¥39,500
71065-1A851-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 TX ¥39,500
71065-1A860-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,EE90 TX —
71065-1A870-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90 SE ¥48,100
71065-1A870-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90 SE —
71065-1A870-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90 SE —
71065-1A871-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90 SE (DSL,EFI) ¥48,200
71065-1A871-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90 SE (DSL,EFI) ¥48,200
71065-1A871-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90 SE (DSL,EFI) ¥48,200
71065-1A880-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE92 GT ¥42,700
71065-1A881-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE92 GT ¥44,200
71075-13320-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-08 → 1991-09 ended
CE96,EE96 (CTD,STD) 05S ¥26,600
71075-13320-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE96,EE96 CTD ¥26,600
71075-13330-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-08 → 1991-09 ended
CE97,EE97,98 DX,L;CE96,EE96 DX 05S ¥26,600
71075-13330-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE97,EE97,98 DX,L;CE96,EE96 DX 05S ¥26,600
71075-13330-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-08 → 1989-08 ended
CE97,EE97,98 DX;CE96,EE96 DX 05S ¥26,600
71075-13340-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-08 → 1989-08 ended
CE96,97,EE96,97,98 GL ¥32,400
71075-13340-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-08 → 1989-08 ended
CE96,97,EE96,97,98 GL ¥32,400
71075-13341-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE97,EE97 ¥39,500
71075-13341-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE96,EE96,98 GL ¥39,500
71075-13341-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE97,EE97 ¥39,500
71075-13341-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE96,EE96,98 GL ¥39,500
71075-13400-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥39,500
71075-13400-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥39,500
71075-1E030-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1991-06 ended
EE90 DX ¥26,600
71075-1E040-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 DX —
71075-1E041-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 DX ¥32,500
71075-1E041-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-10 → 1991-06 ended
AE91,CE90,EE90 TX ¥32,500
71075-1E041-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-10 → 1991-06 ended
CE90,EE90 TX ¥32,500
71075-1E041-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 DX ¥32,500
71075-1E041-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-10 → 1991-06 ended
AE91 SE EFI ¥32,500
71075-1E050-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1988-05 ended
AE91,CE90,EE90 XE ¥43,900
71075-1E050-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1988-05 ended
AE91,CE90,EE90 XE ¥43,900
71075-1E050-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1988-05 ended
AE91,CE90,EE90 XE ¥43,900
71075-1E051-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71075-1E051-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71075-1E051-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71075-1E080-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71075-1E080-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71075-1E081-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91 FXL ¥38,900
71075-1E090-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71075-1E090-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71075-1E091-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91 FXG,FXZS ¥42,700
71075-1E091-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91 3D FXZS ¥42,700
71075-1E110-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-08 → 1989-08 ended
AE91 G ¥39,200
71075-1E111-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 G ¥42,700
71075-1E111-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 G ¥42,700
71075-1E160-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71075-1E160-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71075-1E170-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE92 FXGT —
71075-1E171-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE92 FXGT ¥44,200
71075-1E220-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71075-1E220-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71075-1E221-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 XE ¥43,000
71075-1E221-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 XE ¥43,000
71075-1E221-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
CE90,EE90 XE;AE91 3FC XE ¥43,000
71075-1E230-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE95 XE —
71075-1E230-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE95 XE —
71075-1E231-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 XE ¥43,000
71075-1E231-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 XE ¥43,000
71075-1E231-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 XE ¥43,000
71075-1E410-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91 SE EFIS ¥49,800
71075-1E410-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91 SE EFIS ¥49,800
71075-1E410-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91 SE EFIS ¥49,800
71075-1E440-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 TX ¥34,100
71075-1E440-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 TX ¥34,100
71075-1E441-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 TX ¥38,900
71075-1E441-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 TX ¥38,900
71075-1E450-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-05 ended
AE95 XE ¥43,900
71075-1E450-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-05 ended
AE95 XE ¥43,900
71075-1E450-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1988-05 ended
AE95 XE ¥43,900
71075-1E451-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE95 XE —
71075-1E451-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE95 XE —
71075-1E451-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE95 XE —
71075-1E460-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 SE —
71075-1E460-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 SE —
71075-1E460-05 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 SE —
71075-1E461-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 SE ¥48,200
71075-1E461-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 SE ¥48,200
71075-1E461-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 SE ¥48,200
71075-1E480-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS ¥38,900
71075-1E480-04 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS ¥38,900
71075-1E680-03 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-01 → 1989-02 ended
AE92 FXGT —
71075-1E750-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1989-09 → 1990-05 ended
AE91 SE EFI ¥49,800
71075-1E750-02 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
1990-05 → 1991-06 ended
AE91 SE EFIS ¥49,800
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-13360-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-08 → 1989-08 ended
AE91 G ¥23,300
71077-13361-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G ¥25,500
71077-13361-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G ¥25,500
71077-13440-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥23,500
71077-13440-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥23,500
71077-1H550-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 GT ¥20,300
71077-1H551-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-05 → 1991-06 ended
AE92 GT ¥21,100
71077-1H640-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71077-1H640-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71077-1H641-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 FXL ¥23,200
71077-1H650-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71077-1H650-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71077-1H651-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 FXG,FXZS ¥20,300
71077-1H651-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 3D FXZS ¥20,300
71077-1H710-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71077-1H710-05 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71077-1H720-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 FXGT —
71077-1H721-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE92 FXGT ¥21,100
71077-1H830-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS ¥23,200
71077-1H830-04 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS ¥23,200
71077-1K450-03 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
1989-01 → 1989-02 ended
AE92 FXGT —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-13010-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1989-08 ended
AE91 G ¥30,300
71078-13011-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G ¥32,800
71078-13011-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G ¥32,800
71078-13080-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥30,400
71078-13080-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥30,400
71078-1A350-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71078-1A350-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71078-1A351-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 FXL ¥30,000
71078-1A360-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71078-1A360-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71078-1A361-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 FXG,FXZS ¥30,300
71078-1A361-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 3D FXZS ¥30,300
71078-1A420-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71078-1A420-05 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71078-1A430-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 FXGT —
71078-1A431-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE92 FXGT ¥31,500
71078-1A440-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS ¥30,000
71078-1A440-04 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS ¥30,000
71078-1A550-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 GT ¥30,300
71078-1A551-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-05 → 1991-06 ended
AE92 GT ¥31,500
71078-1A560-03 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
1989-01 → 1989-02 ended
AE92 FXGT —
71303 — Hinge Sub-assy, Rear Seatback
71303-12060 Hinge Sub-assy, Rear Seatback
1987-05 → 1988-08 ended
AE91,92,EE90 FXD,FXL,G,GT ¥2,600
71303-12060 Hinge Sub-assy, Rear Seatback
1992-02 → 1992-05 ended
AE9# FXGTV,FXL,FXV,FXVS ¥2,600
71303-12060 Hinge Sub-assy, Rear Seatback
1990-08 → 1992-02 ended
AE91,92 FXGTV,FXL,FXV,FXVS,G,GT,LT ¥2,600
71303-12060 Hinge Sub-assy, Rear Seatback
1989-08 → 1990-08 ended
AE91,92 FXGTV,FXL,FXV,FXVS,G,LT ¥2,600
71303-12060 Hinge Sub-assy, Rear Seatback
1989-05 → 1989-08 ended
AE91,92 FXGTV,FXL,FXV,FXVS,GT ¥2,600
71303-12060 Hinge Sub-assy, Rear Seatback
1988-11 → 1989-05 ended
AE91,EE90 FXD,FXL ¥2,600
71303-12060 Hinge Sub-assy, Rear Seatback
1988-08 → 1988-11 ended
AE91,EE90 FXD,FXL,G ¥2,600
71305A — Hinge Sub-assy, Rear Seatback, Center
71305-12060 Hinge Sub-assy, Rear Seatback, Center
1987-05 → 1988-08 ended
AE91,92,EE90 FXD,FXL,G,GT ¥2,430
71305-12060 Hinge Sub-assy, Rear Seatback, Center
1988-08 → 1988-11 ended
AE91,EE90 FXD,FXL,G ¥2,430
71305-12060 Hinge Sub-assy, Rear Seatback, Center
1988-11 → 1989-05 ended
AE91,EE90 FXD,FXL ¥2,430
71305-12060 Hinge Sub-assy, Rear Seatback, Center
1989-05 → 1989-08 ended
AE91,92 FXGTV,FXL,FXV,FXVS,GT ¥2,430
71305-12060 Hinge Sub-assy, Rear Seatback, Center
1989-08 → 1990-08 ended
AE91,92 FXGTV,FXL,FXV,FXVS,G,LT ¥2,430
71305-12060 Hinge Sub-assy, Rear Seatback, Center
1990-08 → 1992-02 ended
AE91,92 FXGTV,FXL,FXV,FXVS,G,GT,LT ¥2,430
71305-12060 Hinge Sub-assy, Rear Seatback, Center
1992-02 → 1992-05 ended
AE9# FXGTV,FXL,FXV,FXVS ¥2,430
71305-12070 Hinge Sub-assy, Rear Seatback, Center
1987-05 → 1992-05 ended
AE91,92 FXG,FXGT,FXZI,FXZS ¥2,410
71397B — Holder, Rear Seatback, RH
71397-12020 Holder, Rear Seatback, RH
1992-02 → 1992-05 ended
AE9# FXG,FXGT,FXZS ¥380
71397-12020 Holder, Rear Seatback, RH
1990-08 → 1992-02 ended
AE91,92 FXG,FXGT,FXZS,GT ¥380
71397-12020 Holder, Rear Seatback, RH
1989-08 → 1990-08 ended
AE91,92 FXG,FXGT,FXZS ¥380
71397-12020 Holder, Rear Seatback, RH
1988-08 → 1989-05 ended
AE91,92 (3D,5D) (4FC,5F) ¥380
71397-12020 Holder, Rear Seatback, RH
1989-05 → 1989-08 ended
AE91,92 FXG,FXGT,FXZS,GT ¥380
71397-12020 Holder, Rear Seatback, RH
1987-05 → 1988-08 ended
AE91,92 FXG,FXGT,FXZI,GT ¥380
71398B — Holder, Rear Seatback, LH
71398-12020 Holder, Rear Seatback, LH
1987-05 → 1988-08 ended
AE91,92 FXG,FXGT,FXZI,GT ¥380
71398-12020 Holder, Rear Seatback, LH
1988-08 → 1989-05 ended
AE91,92 (3D,5D) (4FC,5F) ¥380
71398-12020 Holder, Rear Seatback, LH
1989-05 → 1989-08 ended
AE91,92 FXG,FXGT,FXZS,GT ¥380
71398-12020 Holder, Rear Seatback, LH
1989-08 → 1990-08 ended
AE91,92 FXG,FXGT,FXZS ¥380
71398-12020 Holder, Rear Seatback, LH
1990-08 → 1992-02 ended
AE91,92 FXG,FXGT,FXZS,GT ¥380
71398-12020 Holder, Rear Seatback, LH
1992-02 → 1992-05 ended
AE9# FXG,FXGT,FXZS ¥380
71460B — Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460-13460-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE96,EE96 STD 05S ¥62,800
71460-13461-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1991-09 ended
CE96,EE96 (CTD,STD) 05S —
71460-13461-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE96,EE96 CTD —
71460-13470-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE96,EE96,98 DX 05S ¥62,800
71460-13470-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE96,EE96,98 DX 05S ¥62,800
71460-13471-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1991-09 ended
CE96,EE96,98 DX 05S —
71460-13471-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE96,EE96,98 DX 05S —
71460-13471-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1989-08 ended
CE96,EE96,98 DX 05S —
71460-13480-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE96,EE96,98 GL ¥69,500
71460-13480-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE96,EE96,98 GL ¥69,500
71460-13481-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE96,EE96,98 GL —
71460-13481-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE96,EE96,98 GL —
71460-13482-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1989-08 ended
CE96,EE96,98 GL —
71460-13482-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1989-08 ended
CE96,EE96,98 GL —
71460-13520-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE97,EE97 DX ¥62,800
71460-13520-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE97,EE97 DX ¥62,800
71460-13521-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1991-09 ended
CE97,EE97 DX,L —
71460-13521-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE97,EE97 —
71460-13521-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1989-05 ended
CE97,EE97 DX —
71460-13530-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE97,EE97 GL ¥69,500
71460-13530-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-02 ended
CE97,EE97 GL ¥69,500
71460-13531-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1989-08 ended
CE97,EE97 GL —
71460-13531-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-02 → 1989-08 ended
CE97,EE97 GL —
71460-13533-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE97,EE97 —
71460-13533-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
CE97,EE97 —
71460-13560-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 LT —
71460-13560-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 LT —
71460-1E010-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90 SE —
71460-1E010-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90 SE —
71460-1E010-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90 SE —
71460-1E011-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90 SE (DSL,EFI) —
71460-1E011-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90 SE (DSL,EFI) —
71460-1E011-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90 SE (DSL,EFI) —
71460-1E020-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE92 GT —
71460-1E021-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE92 GT —
71460-1E080-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71460-1E080-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71460-1E080-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71460-1E110-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71460-1E110-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71460-1E111-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91 FXL —
71460-1E120-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71460-1E120-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71460-1E121-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91 FXG,FXZS —
71460-1E121-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91 3D FXZS —
71460-1E140-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-08 → 1989-08 ended
AE91 G —
71460-1E141-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 G —
71460-1E141-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-08 → 1991-09 ended
AE91 G —
71460-1E170-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71460-1E170-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE91,CE90,EE90 XE —
71460-1E171-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 XE —
71460-1E171-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 XE —
71460-1E171-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
CE90,EE90 XE;AE91 3FC XE —
71460-1E190-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1991-06 ended
EE90 DX —
71460-1E200-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 DX —
71460-1E201-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 DX —
71460-1E201-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-10 → 1991-06 ended
AE91,CE90,EE90 TX —
71460-1E201-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 DX —
71460-1E201-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-10 → 1991-06 ended
AE91,CE90,EE90 TX —
71460-1E210-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE92 FXGT —
71460-1E211-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE92 FXGT —
71460-1E220-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71460-1E220-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71460-1E260-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE95 XE —
71460-1E260-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1988-05 → 1989-05 ended
AE95 XE —
71460-1E261-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 XE —
71460-1E261-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 XE —
71460-1E261-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 XE —
71460-1E380-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91 SE EFIS —
71460-1E380-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91 SE EFIS —
71460-1E380-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91 SE EFIS —
71460-1E460-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 TX —
71460-1E460-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 TX —
71460-1E461-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 TX —
71460-1E461-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 TX —
71460-1E470-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 XE —
71460-1E470-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 XE —
71460-1E470-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 XE —
71460-1E480-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 SE —
71460-1E480-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 SE —
71460-1E480-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-10 → 1989-05 ended
AE95 SE —
71460-1E481-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 SE —
71460-1E481-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 SE —
71460-1E481-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE95,CE95 SE —
71460-1E500-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS —
71460-1E500-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS —
71460-1E570-02 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1990-05 → 1991-06 ended
AE91 SE EFIS —
71560-1A880-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 TX —
71560-1A880-05 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,CE90,EE90 TX —
71560-1A881-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 TX —
71560-1A881-04 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1989-05 → 1991-06 ended
AE91,CE90,EE90 TX —
71560-1A890-03 note Cushion Assy, Rear Seat (FOR BENCH TYPE)
1987-05 → 1989-05 ended
AE91,EE90 TX —
71480S — Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71480-13510-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-08 → 1989-08 ended
AE91 G —
71480-13511-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G —
71480-13511-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G —
71480-13630-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥45,300
71480-13630-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT ¥45,300
71480-1H650-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 GT —
71480-1H651-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-05 → 1991-06 ended
AE92 GT —
71480-1H740-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71480-1H740-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71480-1H741-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-05 → 1991-05 ended
AE91 FXL —
71480-1H742-B0 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1991-05 → 1992-05 ended
AE91 FXL —
71480-1H750-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71480-1H750-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71480-1H751-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 FXG,FXZS —
71480-1H751-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 3D FXZS —
71480-1H810-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71480-1H810-05 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71480-1H820-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 FXGT —
71480-1H821-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE92 FXGT —
71480-1K040-03 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS —
71480-1K040-04 note Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS —
71490S — Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71490-13010-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-08 → 1989-08 ended
AE91 G —
71490-13011-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G —
71490-13011-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 G —
71490-13080-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT —
71490-13080-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-08 → 1991-09 ended
AE91 LT —
71490-1A390-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 GT —
71490-1A391-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-05 → 1991-06 ended
AE92 GT —
71490-1A420-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71490-1A420-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91,EE90 FXL —
71490-1A421-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-05 → 1991-05 ended
AE91 FXL —
71490-1A422-B0 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1991-05 → 1992-05 ended
AE91 FXL —
71490-1A430-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71490-1A430-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE91 FXG,FXZI —
71490-1A431-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 FXG,FXZS —
71490-1A431-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91 3D FXZS —
71490-1A490-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71490-1A490-05 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
EE90 FXD —
71490-1A500-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1987-05 → 1989-05 ended
AE92 FXGT —
71490-1A501-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE92 FXGT —
71490-1A540-03 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS —
71490-1A540-04 note Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
1989-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS —
71540A — Back Assy, Rear Side Seat, RH
71540-12050-03 note Back Assy, Rear Side Seat, RH
1987-05 → 1989-05 ended
AE92 GT —
71540-12051-03 note Back Assy, Rear Side Seat, RH
1989-05 → 1991-06 ended
AE92 GT ¥20,800
71540-12080-03 note Back Assy, Rear Side Seat, RH
1987-05 → 1989-05 ended
AE91 3D (FXG,FXZI) —
71540-12080-05 note Back Assy, Rear Side Seat, RH
1987-05 → 1989-05 ended
AE91 3D (FXG,FXZI) —
71540-12081-03 note Back Assy, Rear Side Seat, RH
1989-05 → 1992-05 ended
AE91 3D FXZS ¥19,800
71540-12081-04 note Back Assy, Rear Side Seat, RH
1989-05 → 1992-05 ended
AE91 3D FXZS ¥19,800
71540-12090-03 note Back Assy, Rear Side Seat, RH
1987-05 → 1989-05 ended
AE92 FXGT —
71540-12091-03 note Back Assy, Rear Side Seat, RH
1989-05 → 1992-05 ended
AE92 FXGT ¥20,800
71540-12130-03 note Back Assy, Rear Side Seat, RH
1989-01 → 1989-02 ended
AE92 FXGT —
71540-12130-03 note Back Assy, Rear Side Seat, RH
1989-01 → 1989-02 ended
AE92 FXGT —
71540-12170-03 note Back Assy, Rear Side Seat, RH
1987-05 → 1989-05 ended
AE91 5D (FXG,FXZI) —
71540-12170-05 note Back Assy, Rear Side Seat, RH
1987-05 → 1989-05 ended
AE91 5D (FXG,FXZI) —
71540-12171-03 note Back Assy, Rear Side Seat, RH
1989-05 → 1992-05 ended
AE91 5D (FXG,FXZS) ¥19,800
71550A — Back Assy, Rear Side Seat, LH
71550-12050-03 note Back Assy, Rear Side Seat, LH
1987-05 → 1989-05 ended
AE92 GT —
71550-12051-03 note Back Assy, Rear Side Seat, LH
1989-05 → 1991-06 ended
AE92 GT ¥20,800
71550-12080-03 note Back Assy, Rear Side Seat, LH
1987-05 → 1989-05 ended
AE91 3D (FXG,FXZI) —
71550-12080-05 note Back Assy, Rear Side Seat, LH
1987-05 → 1989-05 ended
AE91 3D (FXG,FXZI) —
71550-12081-03 note Back Assy, Rear Side Seat, LH
1989-05 → 1992-05 ended
AE91 3D FXZS ¥19,800
71550-12081-04 note Back Assy, Rear Side Seat, LH
1989-05 → 1992-05 ended
AE91 3D FXZS ¥19,800
71550-12090-03 note Back Assy, Rear Side Seat, LH
1987-05 → 1989-05 ended
AE92 FXGT —
71550-12091-03 note Back Assy, Rear Side Seat, LH
1989-05 → 1992-05 ended
AE92 FXGT ¥20,800
71550-12130-03 note Back Assy, Rear Side Seat, LH
1989-01 → 1989-02 ended
AE92 FXGT —
71550-12170-03 note Back Assy, Rear Side Seat, LH
1987-05 → 1989-05 ended
AE91 5D (FXG,FXZI) —
71550-12170-05 note Back Assy, Rear Side Seat, LH
1987-05 → 1989-05 ended
AE91 5D (FXG,FXZI) —
71550-12171-03 note Back Assy, Rear Side Seat, LH
1989-05 → 1992-05 ended
AE91 5D (FXG,FXZS) ¥19,800
71611 — Pad, Rear Seat Cushion
71611-12530 Pad, Rear Seat Cushion
1987-05 → 1991-06 ended
AE91,92,CE90 GT,SE ¥21,500
71611-12540 Pad, Rear Seat Cushion
1987-08 → 1988-10 ended
AE91 G ¥21,700
71611-12550 Pad, Rear Seat Cushion
1987-05 → 1991-06 ended
AE91,CE90,EE90 DX,TX,XE ¥21,500
71611-12560 Pad, Rear Seat Cushion
1987-05 → 1992-05 ended
AE91,92,EE90 3D,5D ¥21,700
71611-12610 Pad, Rear Seat Cushion
1987-10 → 1991-06 ended
AE95,CE95 ¥23,600
71611-12630 Pad, Rear Seat Cushion
1988-10 → 1991-09 ended
AE91 WG ¥21,500
71611-13130 Pad, Rear Seat Cushion
1987-08 → 1991-09 ended
CE97,EE97,98 DX,L;CE96,EE96 (CTD,DX,STD) 05S ¥18,300
71611-13140 note Pad, Rear Seat Cushion
1989-08 → 1991-09 ended
CE97,EE97 ¥21,700
71611-13140 Pad, Rear Seat Cushion
1987-08 → 1991-09 ended
CE96,97,EE96,97,98 GL ¥21,700
71621A — Pad, Rear Seat Cushion Silencer, A
71621-12270 Pad, Rear Seat Cushion Silencer, A
1990-08 → 1990-12 ended
AE91,92,CE90,EE90 4D ¥180
71621-12270 Pad, Rear Seat Cushion Silencer, A
1990-12 → 1992-05 ended
AE91,92,CE90,EE90 3D,4D,5D ¥180
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-12560 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1991-05 → 1992-05 ended
AE91 FXL ¥14,000
71651-12570 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1987-05 → 1987-08 ended
AE92 GT ¥14,300
71651-12580 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1987-08 → 1991-06 ended
AE92 GT ¥14,300
71651-12610 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1987-05 → 1991-05 ended
AE91,92,EE90 FXD,FXGTV,FXL,FXV,FXVS,G,LT ¥13,900
71651-12610 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1991-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS,G,LT ¥13,900
71651-12620 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
1987-05 → 1992-05 ended
AE91,92 FXG,FXGT,FXZI,FXZS ¥14,000
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-12400 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1987-08 ended
AE92 GT ¥18,300
71652-12410 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-08 → 1991-06 ended
AE92 GT ¥18,300
71652-12420 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1991-05 ended
AE91,92,EE90 FXD,FXGTV,FXL,FXV,FXVS,G,LT ¥18,100
71652-12420 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1991-05 → 1992-05 ended
AE91,92 FXGTV,FXV,FXVS,G,LT ¥18,100
71652-12430 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1987-05 → 1992-05 ended
AE91,92 FXG,FXGT,FXZI,FXZS ¥18,100
71652-12440 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
1991-05 → 1992-05 ended
AE91 FXL ¥18,100
71832A — Clip, Rear Seatback Carpet OR Mat
90467-06037-24 note Clip, Rear Seatback Carpet OR Mat
1989-05 → 1992-05 ended
AE91,92 (FXGTV,FXV,FXVS,G,LT) (EFI,EFIS) ¥140
90467-06037-25 note Clip, Rear Seatback Carpet OR Mat
1987-05 → 1989-05 ended
AE91,EE90 FXD,FXL ¥140
90467-07049-03 note Clip, Rear Seatback Carpet OR Mat
1988-11 → 1992-05 ended
AE91 G EFI;AE91,92,EE90 FXD,FXGTV,FXL,FXV,FXVS,LT ¥180
90467-07049-03 note Clip, Rear Seatback Carpet OR Mat
1987-05 → 1988-11 ended
AE91,EE90 FXD,FXL,G ¥180
90467-07049-03 note Clip, Rear Seatback Carpet OR Mat
1989-05 → 1989-08 ended
AE92 GT ¥180
90467-07049-03 note Clip, Rear Seatback Carpet OR Mat
1990-08 → 1991-06 ended
AE92 GT ¥180
90467-07049-13 note Clip, Rear Seatback Carpet OR Mat
1987-05 → 1988-09 ended
AE92 GT ¥180
90467-07049-15 note Clip, Rear Seatback Carpet OR Mat
1987-05 → 1989-05 ended
AE91,EE90 FXD,FXL ¥180
90467-07049-B0 note Clip, Rear Seatback Carpet OR Mat
1990-08 → 1991-06 ended
AE92 GT ¥180
90467-07049-B0 note Clip, Rear Seatback Carpet OR Mat
1988-09 → 1989-08 ended
AE91 FXZI;AE91 FXG CBR ¥180
90467-07049-B0 note Clip, Rear Seatback Carpet OR Mat
1988-09 → 1989-08 ended
AE92 GT ¥180
90467-07049-J0 note Clip, Rear Seatback Carpet OR Mat
1989-05 → 1992-05 ended
AE91,92 (FXGTV,FXV,FXVS,G,LT) (EFI,EFIS) ¥180
90467-07079-13 note Clip, Rear Seatback Carpet OR Mat
1987-05 → 1988-09 ended
AE92 GT ¥180
90467-10023 note Clip, Rear Seatback Carpet OR Mat
1987-05 → 1988-08 ended
AE92 GT ¥70
72601A — Striker Sub-assy, Rear Seatback Look, RH
72601-12080 Striker Sub-assy, Rear Seatback Look, RH
1987-05 → 1989-08 ended
AE91,EE90 (FXD,FXL,G) CBR ¥610
72601-12080 Striker Sub-assy, Rear Seatback Look, RH
1989-05 → 1992-05 ended
AE91,92 (FXGTV,FXL,FXV,FXVS,G,LT) (EFI,EFIS) ¥610
72601-12090 Striker Sub-assy, Rear Seatback Look, RH
1987-05 → 1991-06 ended
AE92 GT ¥1,670
72601-13050-03 note Striker Sub-assy, Rear Seatback Look, RH
1987-08 → 1991-09 ended
CE97,EE97,98;CE96,EE96 05S ¥4,400
72601-13050-04 note Striker Sub-assy, Rear Seatback Look, RH
1989-08 → 1991-09 ended
CE97,EE97,98;CE96,EE96 05S ¥4,400
72601-13050-05 note Striker Sub-assy, Rear Seatback Look, RH
1987-08 → 1989-08 ended
CE97,EE97,98;CE96,EE96 (DX,GL) 05S ¥4,400
72602A — Striker Sub-assy, Rear Seatback Lock, LH
72601-12080 Striker Sub-assy, Rear Seatback Lock, LH
1989-05 → 1992-05 ended
AE91,92 (FXGTV,FXL,FXV,FXVS,G,LT) (EFI,EFIS) ¥610
72602-12040 Striker Sub-assy, Rear Seatback Lock, LH
1987-05 → 1991-06 ended
AE92 GT ¥1,670
72602-13020-03 note Striker Sub-assy, Rear Seatback Lock, LH
1987-08 → 1991-09 ended
CE97,EE97,98;CE96,EE96 05S ¥4,400
72602-13020-04 note Striker Sub-assy, Rear Seatback Lock, LH
1989-08 → 1991-09 ended
CE97,EE97,98;CE96,EE96 05S ¥4,400
72602-13020-05 note Striker Sub-assy, Rear Seatback Lock, LH
1987-08 → 1989-08 ended
CE97,EE97,98;CE96,EE96 (DX,GL) 05S ¥4,400
72603 — Lock Sub-assy, Rear Seatback, RH
72630-12130 Lock Sub-assy, Rear Seatback, RH
1987-05 → 1991-06 ended
AE92 GT ¥2,780
72630-12140 Lock Sub-assy, Rear Seatback, RH
1987-05 → 1989-05 ended
AE91,EE90 FXD,FXL ¥3,520
72630-12140 Lock Sub-assy, Rear Seatback, RH
1987-05 → 1989-08 ended
AE91 G ¥3,520
72630-12140 Lock Sub-assy, Rear Seatback, RH
1989-05 → 1990-12 ended
AE91,92 FXGTV,FXL,FXV,FXVS ¥3,520
72630-12140 Lock Sub-assy, Rear Seatback, RH
1989-08 → 1990-12 ended
AE91 WG ¥3,520
72630-12210 Lock Sub-assy, Rear Seatback, RH
1990-12 → 1992-05 ended
AE91,92 FXGTV,FXL,FXV,FXVS,G,LT ¥3,520
72630-13080 Lock Sub-assy, Rear Seatback, RH
1987-08 → 1991-09 ended
CE97,EE97,98;CE96,EE96 05S ¥2,700
72604 — Lock Sub-assy, Rear Seatback, LH
72640-12120 Lock Sub-assy, Rear Seatback, LH
1987-05 → 1991-06 ended
AE92 GT ¥2,780
72640-12130 Lock Sub-assy, Rear Seatback, LH
1987-05 → 1989-08 ended
AE91 G ¥3,520
72640-12130 Lock Sub-assy, Rear Seatback, LH
1989-08 → 1990-12 ended
AE91 WG ¥3,520
72640-12130 Lock Sub-assy, Rear Seatback, LH
1987-05 → 1989-05 ended
AE91,EE90 FXD,FXL ¥3,520
72640-12130 Lock Sub-assy, Rear Seatback, LH
1989-05 → 1990-12 ended
AE91,92 FXGTV,FXL,FXV,FXVS ¥3,520
72640-12200 Lock Sub-assy, Rear Seatback, LH
1990-12 → 1992-05 ended
AE91,92 FXGTV,FXL,FXV,FXVS,G,LT ¥3,520
72640-13080 Lock Sub-assy, Rear Seatback, LH
1987-08 → 1991-09 ended
CE97,EE97,98;CE96,EE96 05S ¥2,700
72646A — Grommet, Rear Seatback Stop Button
72646-12040-03 note Grommet, Rear Seatback Stop Button
1987-05 → 1991-06 ended
AE92 GT ¥620
72646B — Grommet, Rear Seatback Stop Button
72646-12040-03 note Grommet, Rear Seatback Stop Button
1987-05 → 1991-06 ended
AE92 GT ¥620
72656B — Button, Rear Seatback Stop Release
72656-20010-23 note Button, Rear Seatback Stop Release
1987-05 → 1988-11 ended
AE91,92,EE90 FXD,FXL,G,GT ¥740
72656-20010-23 note Button, Rear Seatback Stop Release
1988-11 → 1992-05 ended
AE91 FXL EFI;AE91,92,EE90 (3D,4D,WG) +1 ¥740
72656-20010-55 note Button, Rear Seatback Stop Release
1987-05 → 1988-11 ended
AE91,EE90 FXD,FXL ¥740
72656-20010-55 note Button, Rear Seatback Stop Release
1988-11 → 1989-05 ended
AE91,EE90 3D (FXD,FXL) ¥740
72656-20010-59 note Button, Rear Seatback Stop Release
1989-05 → 1992-05 ended
AE91,92 (FXGTV,FXV,FXVS,G,LT) (EFI,EFIS) ¥740
72656C — Button, Rear Seatback Stop Release
72656-20010-23 note Button, Rear Seatback Stop Release
1987-05 → 1988-11 ended
AE91,92,EE90 FXD,FXL,G,GT ¥740
72656-20010-23 note Button, Rear Seatback Stop Release
1988-11 → 1992-05 ended
AE91 FXL EFI;AE91,92,EE90 (3D,4D,WG) +1 ¥740
72656-20010-55 note Button, Rear Seatback Stop Release
1987-05 → 1988-11 ended
AE91,EE90 FXD,FXL ¥740
72656-20010-55 note Button, Rear Seatback Stop Release
1988-11 → 1989-05 ended
AE91,EE90 3D (FXD,FXL) ¥740
72656-20010-59 note Button, Rear Seatback Stop Release
1989-05 → 1992-05 ended
AE91,92 (FXGTV,FXV,FXVS,G,LT) (EFI,EFIS) ¥740
72693 — Hook, Rear Seat Cushion Lock
72693-12020 Hook, Rear Seat Cushion Lock
1987-05 → 1988-11 ended
AE91,92,CE90,EE90 (4D,5D) (DX,FXG,FXZI,GT,SE,TX,XE) ¥650
72693-12020 Hook, Rear Seat Cushion Lock
1988-11 → 1988-12 ended
AE91,92,CE90,EE90 4D,5D ¥650
72693-12030 Hook, Rear Seat Cushion Lock
1987-10 → 1988-01 ended
AE95 ¥660
72693-12040 Hook, Rear Seat Cushion Lock
1988-01 → 1991-06 ended
AE95,CE95 ¥640
72693-12050 Hook, Rear Seat Cushion Lock
1988-12 → 1992-05 ended
AE91,92,CE90,EE90 3D,4D,5D ¥640
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
