Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 10 illustrations

Illustrations

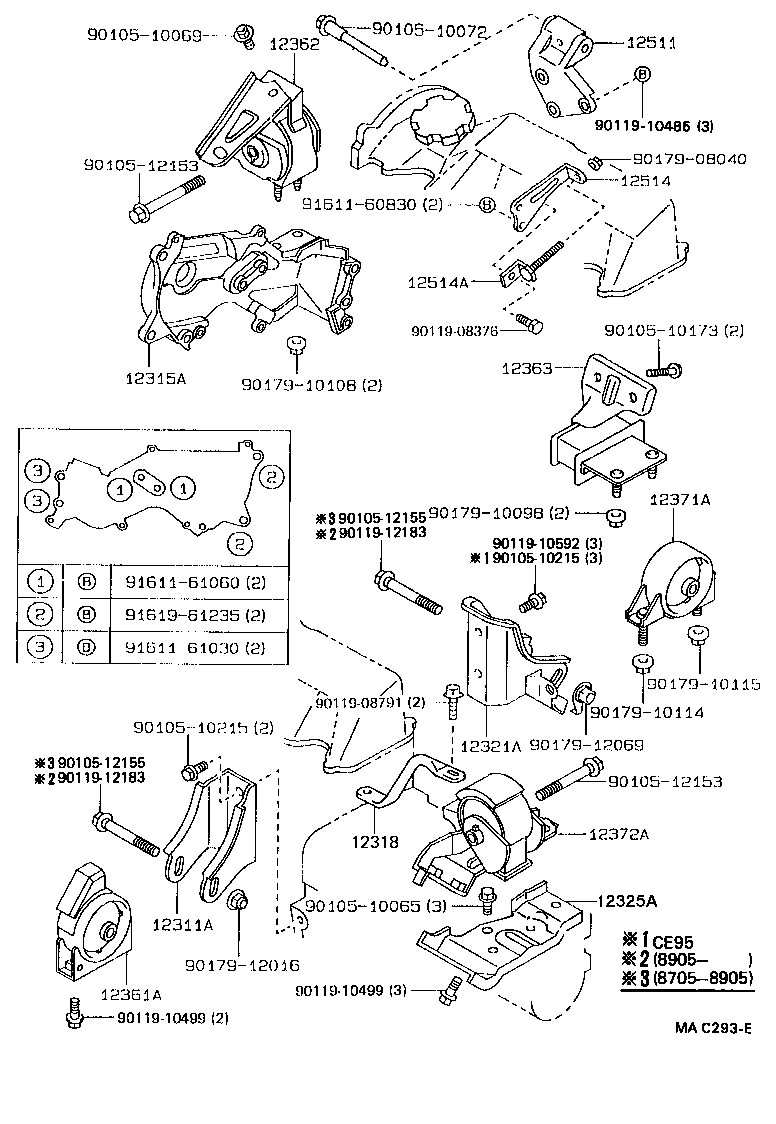

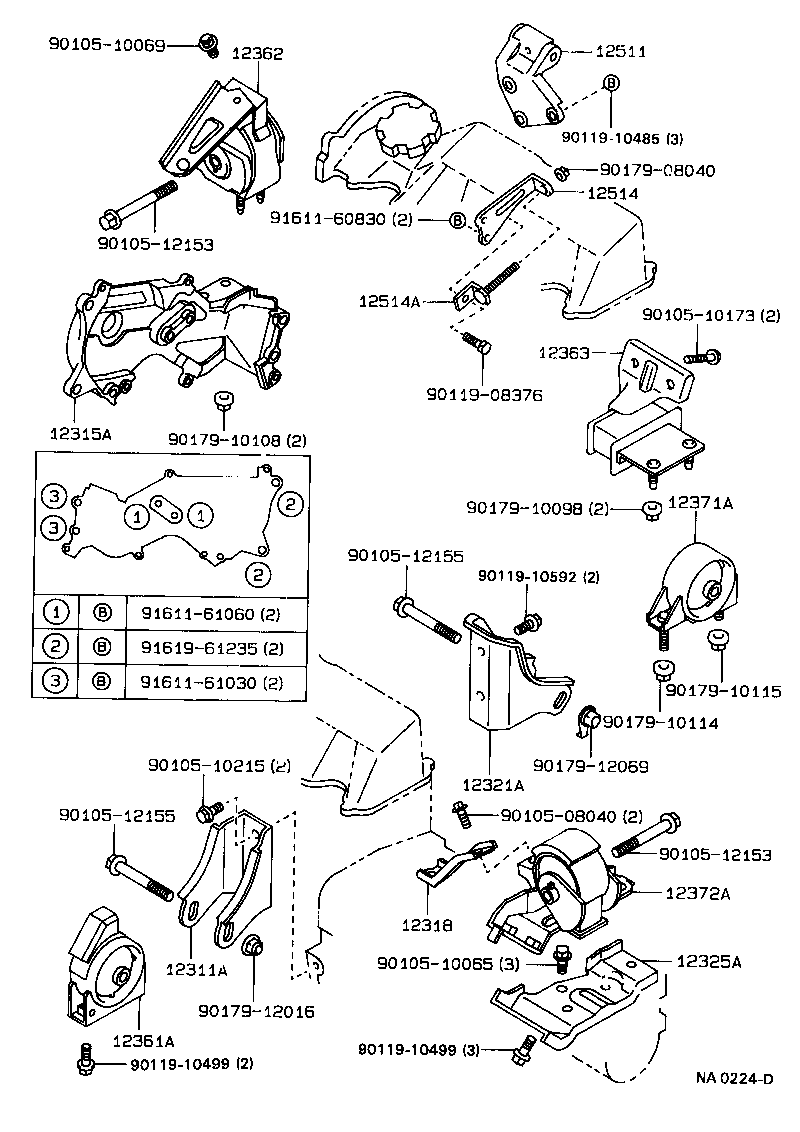

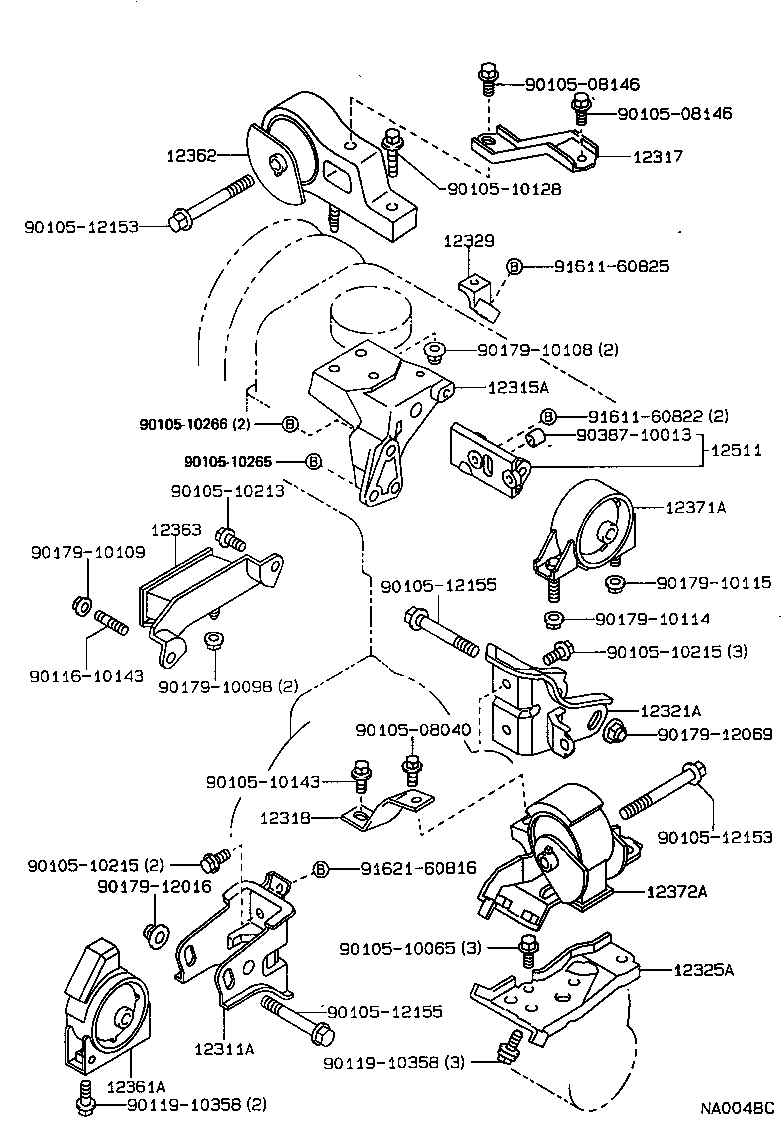

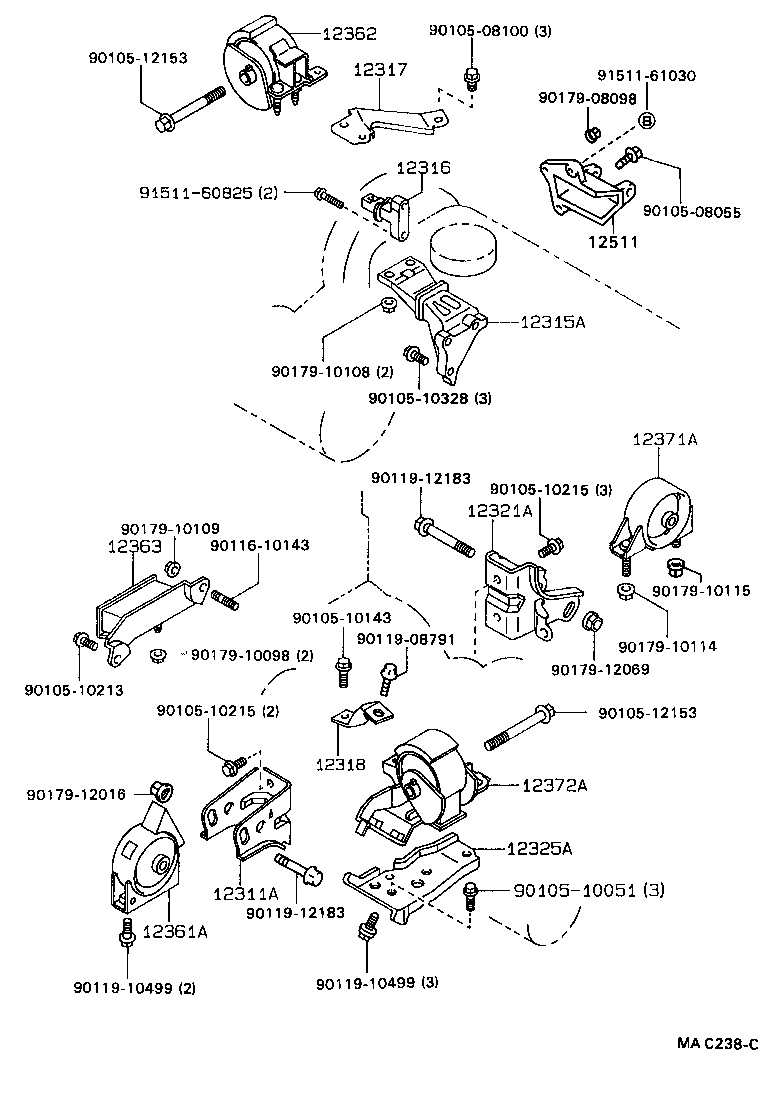

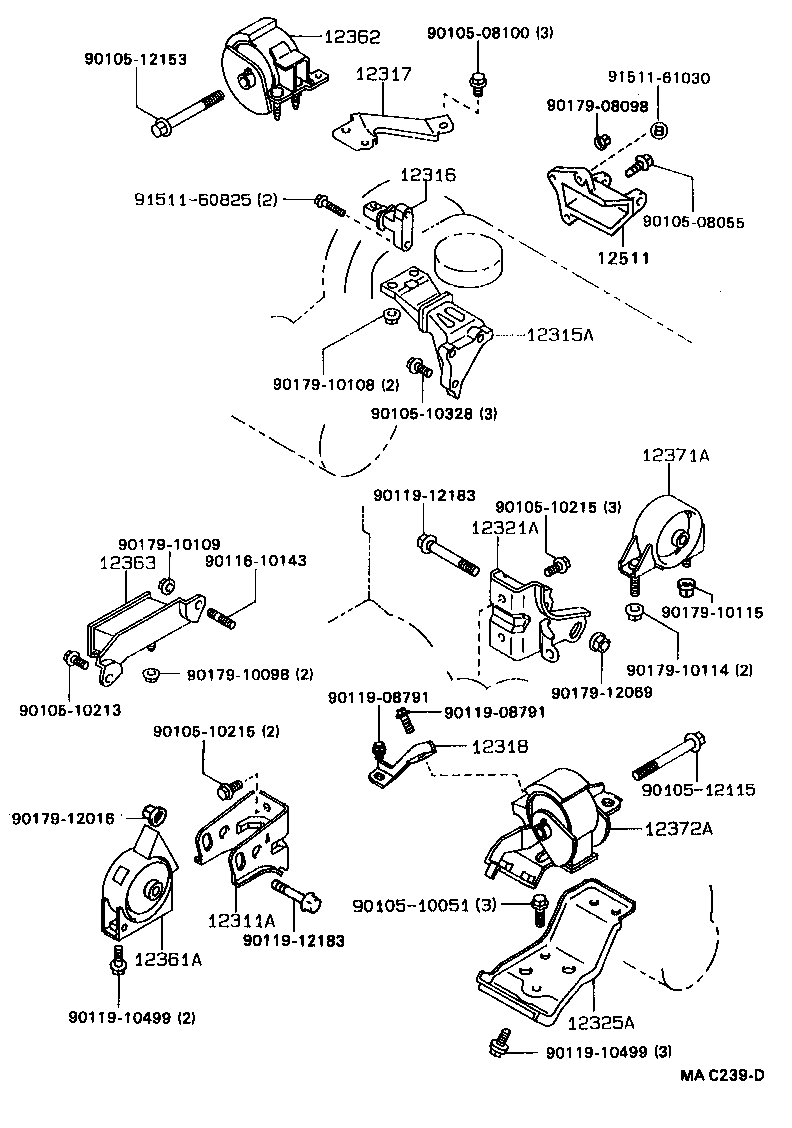

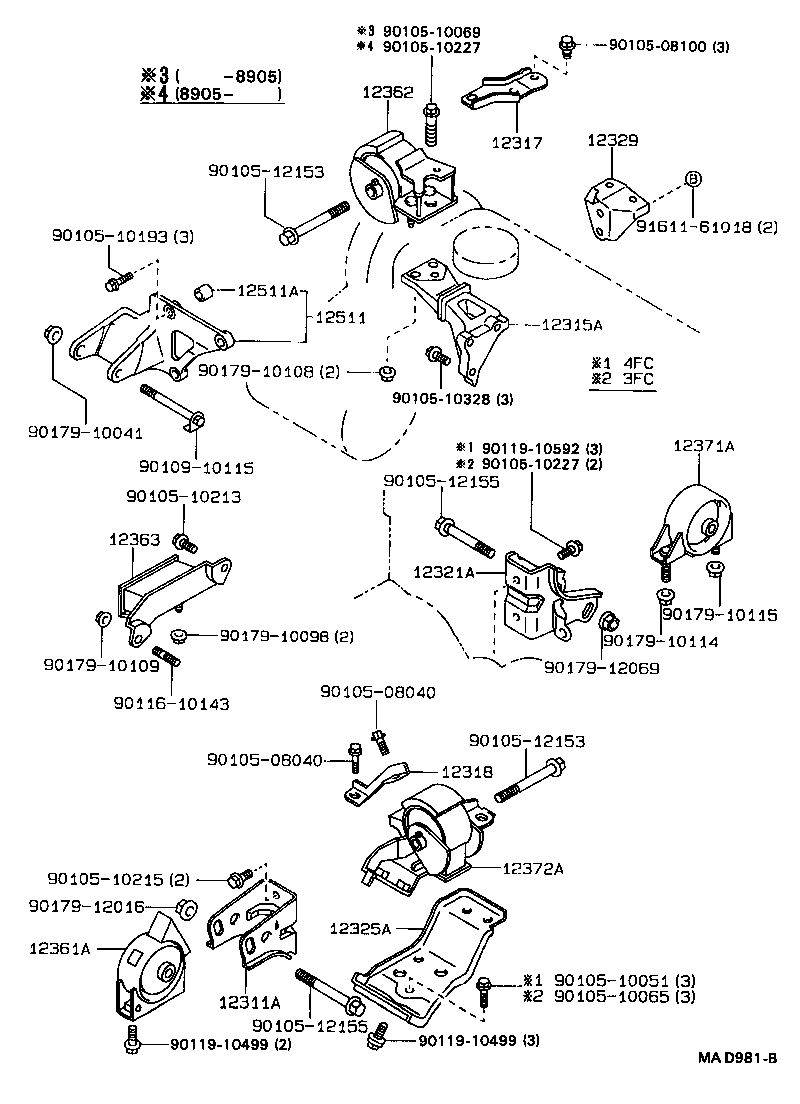

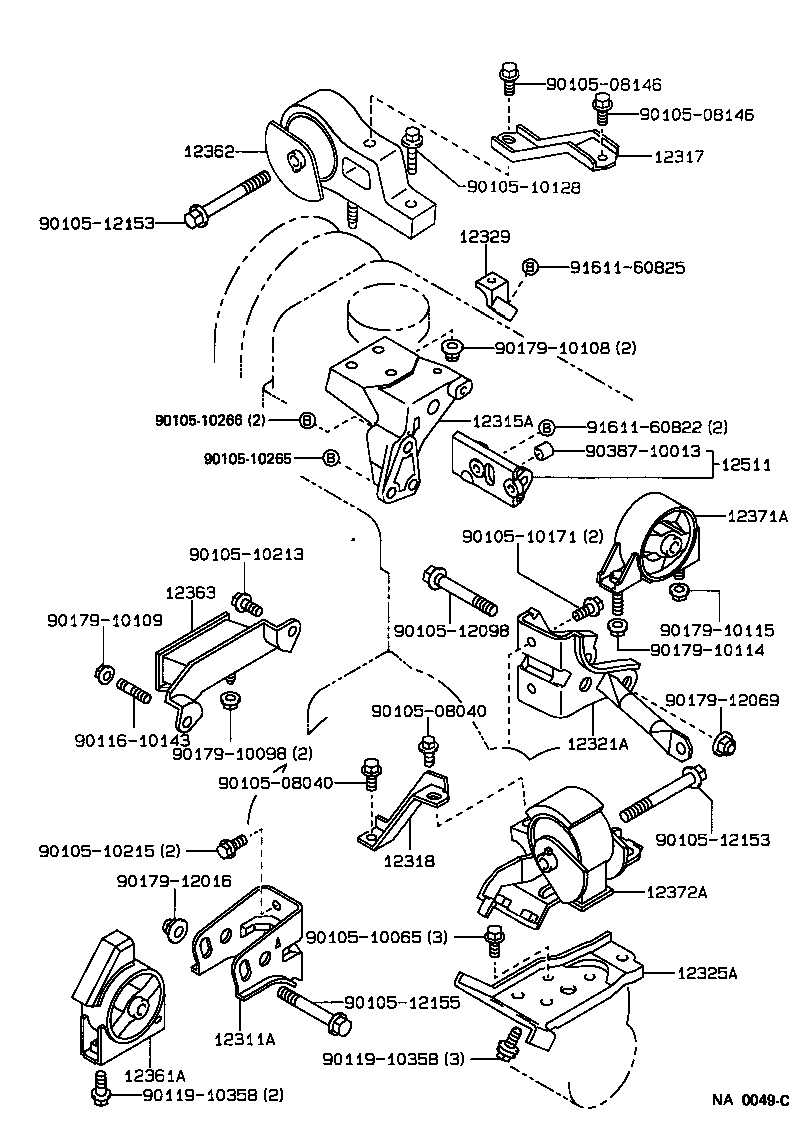

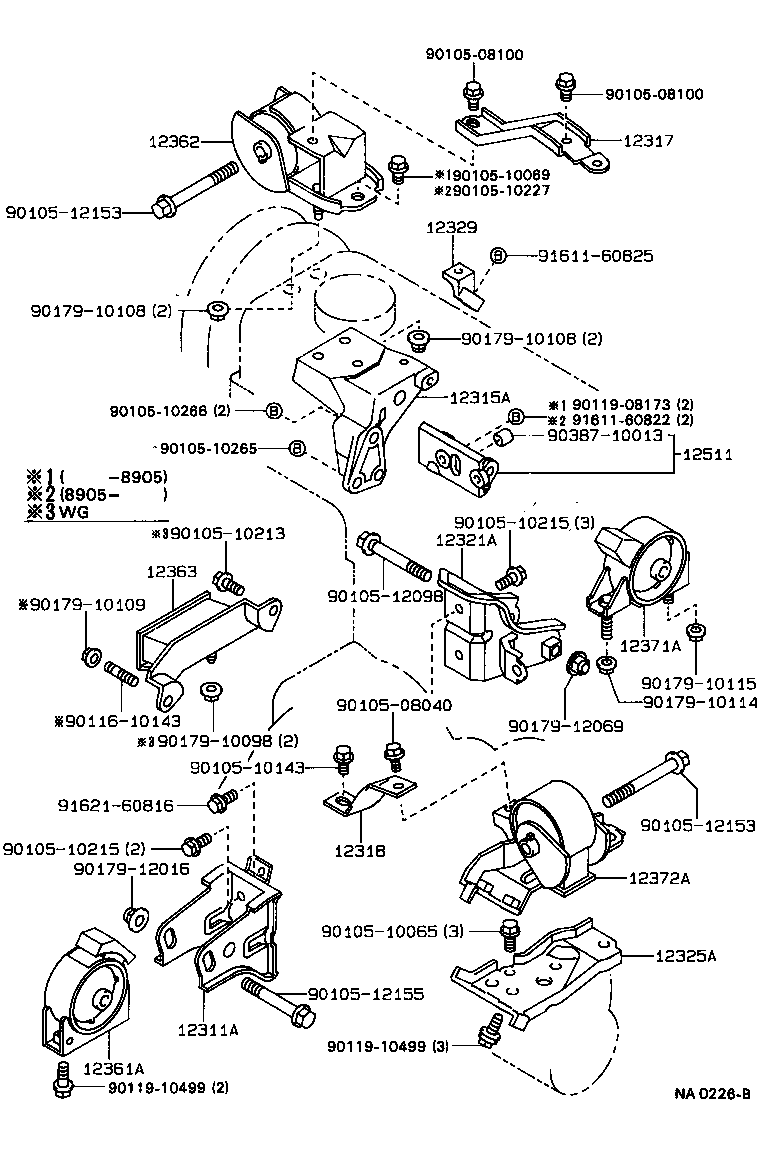

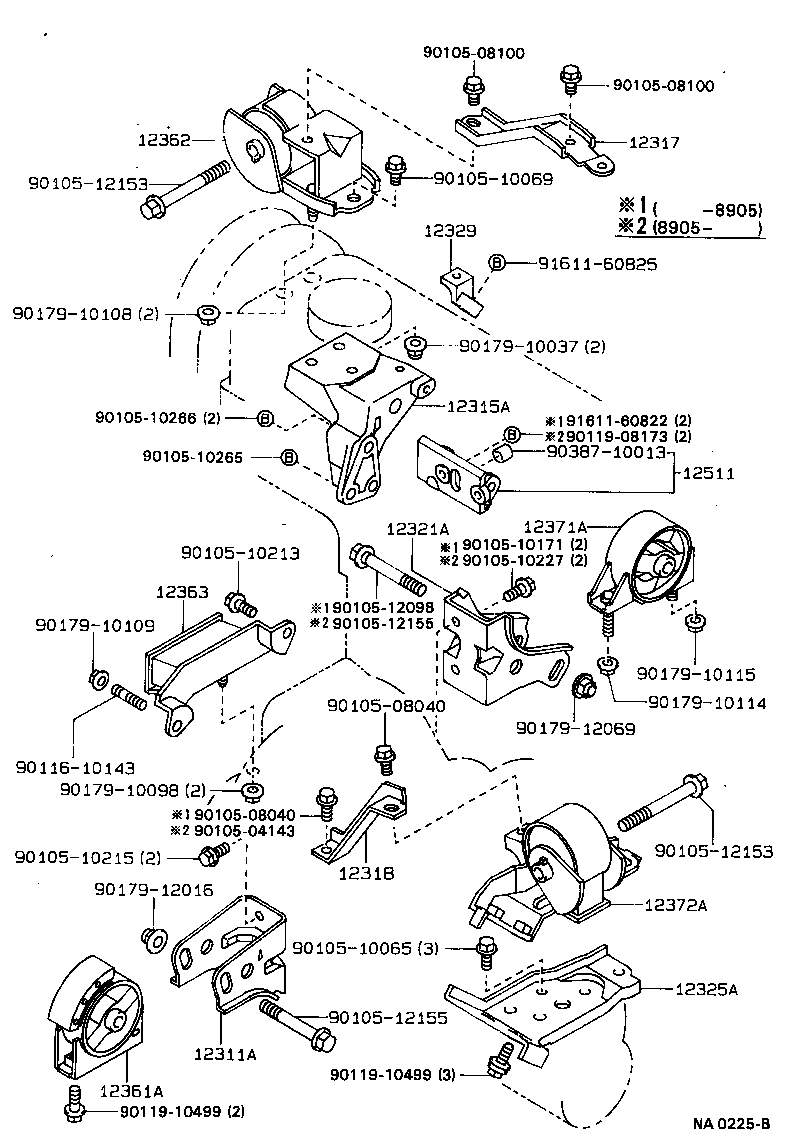

Figure MAD980A MAD980A 1987-05 → — Figure MAD981B MAD981B 1987-05 → — Figure MAC238C MAC238C 1987-05 → — Figure MAC239D MAC239D 1987-05 → — Figure MAC293E MAC293E 1987-05 → — Figure NA0224D NA0224D 1987-05 → — Figure NA0048C NA0048C 1987-05 → — Figure NA0049C NA0049C 1987-05 → — Figure NA0226B NA0226B 1987-08 → — Figure NA0225B NA0225B 1987-08 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12317 Stay, Engine Mounting, RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12329 Support, Engine Mounting Stay
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363 Insulator, Engine Mounting, Center
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
