Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

31 part groups · 8 illustrations

Illustrations

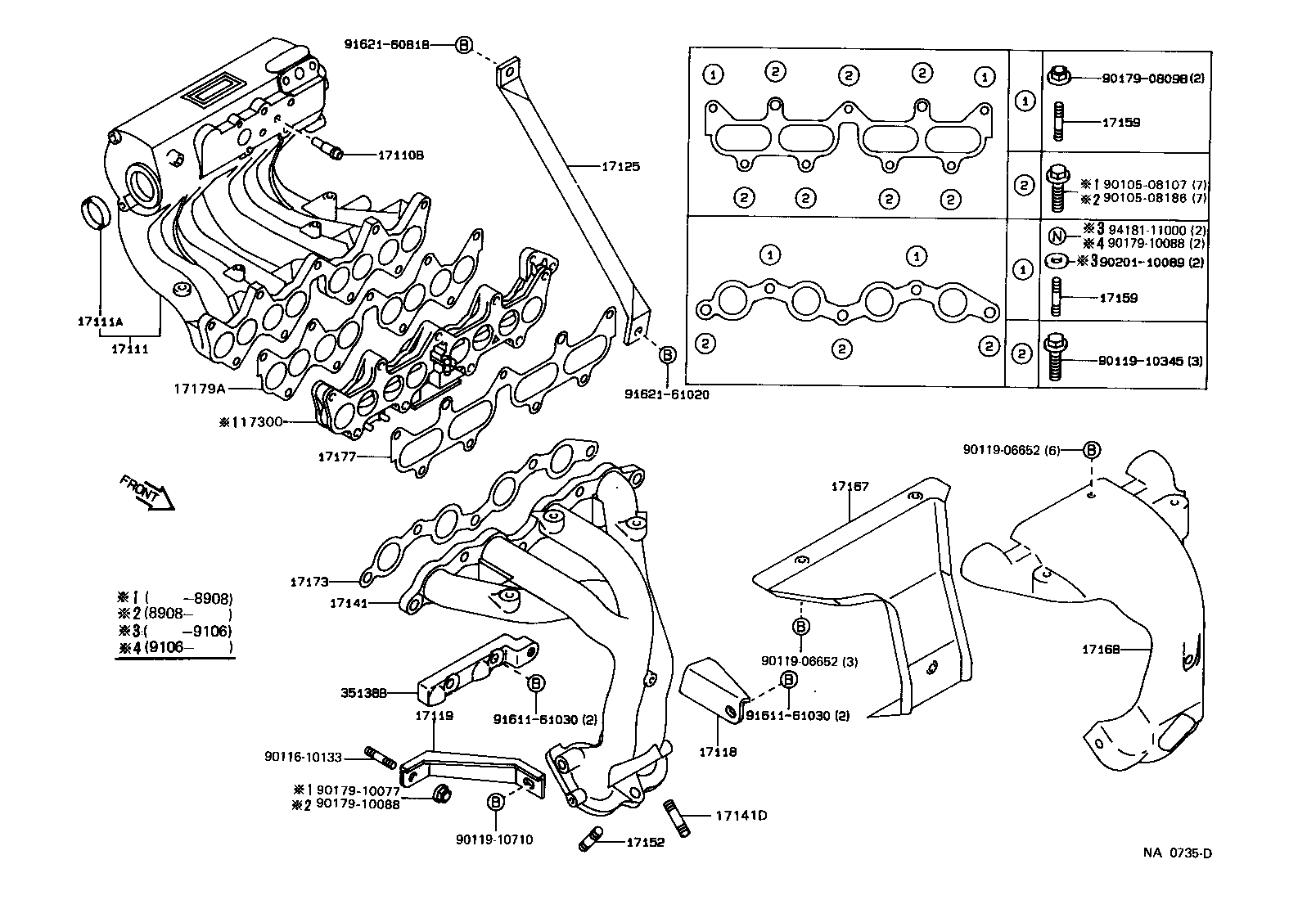

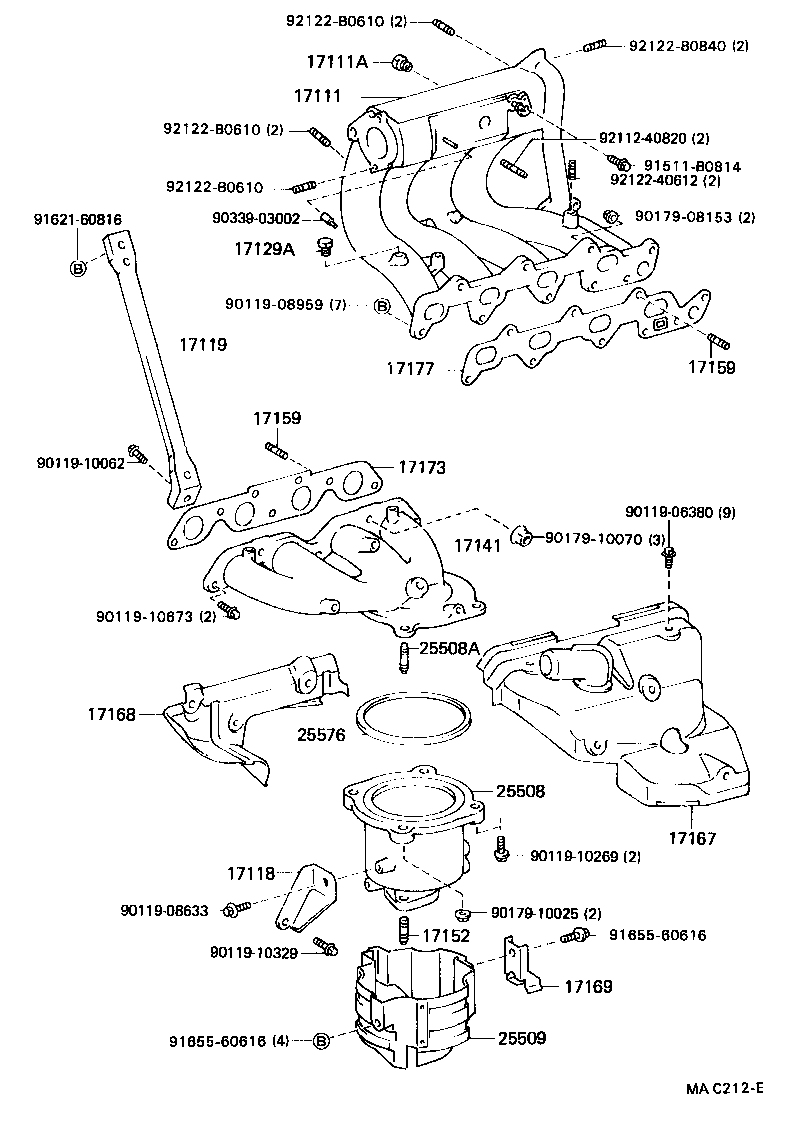

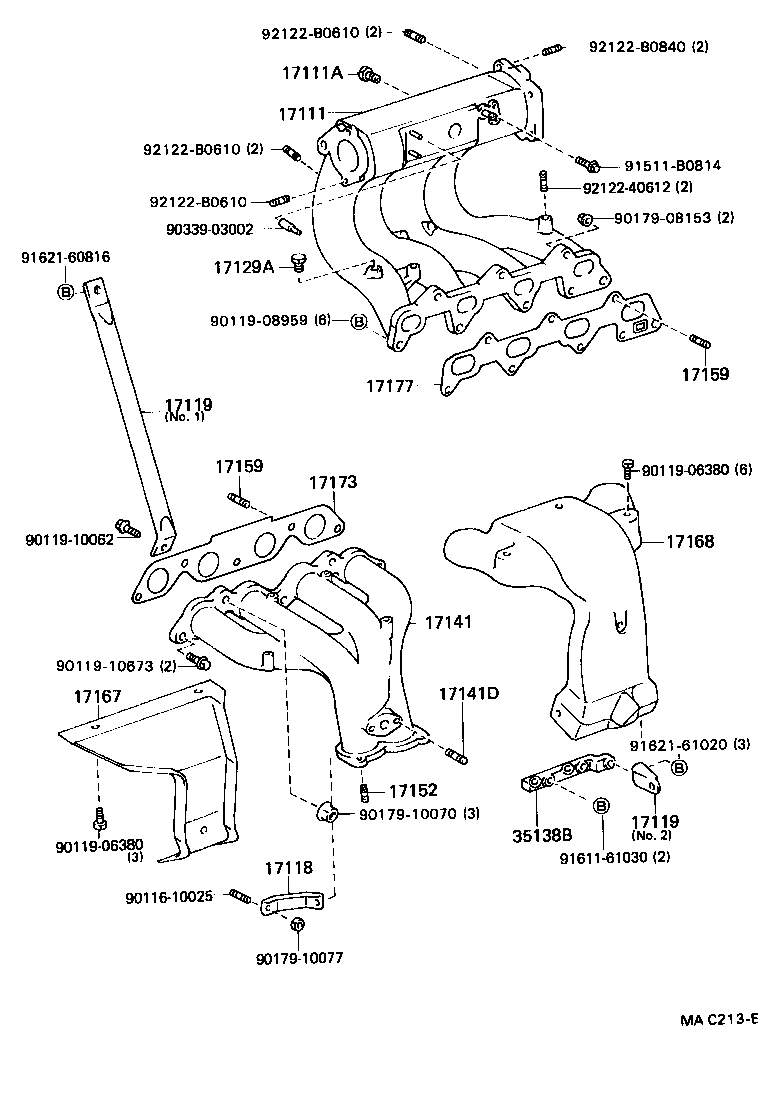

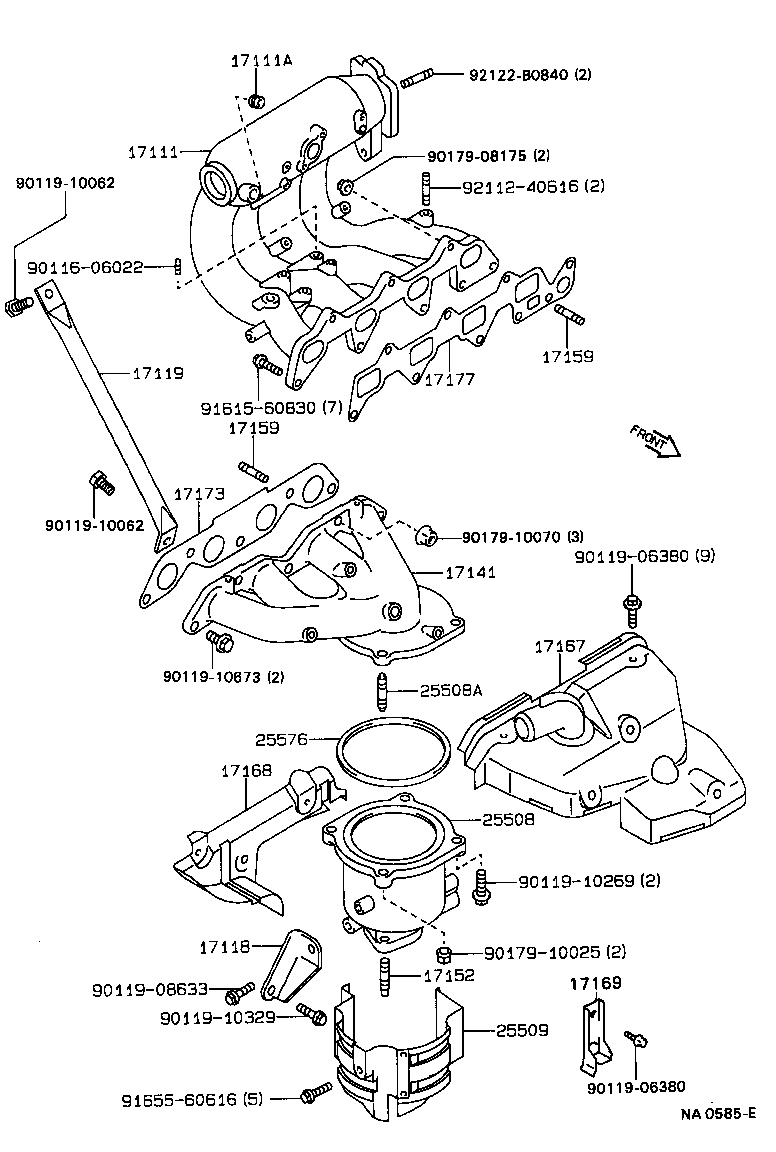

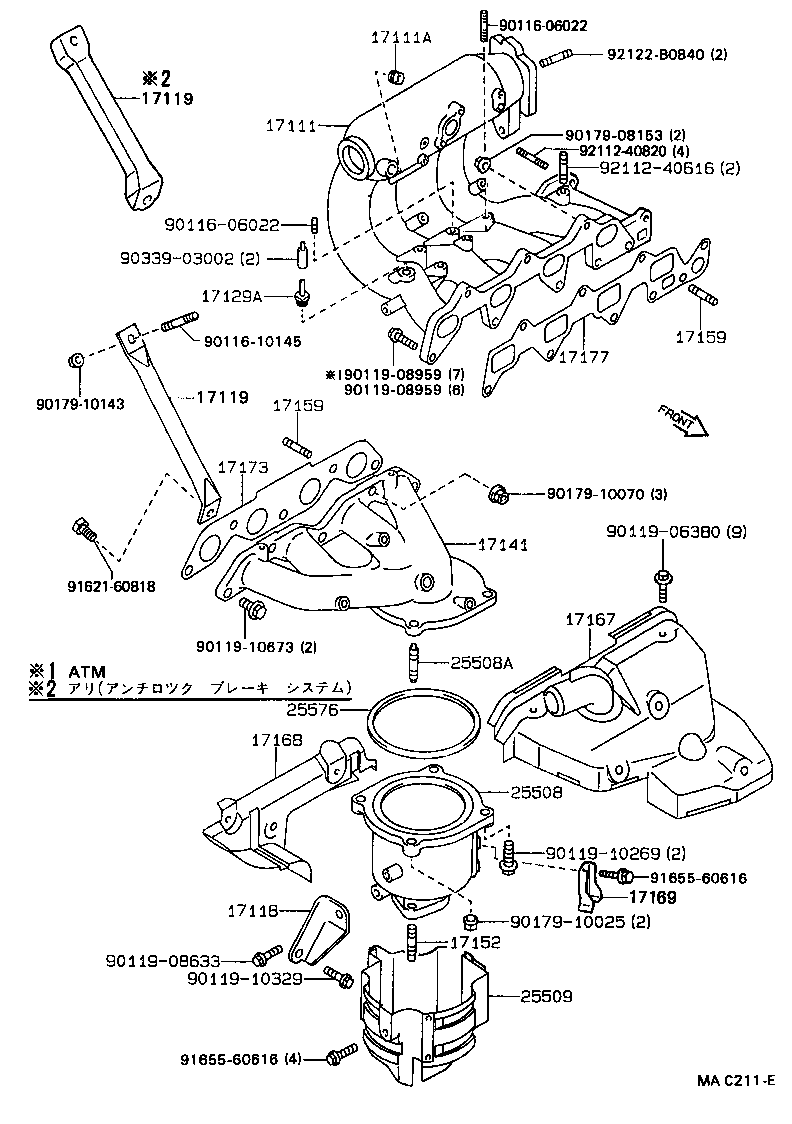

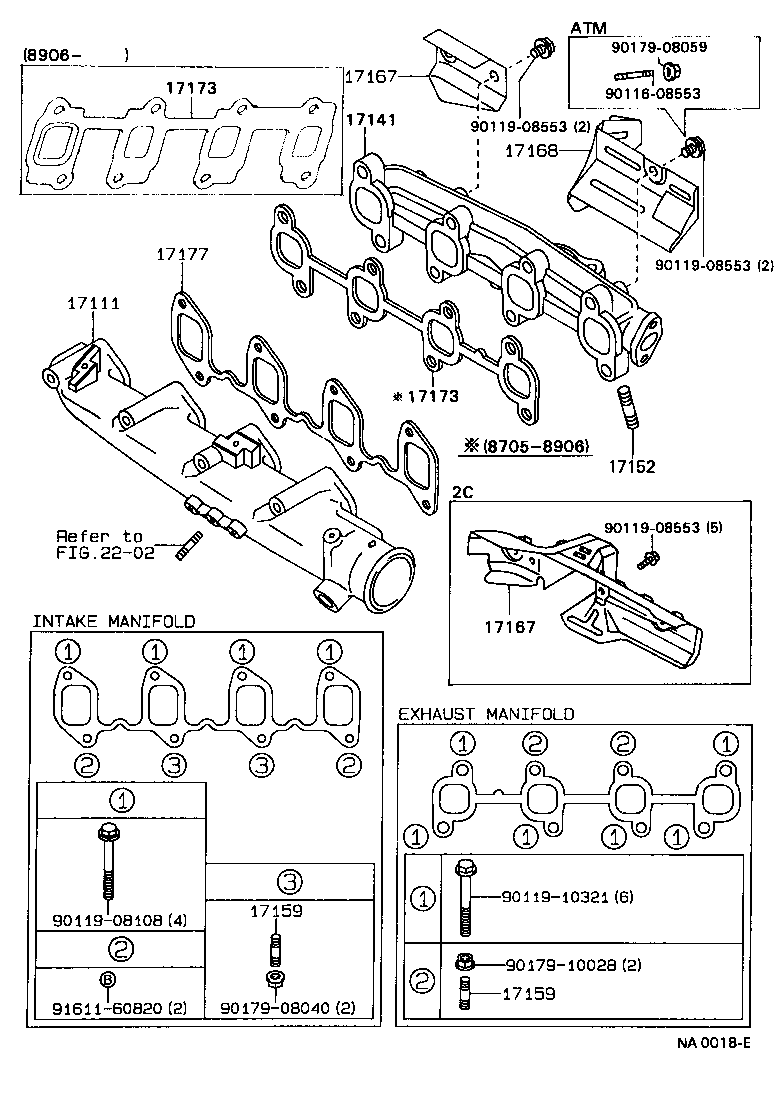

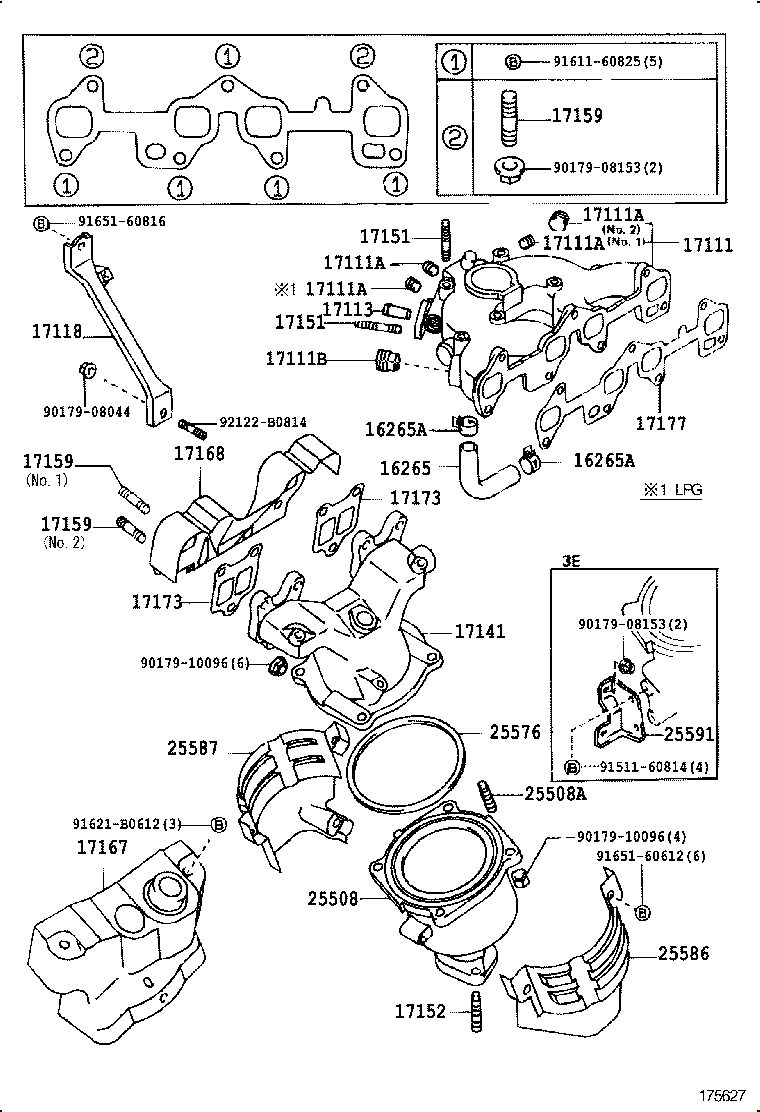

Figure NA0097F NA0097F 1987-05 → 1989-08 Figure NA0585E NA0585E 1987-05 → 1989-05 Figure MAC212E MAC212E 1989-05 → — Figure MAC213E MAC213E 1989-05 → — Figure MAC211E MAC211E 1989-05 → — Figure NA0735D NA0735D 1987-05 → — Figure NA0018E NA0018E 1987-05 → — Figure 175627 175627 1987-05 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17113 Pipe, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17129A Union, NO.1
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17300 Valve Assy, Intake Air Control
25508 Converter Sub-assy, Manifold
25508A Bolt, Stud(FOR MANIFOLD CONVERTER)
25509 Insulator Sub-assy, Manifold Convertor
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
35138B Adapter, Stiffener Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
