Toyota Corolla
1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan
Discontinued model
Data version 1992-11

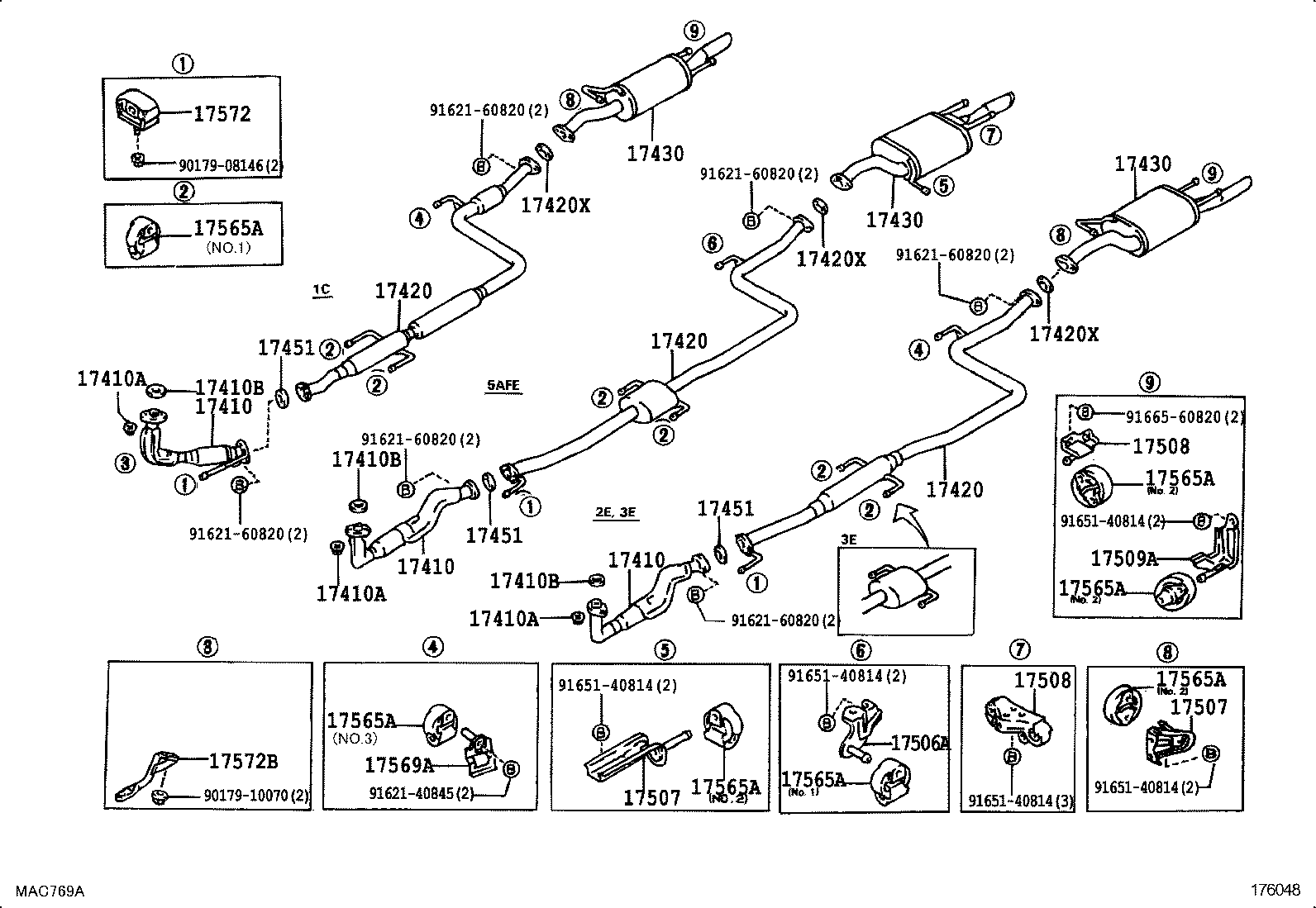

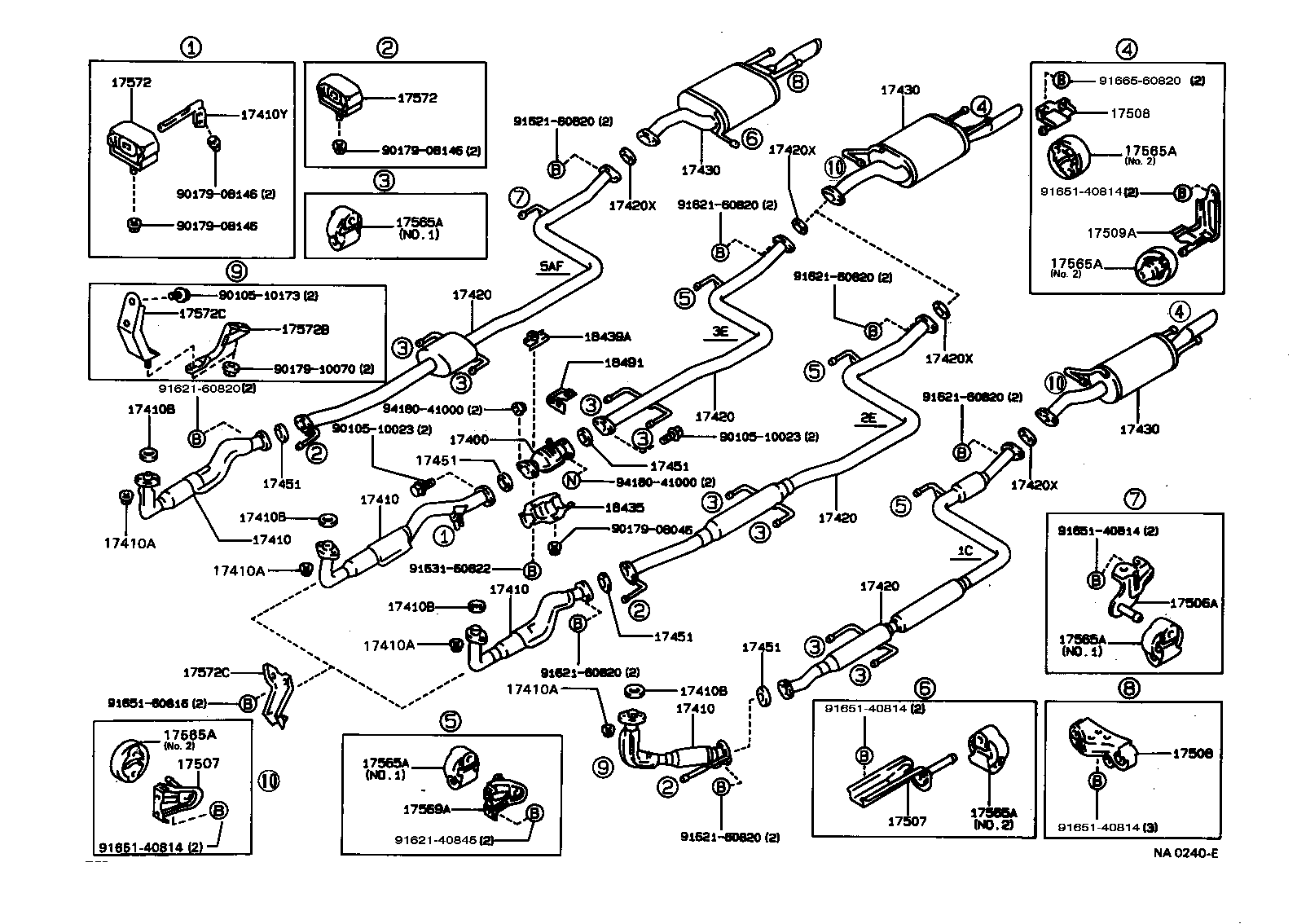

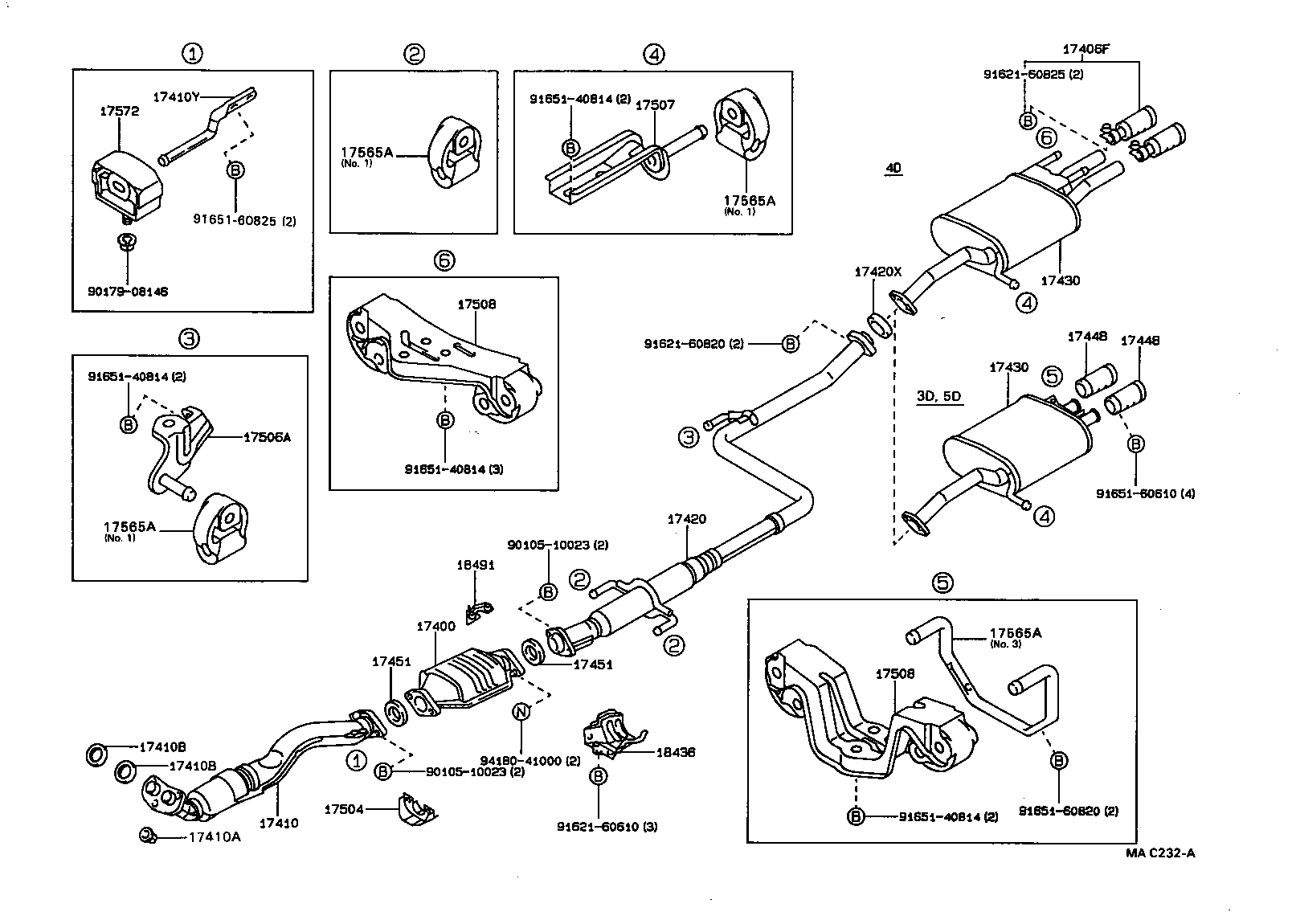

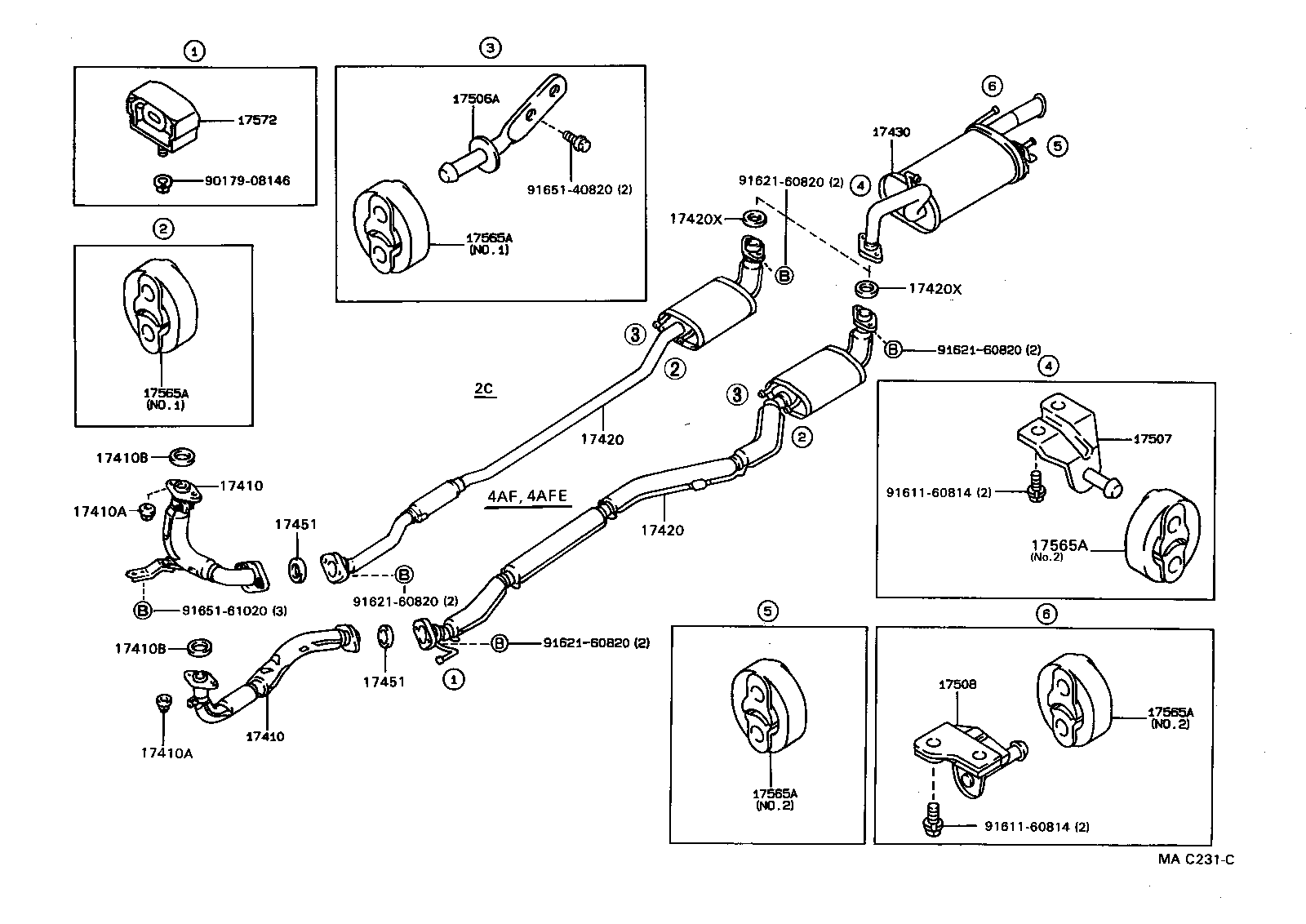

Exhaust Pipe
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17406F | Diffuser Sub-assy, Exhaust Gas |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410Y | Bolt OR Ring, Exhaust Pipe Front (FOR REAR) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17504 | Bracket Sub-assy, Catalytic Converter |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17508 | Support Sub-assy, Exhaust Pipe, NO.3 |
| 17509A | Bracket Sub-assy, Exhaust Pipe NO.4 Support |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17569A | Plate, Exhaust Pipe Support |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17572C | Bracket, Exhaust Pipe Front (FOR FRONT) |
| 18435 | Protector, Catalytic Converter |
| 18436 | Protector, Monolithic Converter, NO.1 |
| 18439A | Bracket, Converter Protector, RH |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
