Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

27 part groups · 13 illustrations

Illustrations

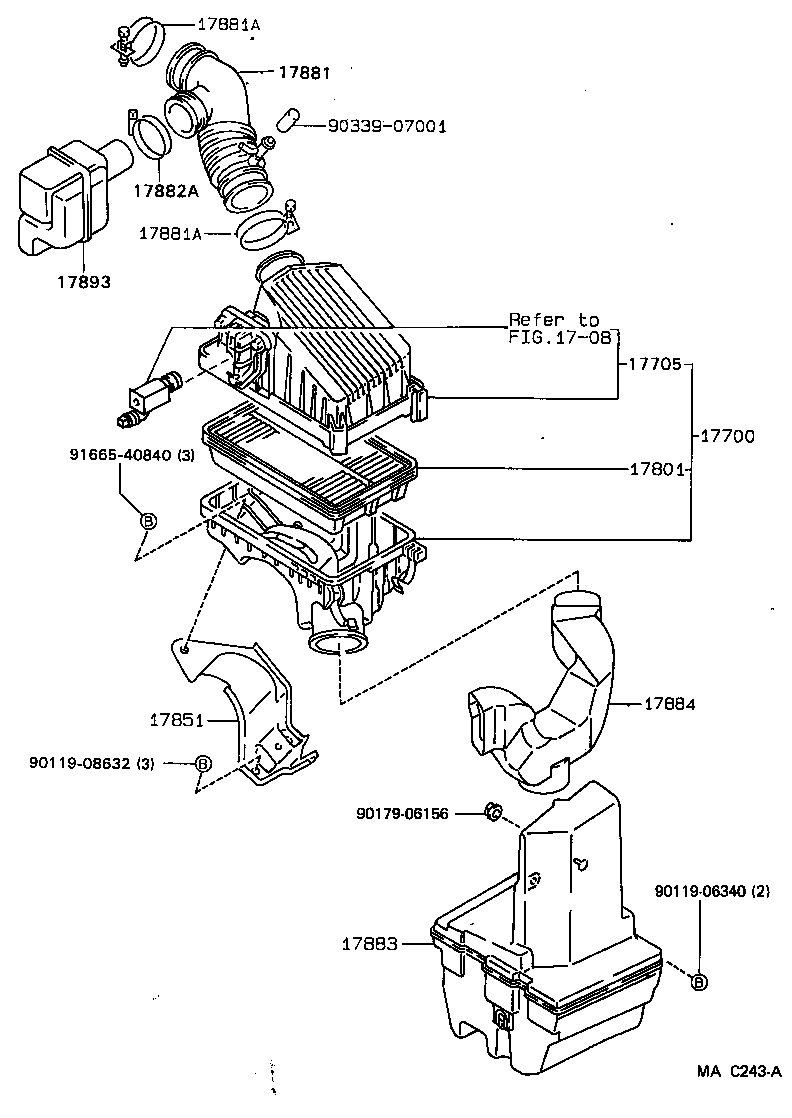

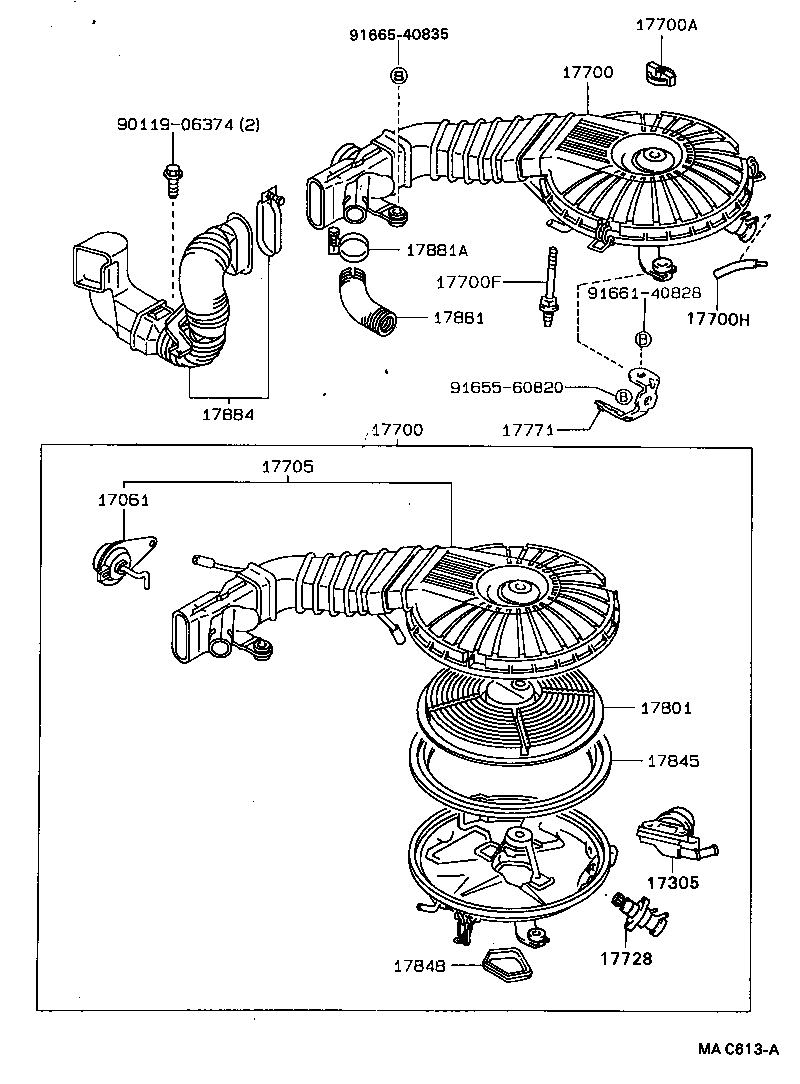

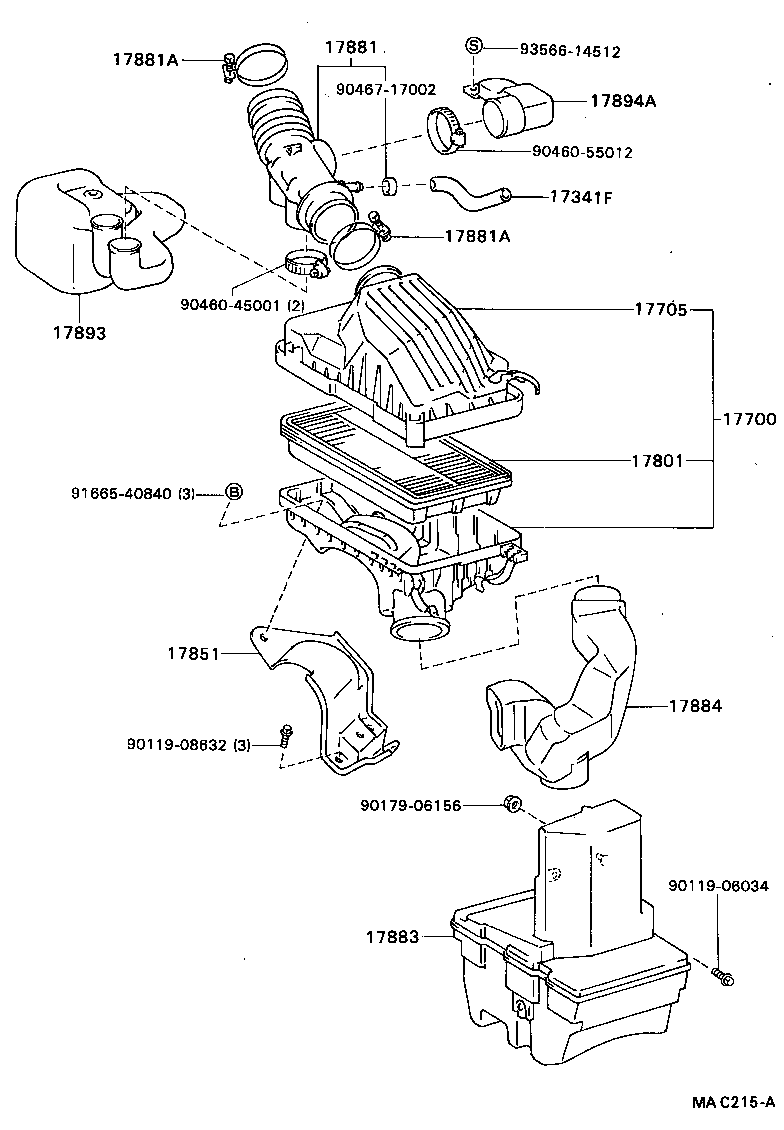

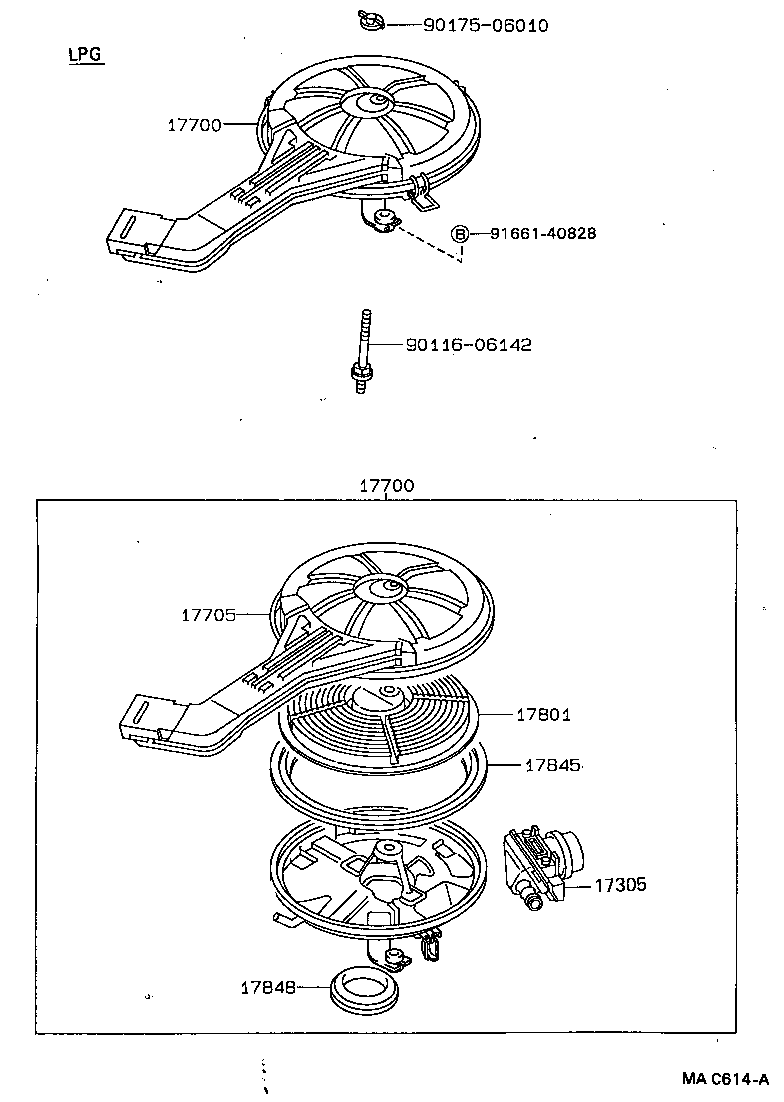

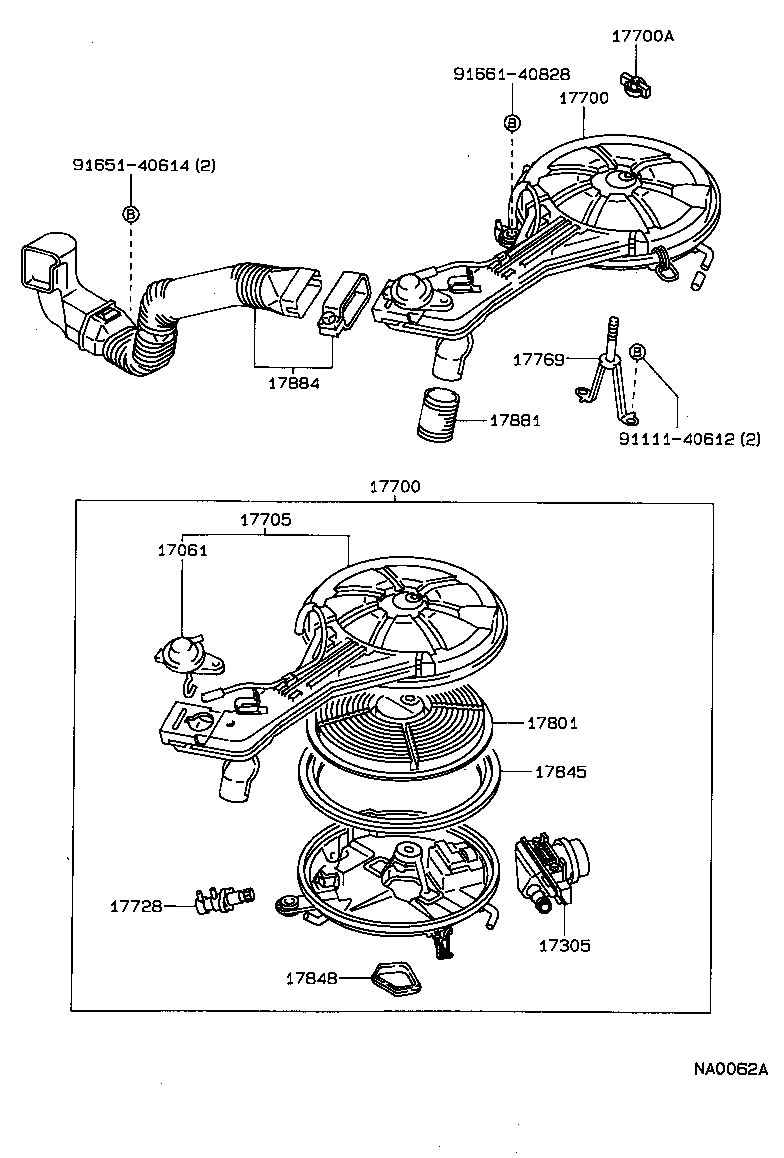

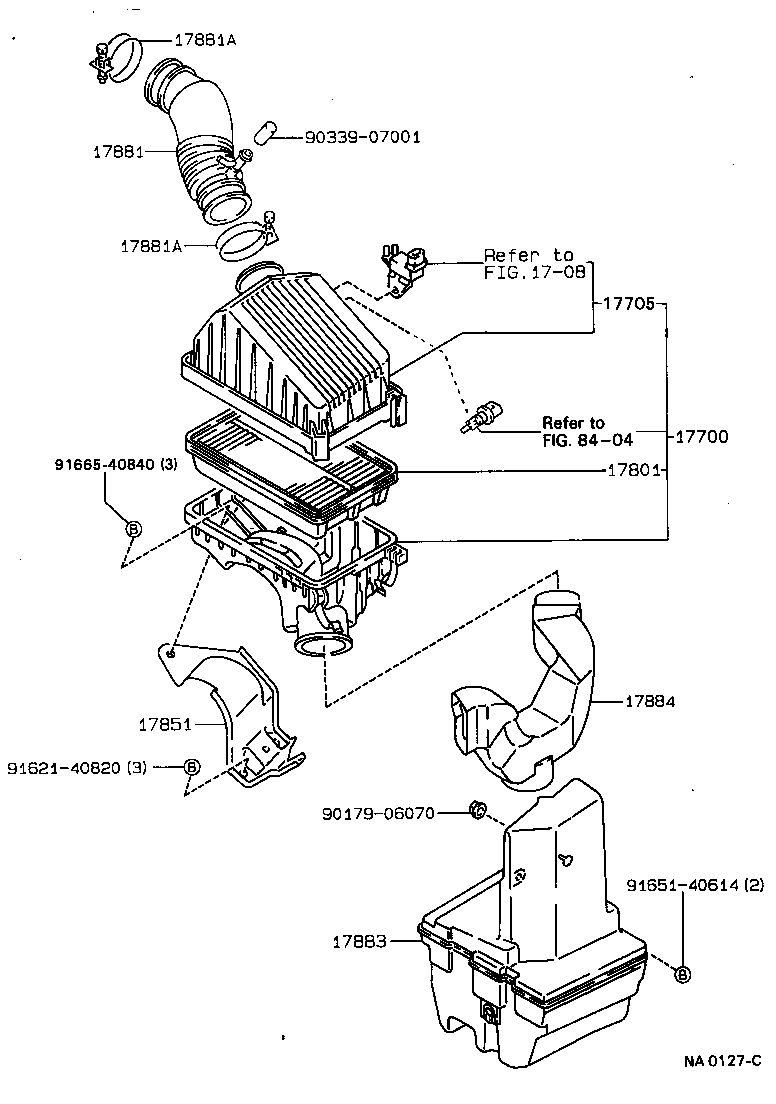

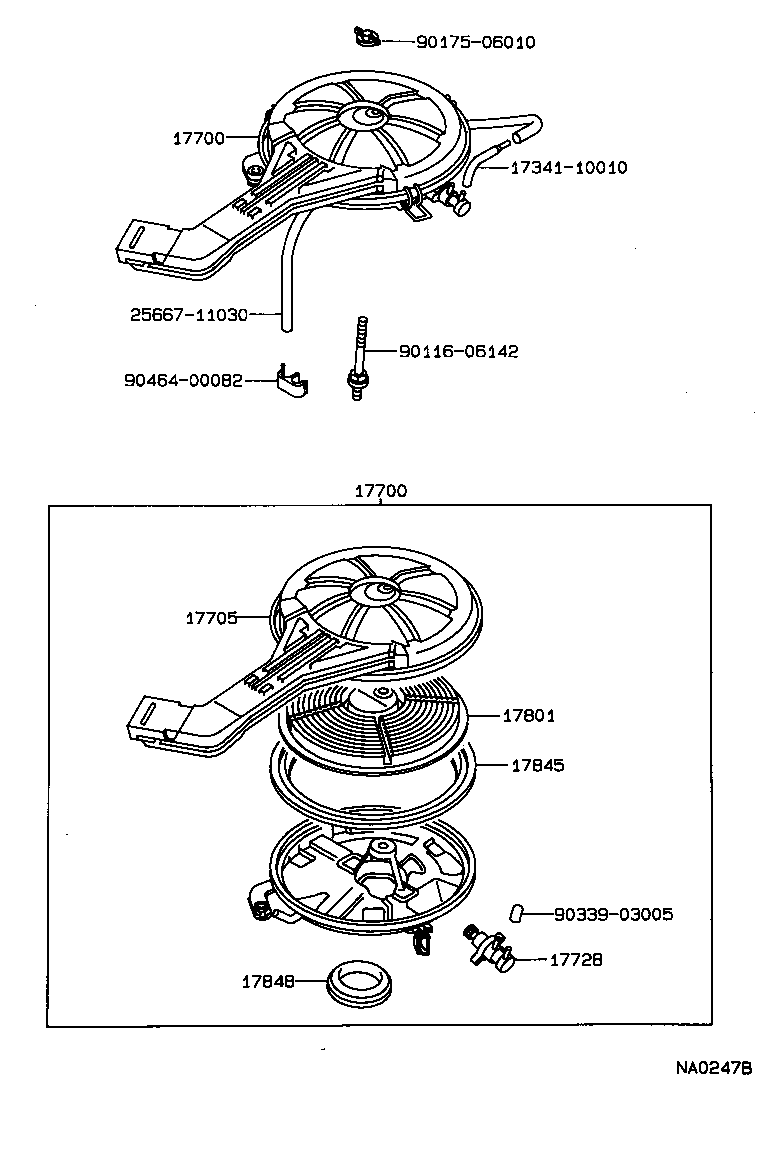

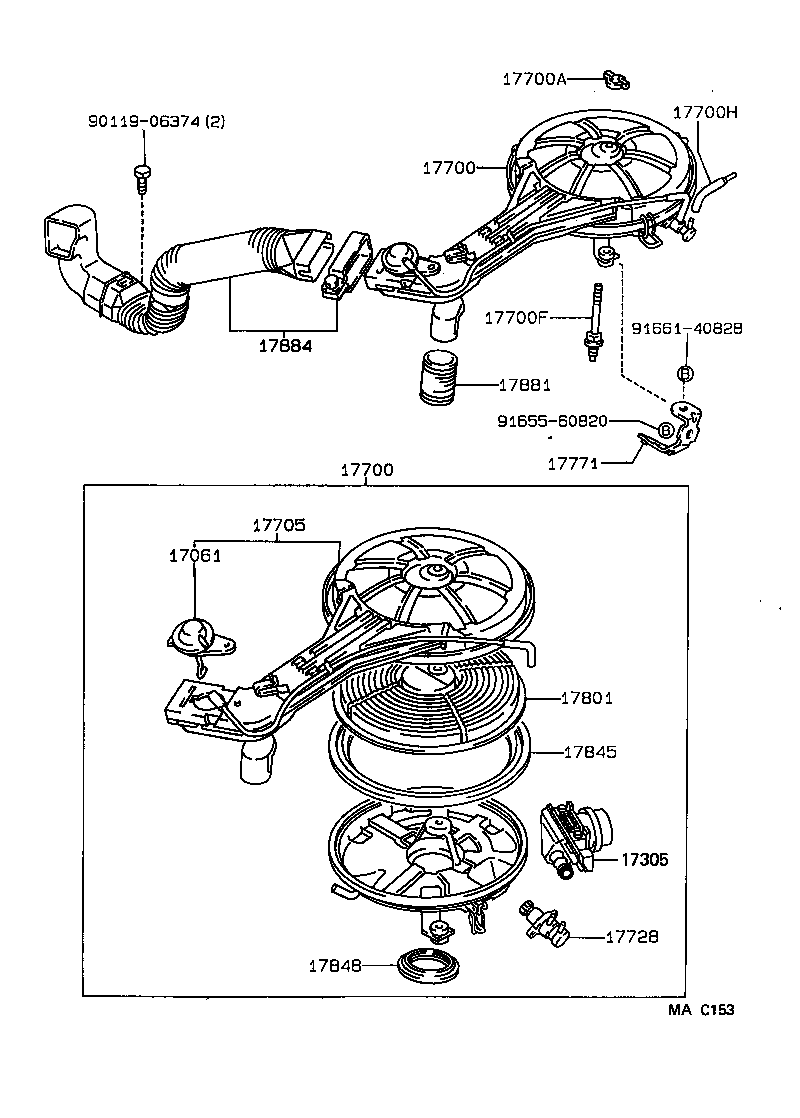

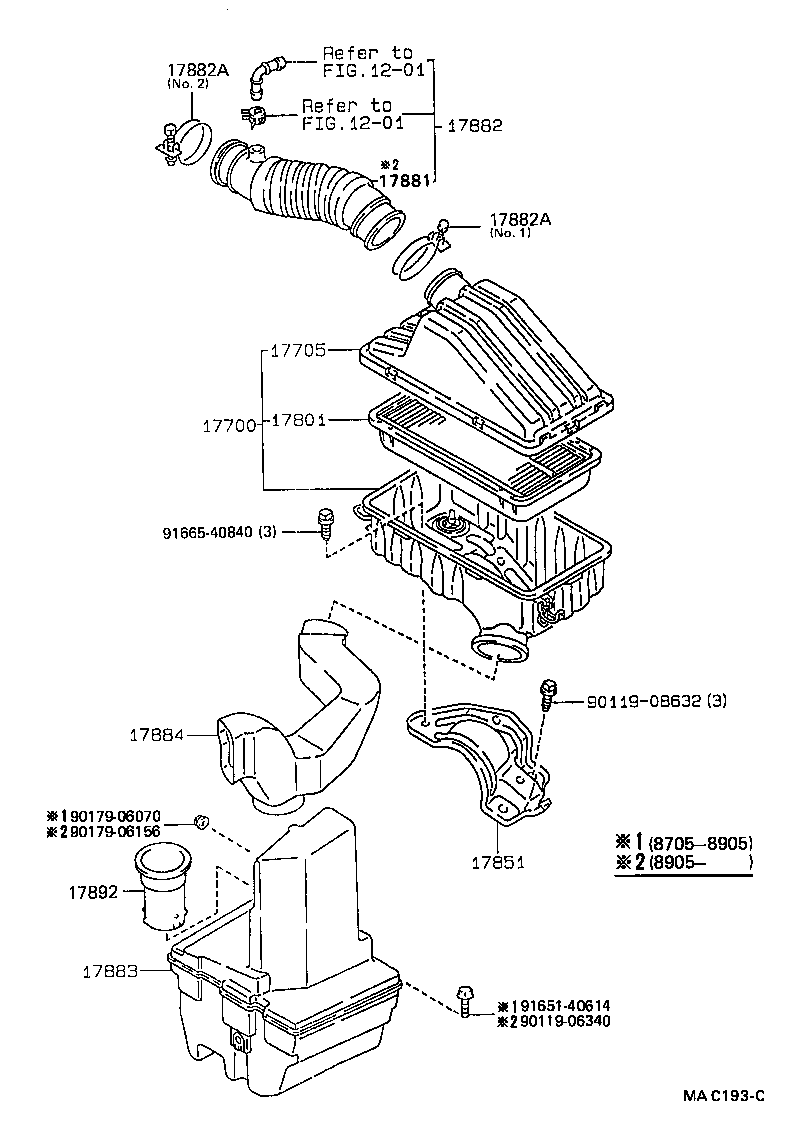

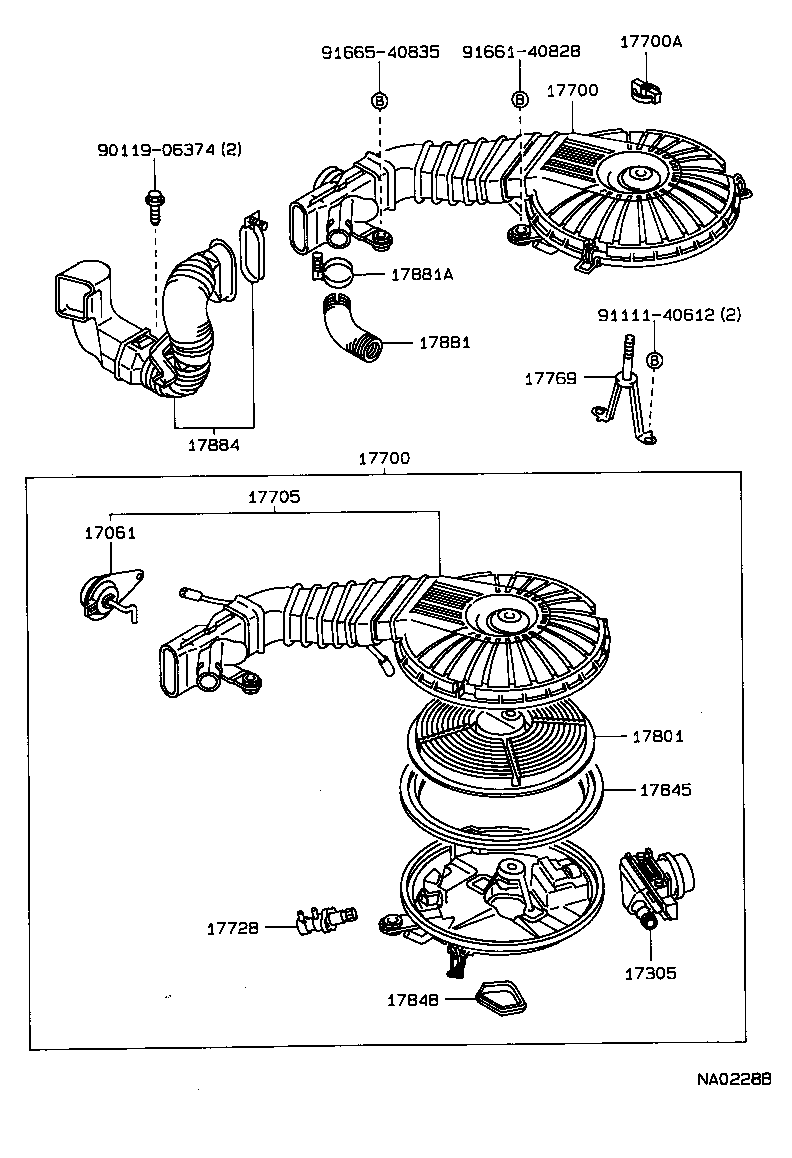

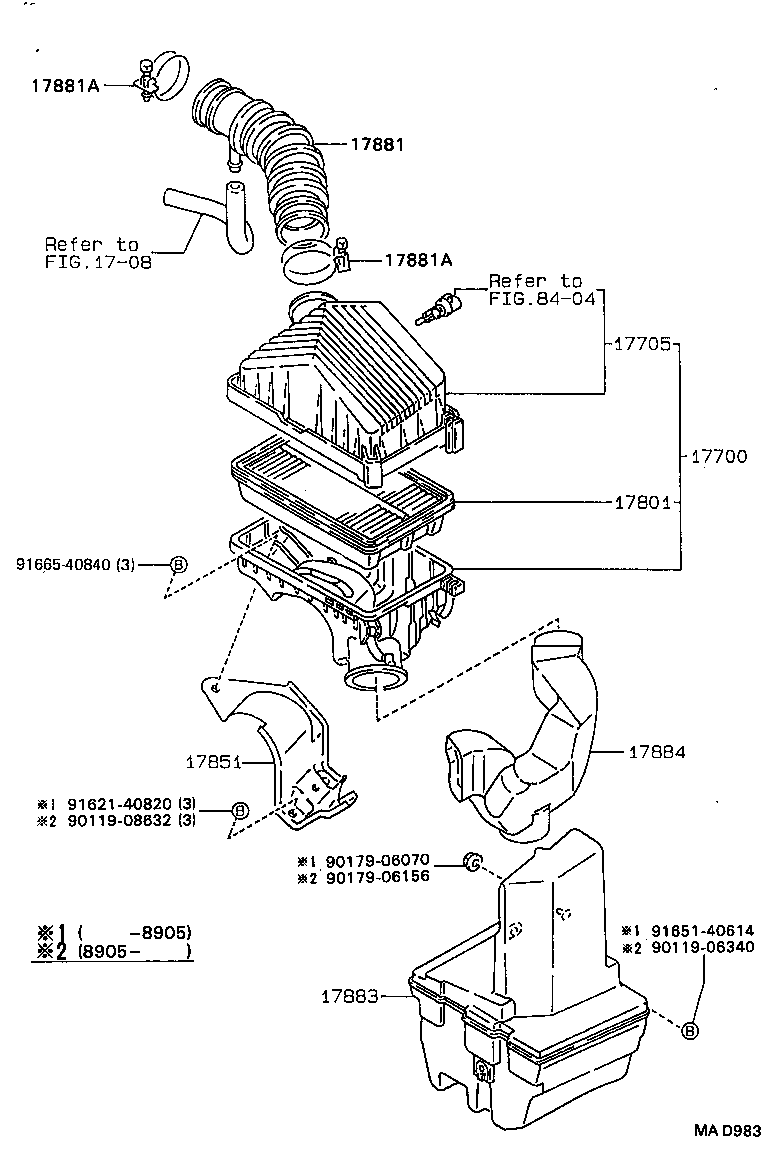

Figure MAG274 MAG274 1987-05 → 1989-08 Figure MAD983 MAD983 1987-05 → 1989-05 Figure MAD983 MAD983 1989-05 → — Figure MAC215A MAC215A 1989-05 → — Figure NA0127C NA0127C 1987-05 → 1989-05 Figure MAC243A MAC243A 1989-05 → — Figure MAC193C MAC193C 1987-05 → — Figure NA0062A NA0062A 1987-05 → 1989-05 Figure MAC153 MAC153 1989-05 → — Figure NA0228B NA0228B 1987-08 → 1989-08 Figure MAC613A MAC613A 1989-08 → — Figure NA0247B NA0247B 1987-08 → 1989-08 Figure MAC614A MAC614A 1989-08 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17785 Silencer, Air Cleaner
17787A Bracket, Air Cleaner Silencer
17801 Element Sub-assy, Air Cleaner Filter
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
17892 Hose, Intake Air Resonator
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
