Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

17 part groups · 8 illustrations

Illustrations

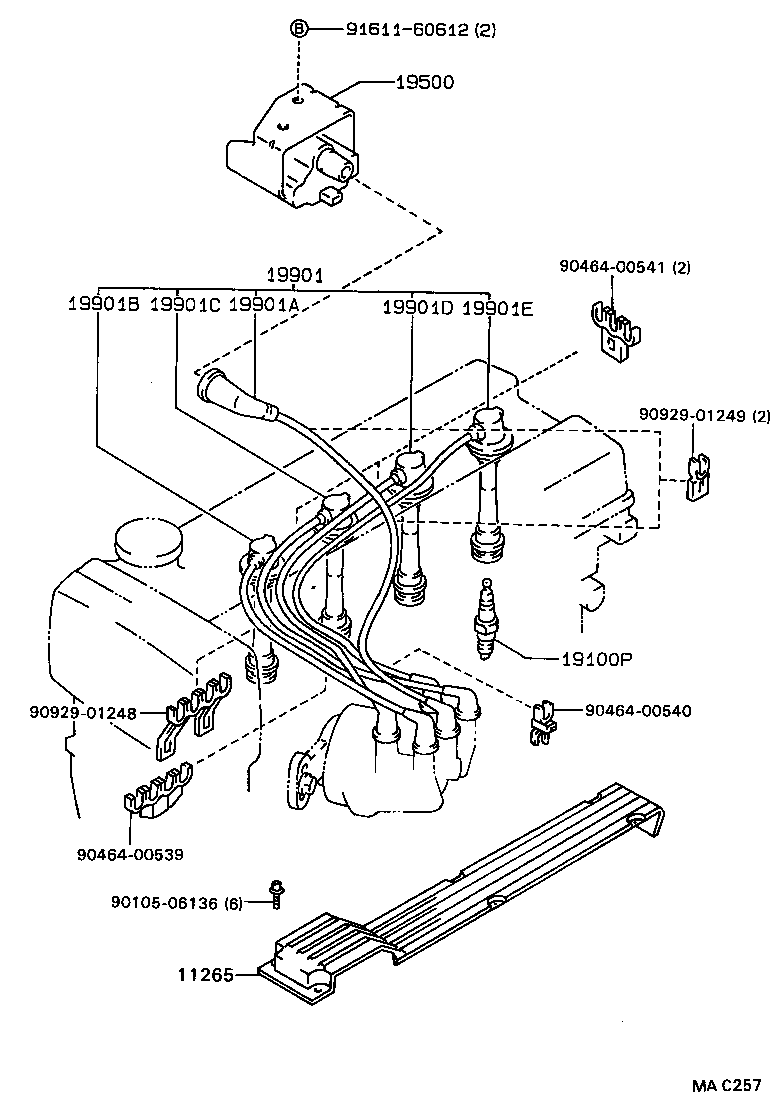

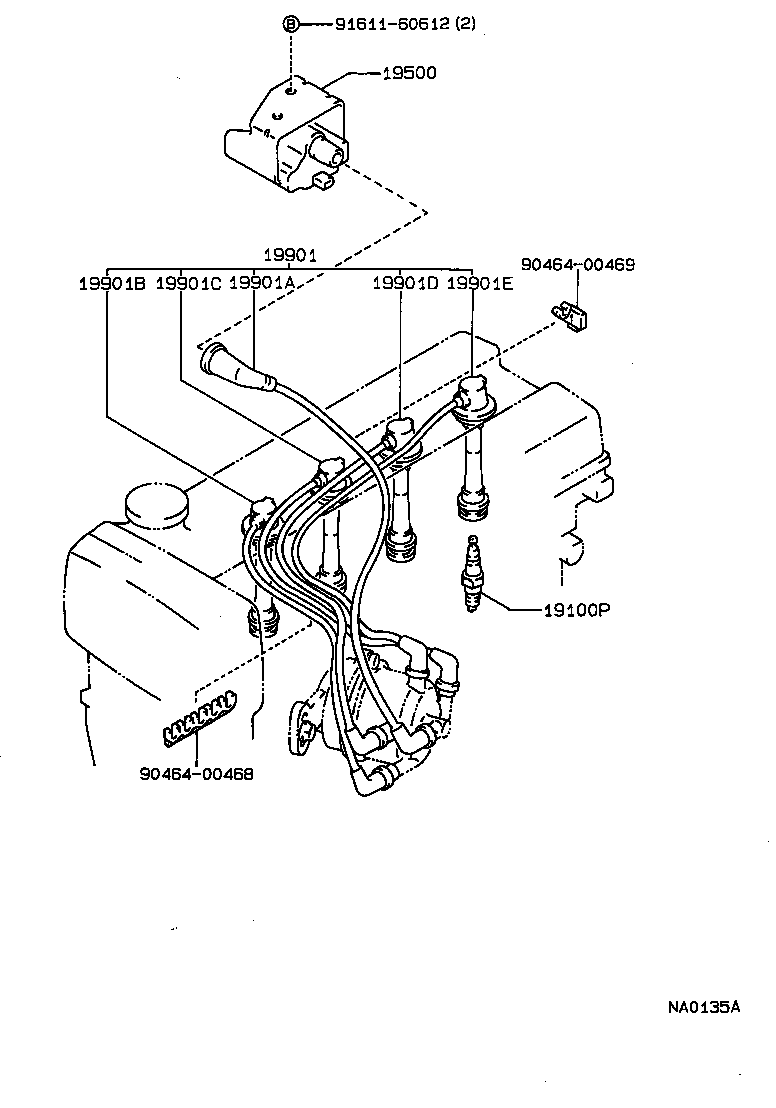

Figure NA0153B NA0153B 1987-05 → — Figure NA0135A NA0135A 1987-05 → 1989-05 Figure MAC257 MAC257 1989-05 → — Figure NA0020 NA0020 1987-05 → — Figure NA0925 NA0925 1987-08 → 1989-08 Figure NA0069D NA0069D 1987-05 → — Figure NA0069D NA0069D 1987-08 → — Figure NA0069D NA0069D 1989-08 → —

Part groups

PNCDescription
11265 Cover, Coil & Resistive Cord, Upr
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19942 Clamp, Resistive Cord, NO.2
19946 Clamp, Resistive Cord, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
