Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

7 part groups · 5 illustrations

Illustrations

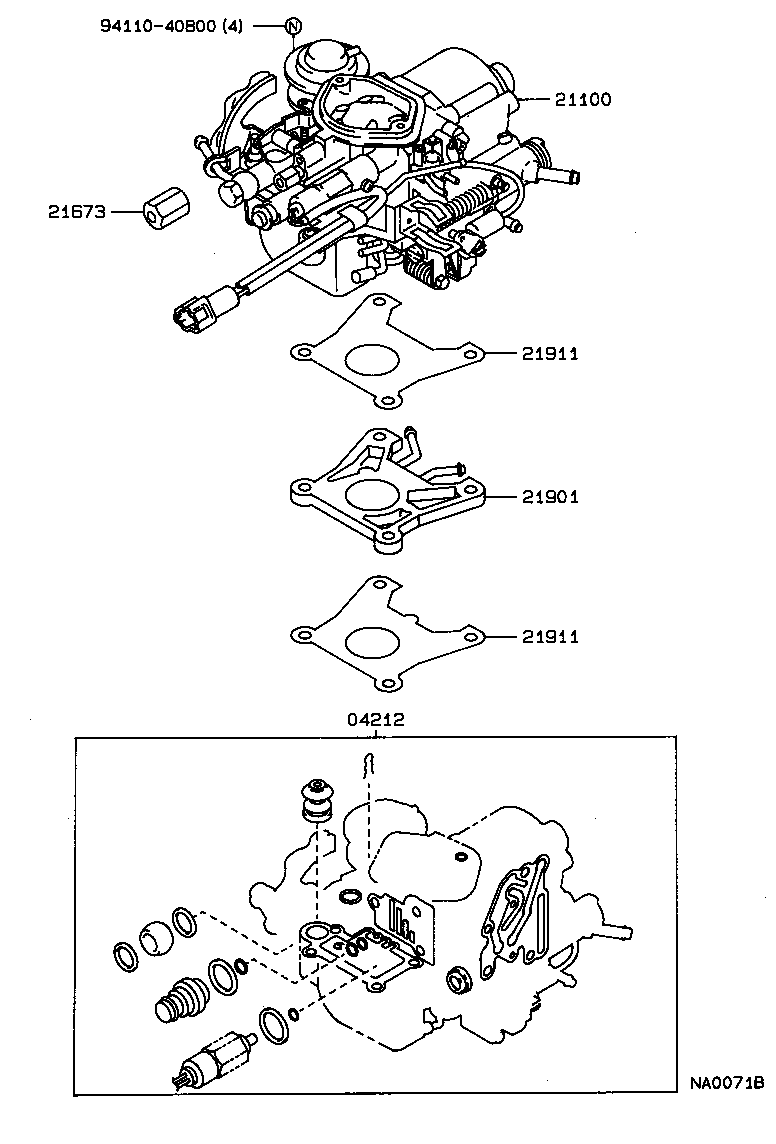

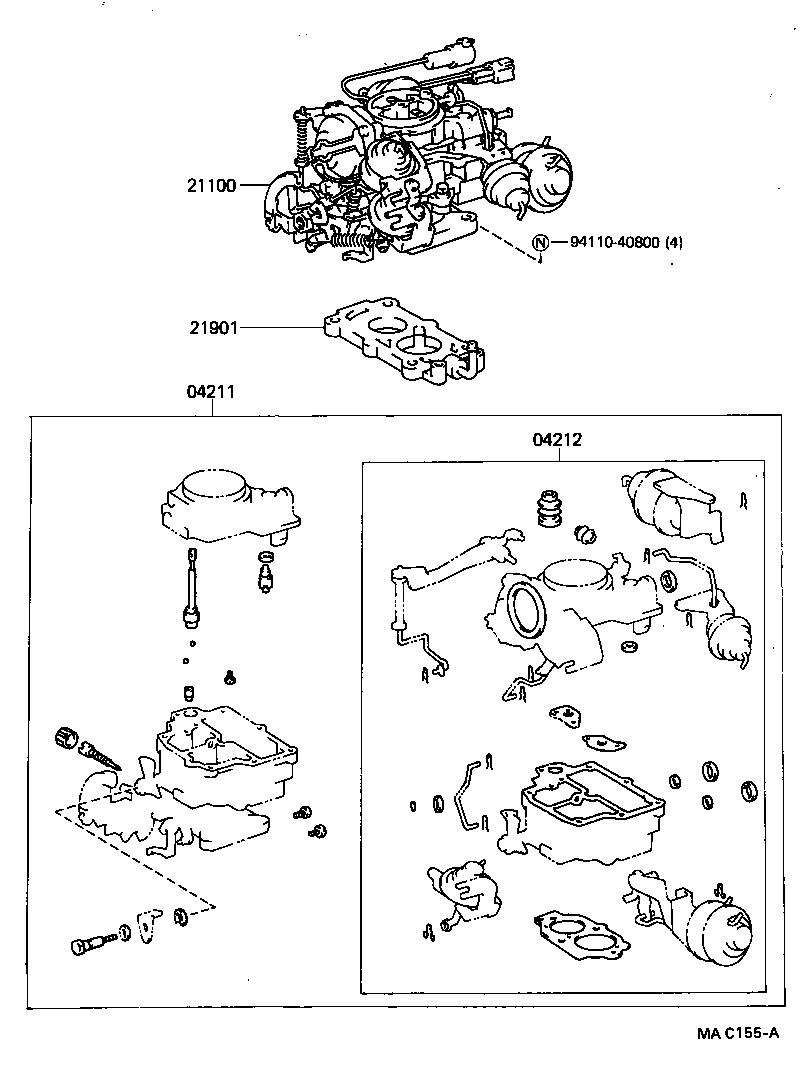

Figure NA0160C NA0160C 1987-05 → 1989-08 Figure NA0071B NA0071B 1987-05 → 1989-05 Figure NA0071B NA0071B 1987-08 → 1989-08 Figure MAC155A MAC155A 1989-05 → — Figure MAC155A MAC155A 1989-08 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21901 Insulator Sub-assy, Carburetor Heat, NO.1
21911 Gasket, Carburetor
21916 Gasket, Carburetor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
