Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

7 part groups · 2 illustrations

Illustrations

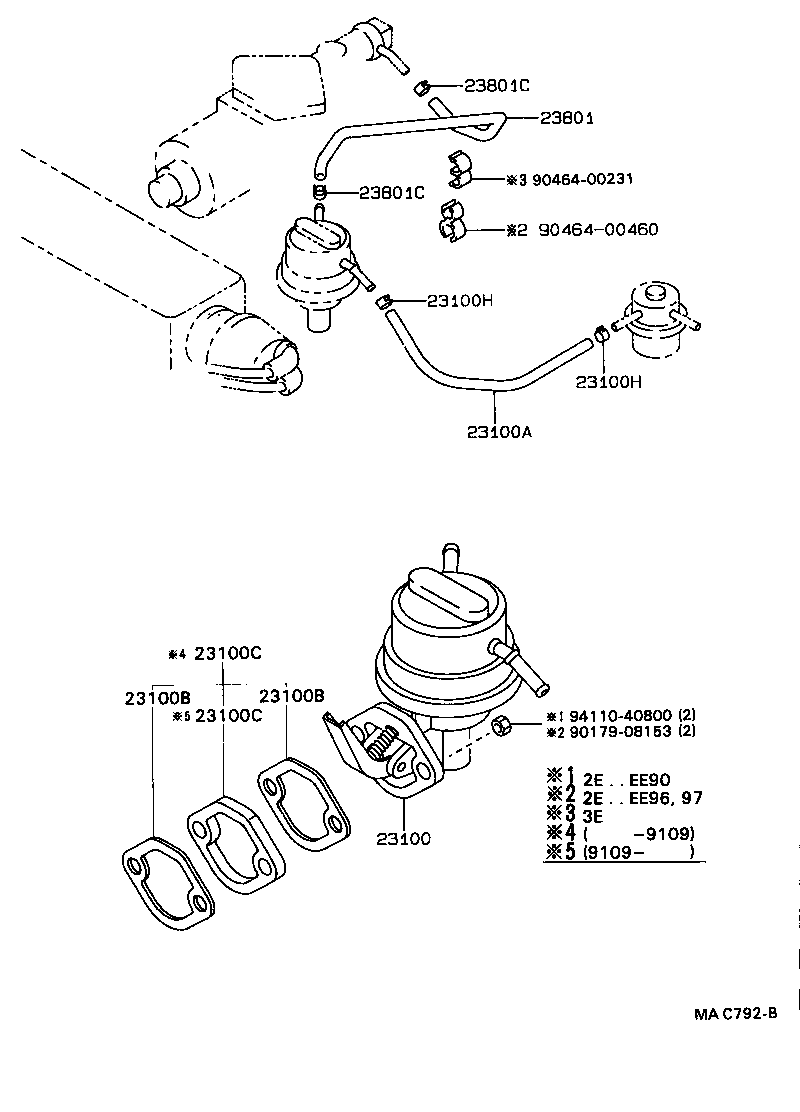

Figure NA0167 NA0167 1987-05 → 1989-08 Figure MAC792B MAC792B 1987-05 → —

Part groups

PNCDescription
23100 Pump Assy, Fuel
23100A Hose, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
