Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

11 part groups · 3 illustrations

Illustrations

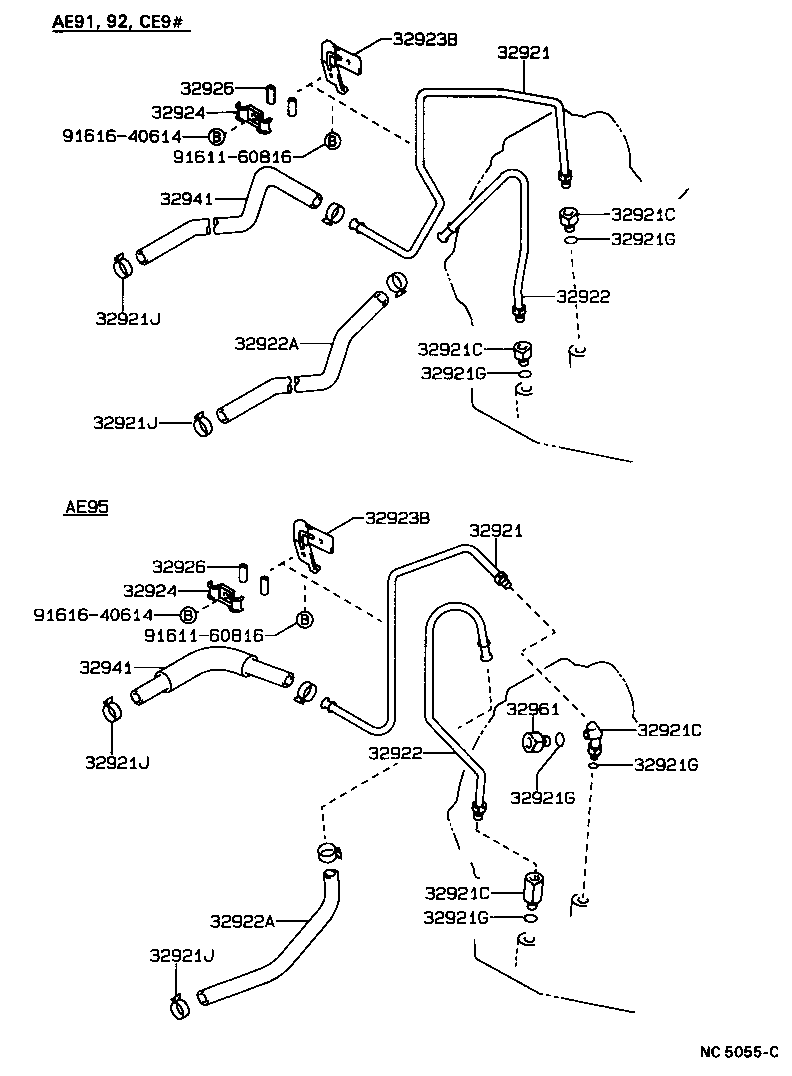

Figure NC0126B NC0126B 1987-05 → — Figure NC0127B NC0127B 1987-05 → — Figure NC5055C NC5055C 1987-05 → —

Part groups

PNCDescription
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32924 Clamp, Oil Cooler Tube, NO.2
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32961 Adapter, Oil Temperature Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
