Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 8 illustrations

Illustrations

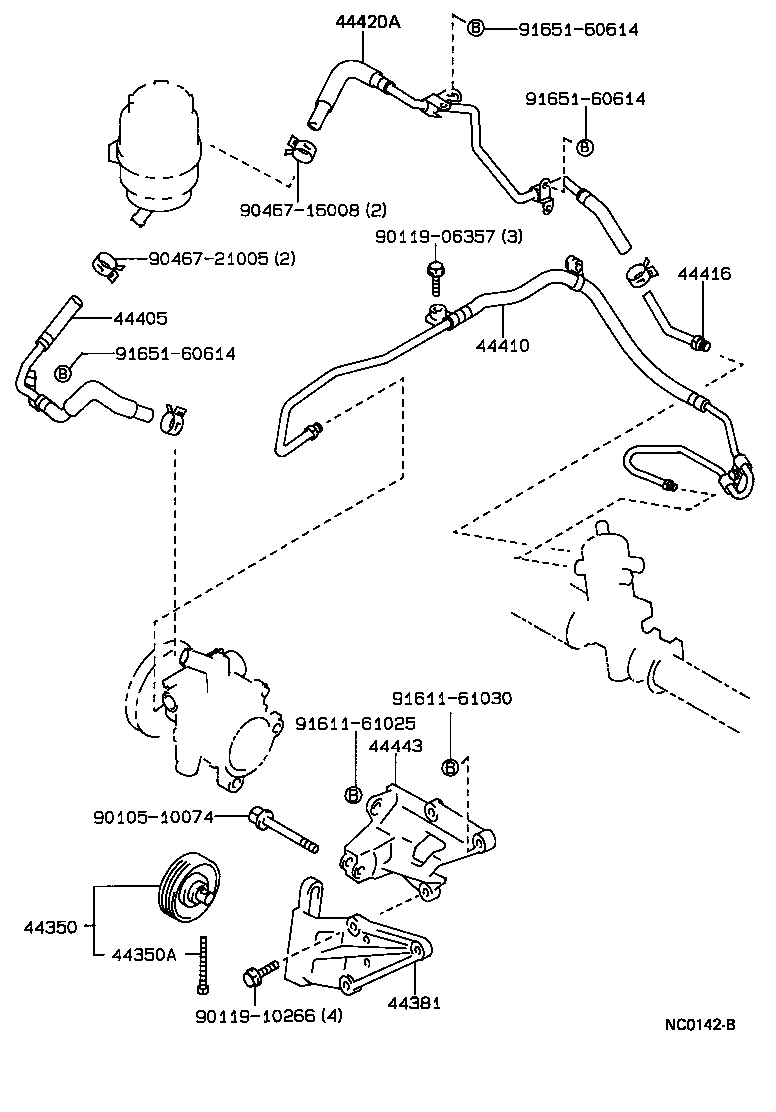

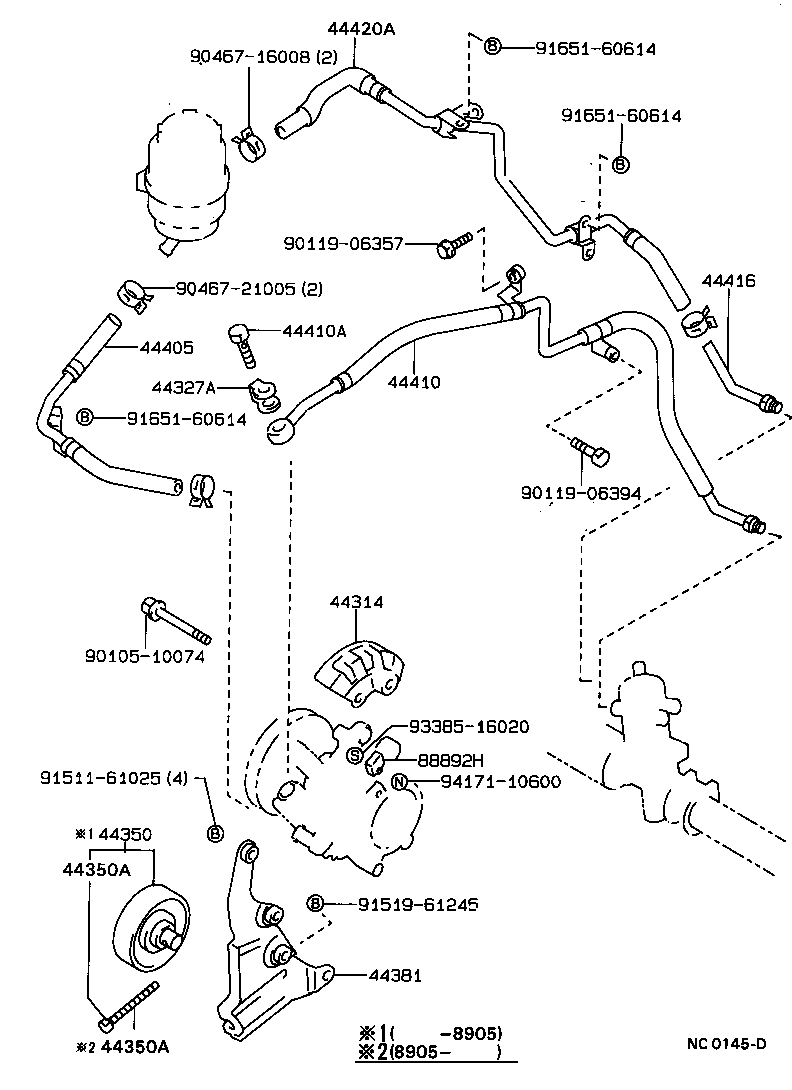

Figure NC0138C NC0138C 1987-05 → — Figure NC0138C NC0138C 1987-08 → — Figure NC0140 NC0140 1987-05 → — Figure NC0140 NC0140 1989-05 → — Figure NC0142B NC0142B 1987-05 → — Figure NC5090 NC5090 1987-10 → — Figure NC0145D NC0145D 1987-05 → — Figure NC0145D NC0145D 1987-08 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44443 Bracket, Pump
44446 Strut, Adjusting
88892H Plate Sub-assy, Air Purifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
