Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 2 illustrations

Illustrations

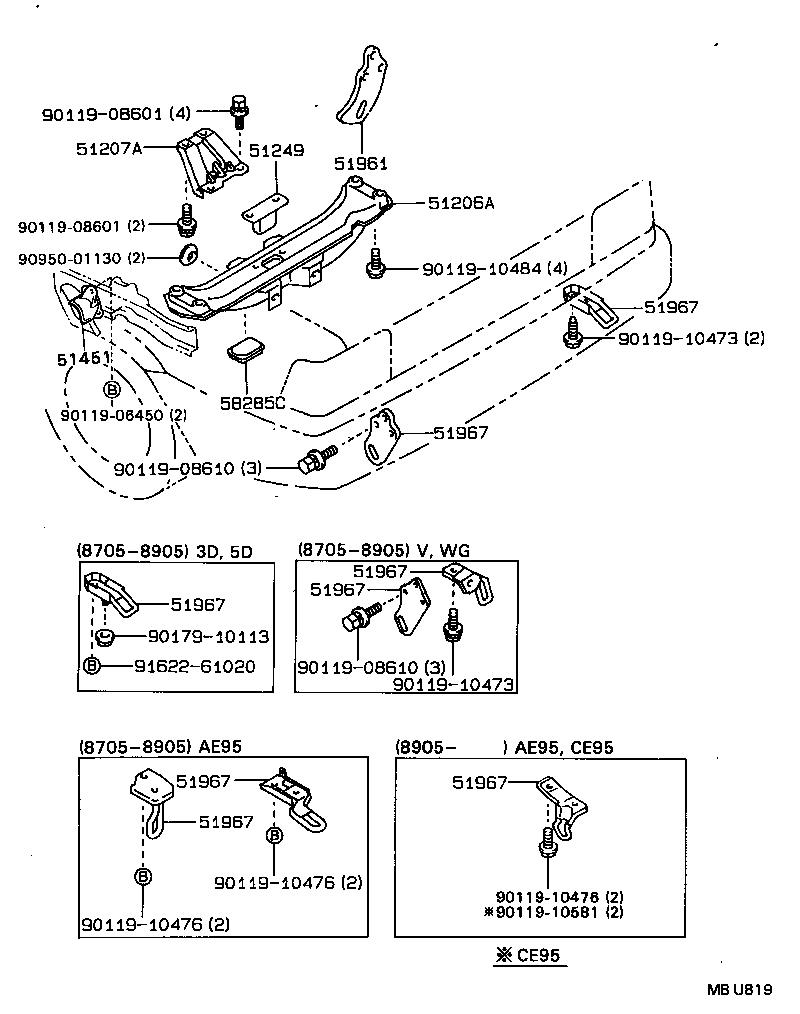

Figure NB0002G NB0002G 1987-05 → — Figure MBU819 MBU819 1987-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51207A Member Sub-assy, Differential Support
51209B Protector Sub-assy, Center Member, Front
51223A Cover, Engine Mounting Hole
51224 Cover, Engine Mounting Hole, NO.2
51227 Weight, Front Suspension Member Damper
51249 Damper, Rear Suspension Member
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51448A Cover, Engine Side Under, RH
51451 Cover, Engine Under, NO.4 RH
51961 Hook, NO.1
51967 Hook, Transport, Rear
58285C Cover, Rear Floor Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
