Rear Bumper & Bumper Stay

14 part groups · 5 illustrations

Illustrations

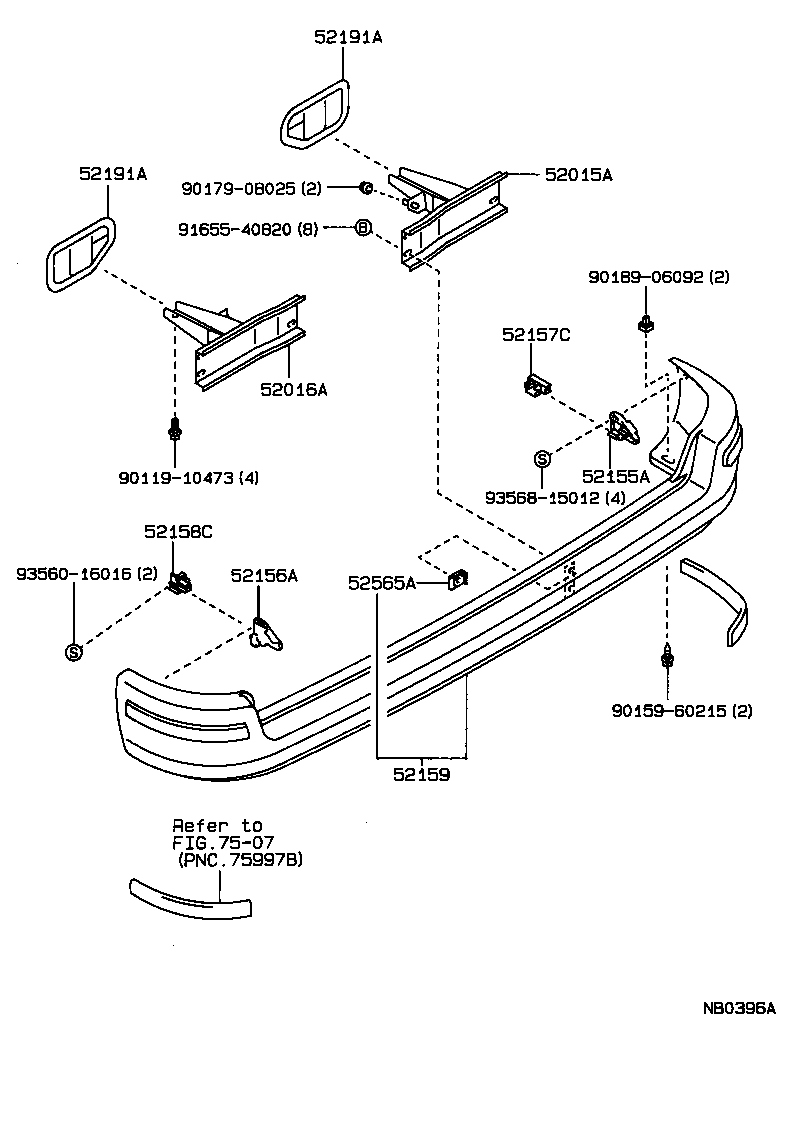

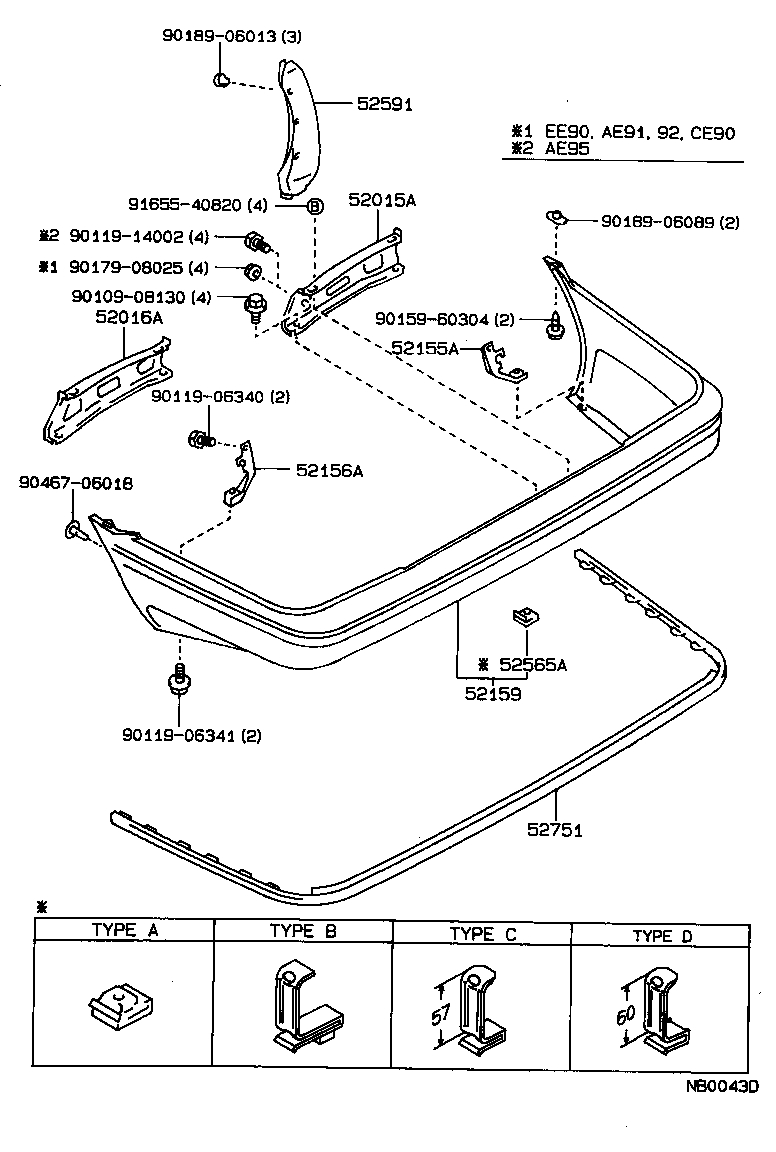

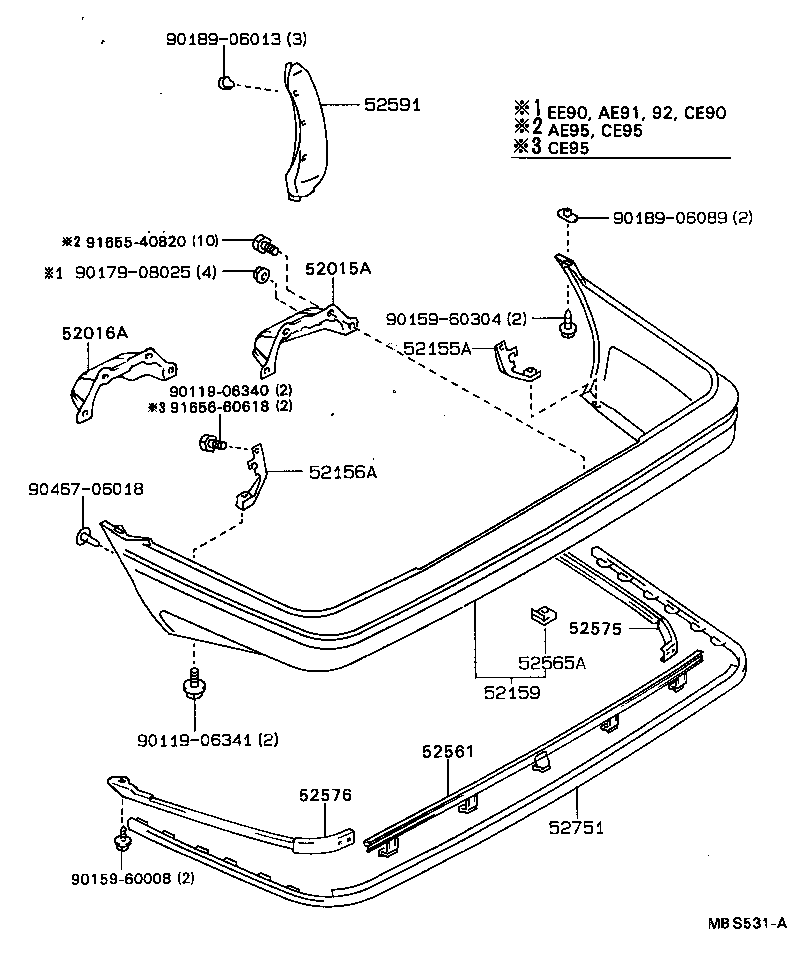

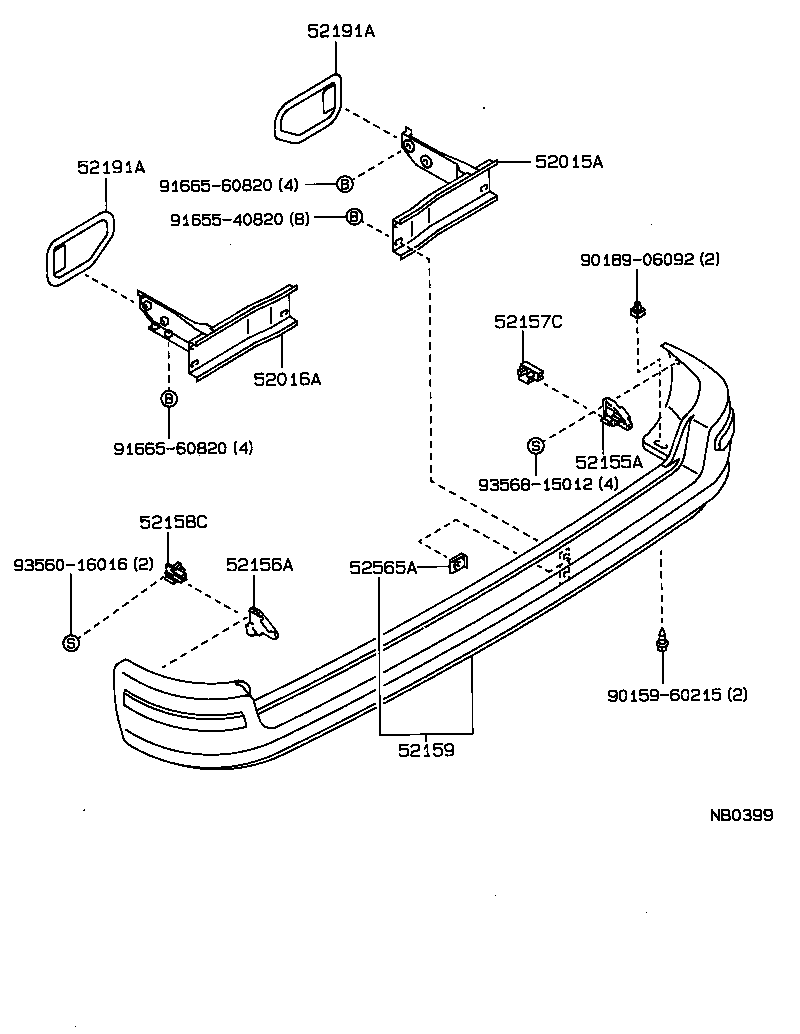

Figure NB0041D NB0041D 1987-05 → — Figure NB0043D NB0043D 1987-05 → 1989-05 Figure MBS531A MBS531A 1989-05 → — Figure NB0399 NB0399 1987-08 → — Figure NB0396A NB0396A 1987-08 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52191A Seal, Rear Bumper Arm
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
