Toyota Corolla
1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan
Discontinued model
Data version 1992-11
Floor Pan & Lower Back Panel

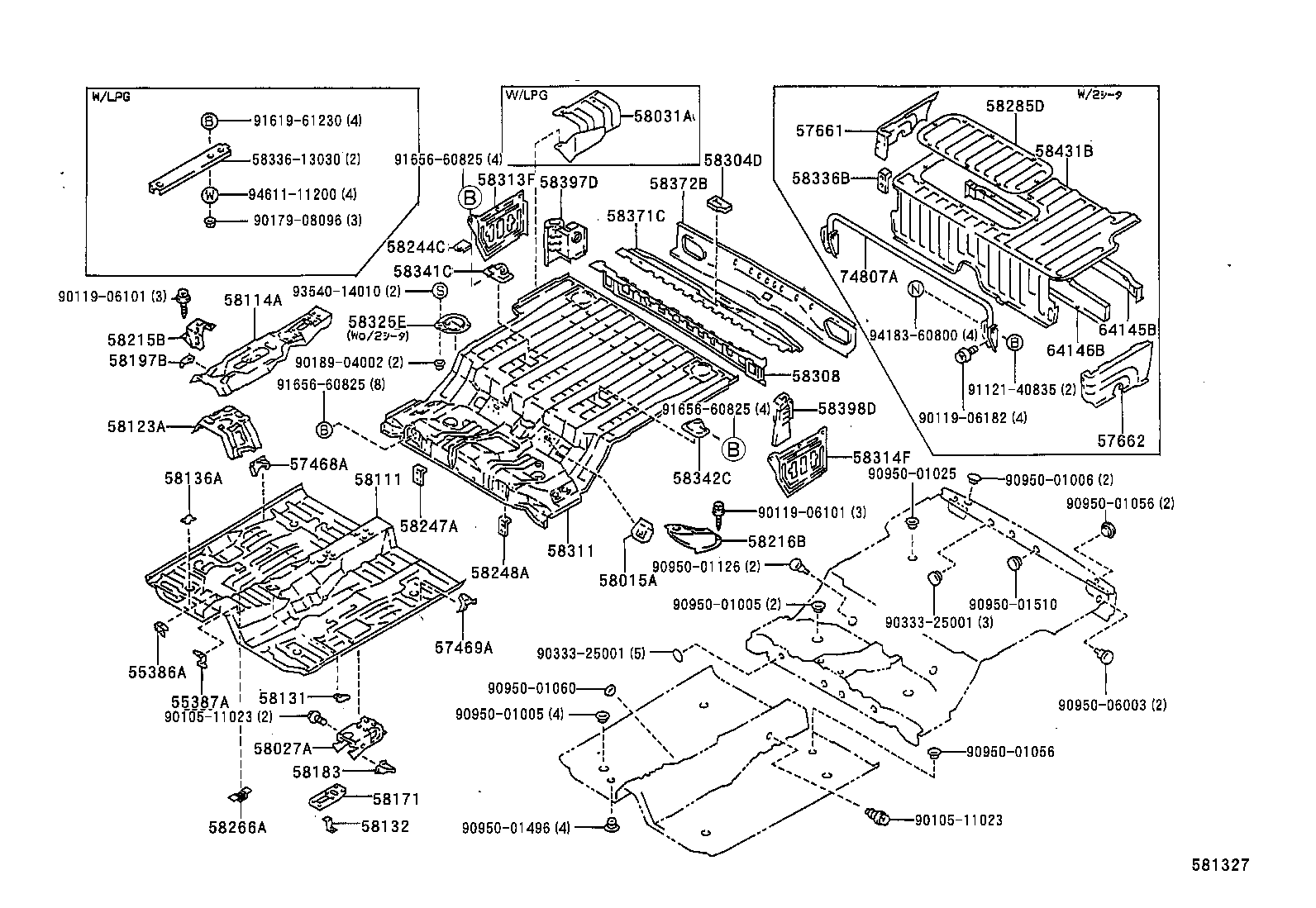

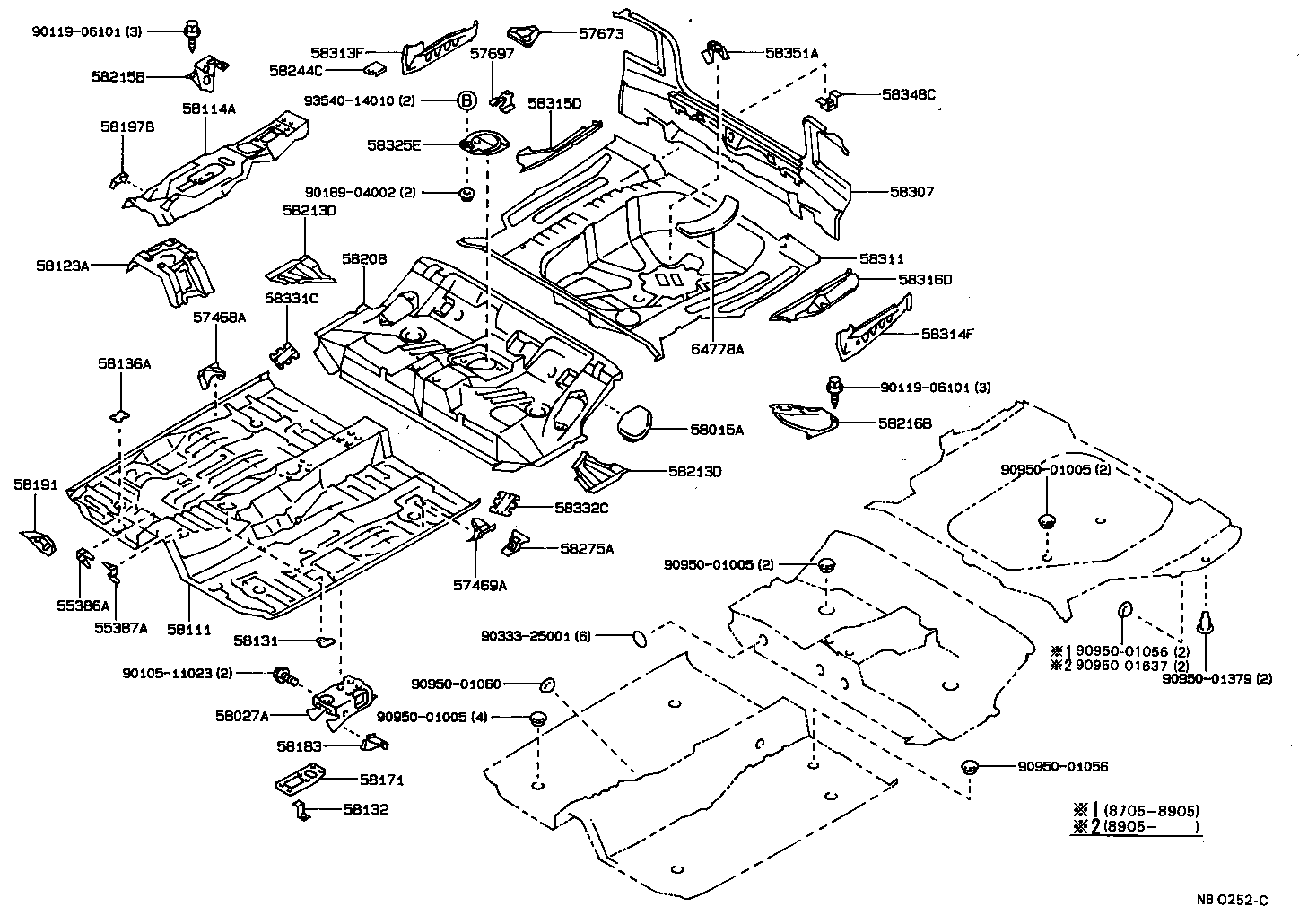

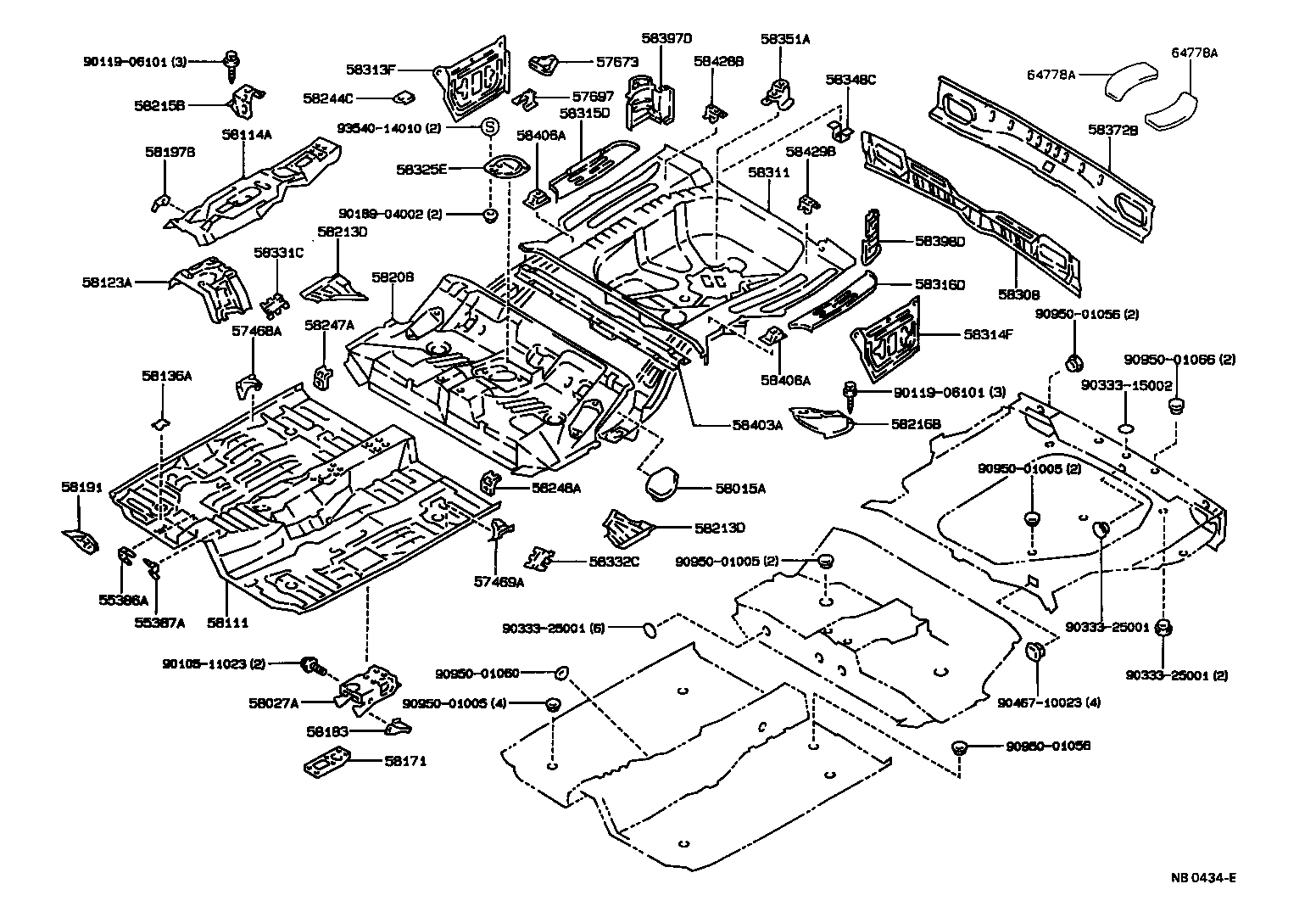

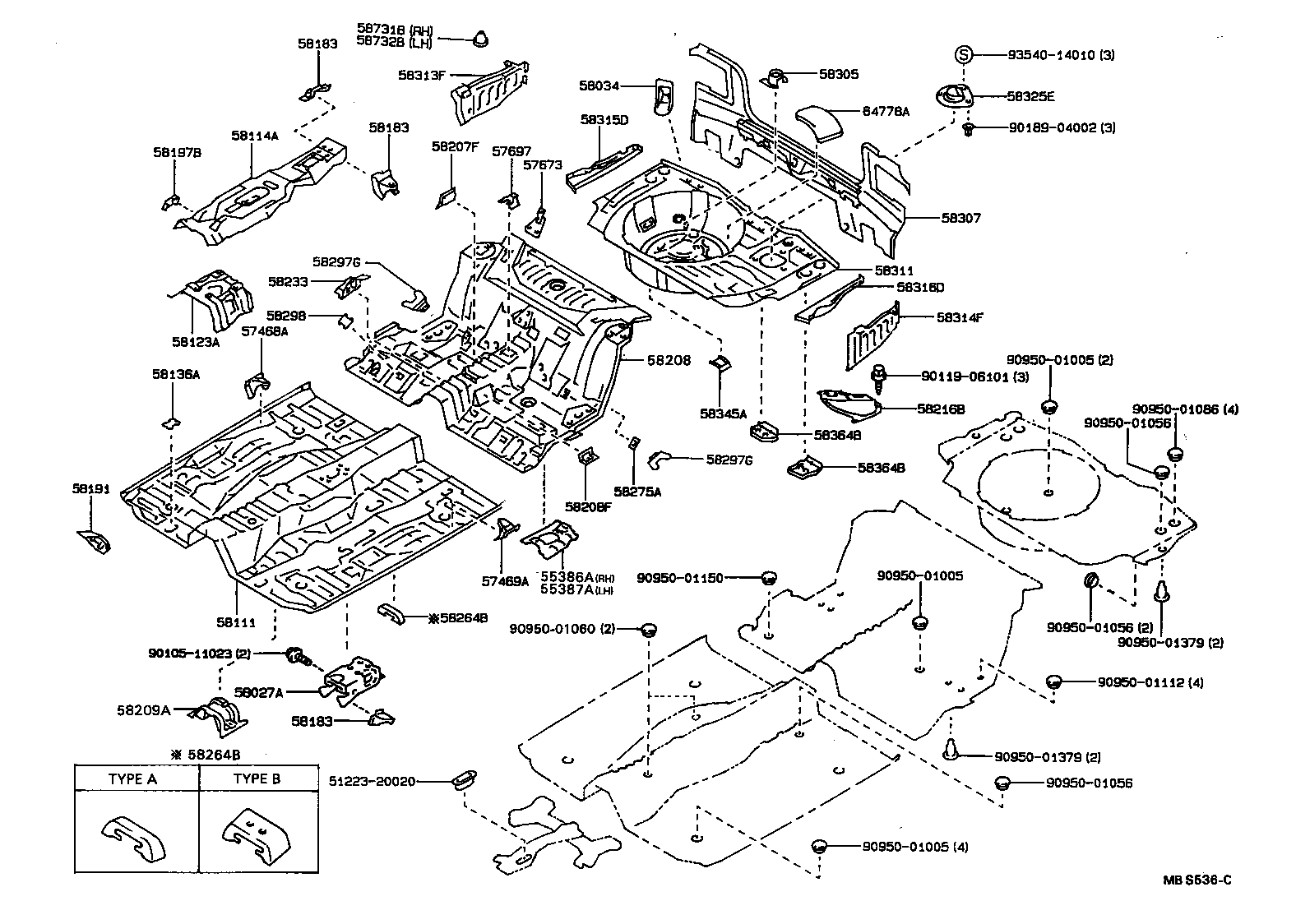

76 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55188 | Bracket, Under Tray Support |
| 55386A | Bracket, Computer Mounting, NO.1 |
| 55387A | Bracket, Computer Mounting, NO.2 |
| 57468A | Bracket, Front Seat, Outside, Rear RH |
| 57469A | Bracket, Front Seat, Outside, Rear LH |
| 57661 | Panel, Rear Floor Side, Front RH |
| 57662 | Panel, Rear Floor Side, Front LH |
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 57697 | Retainer, Rear Seat Cushion |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58027A | Reinforce Sub-assy, Seat Belt Anchor |
| 58031A | Insulator Sub-assy, Main Muffler Heat |
| 58034 | Bracket Sub-assy, Exhaust Pipe Support, Rear |
| 58111 | Pan, Front Floor |
| 58114A | Reinforcement, Front Floor Panel |
| 58123A | Support, Shift & Select Lever |
| 58131 | Bracket, Front Floor Heat Insulator, NO.1 |
| 58132 | Bracket, Front Floor Heat Insulator, NO.2 |
| 58136A | Cover, Front Floor Service Hole |
| 58171 | Reinforcement, Parking Brake Base |
| 58183 | Bracket, Front Seat Mounting, Inner |
| 58191 | Footrest, Front Floor |
| 58197B | Retainer, Instrument Panel Brace Mounting Bracket |
| 58207F | Clamp Sub-assy, Parking Brake Cable, RH |
| 58208 | Pan, Center Floor |
| 58208F | Clamp Sub-assy, Parking Brake Cable, LH |
| 58209A | Reinforcement Sub-assy, Drive Shaft Center Support |
| 58213D | Reinforcement, Center Floor Panel |
| 58215B | Bracket, Rear Seat Mounting, RH |
| 58216B | Bracket, Rear Seat Mounting, LH |
| 58233 | Bracket, Exhaust Pipe Mounting |
| 58244C | Bracket, Rear Seat Cushion Mounting, RH |
| 58247A | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58248A | Reinforcement, Rear Seat Cushion Hinge, LH |
| 58264B | Bracket, Parking Brake Cable Guide |
| 58266A | Bracket, Fuel Tube Clamp |
| 58266E | Bracket, Fuel Tube Clamp, Center |
| 58266F | Bracket, Fuel Tube Clamp, Rear |
| 58275A | Retainer, Rear Seatback TO Center Floor |
| 58285D | Cover, Rear Floor Hole |
| 58297G | Retainer, Floor Clamp |
| 58298 | Cover, Center Floor Hole, NO.2 |
| 58304D | Reinforce Sub-assy, Back Door Lock Striker |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58311 | Pan, Rear Floor |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58315D | Extension, Rear Floor Pan, RH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58331C | Cover, Rear Floor Side Service Hole, RH |
| 58332C | Cover, Rear Floor Side Service Hole, LH |
| 58336B | Reinforcement, Rear Floor Pan |
| 58341C | Bracket, Rear Absorber Mounting, NO.1 RH |
| 58342C | Bracket, Rear Absorber Mounting, NO.1 LH |
| 58345A | Bracket, Rear Floor Heat Insulator, NO.1 |
| 58348C | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58351A | Bracket, Spare Wheel Carrier |
| 58364B | Bracket, Fuel Tank Support |
| 58371C | Panel, Body Lower Back, Upper |
| 58372B | Panel, Body Lower Back, Lower |
| 58397D | Panel, Rear Floor End Dust Seal, RH |
| 58398D | Panel, Rear Floor End Dust Seal, LH |
| 58403A | Reinforcement Sub-assy, Deck Board |
| 58406A | Bracket Sub-assy, Deck Board |
| 58428B | Bracket, Deck Board, NO.5 RH |
| 58429B | Bracket, Deck Board, NO.5 LH |
| 58431B | Pan, Rear Floor, Front |
| 58731B | Cap, Rear Absorber, RH |
| 58732B | Cap, Rear Absorber, LH |
| 64145B | Reinforcement, Rear Floor, Rear |
| 64146B | Reinforcement, Rear Floor, Front |
| 64778A | Protector, Spare Wheel |
| 74807A | Bar Sub-assy, Rear Separator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
