Toyota Corolla
1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan
Discontinued model
Data version 1992-11

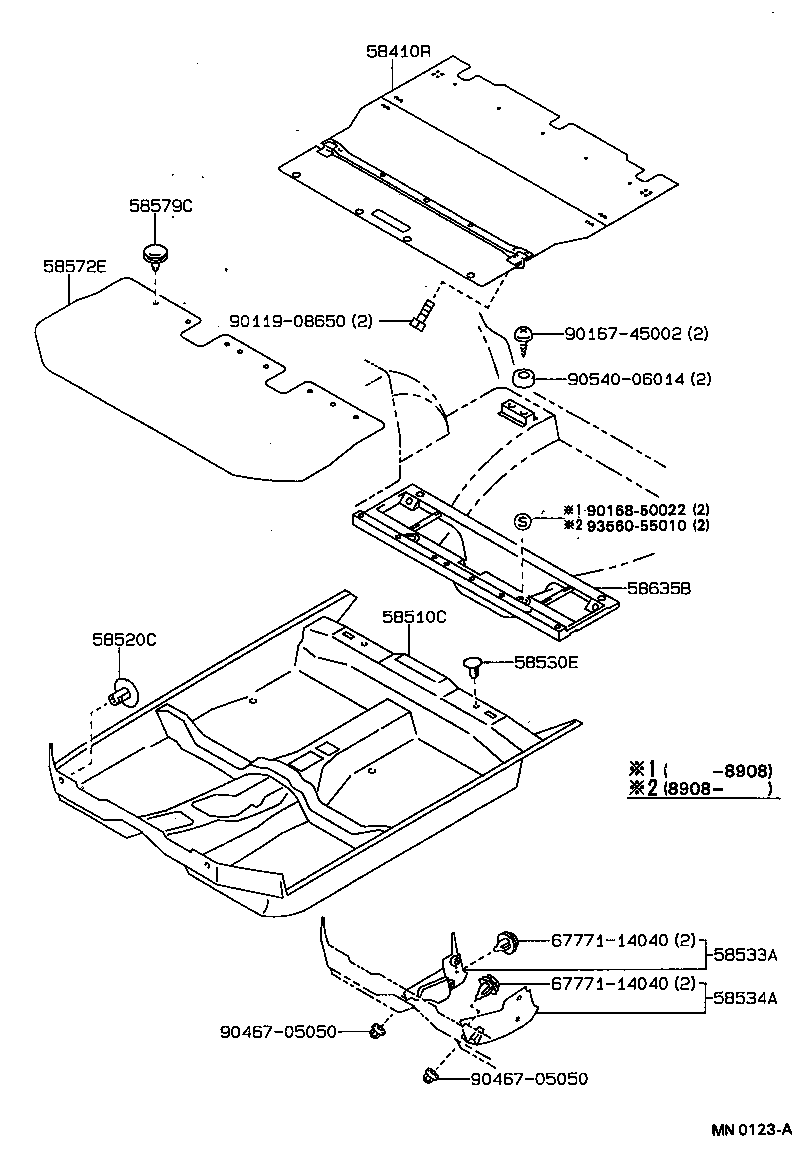

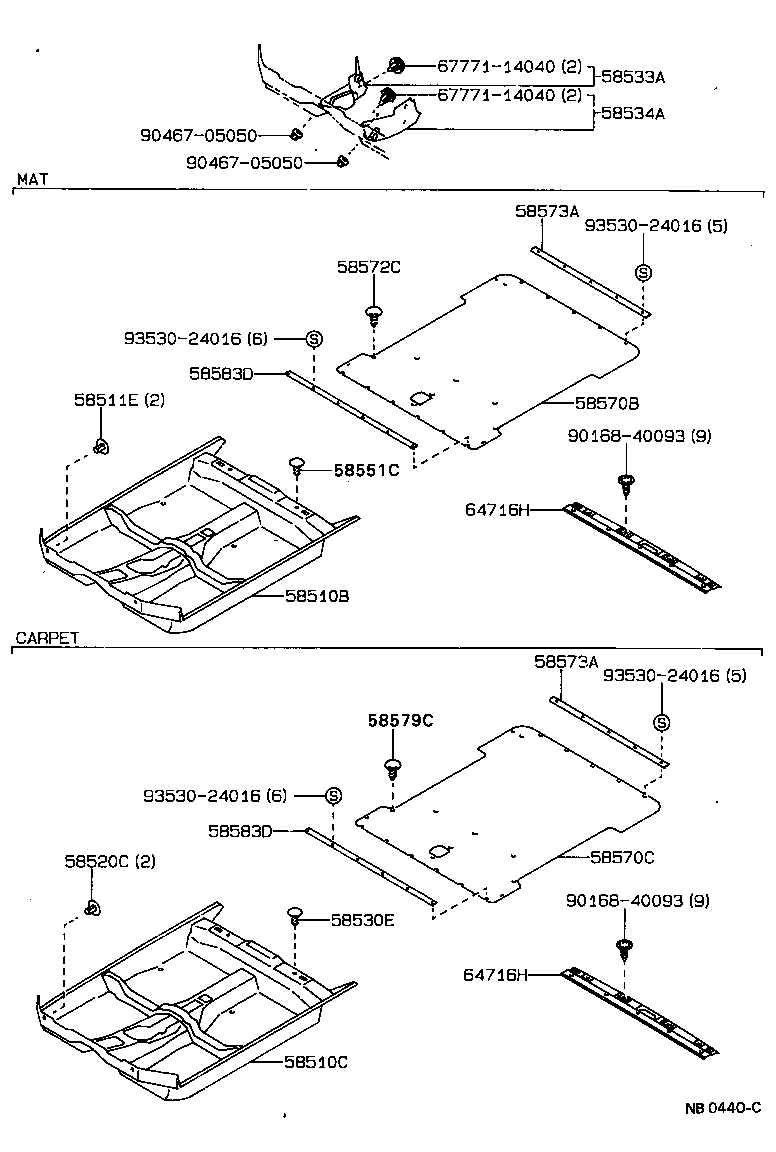

Mat & Carpet
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410R | Board Assy, Deck |
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58530E | Clip(FOR FRONT FLOOR REAR CARPET) |
| 58533A | Cover, Floor Carpet, Center RH |
| 58534A | Mat, Transmission Cover |
| 58551C | Clip(FOR FLOOR MAT, REAR) |
| 58570B | Mat Assy, Rear Floor |
| 58570C | Carpet Assy, Rear Floor |
| 58572C | Clip, Rear Floor Mat Set |
| 58572E | Mat, Rear Floor, Front |
| 58573A | Plate, Rear Floor Mat Support |
| 58579C | Clip, Rear Floor Carpet Set |
| 58583D | Plate, Rear Seatback Carpet Support |
| 58635B | Box, Seat Floor |
| 64716H | Cover, Deck Trim, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
