Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

8 part groups · 2 illustrations

Illustrations

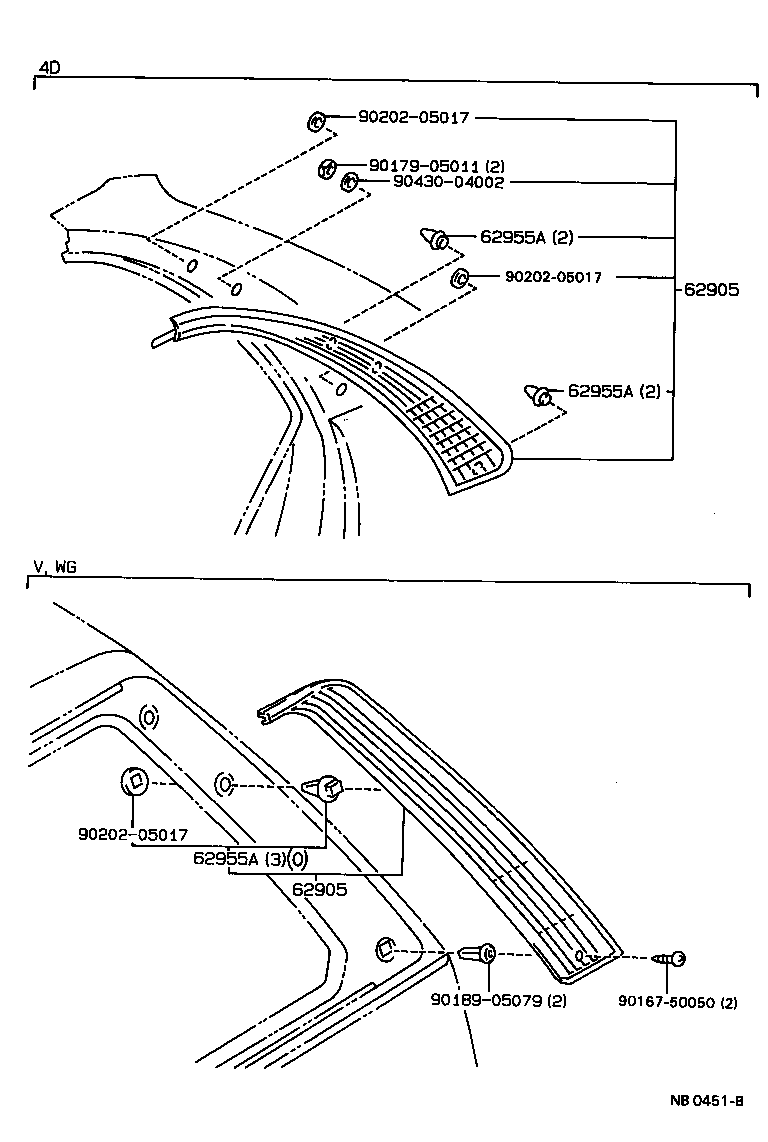

Figure NB0034A NB0034A 1987-05 → — Figure NB0451B NB0451B 1987-05 → —

Part groups

PNCDescription
62850 Valve Assy, Room Pressure Relief, RH
62860 Valve Assy, Room Pressure Relief, LH
62905 Louver, Quarter Ventilation
62931A Duct, Quarter Vent, RH
62932A Duct, Quarter Vent, LH
62940B Duct Assy, Quarter Vent, LH
62955A Retainer, Quarter Vent Louver
62991A Pad, Quarter Vent Louver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
