Toyota Corolla

1987-05 → 1992-05 · chassis AE9#,CE9#,EE9# · catalogue 151120 · Japan

Discontinued model Data version 1992-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Quarter Window

16 part groups · 3 illustrations

Illustrations

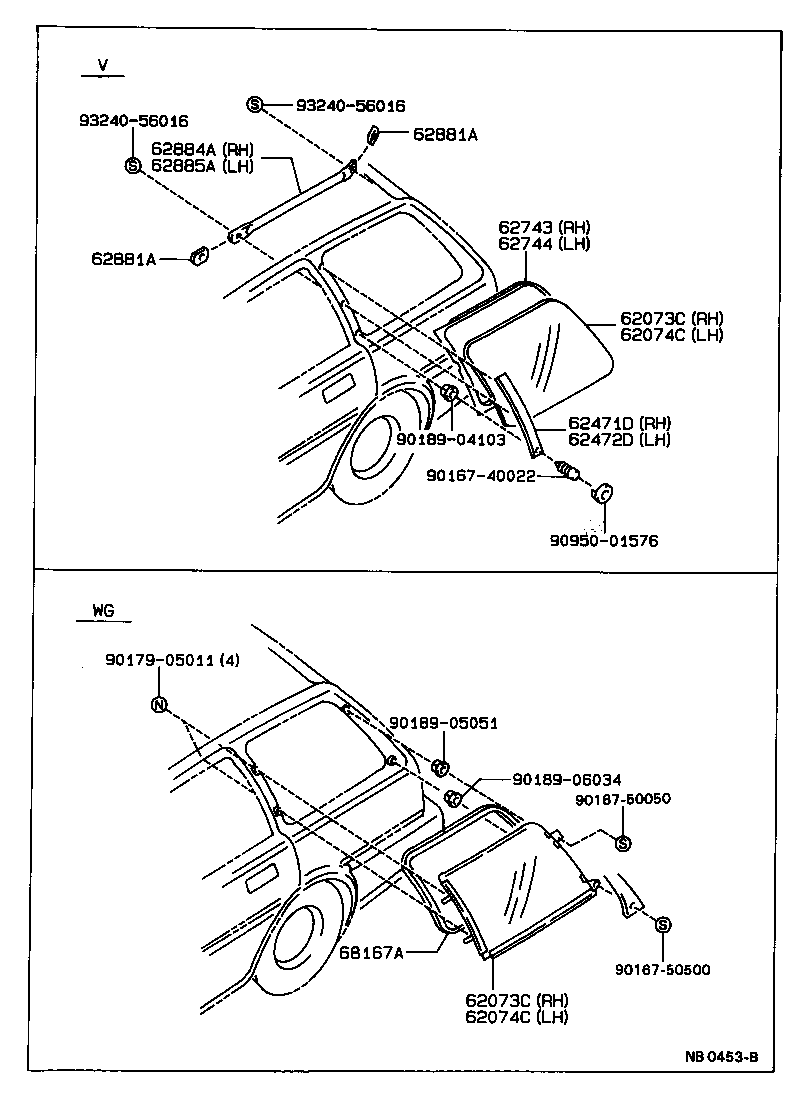

Figure NB0036A NB0036A 1987-05 → — Figure NB0118 NB0118 1987-05 → — Figure NB0453B NB0453B 1987-08 → —

Part groups

PNCDescription
62073C Glass Sub-assy, Quarter, Rear RH
62074C Glass Sub-assy, Quarter, Rear LH
62471D Garnish, Rear Pillar, Upper RH
62472D Garnish, Rear Pillar, Upper LH
62711 Glass, Quarter Window, RH
62712 Glass, Quarter Window, LH
62735 Retainer, Quarter Window Hinge
62741 Weatherstrip, Quarter Window, RH
62742 Weatherstrip, Quarter Window, LH
62743 Weatherstrip, Quarter Window, Rear RH
62744 Weatherstrip, Quarter Window, Rear LH
62881A Bracket, Quarter Window Guard
62884A Guard, Quarter Window, RH
62885A Guard, Quarter Window, LH
62910D Lock Assy, Quarter Window
68167A Weatherstrip, Quarter Window NO.2 Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
